Night Latches & Rim Locks
Surface-mounted night latches and rim locks, most with a 60mm backset, fitted through a single cylinder hole in an existing door.
Canton Hyland manufactures every night latch and rim lock in this range in Guangdong, China, with 25 published models. Production lead time starts at 30 days from order confirmation, and we produce under our customers' own brands (OEM and private label). Send your door schedule to the export team for model numbers, finishes and a confirmed date.
25 products · showing 1–20
Catalog order
Night Latch And Rim Lock
Model 1073D MB · Video
Iron case, steel base internal components with zinc plated, 3 pcs brass keys , brass latch and cylinder
Backset 60mm

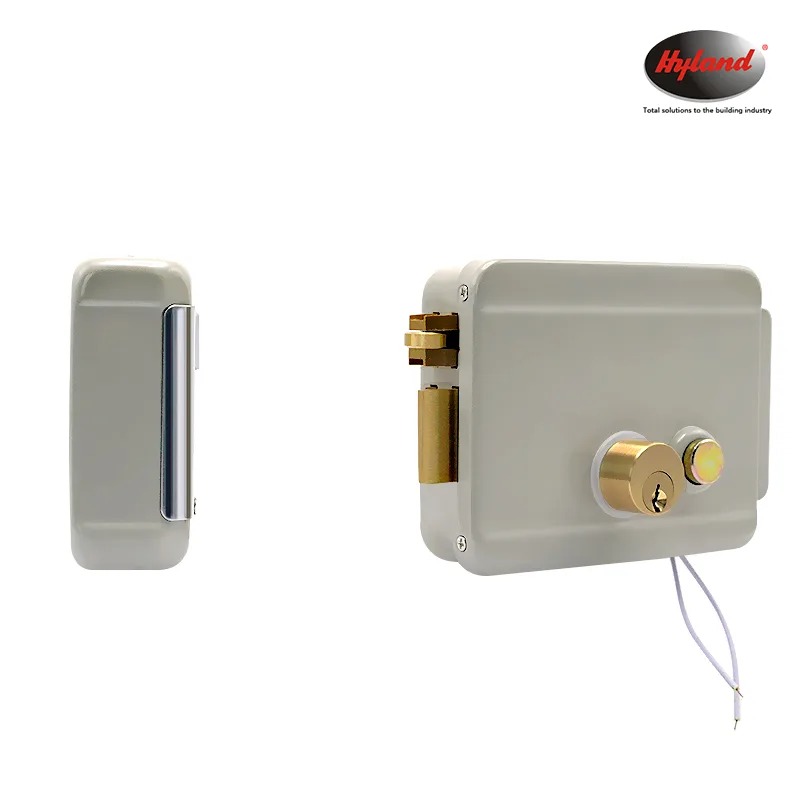

Night Latch And Rim Lock
Model 1073D · Video
Iron case, steel base internal components with zinc plated, 3 pcs brass keys , brass latch and cylinder
Backset 60mm
Night Latch And Rim Lock
Model 1073S · Video
Iron case, steel base internal components with zinc plated finish, 3 pcs brass keys , brass latch and cylinder
Backset 60mm (2-3/8”)

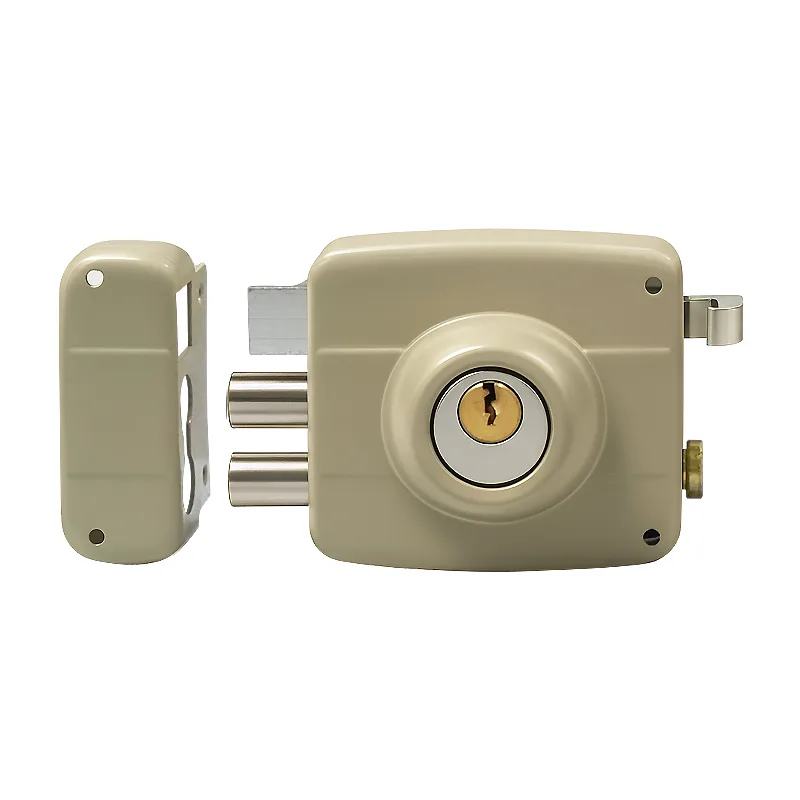

Night Latch And Rim Lock
Model 260
Iron
Backset 60mm (2-3/8”)

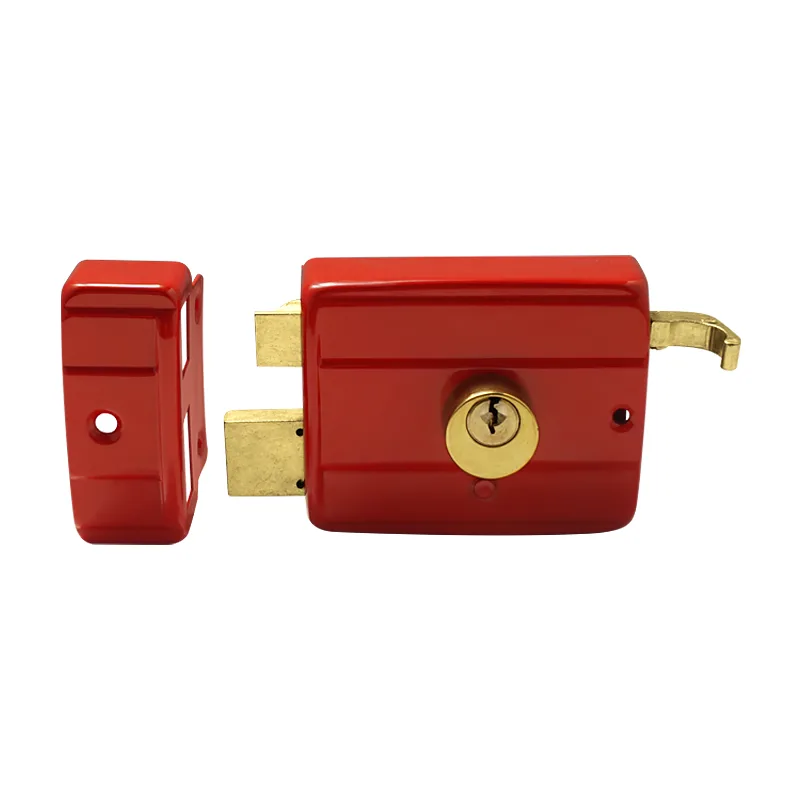

Night Latch And Rim Lock
Model 556
Iron
Backset 60mm (2-3/8”)

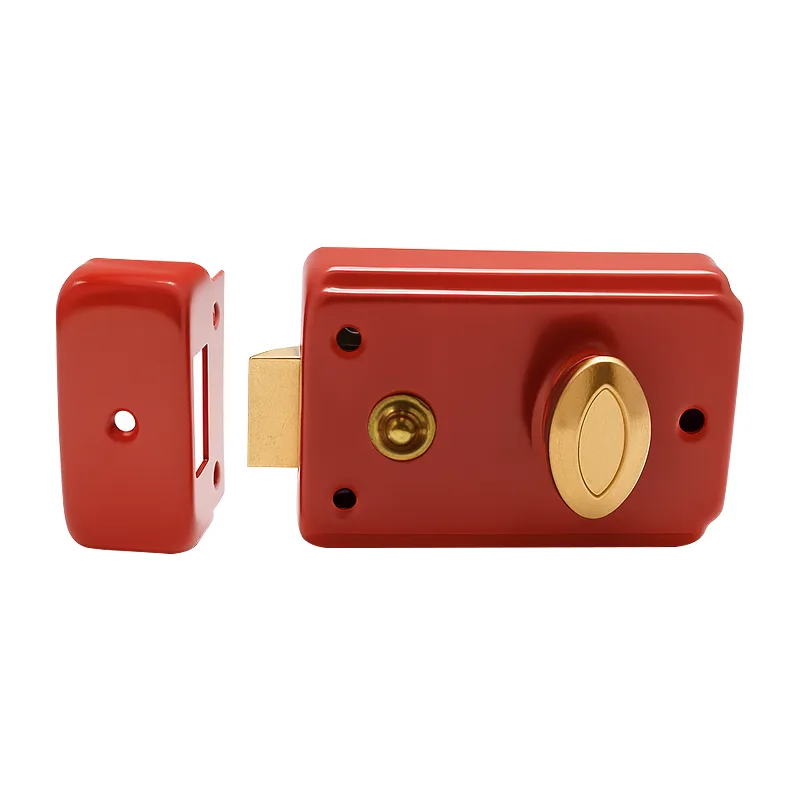

Night Latch And Rim Lock
Model 558
Iron
Backset 60mm (2-3/8”)

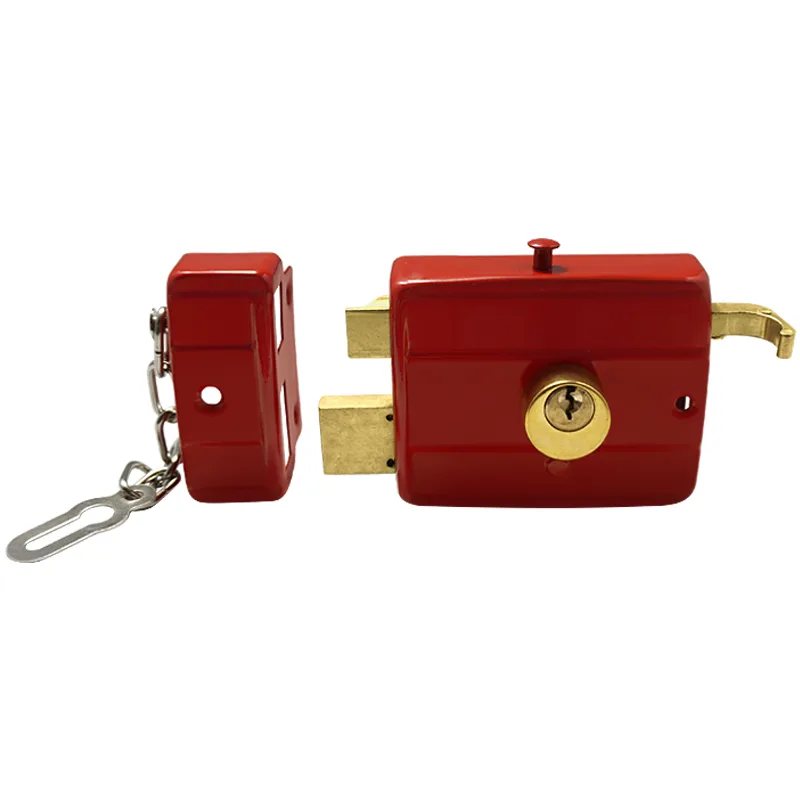

Night Latch And Rim Lock
Model 559
Iron
Deadbolt throw 25mm on rim deadbolt versions

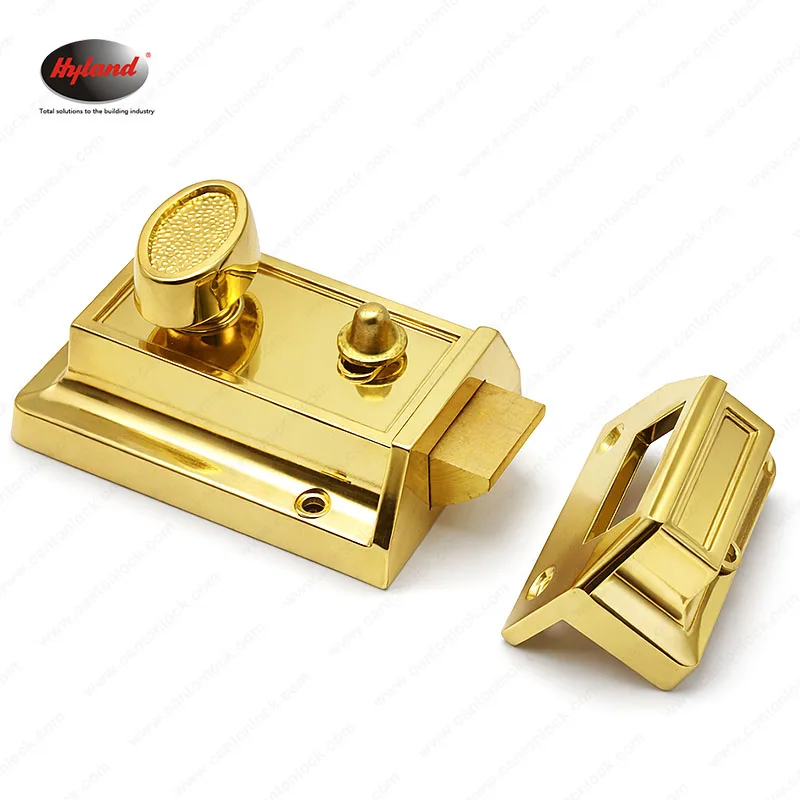

Night Latch And Rim Lock
Model 564 MB · Video
Backset 2-3/8" (60mm)

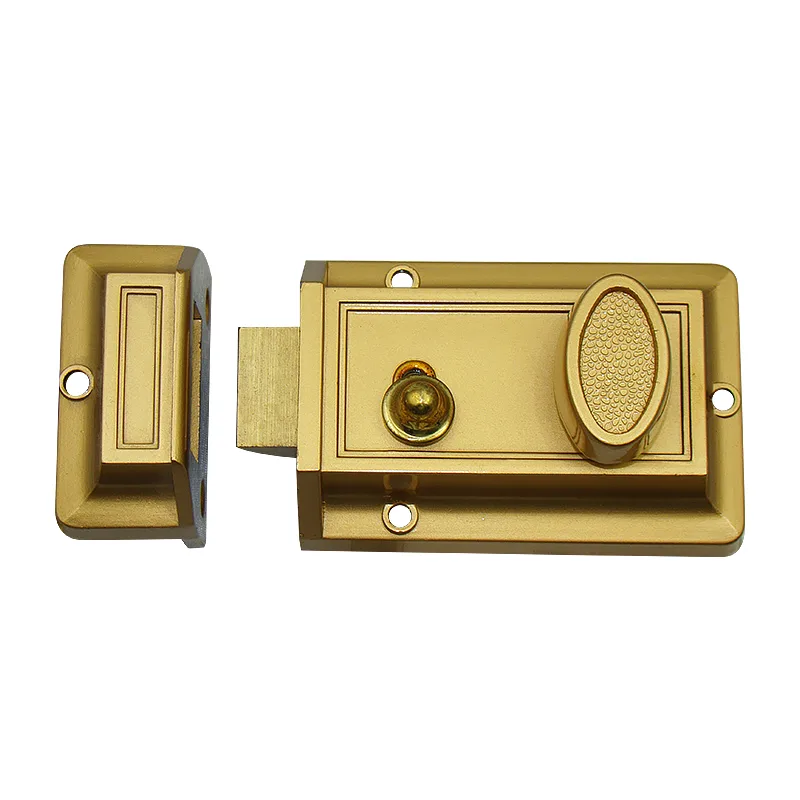

Night Latch And Rim Lock
Model 564
Zinc Alloy
Backset 60mm

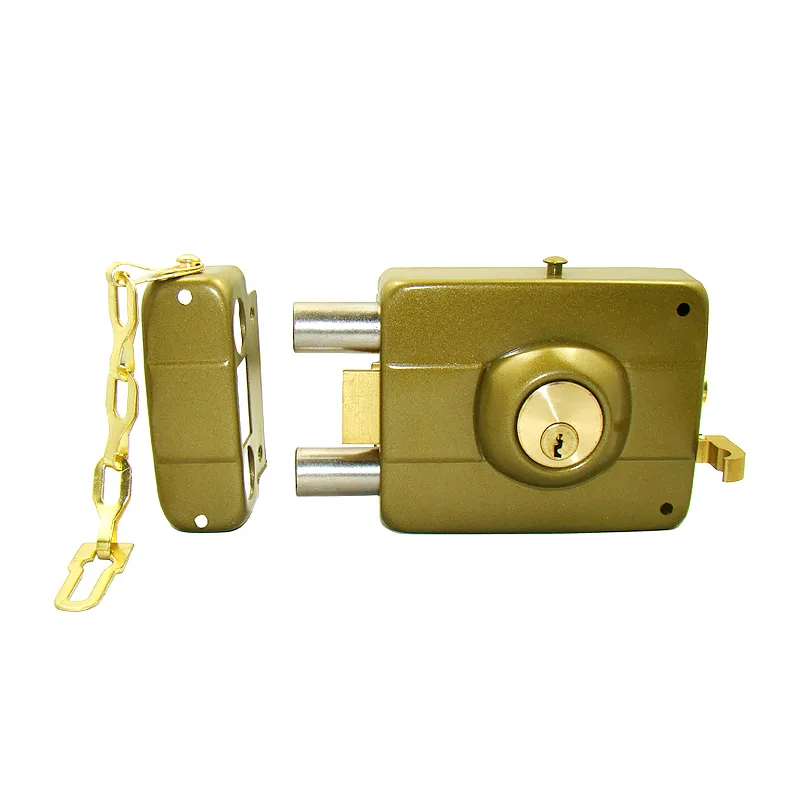

Night Latch And Rim Lock
Model 5681
Iron case, with 3 pcs brass keys , brass latch.
Backset 60mm

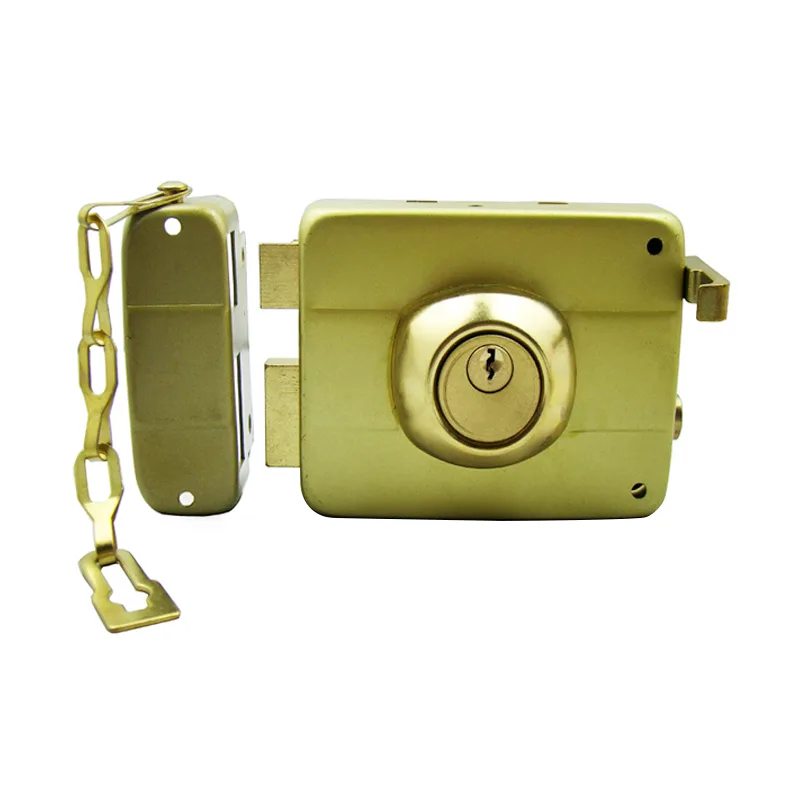

Night Latch And Rim Lock
Model 5682
Iron case, with 3 pcs brass keys , zinc alloy latch and cylinder
Backset 2-3/8＂(60mm)

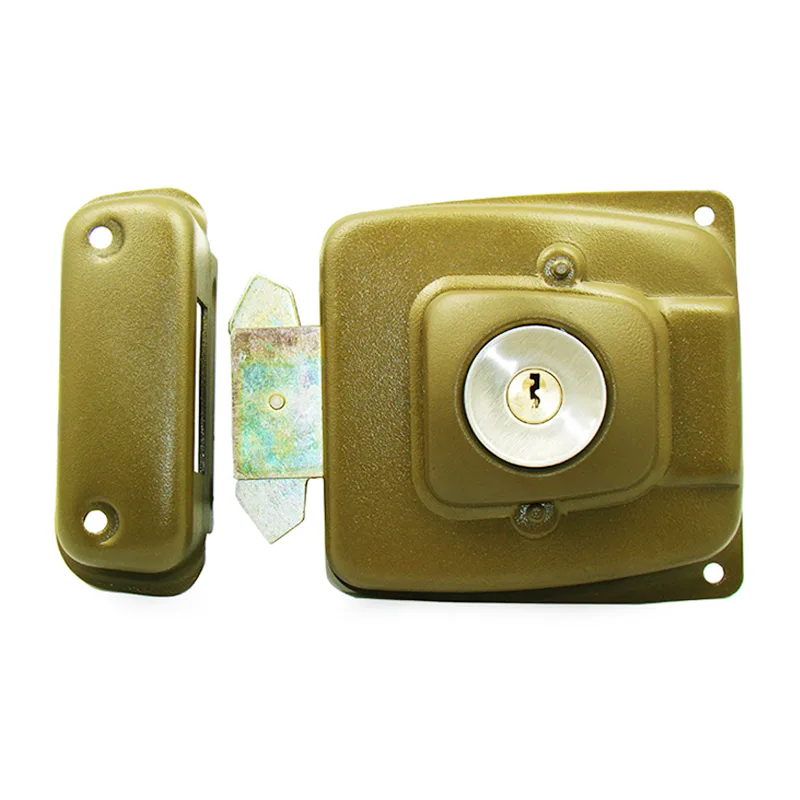

Night Latch And Rim Lock
Model 5683
Iron
Night Latch And Rim Lock
Model 5687
Iron case, steel base internal components with zinc plated, 3 pcs brass keys , brass latch and cylinder
Size 100*100mm
Night Latch And Rim Lock
Model 5688 · Video
Iron Case
Backset 60mm
Night Latch And Rim Lock
Model 5689 · Video
Iron case, steel base internal components with zinc plated finish
Backset 50mm
Night Latch And Rim Lock
Model 5833
Iron And Brass
Night Latch And Rim Lock
Model 5834
Iron case, steel base internal components with zinc plated, 3 pcs brass keys , brass latch and cylinder
Backset 50mm

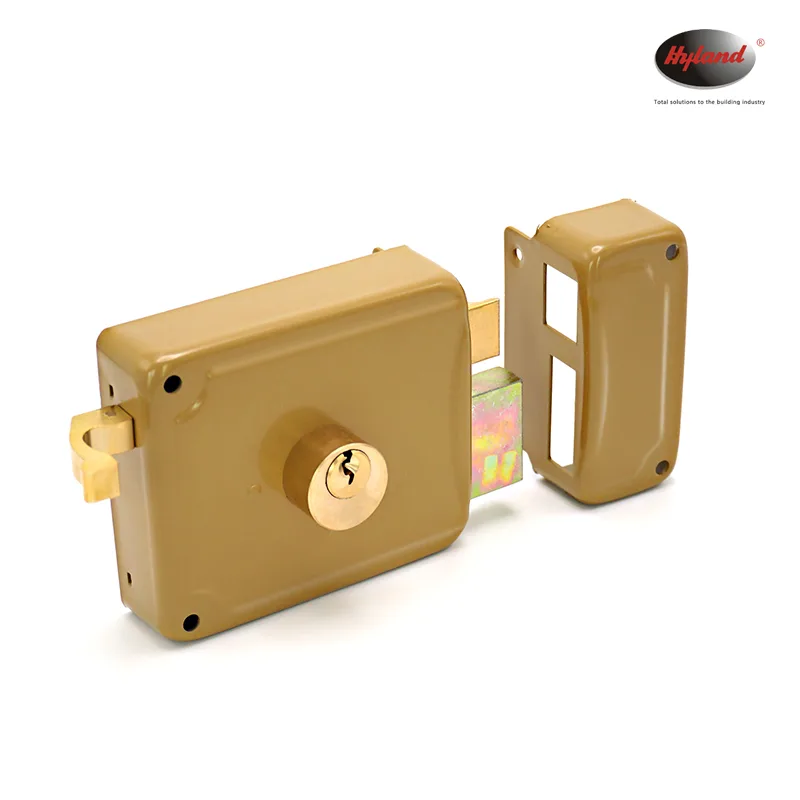

Night Latch And Rim Lock
Model 5835 · Video
Steel sheet 1.2mm case, zinc alloy and copper alloy internal components, solid brass cylinders, 4 keys
Backset 50mm

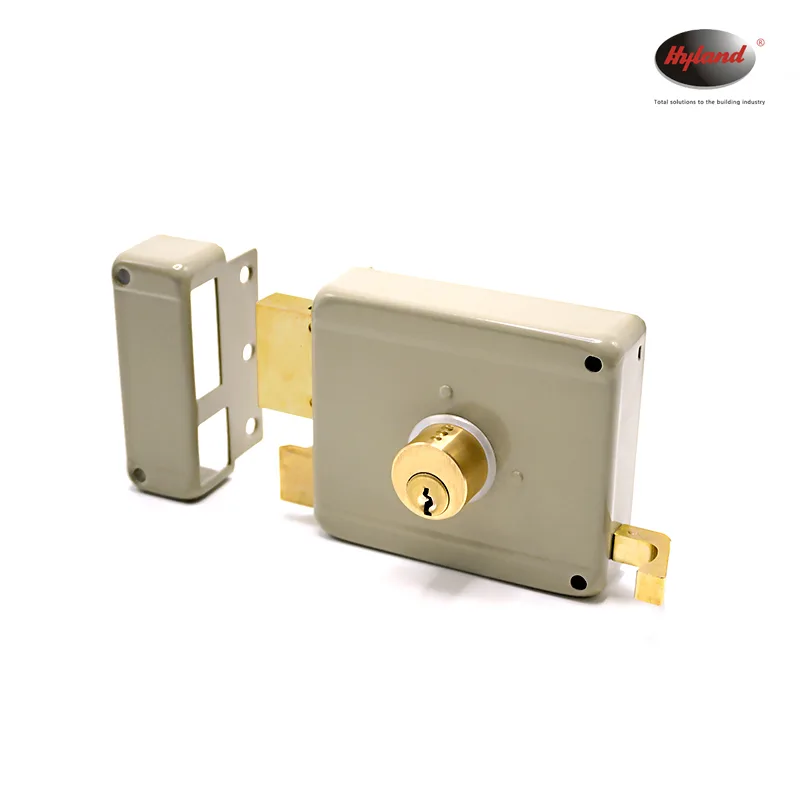

Night Latch And Rim Lock
Model 5836 · Video
Steel sheet 1.2mm case, zinc alloy and copper alloy internal components, solid brass cylinders, 4 keys
Deadbolt throw 25mm on rim deadbolt versions

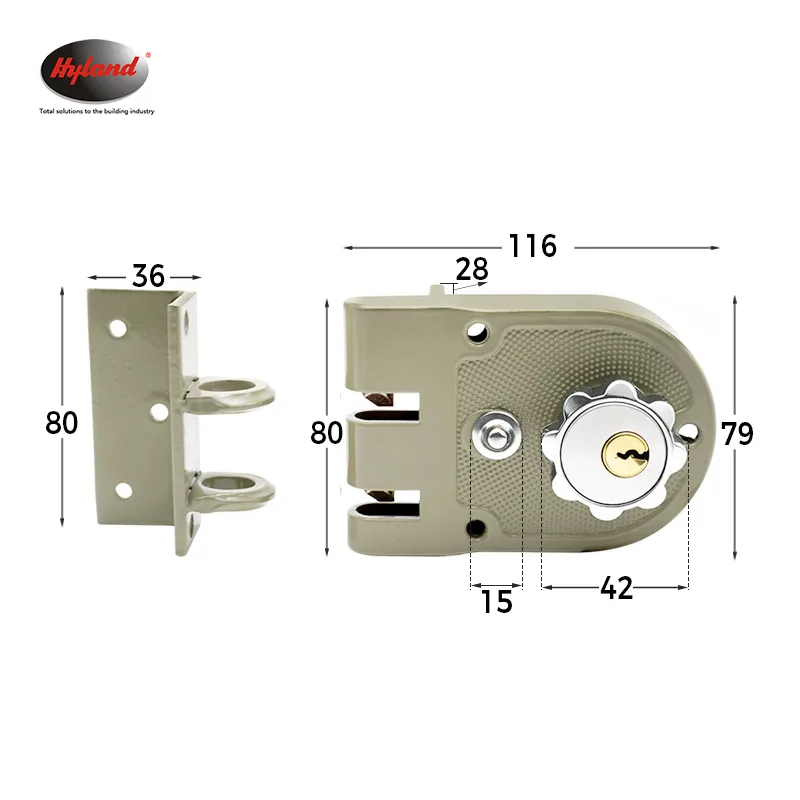

Night Latch And Rim Lock
Model F102 · Video
Zinc Alloy
25 night latches & rim locks — full model index
- 1073D MB — Night Latch And Rim Lock
- 1073D — Night Latch And Rim Lock
- 1073S — Night Latch And Rim Lock
- 260 — Night Latch And Rim Lock
- 556 — Night Latch And Rim Lock
- 558 — Night Latch And Rim Lock
- 559 — Night Latch And Rim Lock
- 564 MB — Night Latch And Rim Lock
- 564 — Night Latch And Rim Lock
- 5681 — Night Latch And Rim Lock
- 5682 — Night Latch And Rim Lock
- 5683 — Night Latch And Rim Lock
- 5687 — Night Latch And Rim Lock
- 5688 — Night Latch And Rim Lock
- 5689 — Night Latch And Rim Lock
- 5833 — Night Latch And Rim Lock
- 5834 — Night Latch And Rim Lock
- 5835 — Night Latch And Rim Lock
- 5836 — Night Latch And Rim Lock
- F102 — Night Latch And Rim Lock
- G559 — Night Latch And Rim Lock

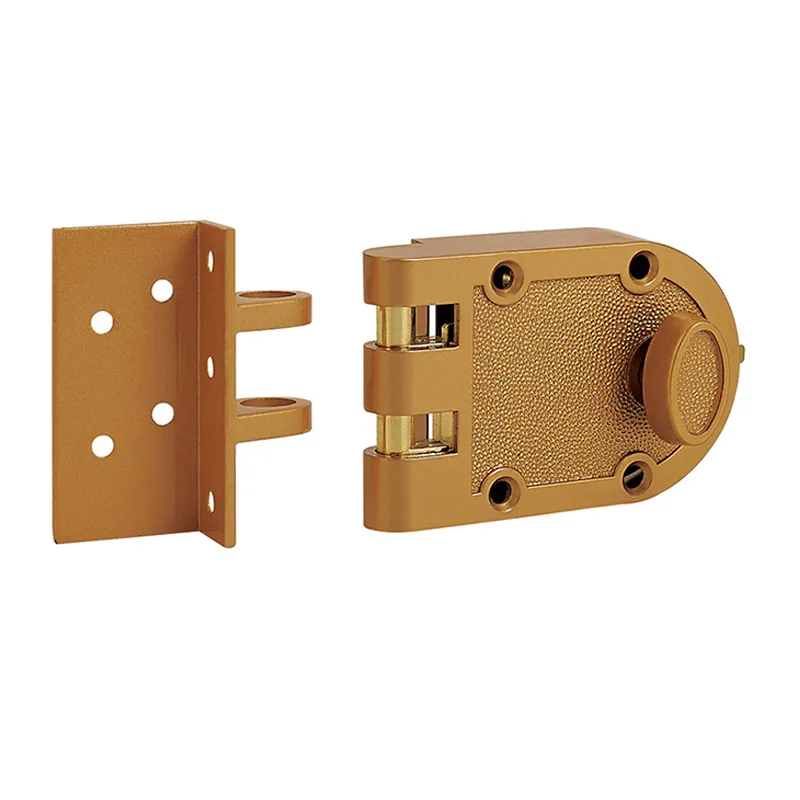

- H101 — Night Latch And Rim Lock

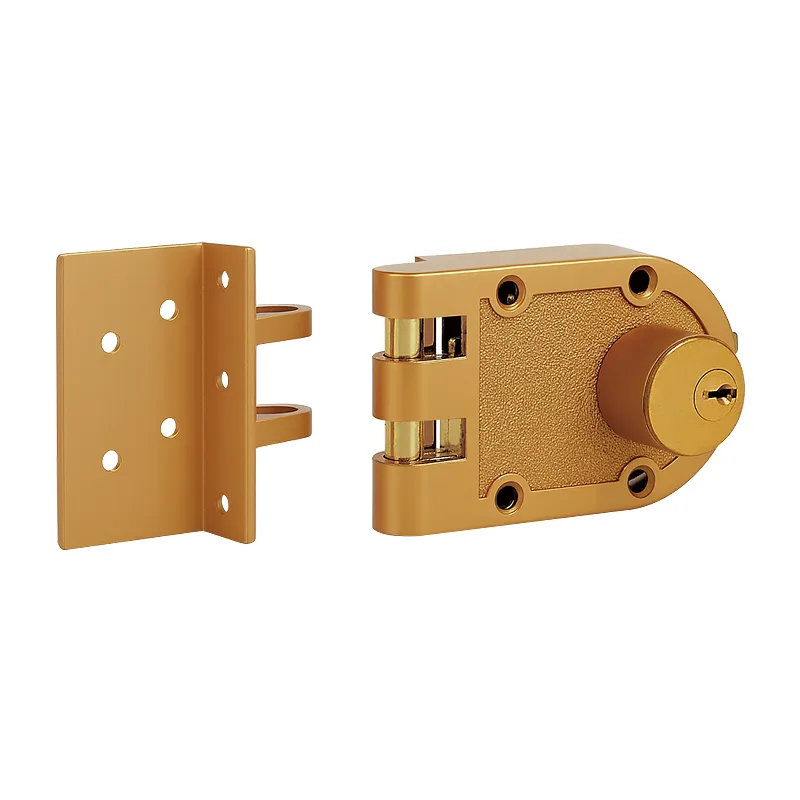

- H102 — Night Latch And Rim Lock
- Night Latch & Rim Lock
- S564 — Night Latch And Rim Lock
How buyers specify night latches & rim locks
A rim night latch is the lock a distributor buys for apartment and residential entrance doors that are already hung: it mounts on the face of the door through one cylinder hole. The 25 models here are made in our own factory for wholesale and private-label orders.
What backset and door thickness do they take?
- Backset across the range is 40–60mm and the door thickness range is 30–60mm; both figures are on each model's specification table, and a 60mm backset is the most common.
Single cylinder, double cylinder or self-locking?
- All three functions are in the range: Single cylinder, double cylinder or self-locking, Double cylinder, double throw. Single-cylinder versions open from inside without a key; double-cylinder versions need a key on both sides; self-locking versions latch as the door closes.
Can they be keyed alike for a block of flats?
- Keyed-alike groups and master-key systems are quoted per project. Send the door schedule with the inquiry; the cylinders are cut before shipment, and the keying plan has to be decided before the order is confirmed.
What do you need from me to quote?
- The model numbers or a drawing, the finish, the quantity per model and the destination port. Minimum order and lead time are confirmed per line; most models fall between 300 and 5,000 pieces, and production starts at 30 days from order confirmation. Samples are available before a production order.
Compare models in this range
The specifications that differ between models, side by side. An empty cell means we have not published that figure for that model yet.
| Model | Function | Material | Backset | Cylinder |
|---|---|---|---|---|
| 260 | Single cylinder, double cylinder or self-locking | Iron | 60mm (2-3/8”) | Single / Double cylinder, with self-locking function |
| 556 | Single cylinder, double cylinder or self-locking | Iron | 60mm (2-3/8”) | Single or double cylinder with self-locking function |
| 558 | Single cylinder, double cylinder or self-locking | Iron | 60mm (2-3/8”) | Single or double cylinder with self-locking function |
| 559 | Single cylinder, double cylinder or self-locking | Iron | 60mm (2-3/8”) | Single or double brass cylinder, with self-locking function |
| 564 | Single cylinder, double cylinder or self-locking | Zinc alloy | 2-3/8" (60mm) | Double cylinder |
| 5689 | Single cylinder, double cylinder or self-locking | Iron case, steel base internal components with zinc plated finish | 60mm | Double cylinder, solid brass cylinder plug |
| 5833 | Single cylinder, double cylinder or self-locking | Iron and Brass | 50mm | Double |
| 5835 | Single cylinder, double cylinder or self-locking | Steel sheet 1.2mm case; zinc alloy and copper alloy internal components; solid brass cylinders; iron | 50mm | Brass (inside and outside), fixed or loose type |
| 5836 | Single cylinder, double cylinder or self-locking | Steel sheet 1.5mm case; zinc alloy and copper alloy internal components; solid brass cylinders; iron | 50mm | Brass (inside and outside), fixed or loose type |
| 1073D | Single cylinder, double cylinder or self-locking | Iron case, steel base internal components with zinc plated, 3 pcs brass keys , brass latch and cylinder | 60mm | — |
| 1073S | Single cylinder, double cylinder or self-locking | Iron case, steel base internal components with zinc plated finish, 3 pcs brass keys , brass latch and cylinder | 60mm | — |
| 5681 | Single cylinder, double cylinder or self-locking | Iron case, with 3 pcs brass keys , brass latch. | 60mm | — |
| 5682 | Single cylinder, double cylinder or self-locking | Iron case, with 3 pcs brass keys , zinc alloy latch and cylinder | 60mm | — |
| 5683 | Single cylinder, double cylinder or self-locking | Iron | 2-3/8＂(60mm) | — |

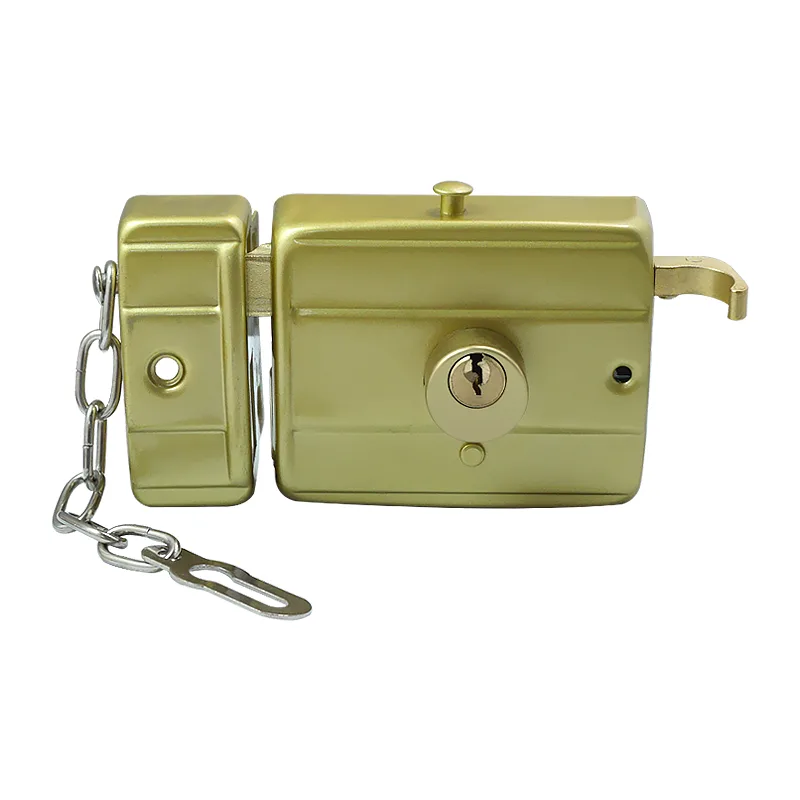

| G559 | Single cylinder, double cylinder or self-locking | Iron lock body, brass Cylinder(double cylinder), with 3pcs iron key. | 60mm | — |
| S564 | Single cylinder, double cylinder or self-locking | Case is made of zinc alloy die-casting, | 40mm | — |
| 564 MB | Single cylinder, double cylinder or self-locking | Zinc Alloy | — | — |
| 5688 | Double cylinder, double throw | Iron case | — | — |
| F102 | Single cylinder, double cylinder or self-locking | Zinc Alloy | — | — |
| H101 | Single cylinder, double cylinder or self-locking | Zinc Alloy | — | — |
| H102 | Single cylinder, double cylinder or self-locking | Zinc Alloy | — | — |
Choosing night latches & rim locks
Fits to the face of the door, so it goes on a leaf that was never prepared for a mortise lock.
What the 25 published models in this range state, counted from their own specification tables.
| Specification | Published values (number of models) |
|---|---|
| Deadbolt throw | 25mm on rim deadbolt versions (22)3 of 25 models do not state this yet. |
| Door thickness | 35mm to 55mm standard; 30mm to 60mm on request (22)3 of 25 models do not state this yet. |
| Feature | Anti-picking slide gate on single-cylinder deadlock (22)3 of 25 models do not state this yet. |
Read before ordering
- The Rim Night Latch: What 564 and 1073 Actually Measure
- A 25mm Throw and a Collar That Spins: Deadbolts D101 and D102
- Strike Plates and Keeps 2026: ANSI Strike vs T-Strike, Lip Length, and the Dimension Nobody Measures
- Cross-Referencing a Lock You Already Buy
- Compare every model side by side
- Filter the catalog by material, finish and door type
Questions about night latches & rim locks
- How many night latches & rim locks does Canton Hyland publish?
- 25 published models. Every model has its own page with the specifications we have confirmed.
- Which deadbolt throw options are available for Canton Hyland night latches & rim locks?
- By number of published models: 25mm on rim deadbolt versions (22). 3 of 25 models do not state this yet; ask the export team before ordering.
- Which door thickness options are available for Canton Hyland night latches & rim locks?
- By number of published models: 35mm to 55mm standard; 30mm to 60mm on request (22). 3 of 25 models do not state this yet; ask the export team before ordering.
- Which feature options are available for Canton Hyland night latches & rim locks?
- By number of published models: Anti-picking slide gate on single-cylinder deadlock (22). 3 of 25 models do not state this yet; ask the export team before ordering.
