Night Latch And Rim Lock · 28 models in this range

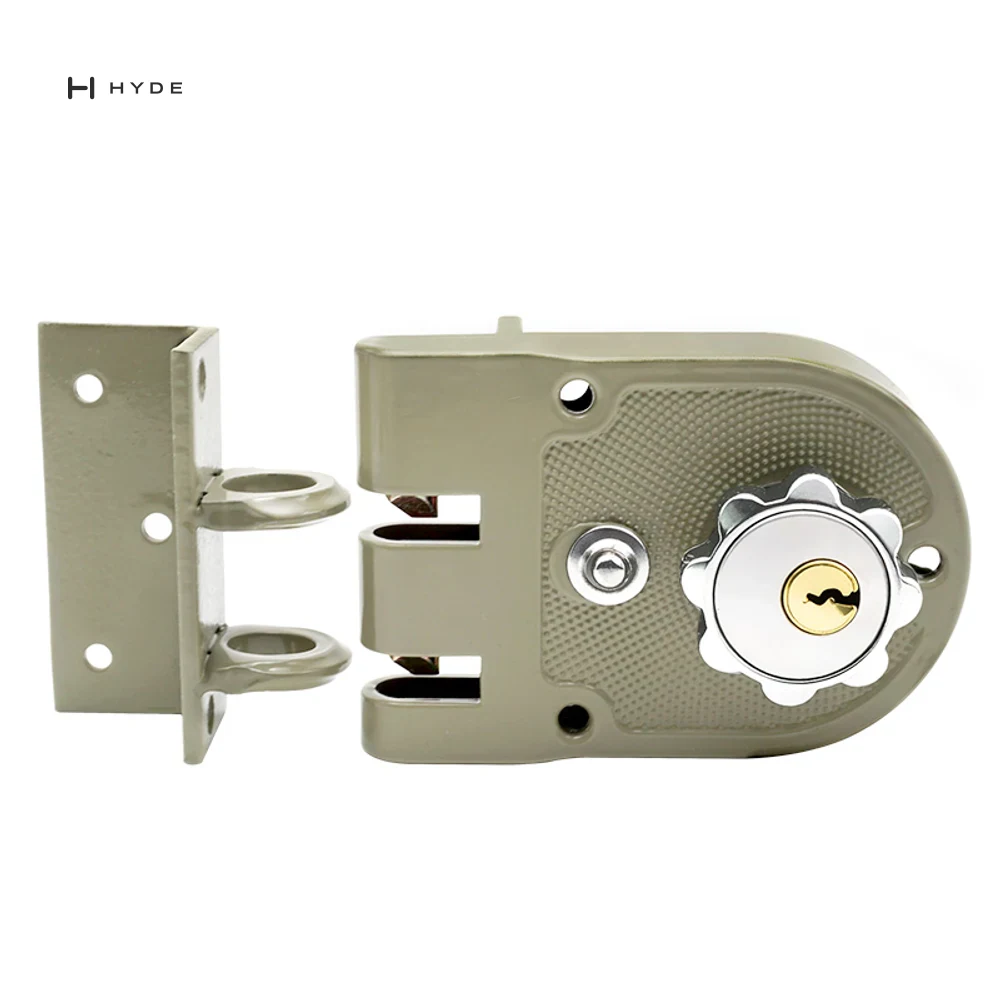

F102 Vertical Bolt Rim Deadlock

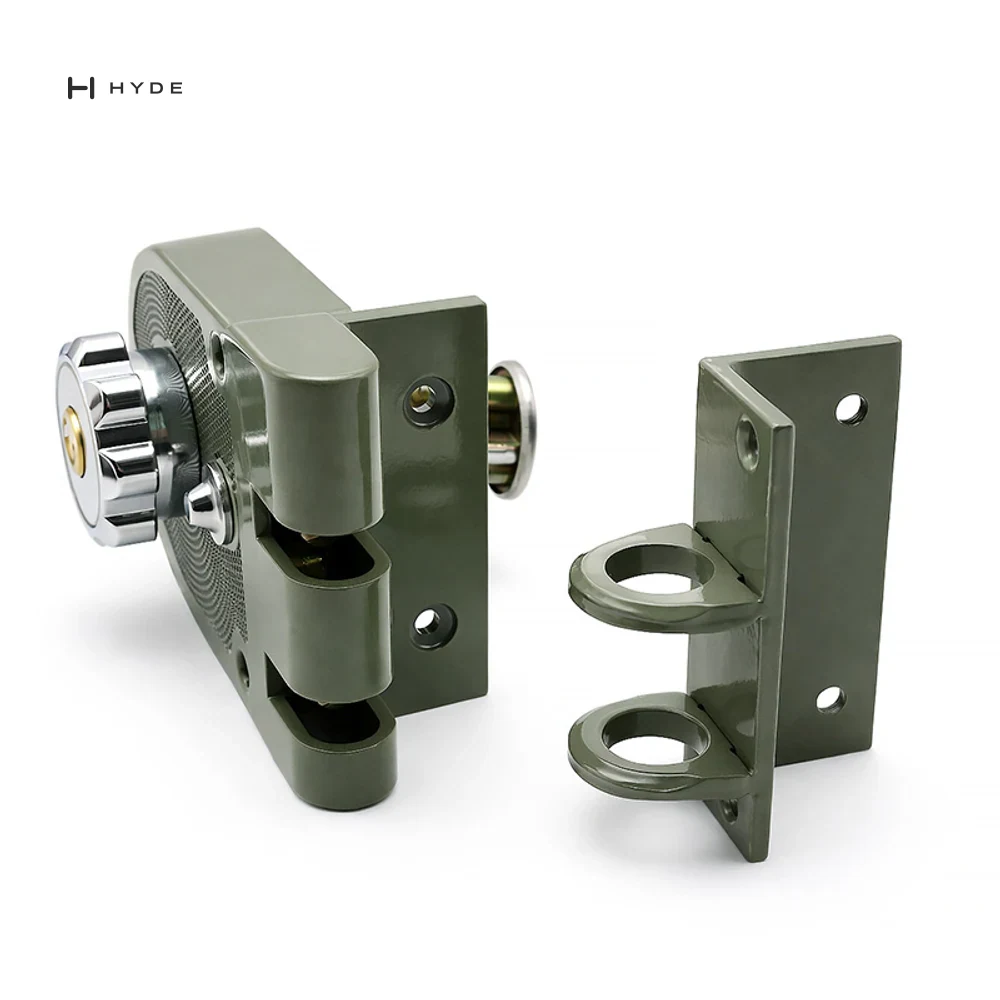

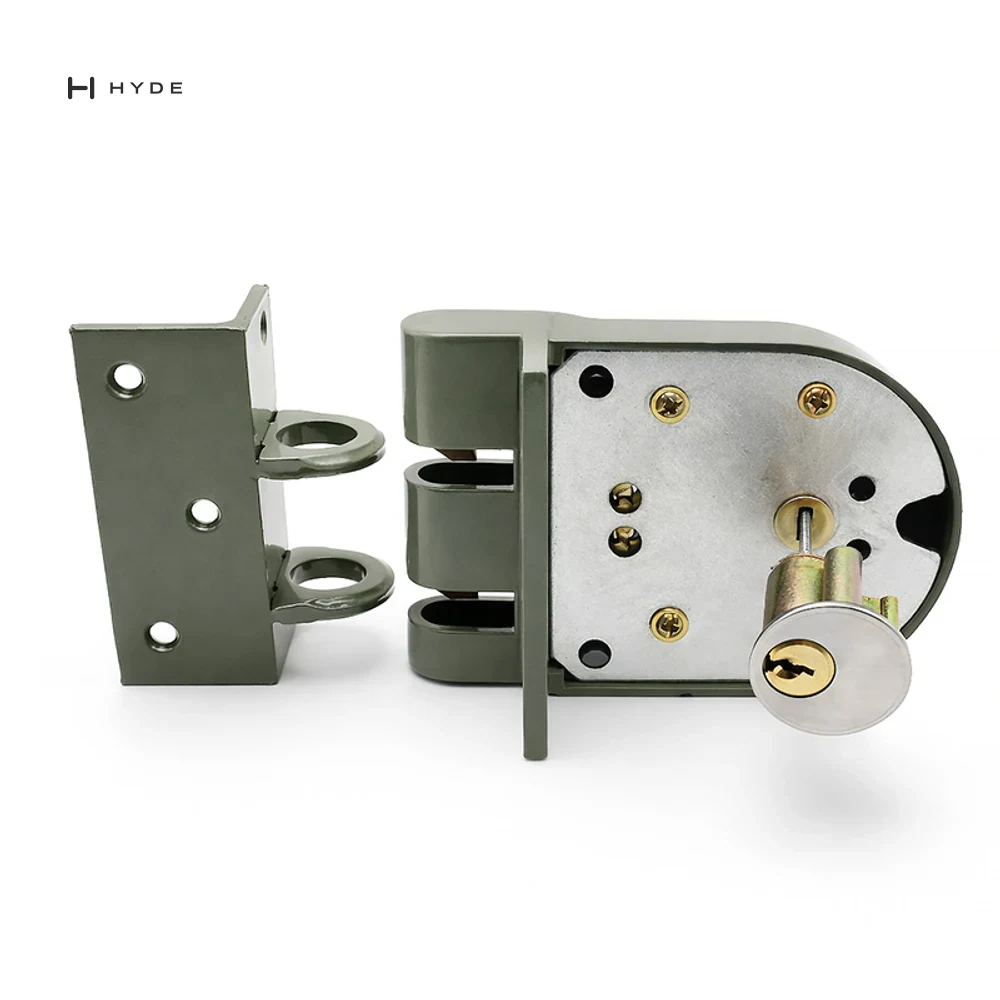

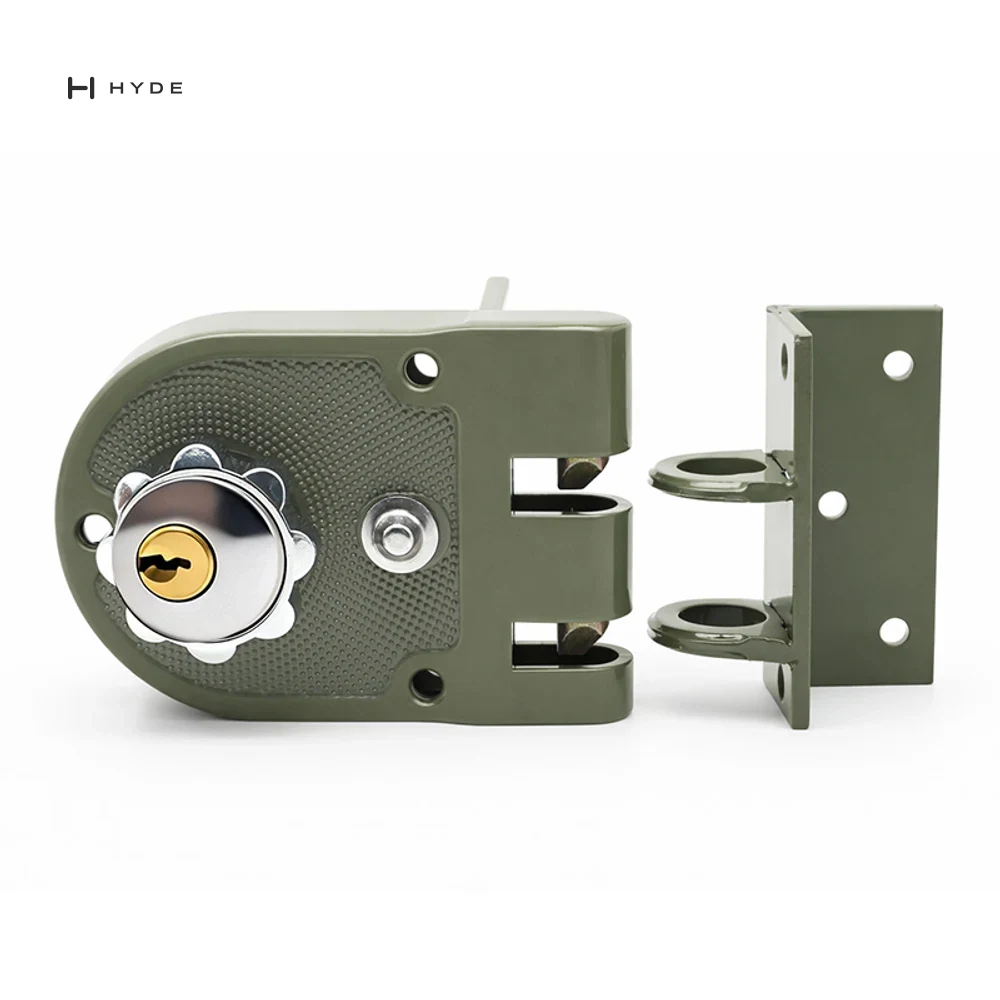

Zinc alloy vertical bolt rim deadlock: twin vertical bolts drop into a two-loop angle keeper, double cylinder; case 116 × 79 mm.
- Material
- Zinc Alloy
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request (1-3/8" / 2-3/16" / 1-3/16" / 2-3/8")
- Chassis
- Zinc die-cast case, zinc-plated steel internal components
- Handing
- Fully reversible, left or right hand
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
F102
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Zinc Alloy
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request (1-3/8" / 2-3/16" / 1-3/16" / 2-3/8")
- Chassis
- Zinc die-cast case, zinc-plated steel internal components
- Handing
- Fully reversible, left or right hand
- Deadbolt
- Twin vertical bolts drop into a two-loop angle keeper (jimmy-proof)
- Function
- Double cylinder
- Size

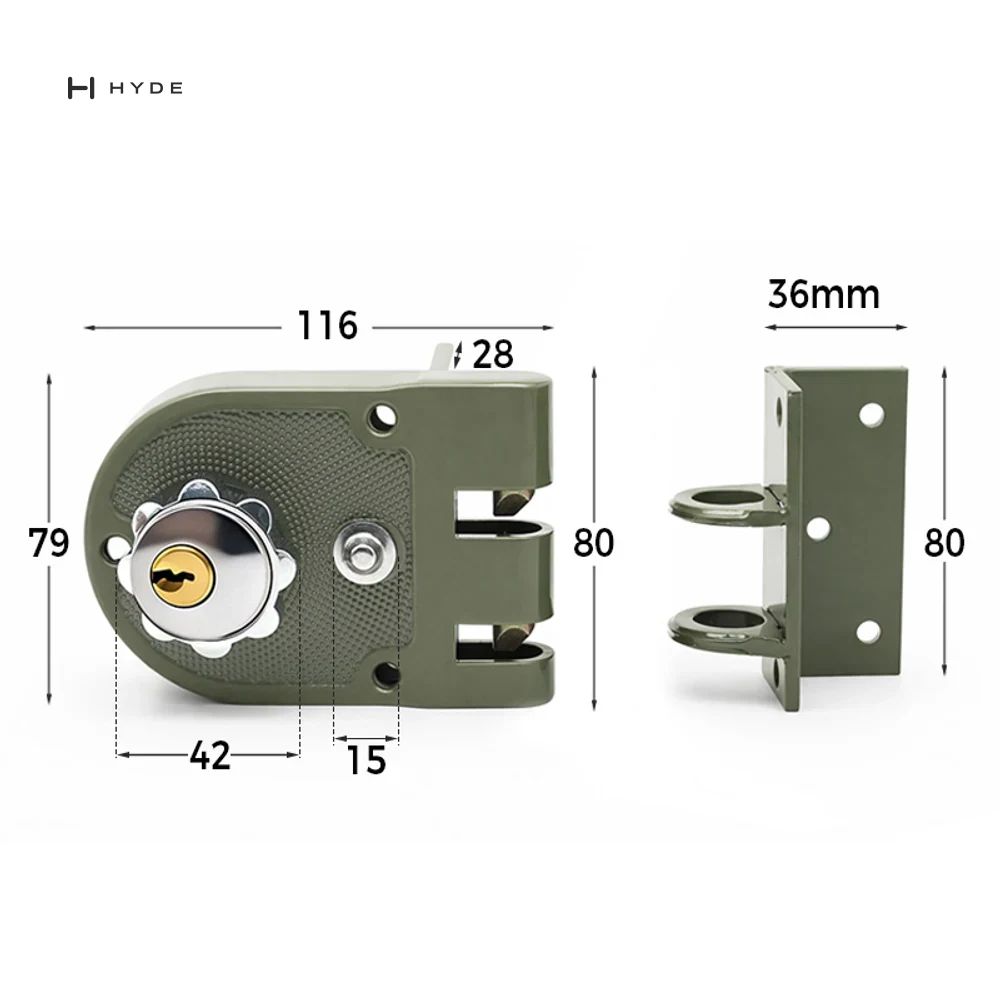

- Case 116 × 79mm; keeper 36 × 80mm
F102
Drawings
Drawings and files published for this model.
F102
Video
42 seconds of the part working.
F102
Common questions
- What is the F102 made from?
- Material of the F102: Zinc Alloy.
- What door thickness does the F102 suit?
- Door thickness for the F102: 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the F102 provide?
- Function of the F102: Double cylinder.
- Is the F102 handed?
- Handing for the F102: Fully reversible, left or right hand.
- What size is the F102?
- Size of the F102: Case 116 × 79mm; keeper 36 × 80mm.
F102
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishF102, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
F102
Next steps
- Compare every model in this range
One table, one row per model, across the specifications that differ between them.
- Ordering, lead times and samples
Minimum order quantity, production lead time, sample policy, payment terms and OEM work — answered in full.
F102
More in the Night Latch And Rim Lock series
Backset 60mm
Night Latch And Rim Lock
Model G559 · Video
Iron lock body, brass Cylinder(double cylinder), with 3pcs iron key.
Door thickness 35mm to 55mm standard; 30mm to 60mm on request

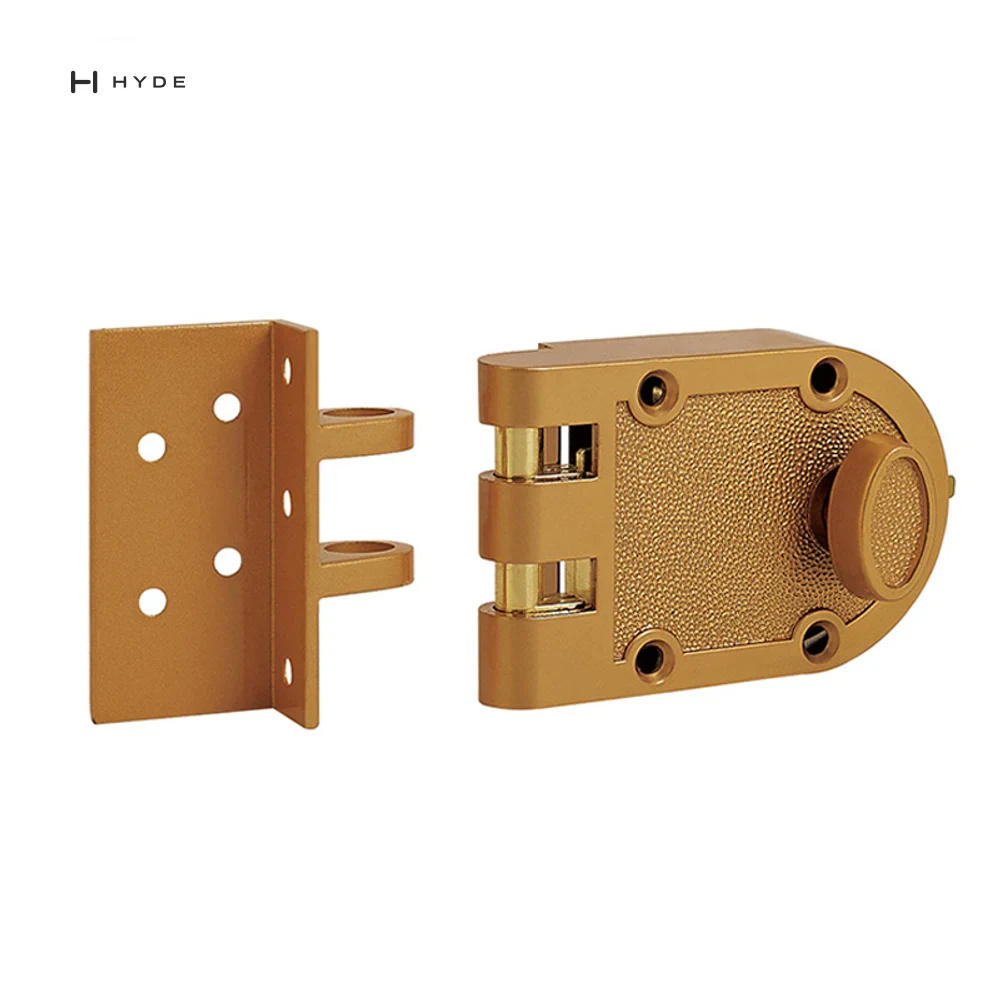

Vertical Bolt Rim Deadlock
Model H101
Zinc Alloy
Door thickness 35mm to 55mm standard; 30mm to 60mm on request

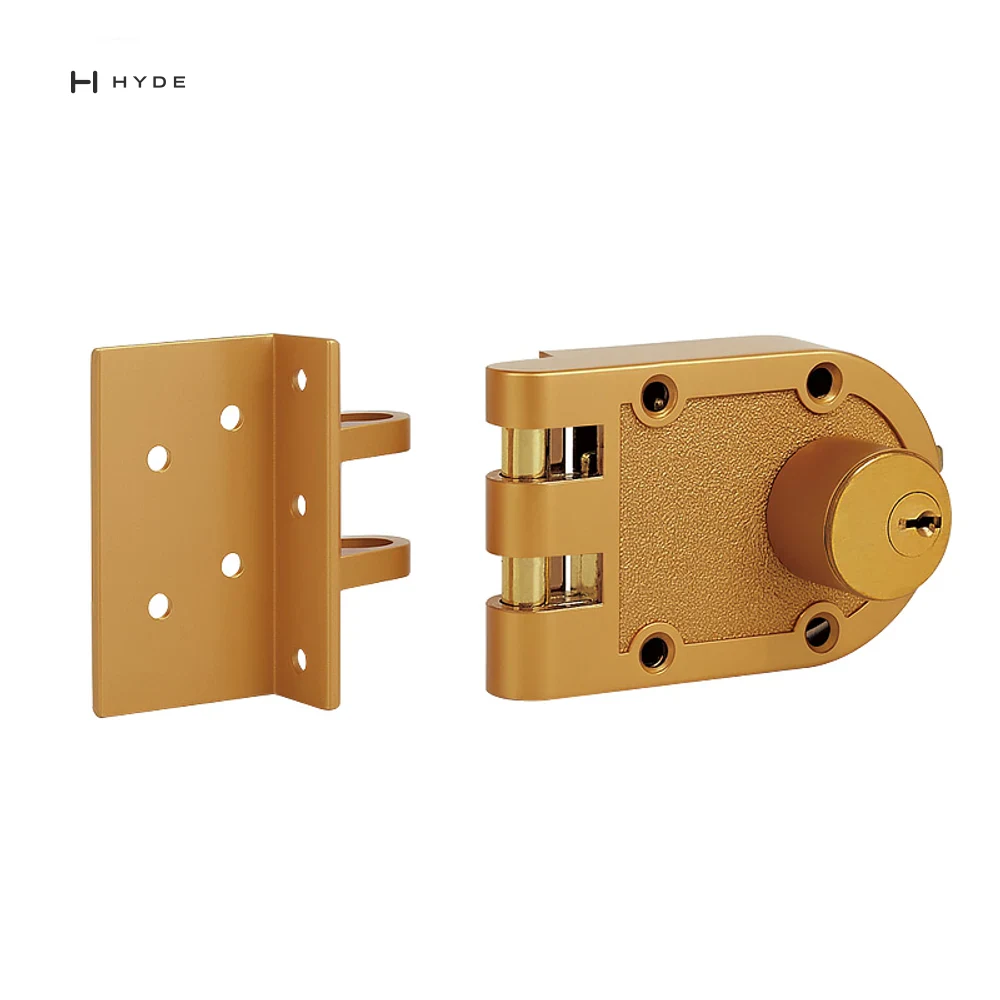

Vertical Bolt Rim Deadlock
