Canton Product Collection
Lock Cases
Mortise lock cases in multiple backset, centre-distance and bolt configurations.
Canton Hyland manufactures every mortise lock case in this range in Guangdong, China, with 48 published models. Production lead time starts at 30 days from order confirmation, and we produce under our customers' own brands (OEM and private label). Send your door schedule to the export team for model numbers, finishes and a confirmed date.
48 products · showing 1–20
Catalog order
Plate length 330mm
Stainless Steel Lever Handle Lock
Model 6068
Stainless Steel 304
Center distance 66.8mm
Lock Case
Model 7066
Backset 30mm
Lock Case

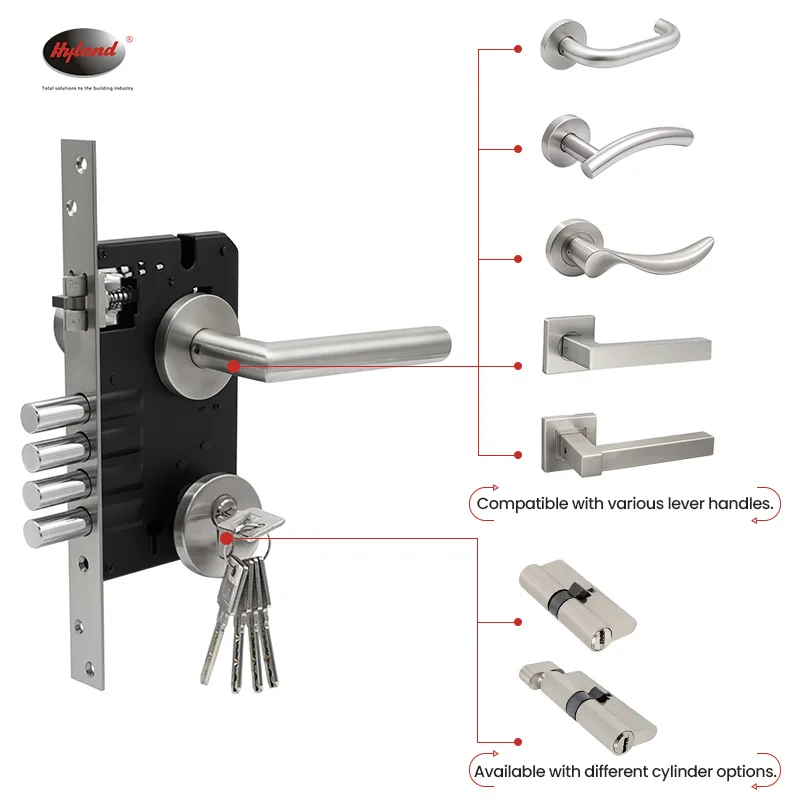

Model AI8530
Lock Case

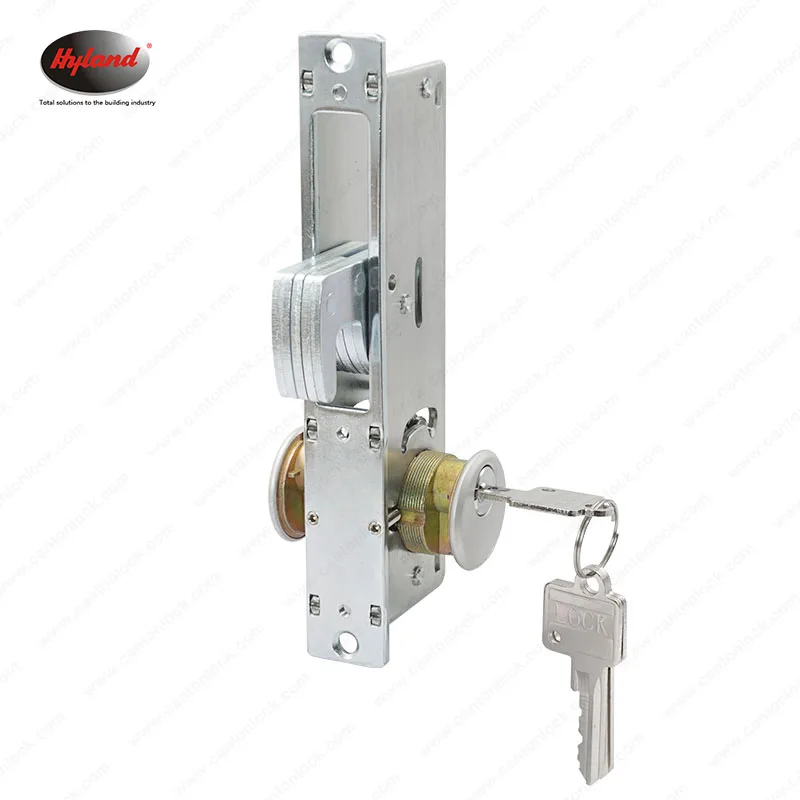

Model HY006DK · Video
Lock Case

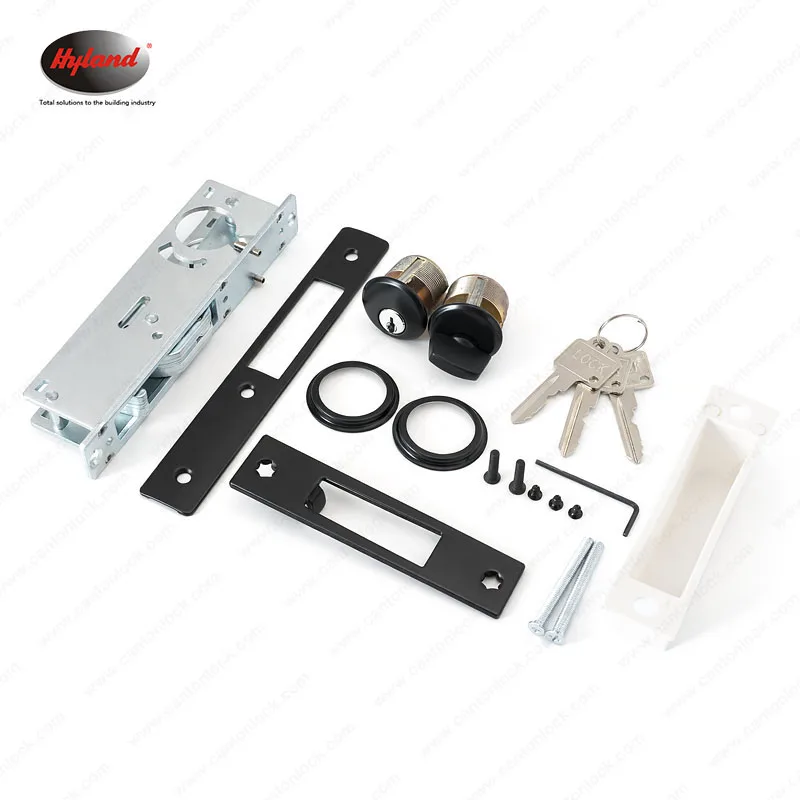

Model HY006ET · Video
Lock Case

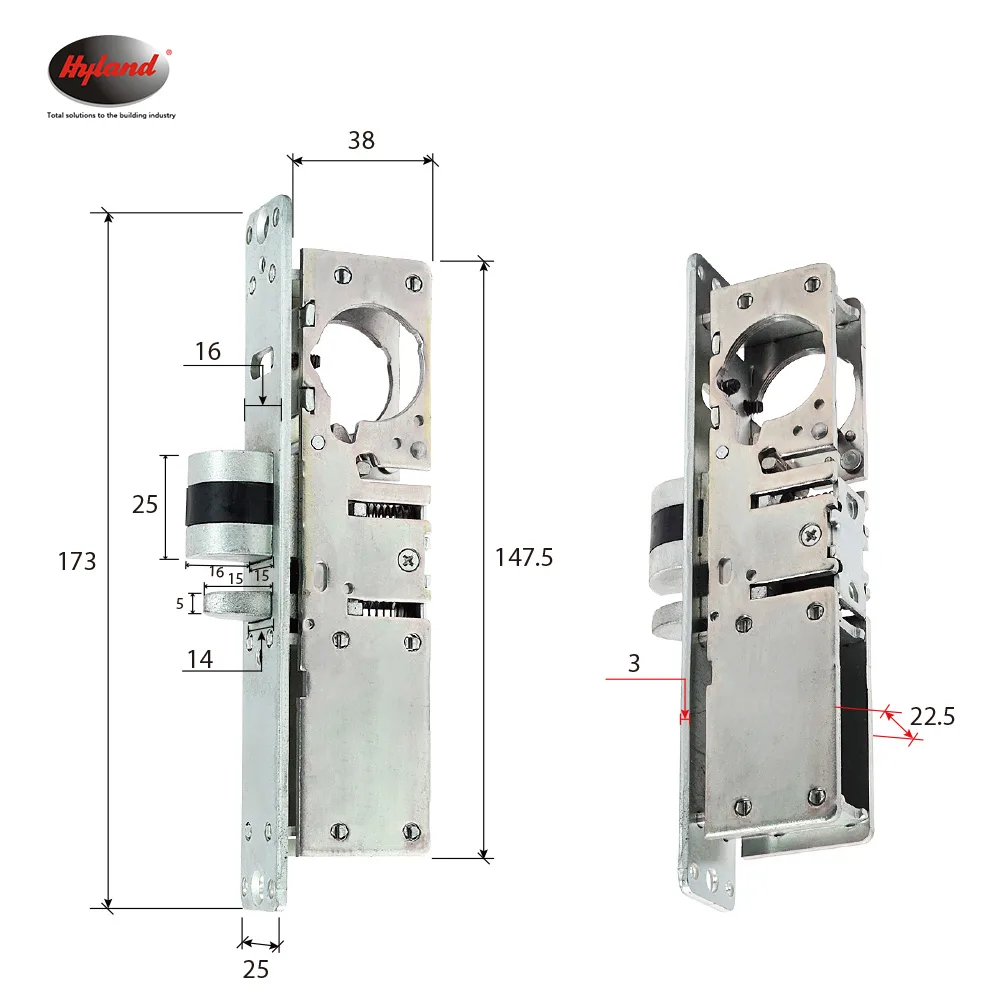

Model HY007 · Video
Iron Body, Zinc Alloy Latch, ABS Components
Lock Case

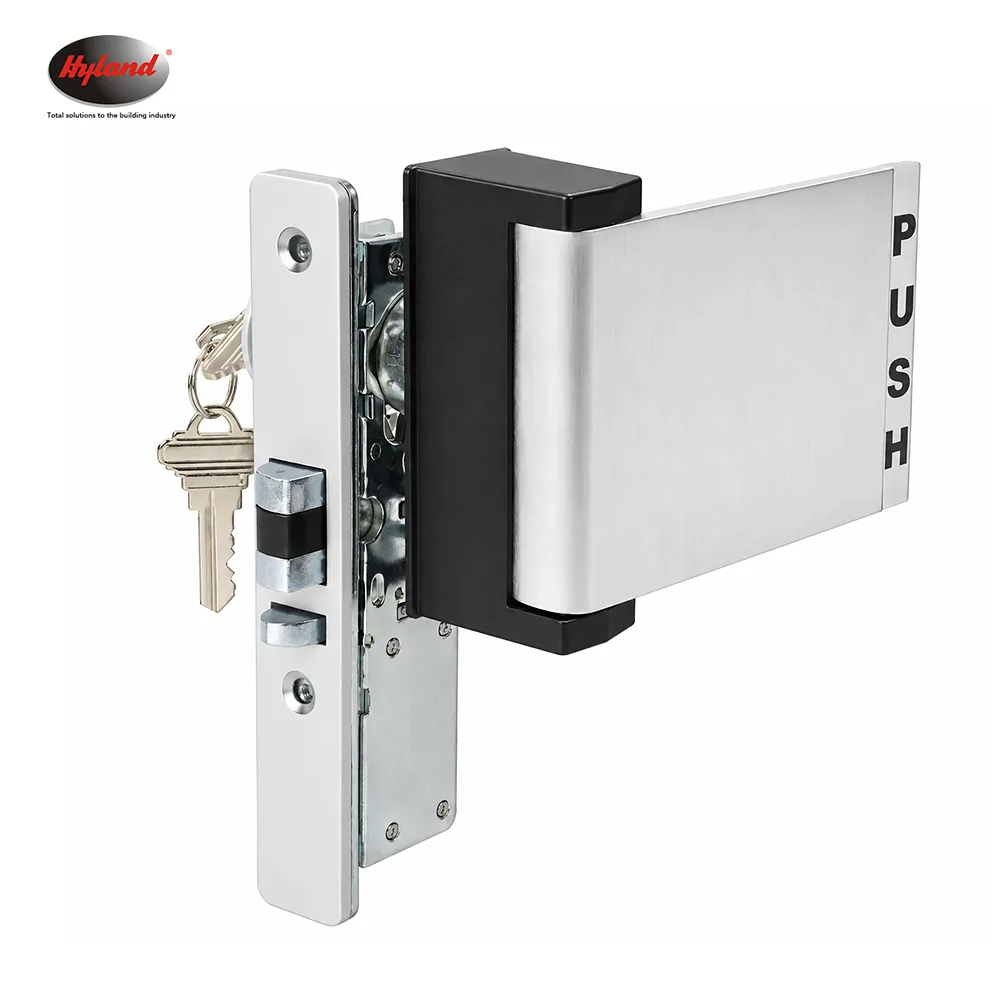

Model HY007-S · Video
Lock Case

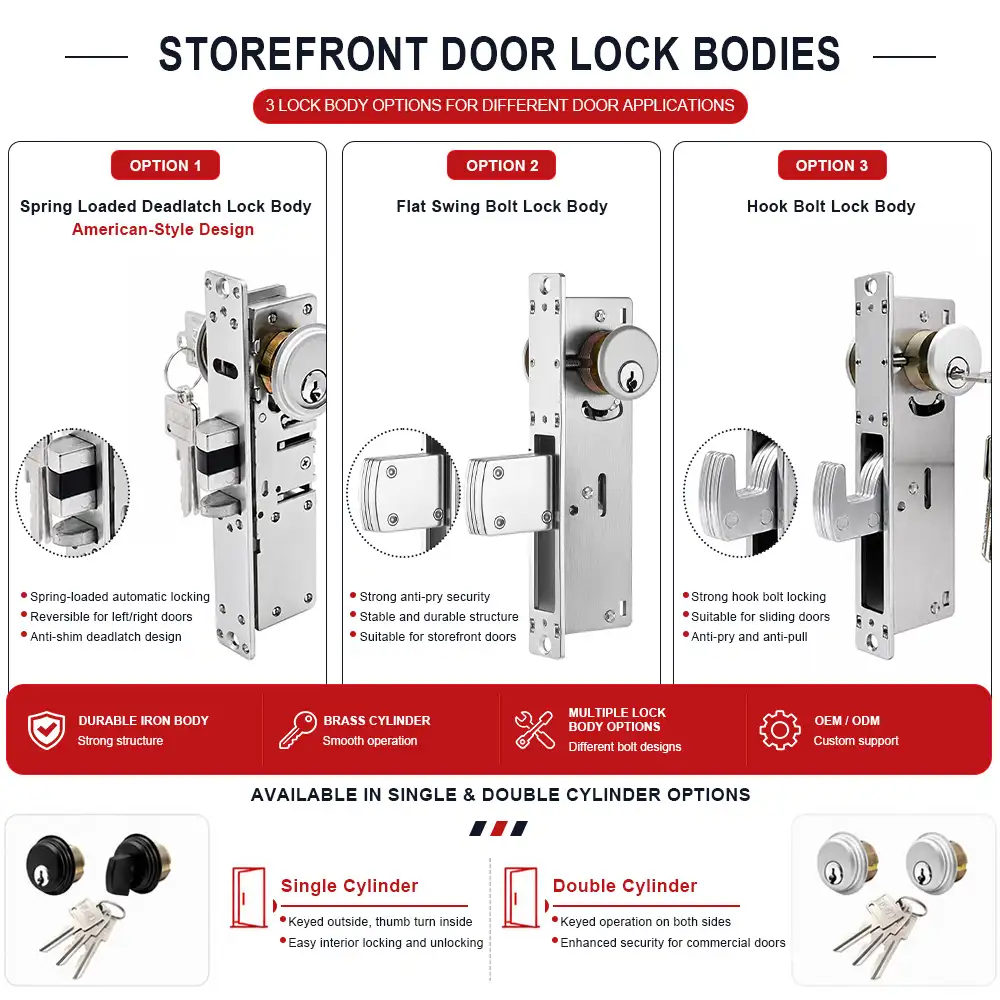

Model HY008
Backset 40mm
Standard Mortise Lock Body
Model AR4-101
Nickel-plated iron lock case
Backset 40mm
Security Mortise Lock Body
Model AR4-110 · Video
Nickel-plated iron lock case
Backset 40mm
Hook-Bolt Deadlock
Model AR4-1121 · Video
Nickel-plated iron lock case
Backset 25mm
Aluminum-Door Mortise Lock Body
Model AR4-140 · Video
Nickel-plated iron lock case
Backset 40mm
Lock Case
Model LC02 85×40mm
Backset 45mm
Lock Case
Model LC03 85×45mm
Backset 60mm
Lock Case

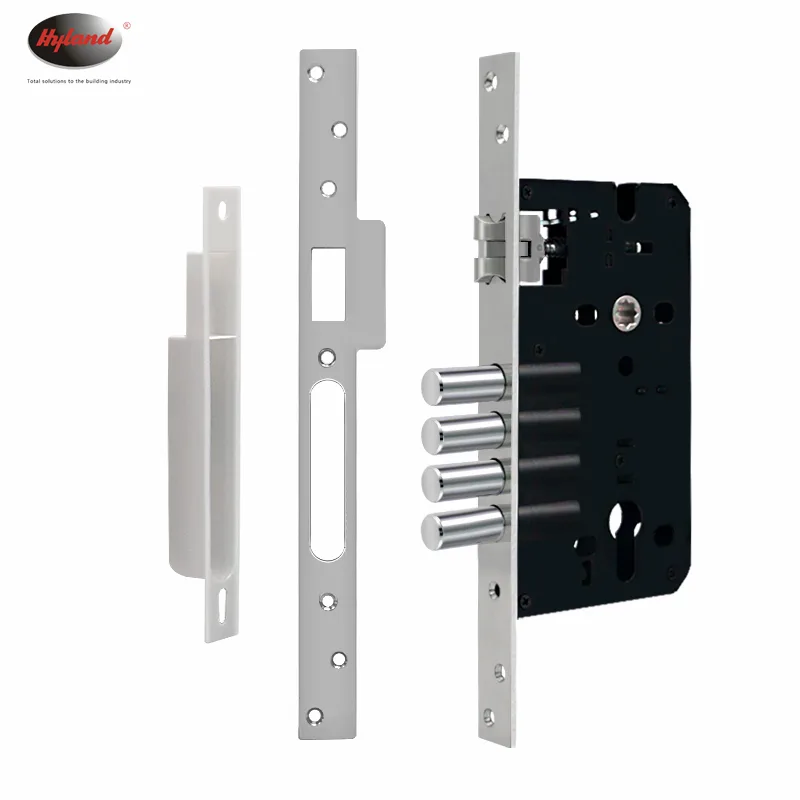

Model LC04 85*60
Backset 70mm

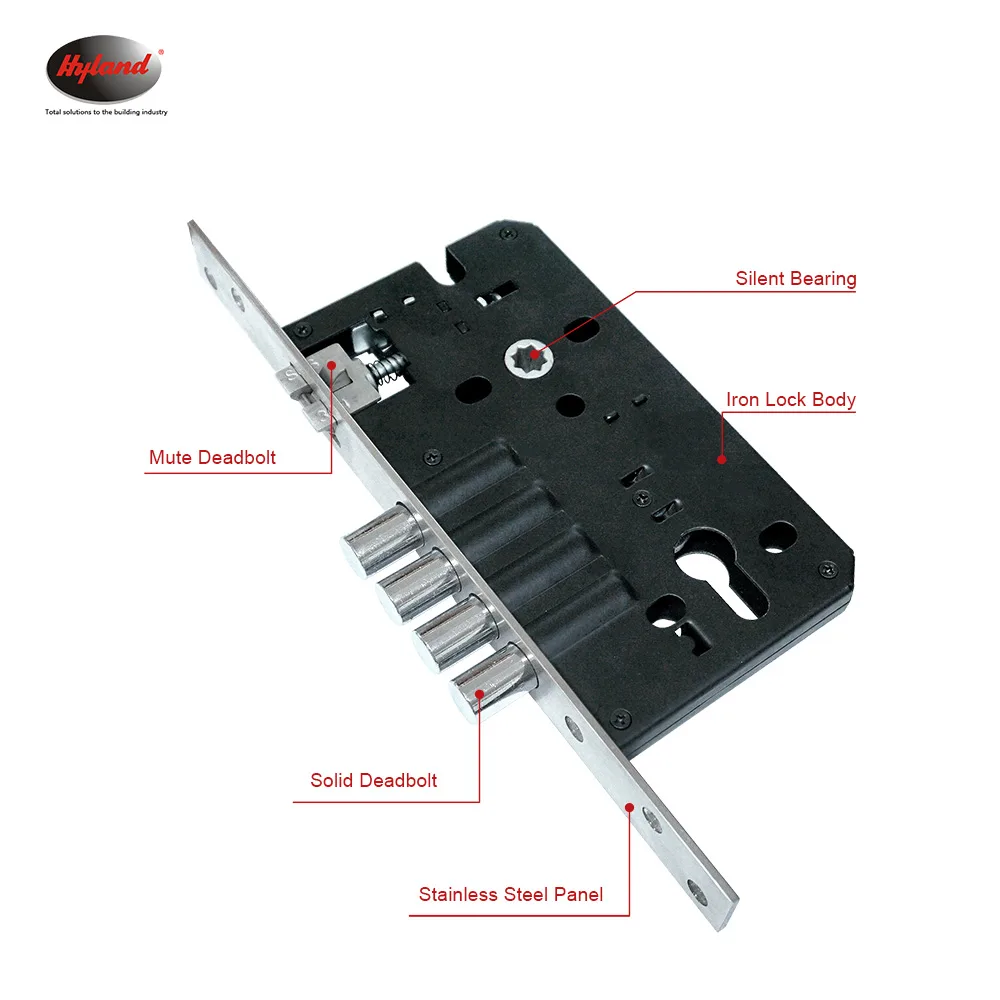

Lock Case
Model LC04 85*70
Iron Lock Body + Stainless Steel Face Plate
Backset 60mm
Lock Case
Model LC05 8560
Backset 50mm
Lock Case
Model LC06 85_50PS
Backset 45mm

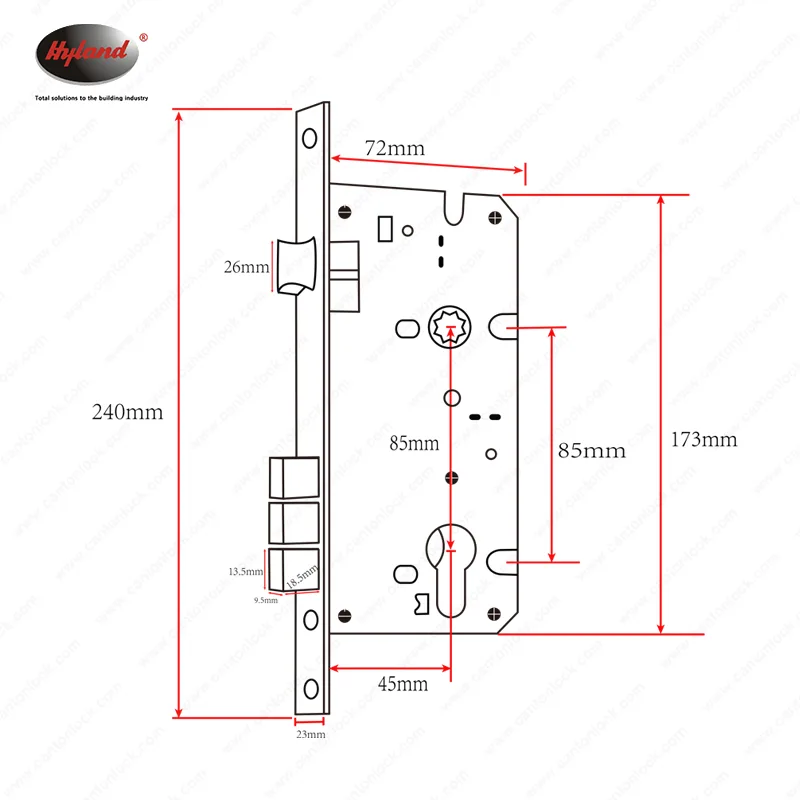

Lock Case
Model LC07 85×45mm
Backset 55mm
Lock Case
Model LC08 85×55mm
48 lock cases — full model index
- 6068 — Stainless Steel Lever Handle Lock
- 7066 — Lock Case
- AI8530 — Lock Case
- HY006DK — Lock Case
- HY006ET — Lock Case
- HY007 — Lock Case
- HY007-S — Lock Case
- HY008 — Lock Case
- AR4-101 — Standard Mortise Lock Body
- AR4-110 — Security Mortise Lock Body
- AR4-1121 — Hook-Bolt Deadlock
- AR4-140 — Aluminum-Door Mortise Lock Body
- LC02 85×40mm — Lock Case
- LC03 85×45mm — Lock Case
- LC04 85*60 — Lock Case
- LC04 85*70 — Lock Case
- LC05 8560 — Lock Case
- LC06 85_50PS — Lock Case
- LC07 85×45mm — Lock Case
- LC08 85×55mm — Lock Case
- LC09 85×60mm — Lock Case

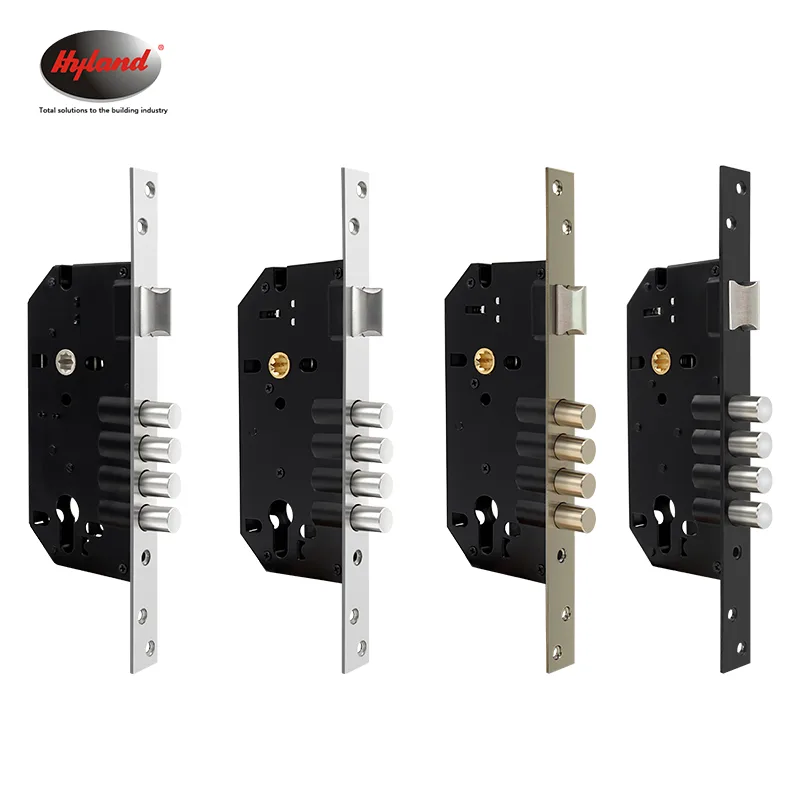

- LC14 85×50mm — Lock Case
- LC15 — Lock Case
- LC17 — Lock Case
- LC18 — Lock Case
- LC19 — Lock Case
- LC20 — Lock Case
- LC21 85×50mm — Lock Case
- LC33-5572 — Lock Case
- LC34 50×72mm — Lock Case
- LC35 8550 — Lock Case

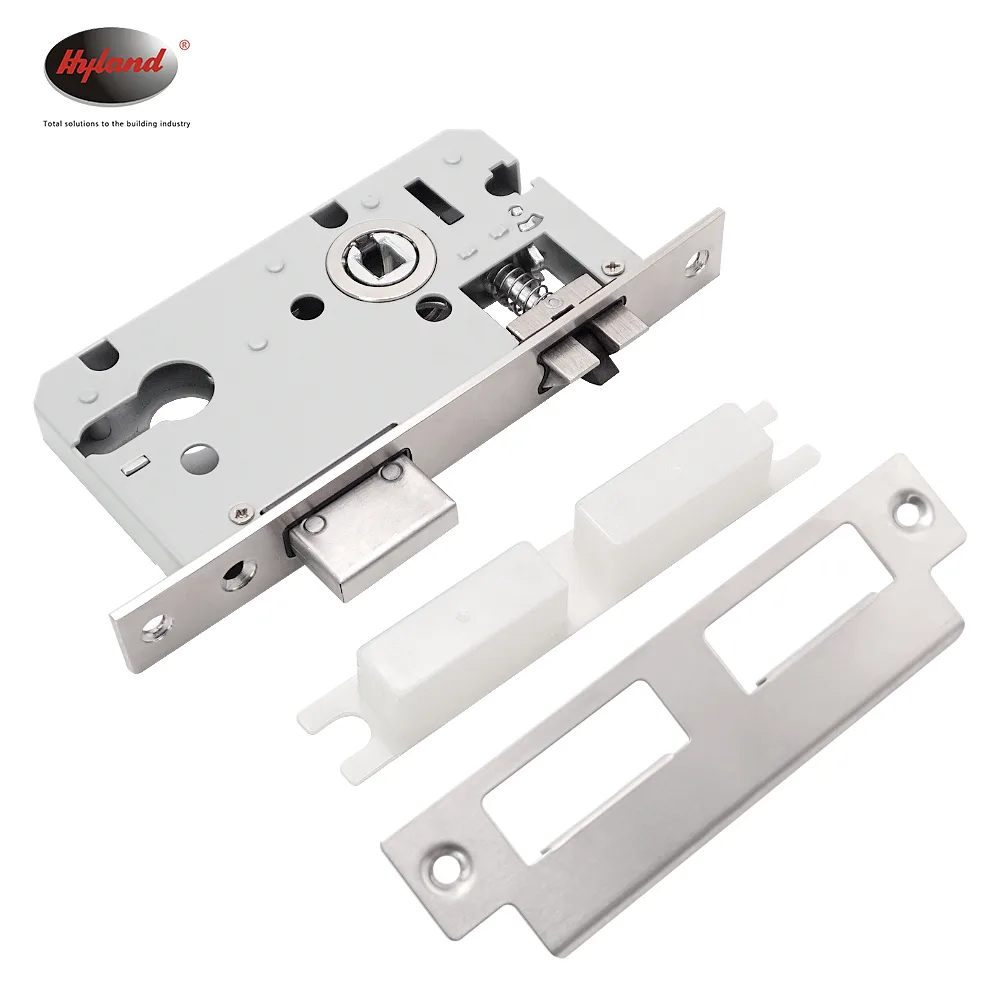

- LC5845 — Lock Case
- LC6860 — Lock Case
- LC7065 — Lock Case
- LC7065PS — Lock Case
- LC7065S — Lock Case
- LC8520 — Lock Case
- LC8520B — Lock Case
- LC8520PS — Lock Case
- LC8525 — Lock Case
- LC8525 PS — Lock Case
- LC8525B — Lock Case
- LC8530BK — Lock Case
- LC8530PS — Lock Case
- LC8535 — Lock Case
- LC8535B — Lock Case
- LC9045 — Lock Case
- LC9230 — Lock Case
How buyers specify lock cases
Mortise lock cases for timber, metal and aluminum narrow-stile doors, bought by distributors and door manufacturers who fit their own handles and cylinders. A lock body is specified by two numbers, backset and center distance, and both are in the model name of most of the 48 cases we make.
What backset and center distance do you make?
- Backset 16–90mm and center distance 45–92mm across the range. An 85mm center with a 60mm backset is the most common European case; the narrow-stile cases go down to a 25–30mm backset for aluminum doors.
Do they take a euro profile cylinder?
- The cases with a cylinder hole take a euro profile cylinder, sized to the door thickness; our lock cylinders page lists the published lengths. Cylinder and handles are ordered separately from the case, which is how door factories want it.
Will your case fit another brand's faceplate cut-out?
- Often, when backset, center distance and faceplate size match. Send the faceplate drawing or the existing model number; we compare it against the drawings we publish and say which case is a drop-in and which needs a new cut-out.
What do you need from me to quote?
- The model numbers or a drawing, the finish, the quantity per model and the destination port. Minimum order and lead time are confirmed per line; most models fall between 300 and 5,000 pieces, and production starts at 30 days from order confirmation. Samples are available before a production order.
Compare models in this range
The specifications that differ between models, side by side. An empty cell means we have not published that figure for that model yet.
| Model | Backset | Center distance | Material | Latch | Finish |
|---|---|---|---|---|---|
| AI8530 | 30mm | 85mm | Aluminum case | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |

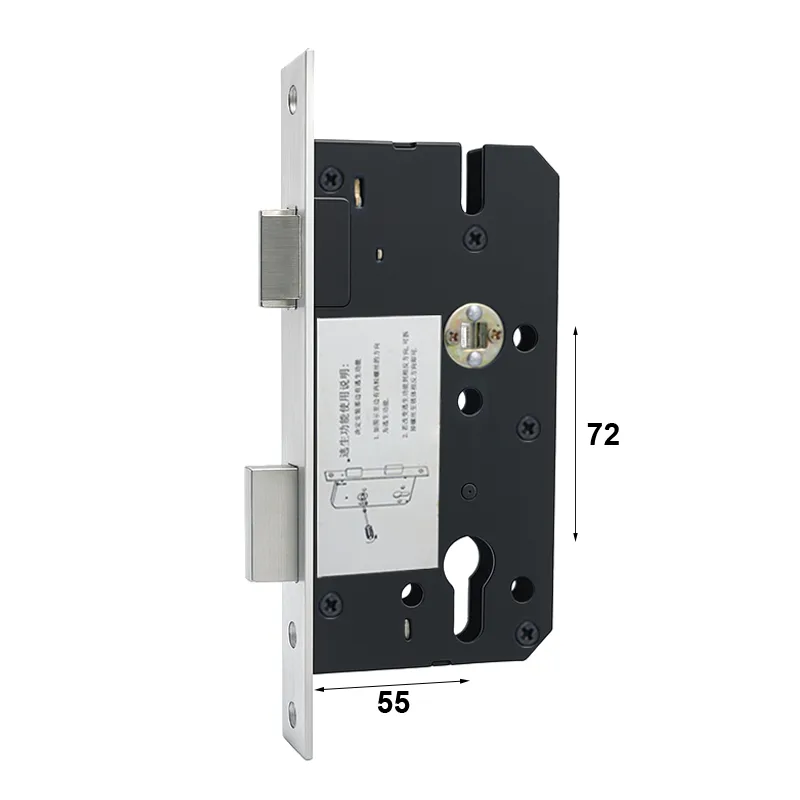

| LC33-5572 | 55mm | 72mm | Iron | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC7065 | 70mm | 65mm | Iron | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC7065PS | 70mm | 65mm | Iron | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC7065S | 70mm | 65mm | Iron | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC8520B | 20mm | 85mm | Stainless steel | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC8520PS | 20mm | 85mm | Stainless steel | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC8525 | 25mm | 85mm | Iron | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC8525B | 25mm | 85mm | Iron | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC8530BK | 30mm | 85mm | Iron | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC8530PS | 30mm | 85mm | Iron | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC8535B | 35mm | 85mm | Stainless steel | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC9045 | 90mm | 45mm | Iron | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC9230 | 30mm | 92mm | Iron | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC04 85*70 | 70mm | 85mm | Iron Lock Body + Stainless Steel Face Plate | — | Stainless Steel (SS), Satin Nickel (SN), Polished Brass (PB), Antique Brass (AB), Antique Copper (AC) |
| LC08 85×55mm | 55mm | 85mm | Iron case | Square latch | — |
| LC09 85×60mm | 60mm | 85mm | Iron case | Square latch | — |
| LC17 | 16mm | — | Aluminum and steel | Copper | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC34 50×72mm | 50mm | 72mm | Iron case | Square latch | — |
| LC02 85×40mm | 40mm | 85mm | Aluminum case | — | — |
| LC03 85×45mm | 45mm | 85mm | Aluminum case | — | — |
| LC5845 | 45mm | — | Iron Body + Stainless Steel Faceplate | — | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
| LC6860 | 60mm | 68mm | — | — | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available |
Choosing lock cases
Backset and center distance decide whether a replacement drops into the existing preparation.
What the 48 published models in this range state, counted from their own specification tables.
| Specification | Published values (number of models) |
|---|---|
| Backset | 30mm (4), 40mm (4), 50mm (4), 60mm (4), and 8 more13 of 48 models do not state this yet. |
| Center distance | 85mm (21), 72mm (4), 65mm (3), 68mm (2), and 3 more15 of 48 models do not state this yet. |
| Material | Iron (14), Aluminum case (3), Iron case (3), Stainless steel (3), and 5 more20 of 48 models do not state this yet. |
Read before ordering
- Mortise Lock Case Comparison 2026: Every Published Backset and Center Distance, Side by Side
- Why Aluminum Doors Drop, and What the Lock Case Has to Do With It
- Backset and Center Distance: How to Read a Mortise Lock Case Number
- Custom Door Hardware and Ironmongery: How We Tool a Part for Your Market
- Backset and Door Thickness Chart 2026: What 589 Published Models Actually Take
- Compare every model side by side
- Filter the catalog by material, finish and door type
Questions about lock cases
- How many lock cases does Canton Hyland publish?
- 48 published models. Every model has its own page with the specifications we have confirmed.
- Which backset options are available for Canton Hyland lock cases?
- By number of published models: 30mm (4), 40mm (4), 50mm (4), 60mm (4), and 8 more. 13 of 48 models do not state this yet; ask the export team before ordering.
- Which center distance options are available for Canton Hyland lock cases?
- By number of published models: 85mm (21), 72mm (4), 65mm (3), 68mm (2), and 3 more. 15 of 48 models do not state this yet; ask the export team before ordering.
- Which material options are available for Canton Hyland lock cases?
- By number of published models: Iron (14), Aluminum case (3), Iron case (3), Stainless steel (3), and 5 more. 20 of 48 models do not state this yet; ask the export team before ordering.
