Canton Product Collection
Deadbolts
Single- and double-cylinder deadbolts with a 25mm throw, an anti-saw roller insert and a 60/70mm adjustable backset.
Canton Hyland manufactures every deadbolt in this range in Guangdong, China, with 11 published models. Production lead time starts at 30 days from order confirmation, and we produce under our customers' own brands (OEM and private label). Send your door schedule to the export team for model numbers, finishes and a confirmed date.
11 products
Catalog order
Deadbolts

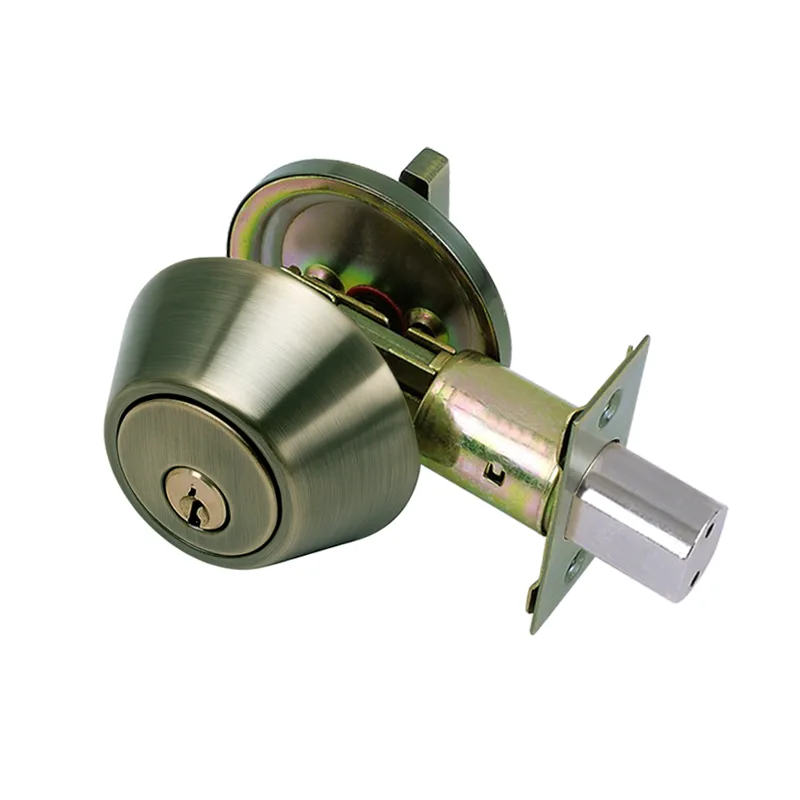

Model D01 AB
Backset Adjustable 2-3/8” or 2-3/4” (60mm or 70mm)
Deadbolts
Model D101 AB
Backset Adjustable 60mm or 70mm (2-3/8” or 2-3/4”)
Deadbolts

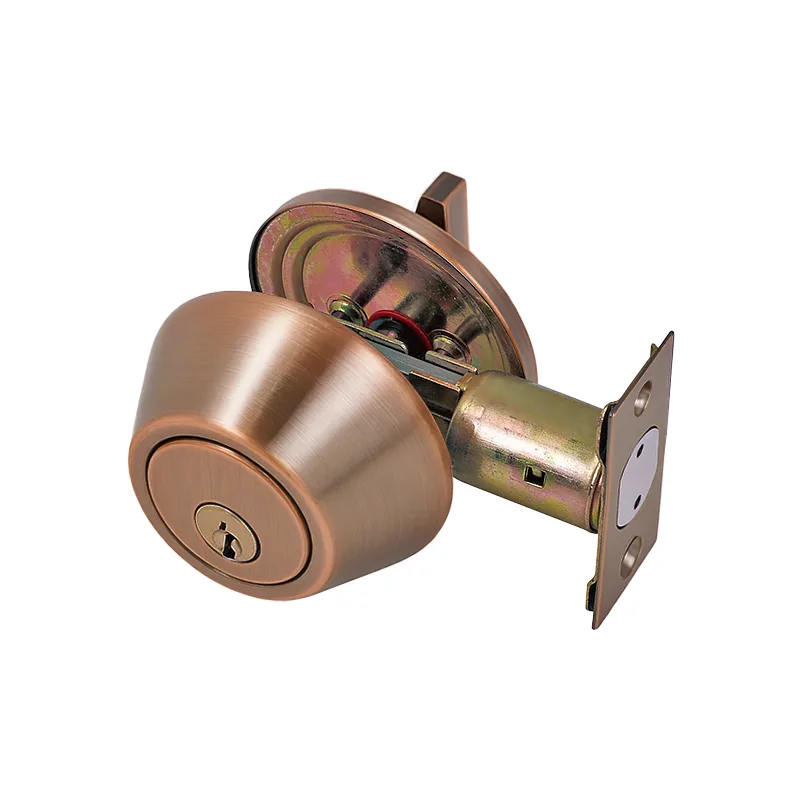

Model D101 AC
Backset Adjustable 2-3/8” or 2-3/4” (60mm or 70mm)
Deadbolts
Model D101 BS
Backset Adjustable 60mm or 70mm (2-3/8” or 2-3/4”)
Deadbolts

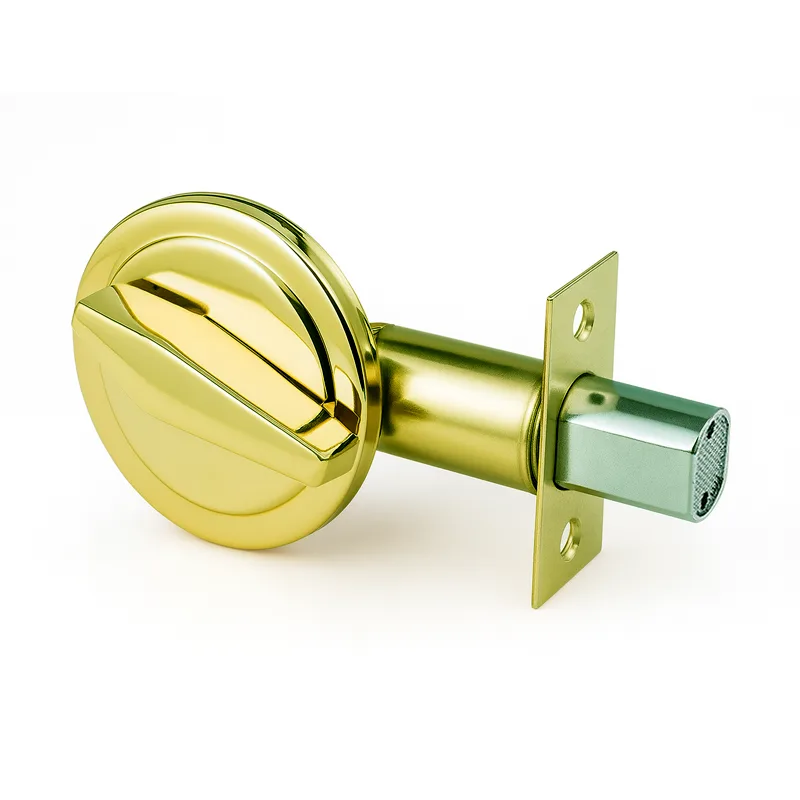

Model D101 DSPB
Backset Adjustable 60 mm or 70 mm (2-3/8” or 2-3/4”)
Deadbolts

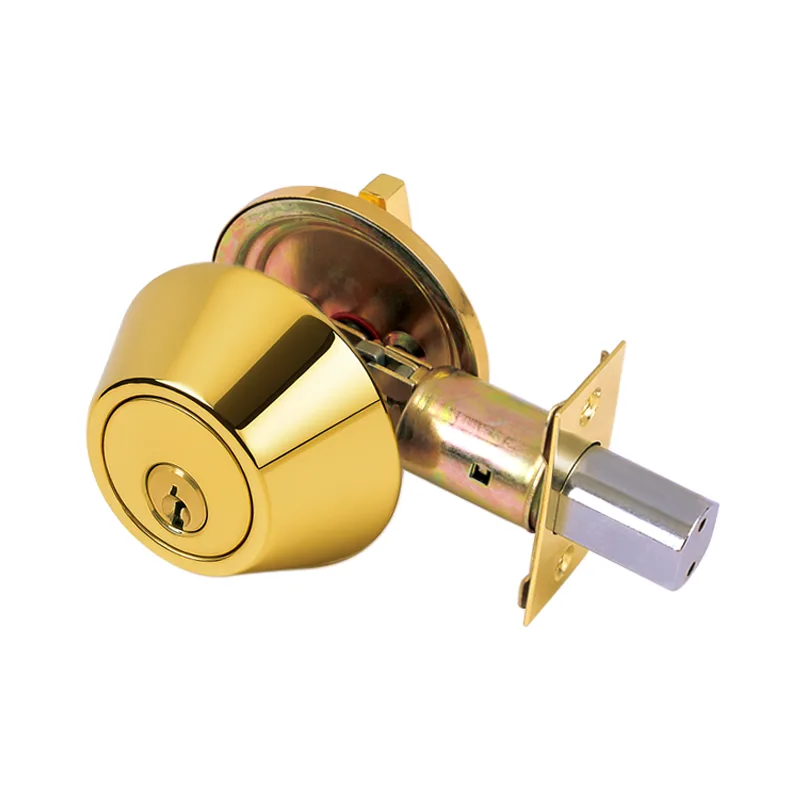

Model D101 PB
Backset 60mm or 70mm (2-3/8” or 2-3/4”)
Deadbolts

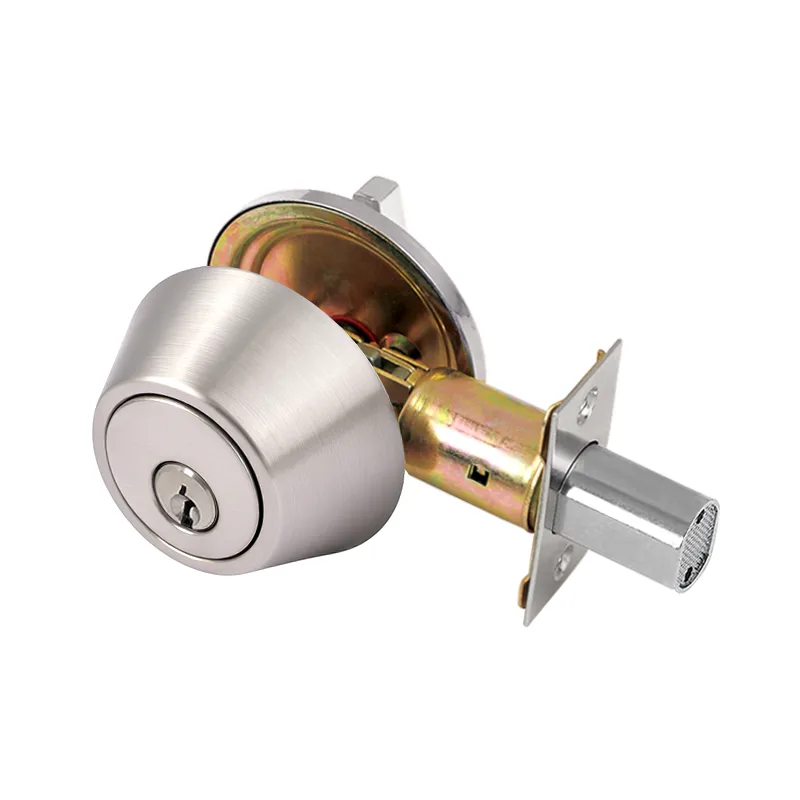

Model D101 SS · Video
Backset Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm)
Deadbolts
Model D102 AC
Backset Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm)
Deadbolts
Model D102 PB
Backset Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm)
Deadbolts

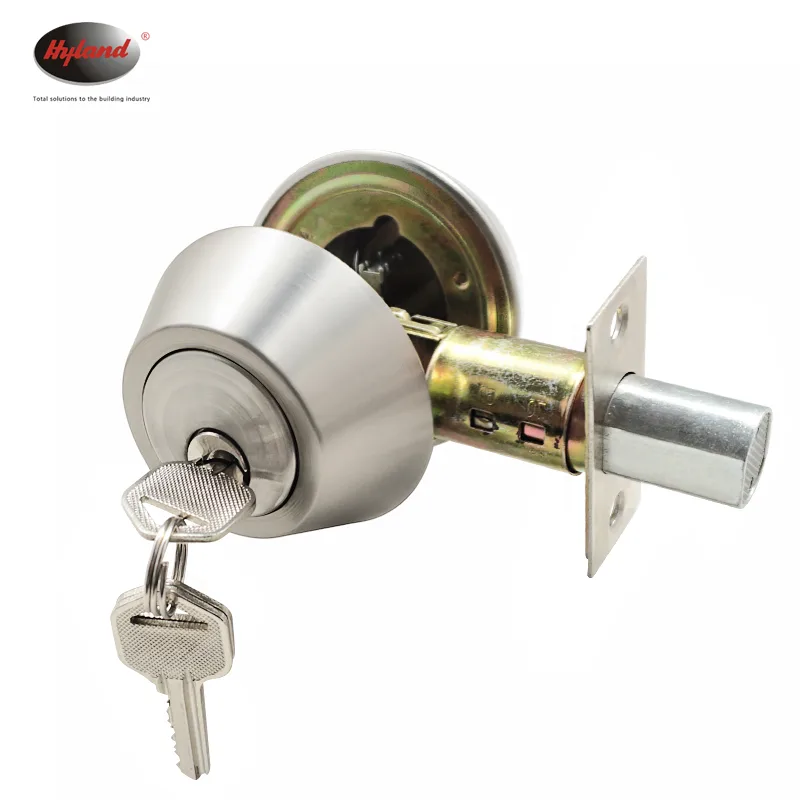

Model D102 SS
Deadbolts
Model D103 AC
How buyers specify deadbolts
Single- and double-cylinder deadbolts for residential entrance doors, bought by hardware distributors alongside our knob locks and lever sets so the whole door keys alike. The 11 models are made here, by the manufacturer, with a 25mm throw and an adjustable backset, for wholesale supply.
What backset and throw do they have?
- Backset 60–70mm, adjustable on the latch; deadbolt throw 25mm. Door thickness accepted is 35–45mm, so the same deadbolt fits the standard residential door preparations without a new bore.
Single or double cylinder — which one?
- Single cylinder has a thumbturn inside and is the usual choice for an entrance door, because it opens from inside without a key. Double cylinder needs a key on both sides and is specified where a glazed panel sits within reach of the lock. Check local egress rules before choosing double cylinder on an exit door.
What do you need from me to quote?
- The model numbers or a drawing, the finish, the quantity per model and the destination port. Minimum order and lead time are confirmed per line; most models fall between 300 and 5,000 pieces, and production starts at 30 days from order confirmation. Samples are available before a production order.
Compare models in this range
The specifications that differ between models, side by side. An empty cell means we have not published that figure for that model yet.
| Model | Cylinder | Door thickness | Backset | Finish | Key options |
|---|---|---|---|---|---|
| D101 AB | Solid Brass Cylinder | Adjustable 1-3/8” to 1-3/4” (35mm–45mm) | Adjustable 2-3/8” or 2-3/4” (60mm or 70mm) | Antique brass (US5) | 2 Nickel-Plated Brass Keys |
| D101 AC | Solid Brass Cylinder | Adjustable 35–45mm (1-3/8” to 1-3/4”) | Adjustable 60mm or 70mm (2-3/8” or 2-3/4”) | Antique copper (US11) | 2 nickel-plated brass keys included |
| D101 BS | Solid Brass Cylinder | Adjustable 1-3/8” to 1-3/4” (35mm–45mm) | Adjustable 2-3/8” or 2-3/4” (60mm or 70mm) | Satin Brass | 2 Nickel-Plated Brass Keys |
| D101 PB | Solid Brass Cylinder | Adjustable 35–45 mm (1-3/8” to 1-3/4”) | Adjustable 60 mm or 70 mm (2-3/8” or 2-3/4”) | Polished brass (US3) | 2 × Nickel-Plated Brass Keys |
| D101 SS | Solid Brass Cylinder | 35–45mm (1-3/8” to 1-3/4”) | 60mm or 70mm (2-3/8” or 2-3/4”) | Satin stainless steel (US32D) | 2 × Nickel-Plated Brass Keys |
| D102 AC | Solid Brass Cylinder | 1-3/8” to 1-3/4” (35mm–45mm) | Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm) | Antique copper (US11) | 2 Nickel-Plated Brass Keys |
| D102 PB | Solid Brass Cylinder | 1-3/8” to 1-3/4” (35mm–45mm) | Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm) | Polished brass (US3) | 2 Nickel-Plated Brass Keys |
| D102 SS | Solid Brass Cylinder | 1-3/8” to 1-3/4” (35mm–45mm) | Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm) | Satin stainless steel (US32D) | 2 Nickel-Plated Brass Keys |
| D101 DSPB | 5-pin tumbler, solid brass plug, two nickel-plated brass keys | Adjustable 35–45mm (1-3/8” to 1-3/4”) | Adjustable 60mm or 70mm (2-3/8” or 2-3/4”) | — | — |
Choosing deadbolts
Throw length is what resists a forced jamb. It matters more than the number of turns.
What the 11 published models in this range state, counted from their own specification tables.
| Specification | Published values (number of models) |
|---|---|
| Backset | Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm) (3), Adjustable 2-3/8” or 2-3/4” (60mm or 70mm) (2), Adjustable 60mm or 70mm (2-3/8” or 2-3/4”) (2), 60mm or 70mm (2-3/8” or 2-3/4”) (1), and 1 more2 of 11 models do not state this yet. |
| Chassis | Zinc plated steel internal components (9)2 of 11 models do not state this yet. |
| Cylinder | Solid Brass Cylinder (8), 5-pin tumbler, solid brass plug, two nickel-plated brass keys (1)2 of 11 models do not state this yet. |
Read before ordering
Questions about deadbolts
- How many deadbolts does Canton Hyland publish?
- 11 published models. Every model has its own page with the specifications we have confirmed.
- Which backset options are available for Canton Hyland deadbolts?
- By number of published models: Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm) (3), Adjustable 2-3/8” or 2-3/4” (60mm or 70mm) (2), Adjustable 60mm or 70mm (2-3/8” or 2-3/4”) (2), 60mm or 70mm (2-3/8” or 2-3/4”) (1), and 1 more. 2 of 11 models do not state this yet; ask the export team before ordering.
- Which chassis options are available for Canton Hyland deadbolts?
- By number of published models: Zinc plated steel internal components (9). 2 of 11 models do not state this yet; ask the export team before ordering.
- Which cylinder options are available for Canton Hyland deadbolts?
- By number of published models: Solid Brass Cylinder (8), 5-pin tumbler, solid brass plug, two nickel-plated brass keys (1). 2 of 11 models do not state this yet; ask the export team before ordering.
