Night Latch And Rim Lock
5836 Night Latch And Rim Lock
Model
5836

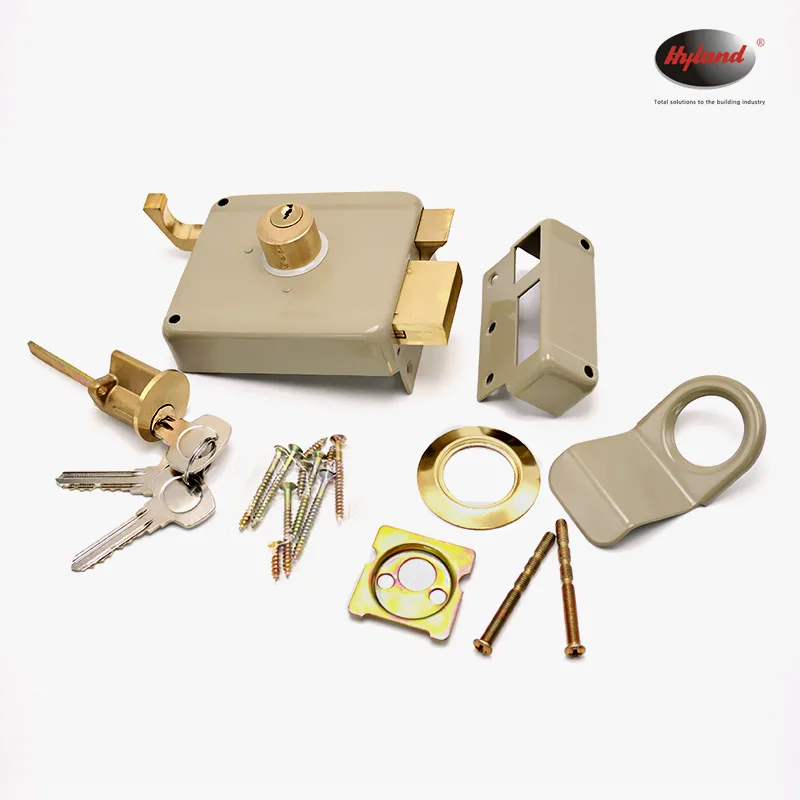

A steel-cased rim night latch with a 50mm backset, supplied with four keys. Installs with screws or by welding.
- Suitable for wooden or metal doors (interior/exterior)
- Secure deadbolt and bronze slide latch system
- Includes rectangular steel pin for added strength
- Classic key operation with separate cylinder
- Available in standard and economy versions
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Steel sheet 1.5mm case; zinc alloy and copper alloy internal components; solid brass cylinders; iron (1/16")
- Case size
- 100 × 85 × 25mm
- Installation
- Screws or welding; installation accessories included
- Keys supplied
- 3
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request (1-3/8" / 2-3/16" / 1-3/16" / 2-3/8")
- Latch extension
- 13mm, with inside deadlocking button (1/2")
- Deadbolt throw
- 25mm on rim deadbolt versions (1")
- Strike
- Angle strike standard for inward-opening doors; flat strike available
- Handing
- Fully reversible, left or right hand
- Function
- Single cylinder, double cylinder or self-locking
- Feature
- Anti-picking slide gate on single-cylinder deadlock
- Backset
- 50mm (1-15/16")
- Case & Strike Plate
- Steel with electrostatic powder coating
- Deadbolt
- Brass, two/three-throw
- Latch & Puller
- Brass or zinc
- Cylinder
- Brass (inside and outside), fixed or loose type
- Key options
- Brass or iron
- Packing
- One set per box with fasteners
Bolt detail
Backset 50mm to the cylinder center. Latch throw 13mm. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- What is the 5836 made from?
- The 5836 is made from Steel sheet 1.5mm case; zinc alloy and copper alloy internal components; solid brass cylinders; iron.
- What backset does the 5836 use?
- The 5836 has a backset of 50mm.
- What door thickness does the 5836 suit?
- The 5836 suits a door thickness of 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the 5836 provide?
- The 5836 provides Single cylinder, double cylinder or self-locking.
- Is the 5836 handed?
- Handing for the 5836: Fully reversible, left or right hand.
- What cylinder does the 5836 take?
- The 5836 takes a Brass (inside and outside), fixed or loose type cylinder.
