Canton Product Collection
Door Closers
Door closers with aluminum bodies for commercial doors, plus a floor hinge for timber doors.
Canton Hyland manufactures every door closer in this range in Guangdong, China, with 7 published models. Production lead time starts at 30 days from order confirmation, and we produce under our customers' own brands (OEM and private label). Send your door schedule to the export team for model numbers, finishes and a confirmed date.
7 products
Catalog order
Capacity 15-30KG

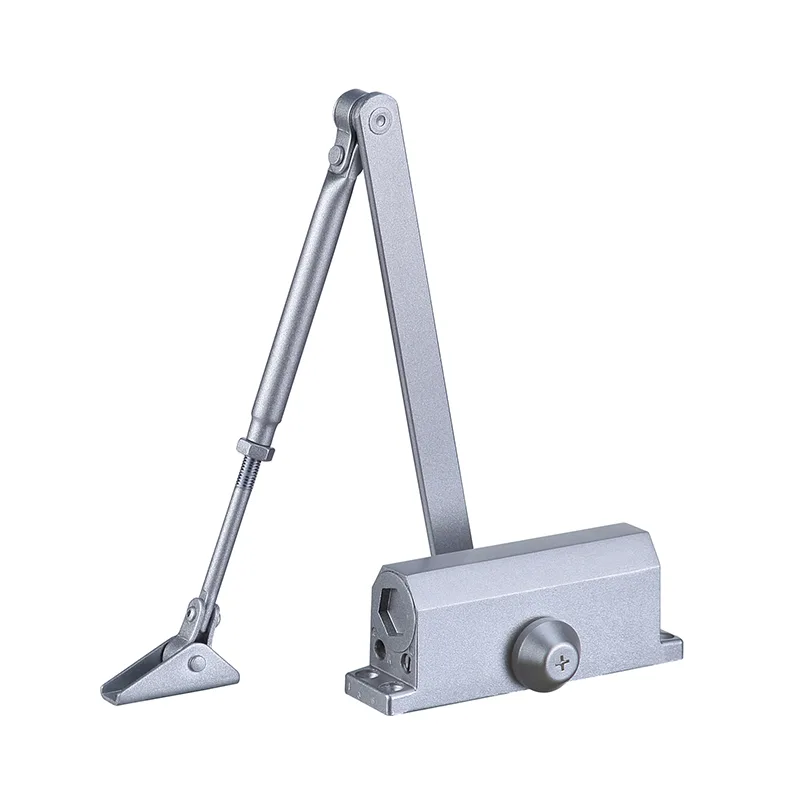

Door Closer
Model JU-051
Aluminum
Capacity 25-45KG

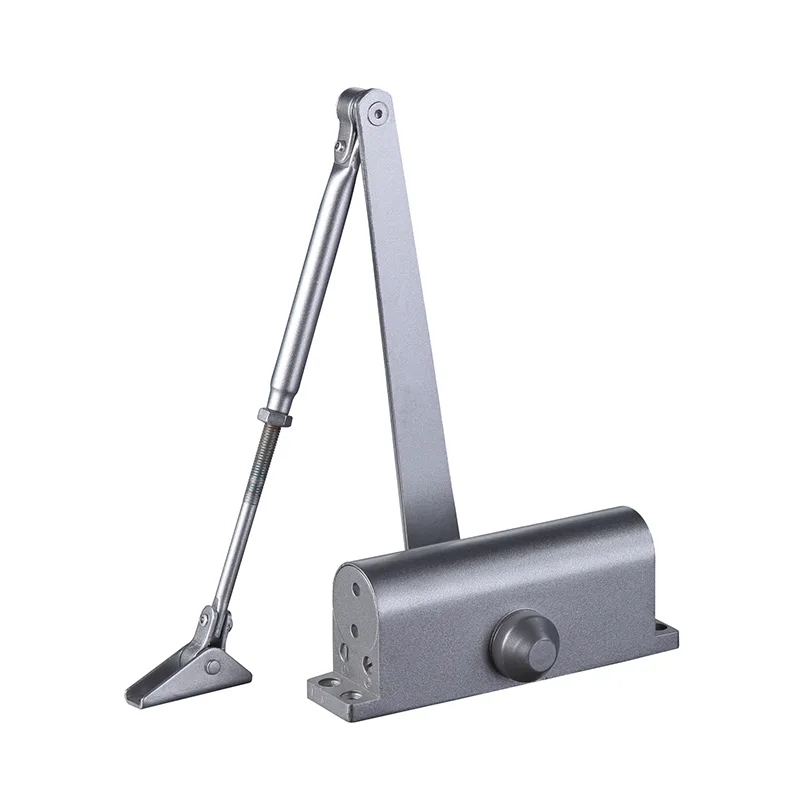

Door Closer
Model JU-061
Aluminum
Capacity 40-65KG

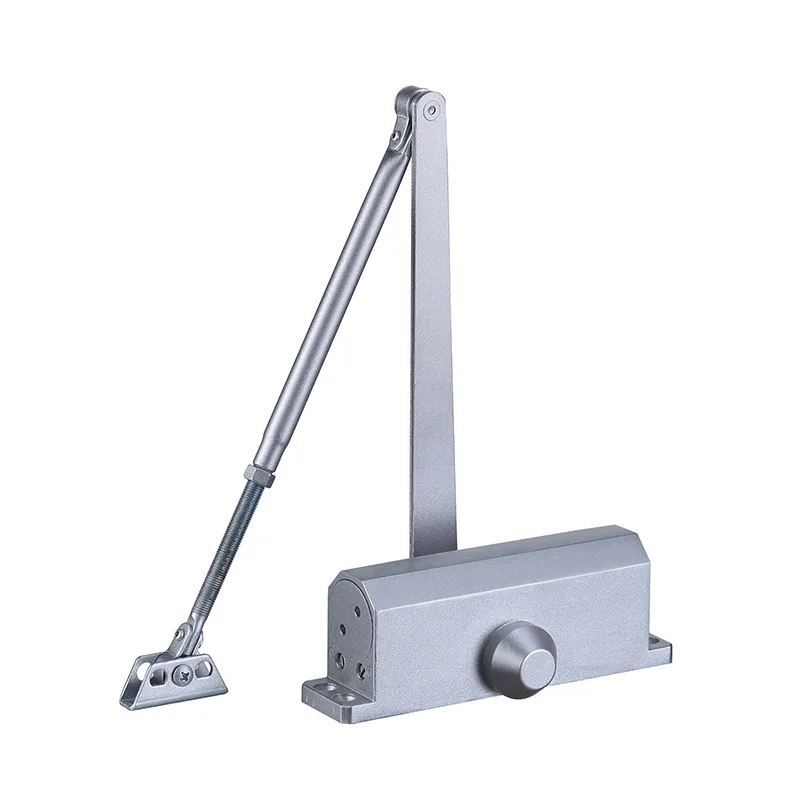

Door Closer
Model JU-072
Aluminum
Capacity 40-65KG

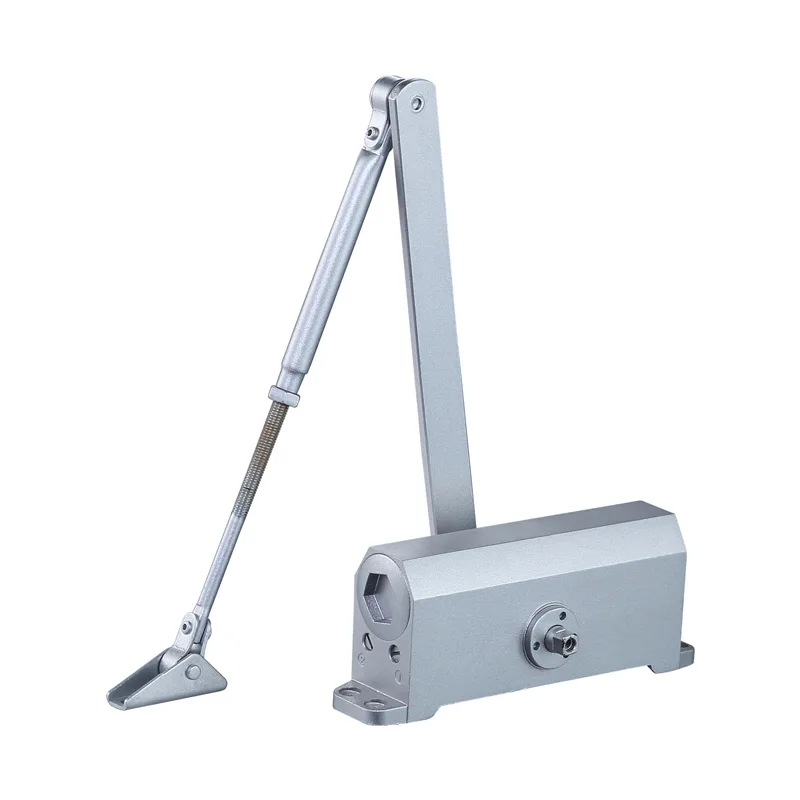

Door Closer
Model JU-073
Aluminum
Capacity 40-65KG
Door Closer
Model JU-088
Aluminum
Capacity 45-85KG
Door Closer
Model JU-093
Aluminum
Wooden Door Floor Hinge
Model code to be confirmed
Steel body, stainless steel cover plates
How buyers specify door closers
A door closer manufacturer in China supplying overhead closers with aluminum bodies for commercial, office and fire doors, plus a floor hinge for timber doors. Buyers select by door width and leaf weight, then ask for a double-door coordinator where a pair must close in order. 7 models, made in our own plant.
Which closer fits my door width and weight?
- Published door widths run 800–1050mm and leaf capacities 40-65KG, 15-30KG, 25-45KG, 45-85KG. Pick the model whose band contains your leaf weight, then confirm the mounting position on the drawing; an exposed door or a wind load moves the choice one band up.
Is the closing speed adjustable, and is there hold-open?
- Closing speed and latching speed are adjusted with the valves on the body; the record for each model says whether a hold-open arm is offered. Hold-open must not be used on a fire door, which has to close every time.
Do you have a certified closer for fire doors?
- Test reports are published per model on the certificates page; a closer without a report is not described as fire-door rated. Ask for the report by model number, and for a double fire door add a coordinator so the inactive leaf closes first.
What do you need from me to quote?
- The model numbers or a drawing, the finish, the quantity per model and the destination port. Minimum order and lead time are confirmed per line; most models fall between 300 and 5,000 pieces, and production starts at 30 days from order confirmation. Samples are available before a production order.
Compare models in this range
The specifications that differ between models, side by side. An empty cell means we have not published that figure for that model yet.
| Model | Door Width | Capacity |
|---|---|---|
| JU-051 | 800mm | 15-30KG |
| JU-061 | 850mm | 25-45KG |
| JU-072 | 1050mm | 40-65KG |
| JU-073 | 850mm | 40-65KG |
| JU-088 | 950mm | 40-65KG |
| JU-093 | 1050mm | 45-85KG |
Choosing door closers
Chosen by door width and leaf weight. The closer that matches both shuts the door without slamming it.
What the 7 published models in this range state, counted from their own specification tables.
| Specification | Published values (number of models) |
|---|---|
| Capacity | 40-65KG (3), 15-30KG (1), 25-45KG (1), 45-85KG (1)1 of 7 models do not state this yet. |
| Door Width | 1050mm (2), 850mm (2), 800mm (1), 950mm (1)1 of 7 models do not state this yet. |
| Material | Aluminum (6)1 of 7 models do not state this yet. |
Read before ordering
- Why a Double Fire Door Needs a Coordinator, and How to Size One
- Door Closer Power Size 2026: EN 1154 Sizes 1–7, A156.4, and How to Pick One from the Door
- One Opening, One Order: The Hardware Set for a Double Fire Exit Door
- Door Closer Mounting 2026: Regular Arm, Top Jamb, Parallel Arm and Slide Track Compared
- Compare every model side by side
- Filter the catalog by material, finish and door type
Questions about door closers
- How many door closers does Canton Hyland publish?
- 7 published models. Every model has its own page with the specifications we have confirmed.
- Which capacity options are available for Canton Hyland door closers?
- By number of published models: 40-65KG (3), 15-30KG (1), 25-45KG (1), 45-85KG (1). 1 of 7 models do not state this yet; ask the export team before ordering.
- Which door width options are available for Canton Hyland door closers?
- By number of published models: 1050mm (2), 850mm (2), 800mm (1), 950mm (1). 1 of 7 models do not state this yet; ask the export team before ordering.
- Which material options are available for Canton Hyland door closers?
- By number of published models: Aluminum (6). 1 of 7 models do not state this yet; ask the export team before ordering.
