Night Latch And Rim Lock
G559 Night Latch And Rim Lock
Model
G559

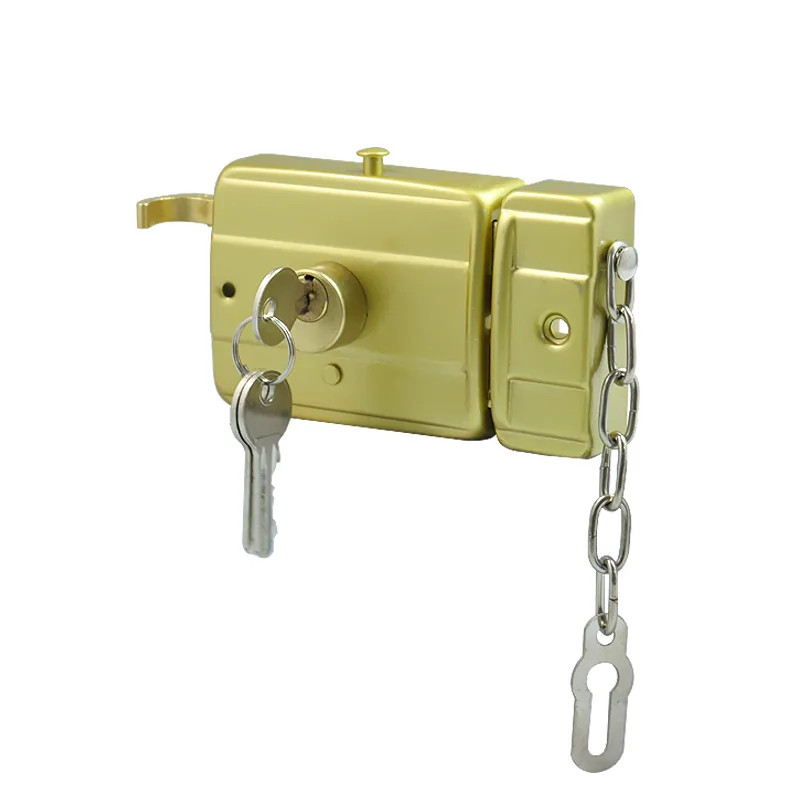

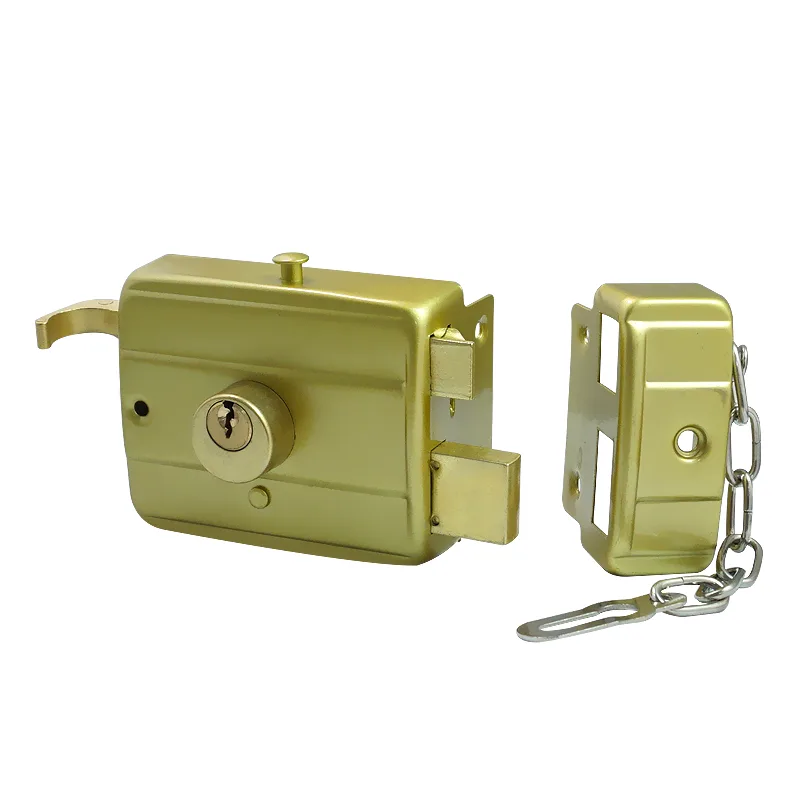

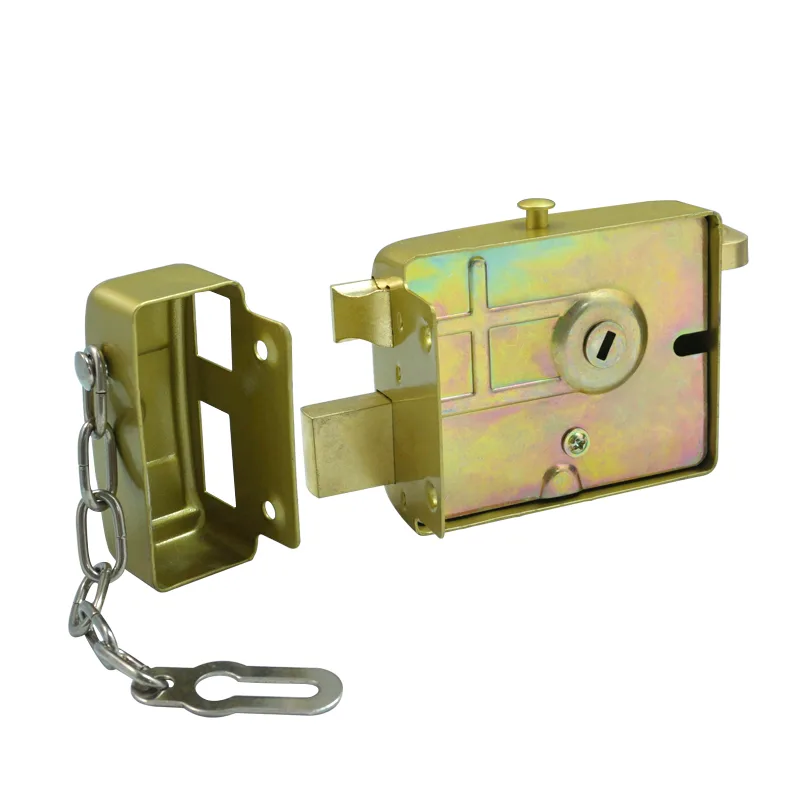

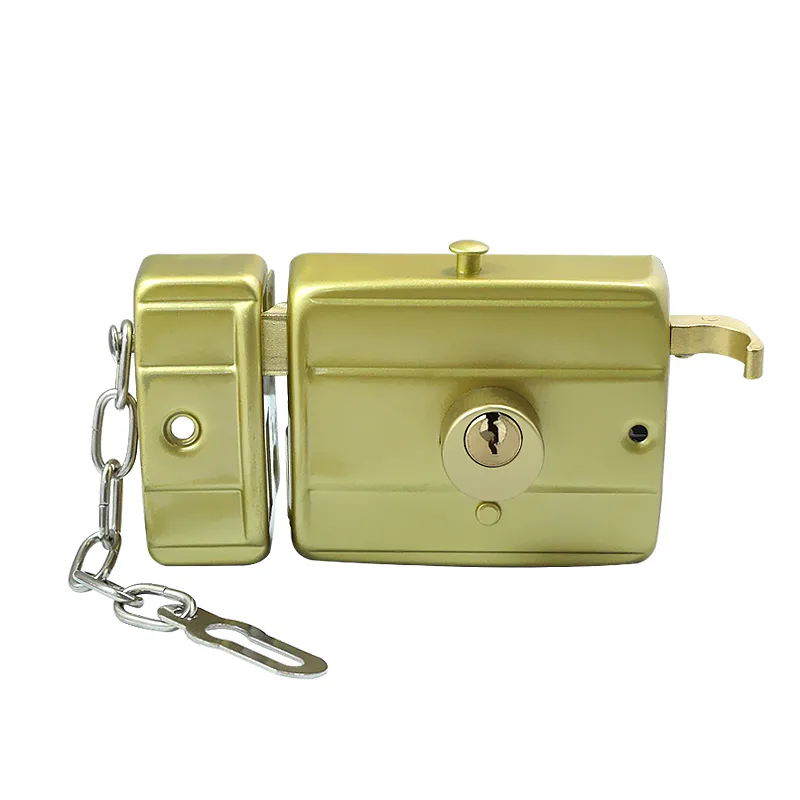

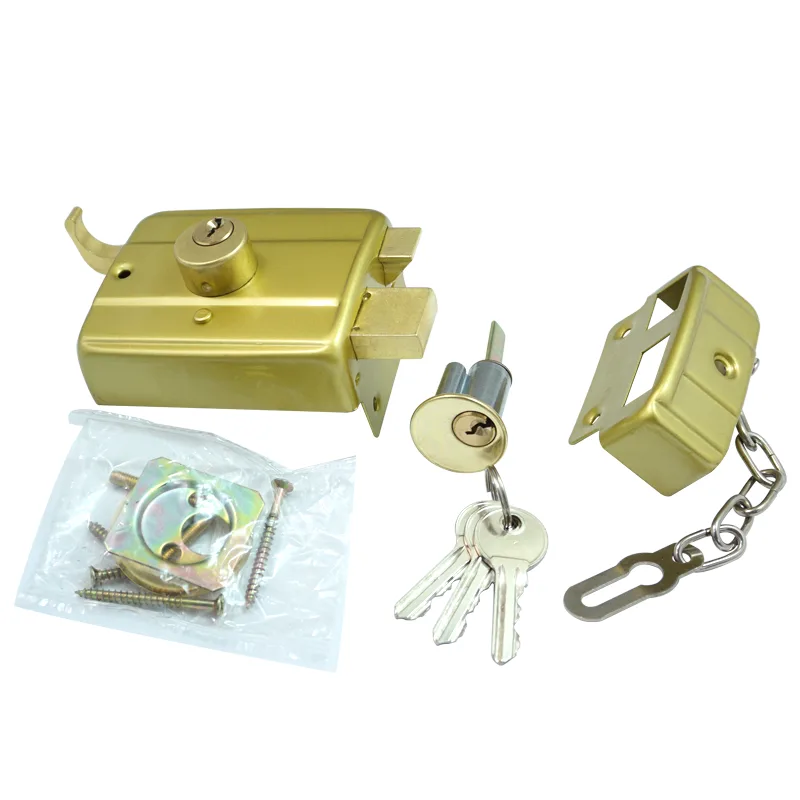

Iron lock body, brass Cylinder(double cylinder), with 3pcs iron key. night latch and rim lock, 60mm backset.
- Function: 13mm latch extension with inside deadlocking button to prevent outside key operation and latch picking
- Packing: Blister or color box
- G.W.: 16kg / N.W.: 15kg
- Carton Size: 41.5 × 26 × 30.5 cm
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Iron lock body, brass Cylinder(double cylinder), with 3pcs iron key.
- Backset
- 60mm (2-3/8")
- Finish
- Painting
- Packing
- Blister or color box available,24 pcs/ctn G.W.:16KGS /CTN,N.W.:15KGS/CTN,
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request (1-3/8" / 2-3/16" / 1-3/16" / 2-3/8")
- Latch extension
- 13mm, with inside deadlocking button (1/2")
- Deadbolt throw
- 25mm on rim deadbolt versions (1")
- Strike
- Angle strike standard for inward-opening doors; flat strike available
- Handing
- Fully reversible, left or right hand
- Function
- Single cylinder, double cylinder or self-locking
- Feature
- Anti-picking slide gate on single-cylinder deadlock
- Key options
- 3 iron keys included
Bolt detail
Backset 60mm to the cylinder center. Latch throw 13mm. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- What is the G559 made from?
- The G559 is made from Iron lock body, brass Cylinder(double cylinder), with 3pcs iron key..
- Which finishes is the G559 available in?
- The G559 is available in Painting.
- What backset does the G559 use?
- The G559 has a backset of 60mm.
- What door thickness does the G559 suit?
- The G559 suits a door thickness of 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the G559 provide?
- The G559 provides Single cylinder, double cylinder or self-locking.
- Is the G559 handed?
- Handing for the G559: Fully reversible, left or right hand.
