HYDE 9014

A stainless steel lever, made to its drawing.

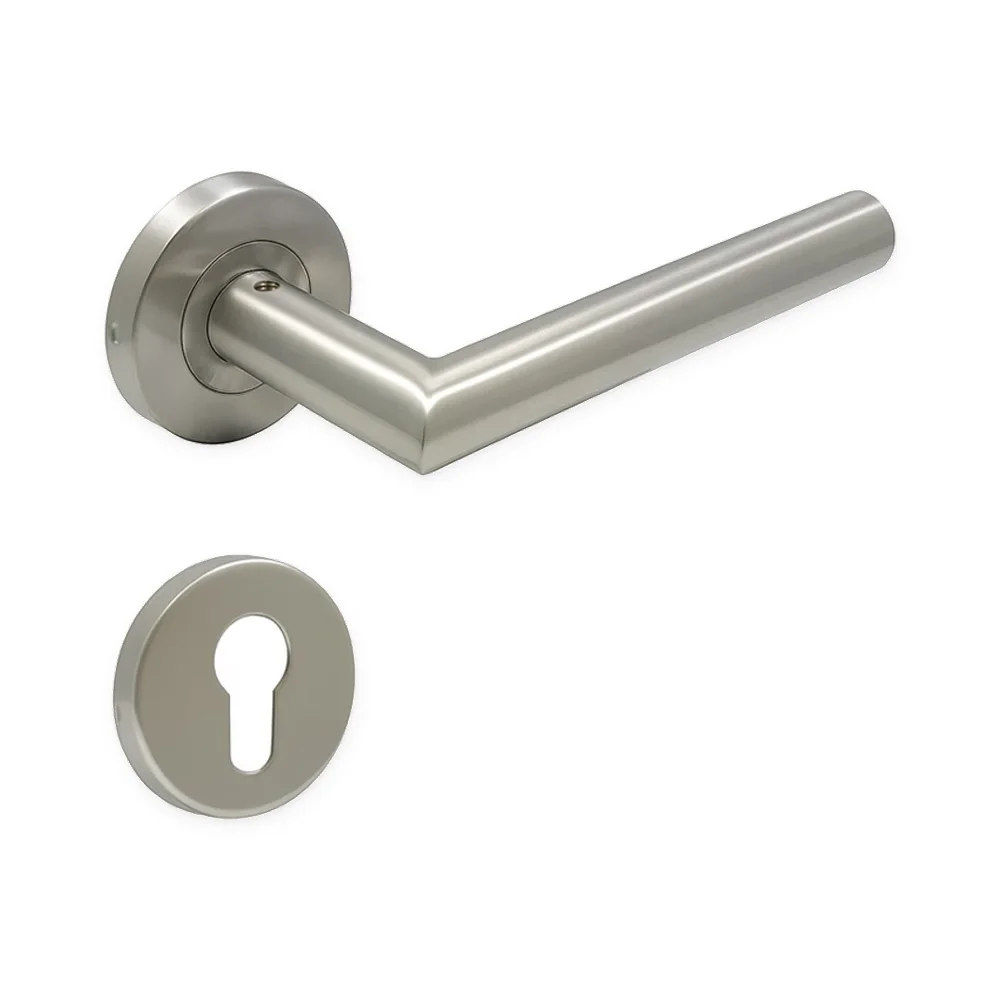

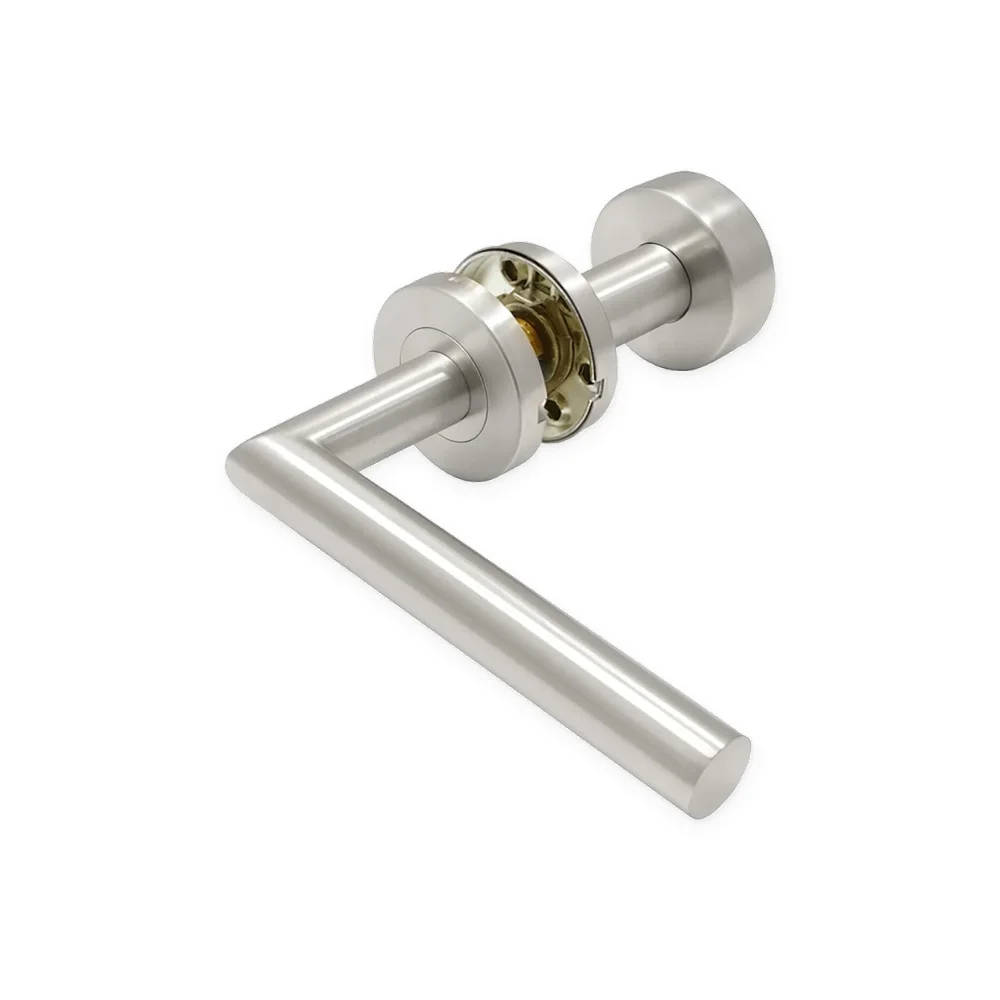

The 9014 is a lever with one idea in it: a 19 mm round bar of stainless steel, turned through a single right angle. It is 135 mm long and stands 60 mm off the door, on a round rose 53 mm across and 9 mm deep. The finish is satin brushed stainless steel, US32D. It fits doors 35 to 50 mm thick and comes prepared for a brass cylinder, as an entrance set or a privacy set. Every figure on this page is taken from the factory drawing.

9014 lever, the right-angle corner where the 19 mm bar turns towards the door — One corner. The 19 mm bar turns through a single mitered right angle.

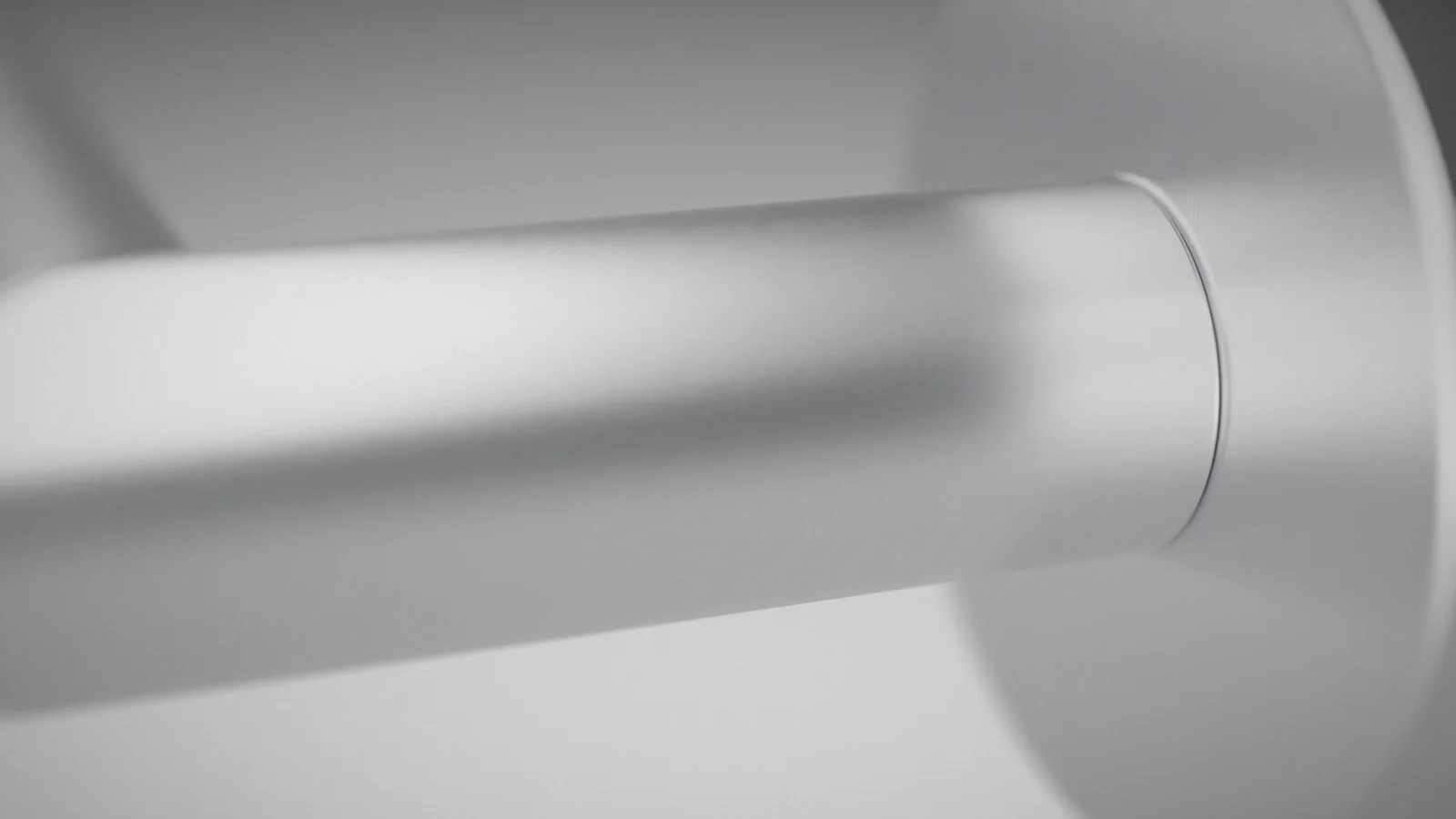

9014 lever, the neck meeting the 53 mm round rose — The neck meets a round rose 53 mm across and 9 mm deep.

Film and details are rendered from the factory drawing. Parts without a published dimension, such as the grub screw, are left out rather than guessed.

What the drawing fixes

A 9014 set as it ships, photographed at the factory: the lever with the inside of its rose showing, the knob, cylinder escutcheons and fixing screws — A 9014 set as it ships, photographed at the factory, with the inside of the rose showing.

A lever that arrives in a container cannot be adjusted on site. Whether it fits is decided by a few figures, so those are the ones we publish, and where a dimension is not on the drawing this page does not supply one.

Lever length: 135 mm
Projection from the door: 60 mm
Bar diameter: 19 mm
Rose: Ø53 × 9 mm
Spindle: 8 mm
Door thickness: 35–50 mm
