Night Latch And Rim Lock
5683 Night Latch And Rim Lock
Model
5683

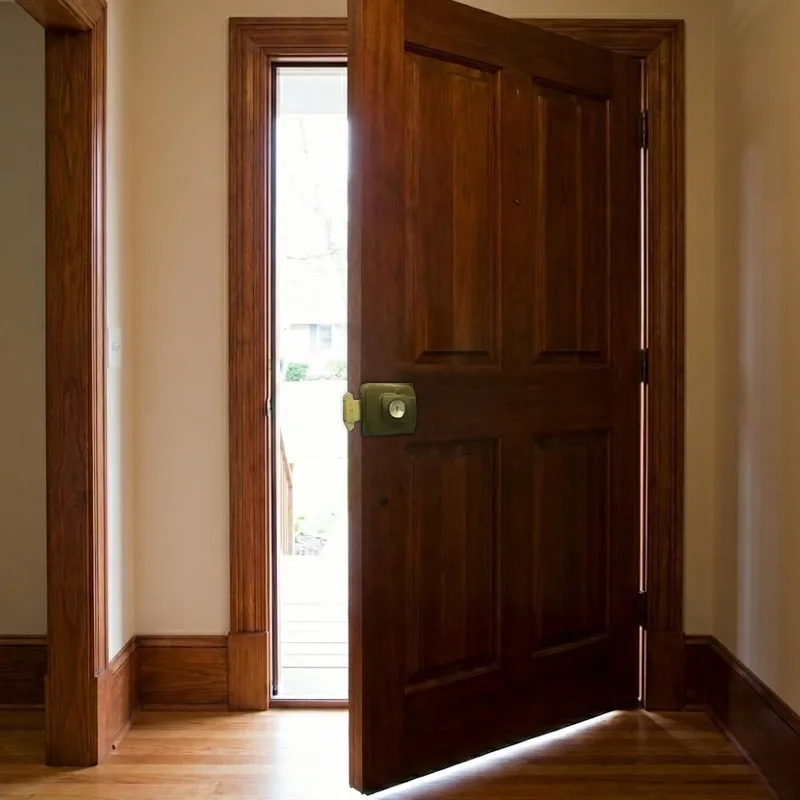

Iron night latch and rim lock, 2-3/8＂(60mm) backset.
- Available in single or double cylinder options
- Self-locking function
- Anti-theft design with high security
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Iron
- Backset
- 2-3/8＂(60mm) (1/8" / 2-3/8")
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request (1-3/8" / 2-3/16" / 1-3/16" / 2-3/8")
- Latch extension
- 13mm, with inside deadlocking button (1/2")
- Deadbolt throw
- 25mm on rim deadbolt versions (1")
- Strike
- Angle strike standard for inward-opening doors; flat strike available
- Handing
- Fully reversible, left or right hand
- Function
- Single cylinder, double cylinder or self-locking
- Feature
- Anti-picking slide gate on single-cylinder deadlock
- Opening
- Double side
- Application
- Residential
Bolt detail
Backset 60mm to the cylinder center. Latch throw 13mm. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- What is the 5683 made from?
- The 5683 is made from Iron.
- What backset does the 5683 use?
- The 5683 has a backset of 2-3/8＂(60mm).
- What door thickness does the 5683 suit?
- The 5683 suits a door thickness of 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the 5683 provide?
- The 5683 provides Single cylinder, double cylinder or self-locking.
- Where is the 5683 used?
- The 5683 is used on Residential.
- Is the 5683 handed?
- Handing for the 5683: Fully reversible, left or right hand.
