Night Latch And Rim Lock
558 Night Latch And Rim Lock
Model
558
Single Cylinder: Operated by key and inside knob, with anti-pick slide gate

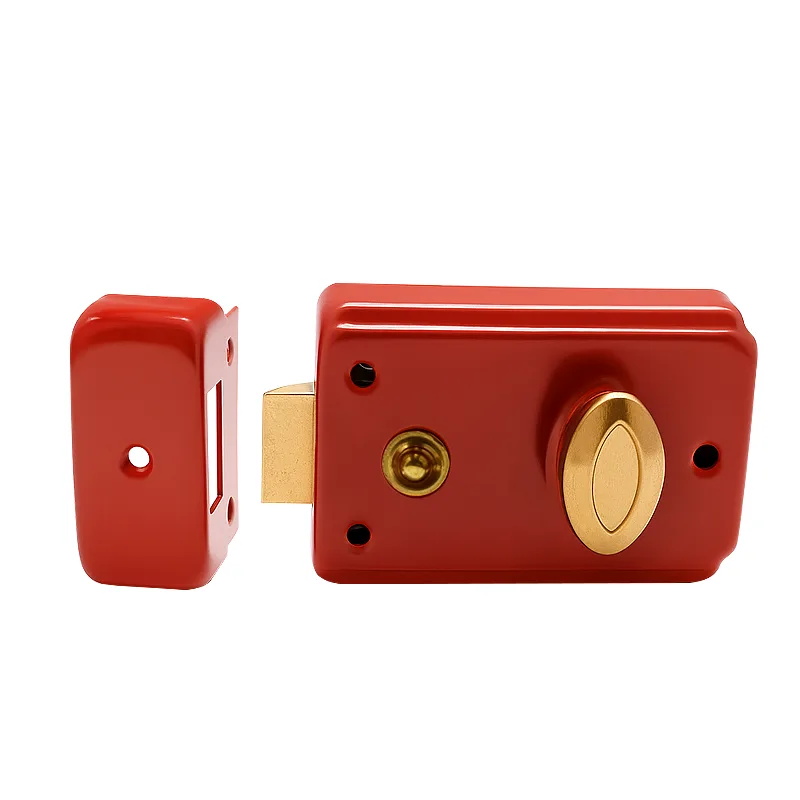

- Strike Plate:
- Standard: Angled strike for inward-opening doors
- Optional: Flat strike for outward-opening doors (not recommended)
- Lock Function:
- Single Cylinder: Operated by key and inside knob, with anti-pick slide gate
- Double Cylinder: Operated by key on both sides
- Security: High protection against theft with self-locking option
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Iron
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request (1-3/8" / 2-3/16" / 1-3/16" / 2-3/8")
- Latch extension
- 13mm, with inside deadlocking button (1/2")
- Deadbolt throw
- 25mm on rim deadbolt versions (1")
- Strike
- Angle strike standard for inward-opening doors; flat strike available
- Handing
- Fully reversible, left or right hand
- Function
- Single cylinder, double cylinder or self-locking
- Feature
- Anti-picking slide gate on single-cylinder deadlock
- Structure
- Beveled latch design
- Cylinder
- Single or double cylinder with self-locking function
- Backset
- 60mm (2-3/8”) (2-3/8" / 1/8")
Bolt detail
Backset 60mm to the cylinder center. Latch throw 13mm. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- What is the 558 made from?
- The 558 is made from Iron.
- What backset does the 558 use?
- The 558 has a backset of 60mm (2-3/8”).
- What door thickness does the 558 suit?
- The 558 suits a door thickness of 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the 558 provide?
- The 558 provides Single cylinder, double cylinder or self-locking.
- Is the 558 handed?
- Handing for the 558: Fully reversible, left or right hand.
- What cylinder does the 558 take?
- The 558 takes a Single or double cylinder with self-locking function cylinder.
