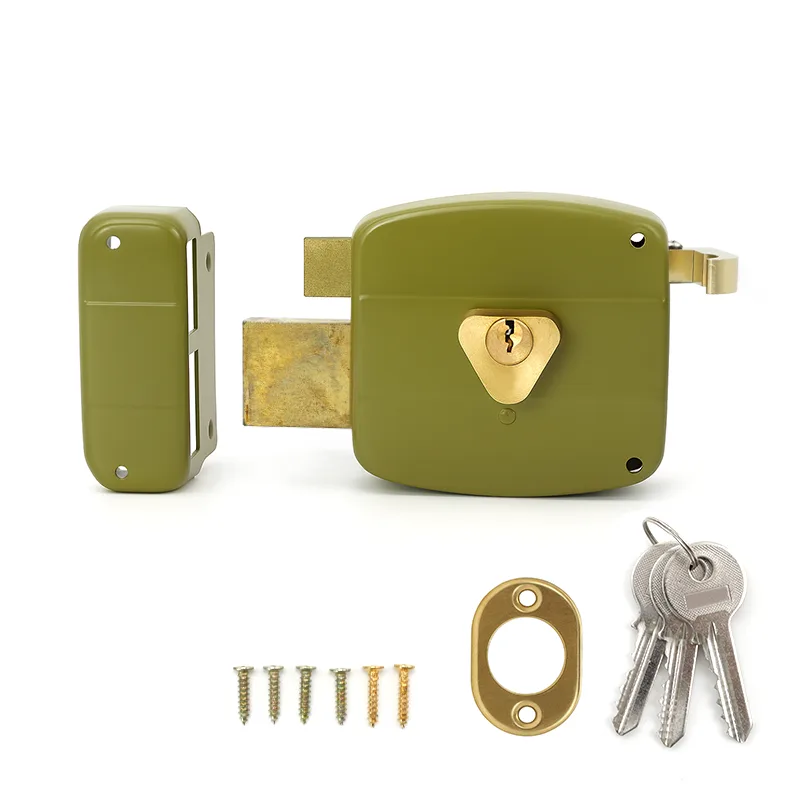

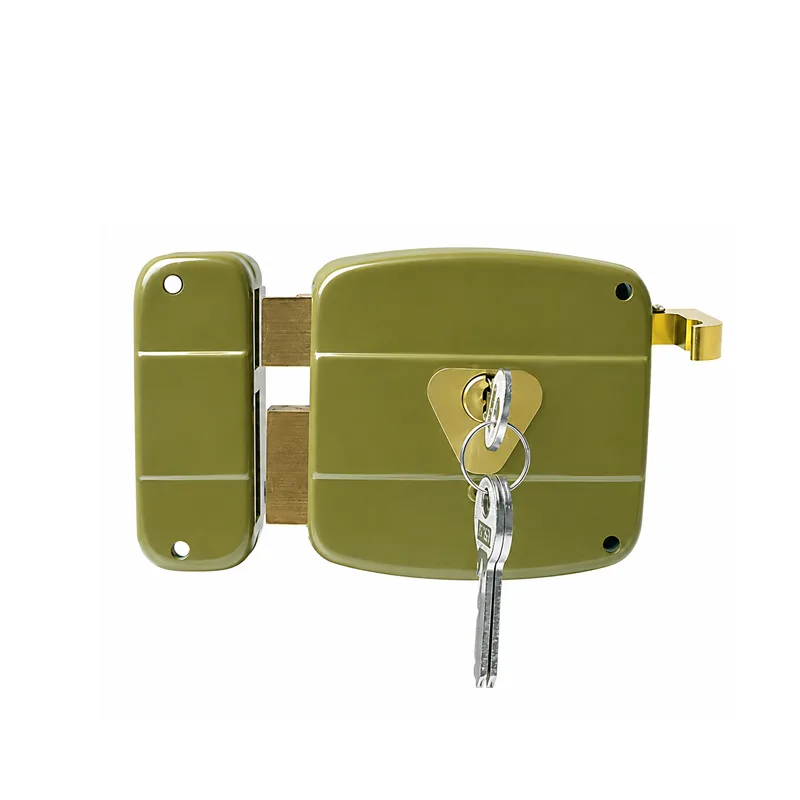

Iron case night latch and rim lock, 100*100mm.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Iron case
- Size
- 100*100mm
- Function
- The Rim door looks with double cylinder double throw. Dead bolt and latch bolt have triple guaranteed function which avoid prizing off the door, opening the door from inside. Without keys and removing the lock from inside when closed so as to ensure security. They are suitable for various kinds of wooden or iron doors.
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request
- Latch extension
- 13mm, with inside deadlocking button
- Deadbolt throw
- 25mm on rim deadbolt versions
- Chassis

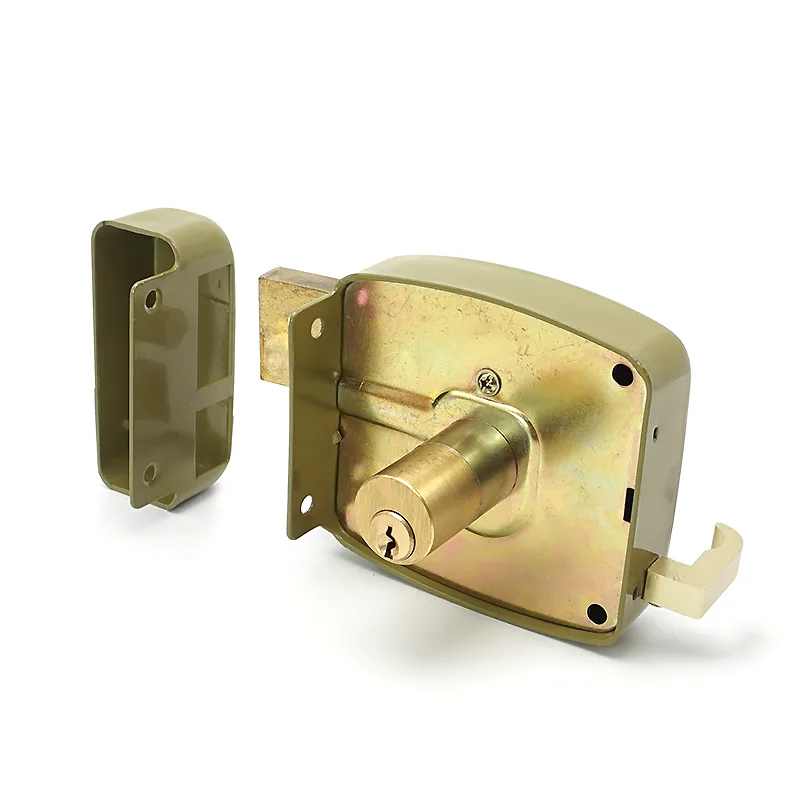

- Zinc die-cast case, zinc-plated steel internal components
- Strike
- Angle strike standard for inward-opening doors; flat strike available
- Handing
- Fully reversible, left or right hand
- Feature
- Anti-picking slide gate on single-cylinder deadlock
- Accessories

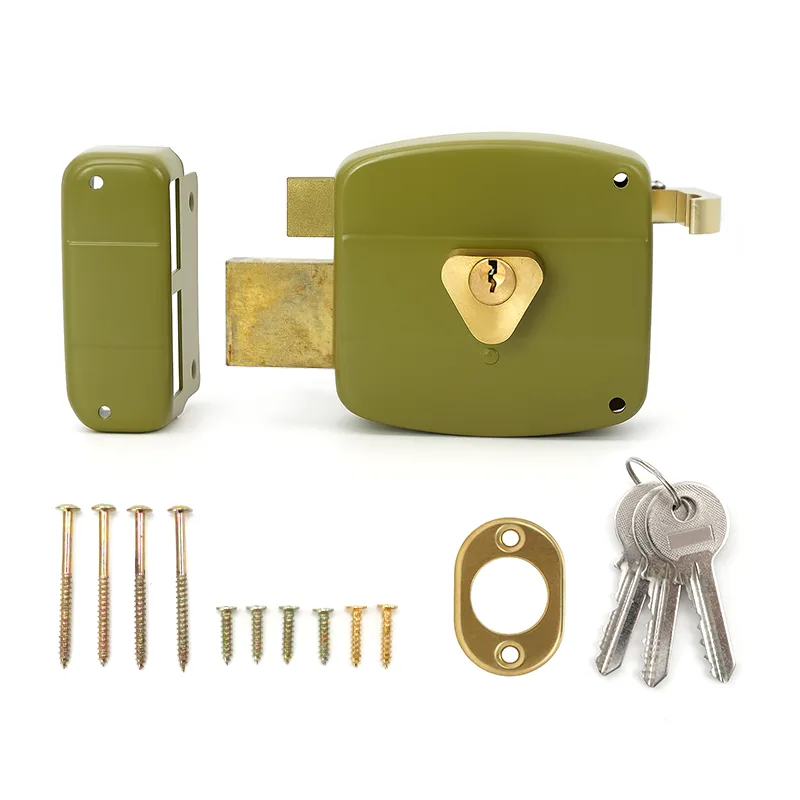

- Includes installation screws
- Customization
- OEM & ODM available
- Pieces per carton
- 24
- Carton size
- 30.2×26×40.4 cm
- Carton volume
- 0.0317 m³
- Gross weight
- 19.6 kg
- Net weight
- 18.6 kg
Common questions
- What is the 5688 made from?
- The 5688 is made from Iron case.
- What door thickness does the 5688 suit?
- The 5688 suits a door thickness of 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the 5688 provide?
- The 5688 provides The Rim door looks with double cylinder double throw. Dead bolt and latch bolt have triple guaranteed function which avoid prizing off the door, opening the door from inside. Without keys and removing the lock from inside when closed so as to ensure security. They are suitable for various kinds of wooden or iron doors..
- Is the 5688 handed?
- Handing for the 5688: Fully reversible, left or right hand.
- What size is the 5688?
- The 5688 measures 100*100mm.
- How is the 5688 packed?
- The 5688 is packed as 24.
