Fabricada en lámina de acero 1.2 mm,componentes internos aleación de zinc, aleación de cobre,cilindros en latón sólido,4 llaves. Permite instalación con tornillos o soldadura.Incluye accesorios de instalación.Acabado pintura electrostática. night latch and rim lock.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.

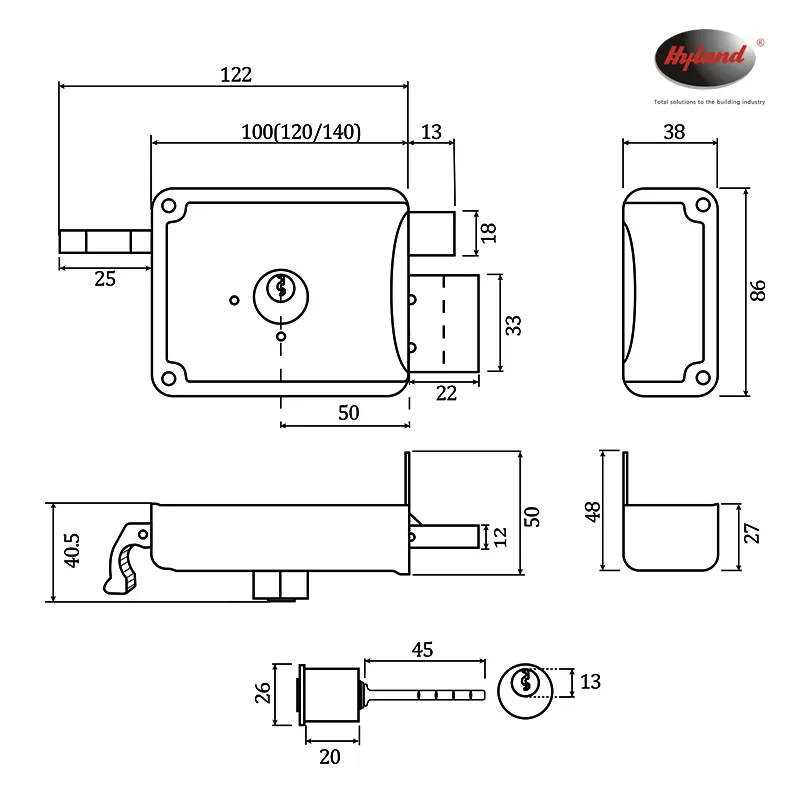

Technical specifications
- Material
- Fabricada en lámina de acero 1.2 mm,componentes internos aleación de zinc, aleación de cobre,cilindros en latón sólido,4 llaves. Permite instalación con tornillos o soldadura.Incluye accesorios de instalación.Acabado pintura electrostática. / Iron.
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request
- Latch extension
- 13mm, with inside deadlocking button
- Deadbolt throw
- 25mm on rim deadbolt versions
- Chassis
- Zinc die-cast case, zinc-plated steel internal components
- Strike
- Angle strike standard for inward-opening doors; flat strike available
- Handing
- Fully reversible, left or right hand
- Function
- Single cylinder, double cylinder or self-locking
- Feature
- Anti-picking slide gate on single-cylinder deadlock
- Backset
- 50mm
- Case & Strike Plate
- Steel with electrostatic powder coating
- Deadbolt
- Brass or iron, two/three-throw
- Latch & Puller
- Brass or zinc
- Cylinder
- Brass (inside and outside), fixed or loose type
- Key options
- Brass or iron
- Packing
- One set per box with fasteners
Common questions
- What is the 5835 made from?
- The 5835 is made from Fabricada en lámina de acero 1.2 mm,componentes internos aleación de zinc, aleación de cobre,cilindros en latón sólido,4 llaves. Permite instalación con tornillos o soldadura.Incluye accesorios de instalación.Acabado pintura electrostática. / Iron..
- What backset does the 5835 use?
- The 5835 has a backset of 50mm.
- What door thickness does the 5835 suit?
- The 5835 suits a door thickness of 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the 5835 provide?
- The 5835 provides Single cylinder, double cylinder or self-locking.
- Is the 5835 handed?
- Handing for the 5835: Fully reversible, left or right hand.
- What cylinder does the 5835 take?
- The 5835 takes a Brass (inside and outside), fixed or loose type cylinder.
