Night Latch And Rim Lock
S564 Night Latch And Rim Lock
Model
S564

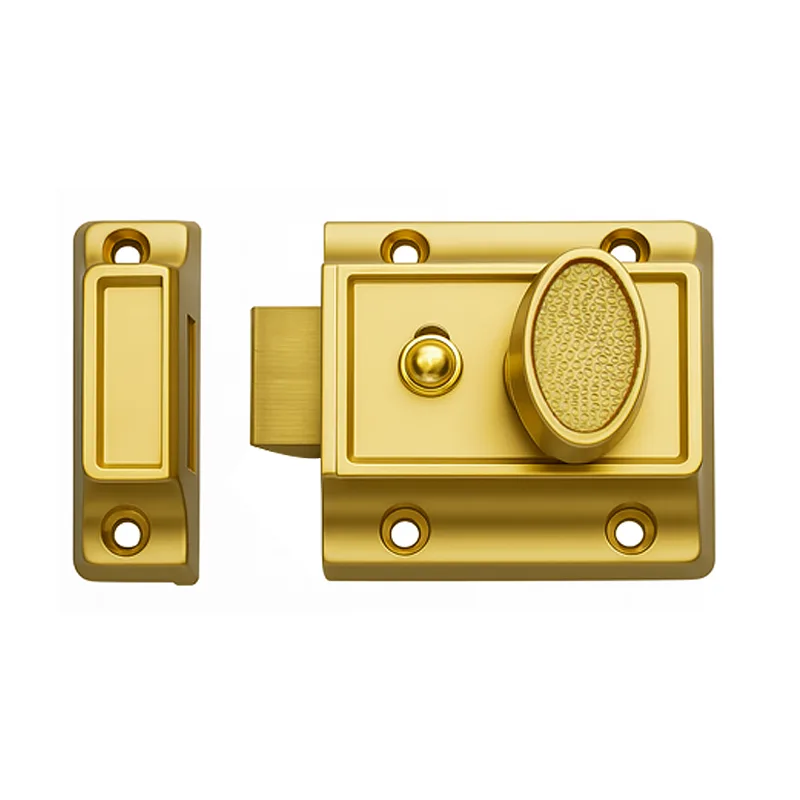

Case is made of zinc alloy die-casting, night latch and rim lock, 40mm backset.
- Structure: Beveled latch design with 13mm latch throw and 25mm full-throw deadbolt
- Function: Inside deadlocking button prevents external key operation and latch picking
- Finish: Painted

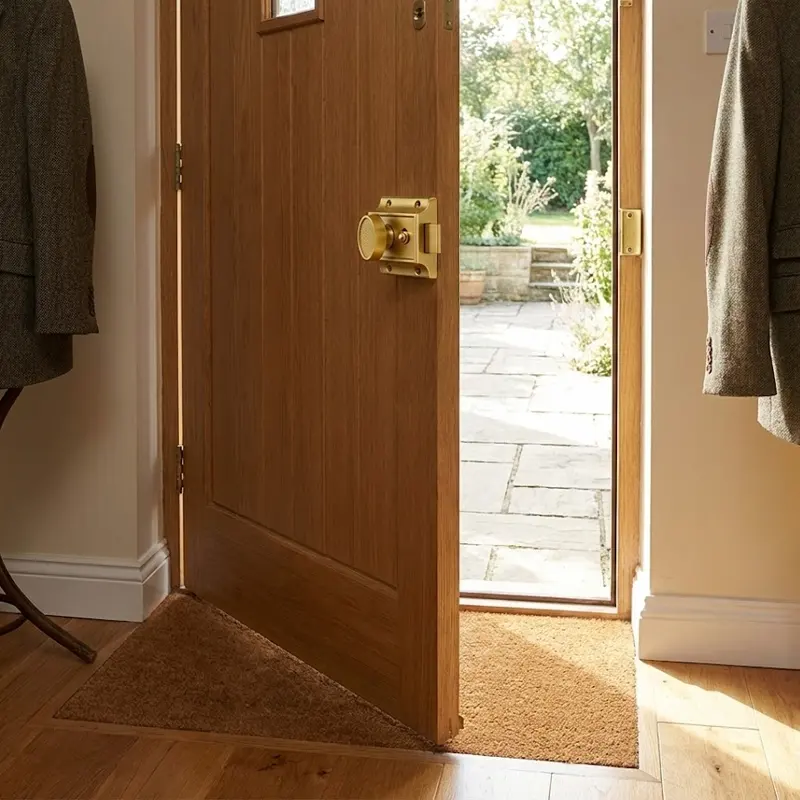

- Application: Economical and secure solution for exterior wooden doors
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Case is made of zinc alloy die-casting,
- Backset
- 40mm (1-9/16")
- Finish
- Painting
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request (1-3/8" / 2-3/16" / 1-3/16" / 2-3/8")
- Latch extension
- 13mm, with inside deadlocking button (1/2")
- Deadbolt throw
- 25mm on rim deadbolt versions (1")
- Chassis
- Zinc die-cast case, zinc-plated steel internal components
- Strike
- Angle strike standard for inward-opening doors; flat strike available
- Handing
- Fully reversible, left or right hand
- Function
- Single cylinder, double cylinder or self-locking
- Feature
- Anti-picking slide gate on single-cylinder deadlock
Bolt detail
Backset 40mm to the cylinder center. Latch throw 13mm. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- What is the S564 made from?
- The S564 is made from Case is made of zinc alloy die-casting,.
- Which finishes is the S564 available in?
- The S564 is available in Painting.
- What backset does the S564 use?
- The S564 has a backset of 40mm.
- What door thickness does the S564 suit?
- The S564 suits a door thickness of 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the S564 provide?
- The S564 provides Single cylinder, double cylinder or self-locking.
- Is the S564 handed?
- Handing for the S564: Fully reversible, left or right hand.
