Night Latch And Rim Lock

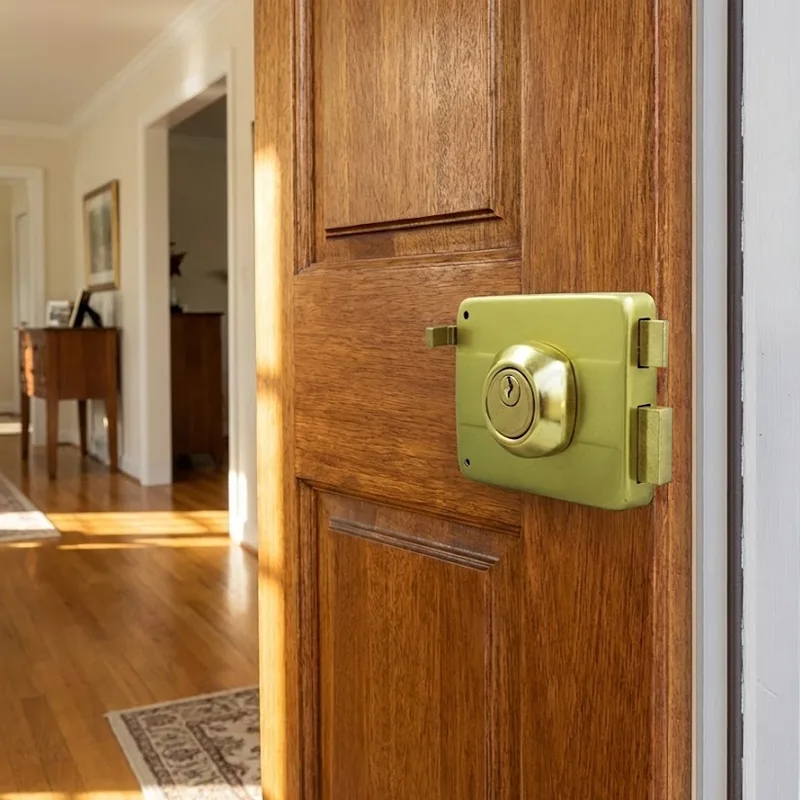

5682 Night Latch And Rim Lock
Model
5682
Iron case, with 3 pcs brass keys , zinc alloy latch and cylinder night latch and rim lock, 60mm backset.
- Application:
- Ideal for residential doors, intercom systems, and access control. Suitable for apartments, hotels, warehouses, schools, and commercial buildings.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Iron case, with 3 pcs brass keys , zinc alloy latch and cylinder
- Backset
- 60mm (2-3/8")
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request (1-3/8" / 2-3/16" / 1-3/16" / 2-3/8")
- Latch extension
- 13mm, with inside deadlocking button (1/2")
- Deadbolt throw
- 25mm on rim deadbolt versions (1")
- Strike
- Angle strike standard for inward-opening doors; flat strike available
- Handing
- Fully reversible, left or right hand
- Function
- Single cylinder, double cylinder or self-locking
- Feature
- Anti-picking slide gate on single-cylinder deadlock
- Opening
- Double-sided
Bolt detail
Backset 60mm to the cylinder center. Latch throw 13mm. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- What is the 5682 made from?
- The 5682 is made from Iron case, with 3 pcs brass keys , zinc alloy latch and cylinder.
- What backset does the 5682 use?
- The 5682 has a backset of 60mm.
- What door thickness does the 5682 suit?
- The 5682 suits a door thickness of 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the 5682 provide?
- The 5682 provides Single cylinder, double cylinder or self-locking.
- Is the 5682 handed?
- Handing for the 5682: Fully reversible, left or right hand.
