Night Latch And Rim Lock
1073S Night Latch And Rim Lock
Model
1073S

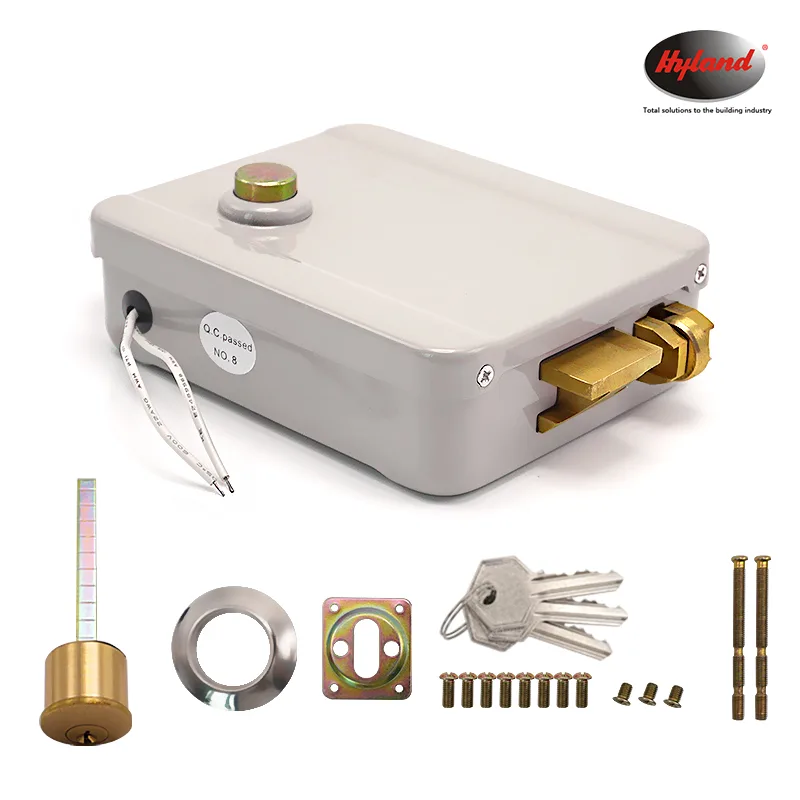

Iron case, steel base internal components with zinc plated finish, 3 pcs brass keys , brass latch and cylinder night latch and rim lock, 60mm backset.
- Supports both electric and manual operation
- Anti-unlock protection with signal feedback for enhanced security
- Ideal for intercom or access control systems
- Suitable for homes, apartments, hotels, warehouses, schools, and public buildings
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Iron case, steel base internal components with zinc plated finish, 3 pcs brass keys , brass latch and cylinder
- Color
- Gray spray painted, other available
- Backset
- 60mm (2-3/8")
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request (1-3/8" / 2-3/16" / 1-3/16" / 2-3/8")
- Latch extension
- 13mm, with inside deadlocking button (1/2")
- Deadbolt throw
- 25mm on rim deadbolt versions (1")

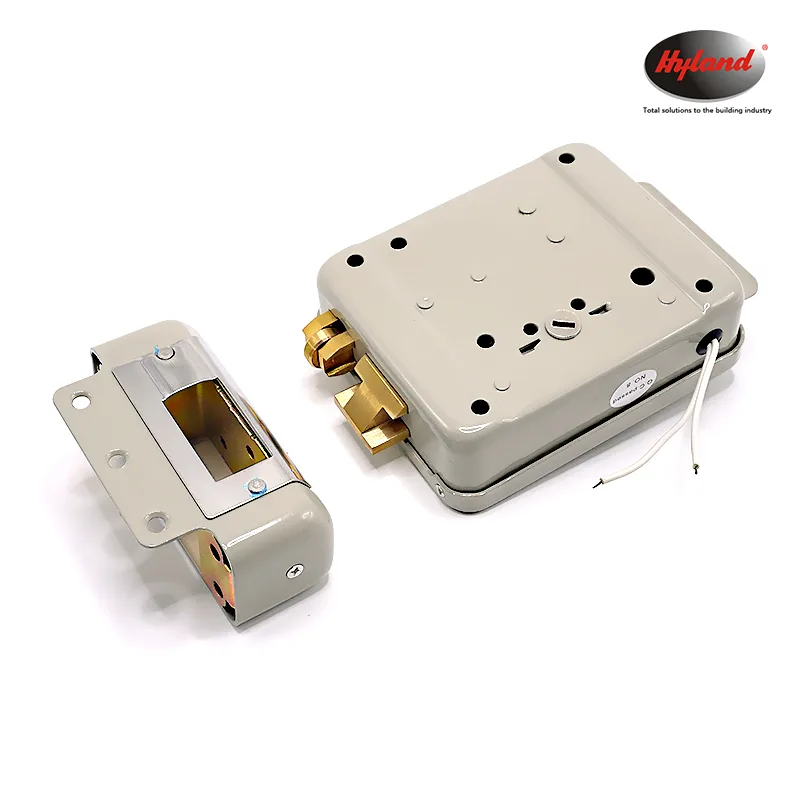

- Strike
- Angle strike standard for inward-opening doors; flat strike available
- Handing
- Fully reversible, left or right hand
- Function
- Single cylinder, double cylinder or self-locking
- Feature
- Anti-picking slide gate on single-cylinder deadlock
- Latch
- Brass rolling latch
- Opening
- Single-side
- Application
- Residential use
- Available finishes
- Gray Spray Painted · Other Available
Bolt detail
Backset 60mm to the cylinder center. Latch throw 13mm. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- What is the 1073S made from?
- The 1073S is made from Iron case, steel base internal components with zinc plated finish, 3 pcs brass keys , brass latch and cylinder.
- What backset does the 1073S use?
- The 1073S has a backset of 60mm.
- What door thickness does the 1073S suit?
- The 1073S suits a door thickness of 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the 1073S provide?
- The 1073S provides Single cylinder, double cylinder or self-locking.
- Where is the 1073S used?
- The 1073S is used on Residential use.
- Is the 1073S handed?
- Handing for the 1073S: Fully reversible, left or right hand.
