Night Latch And Rim Lock
564 MB Night Latch And Rim Lock
Model
564 MB
With its classic night latch structure and anti-theft design, this lock is widely used on wooden and metal doors in homes, apartments, and similar environments.
- This anti-theft rim lock night latch is designed for surface-mounted door installation, providing dependable security for residential applications.
- The lock cylinder features an aluminum outer housing with a brass core, delivering consistent key rotation and stable locking performance.
- The rotating tail bar is made of iron, providing secure power transmission during locking and unlocking.

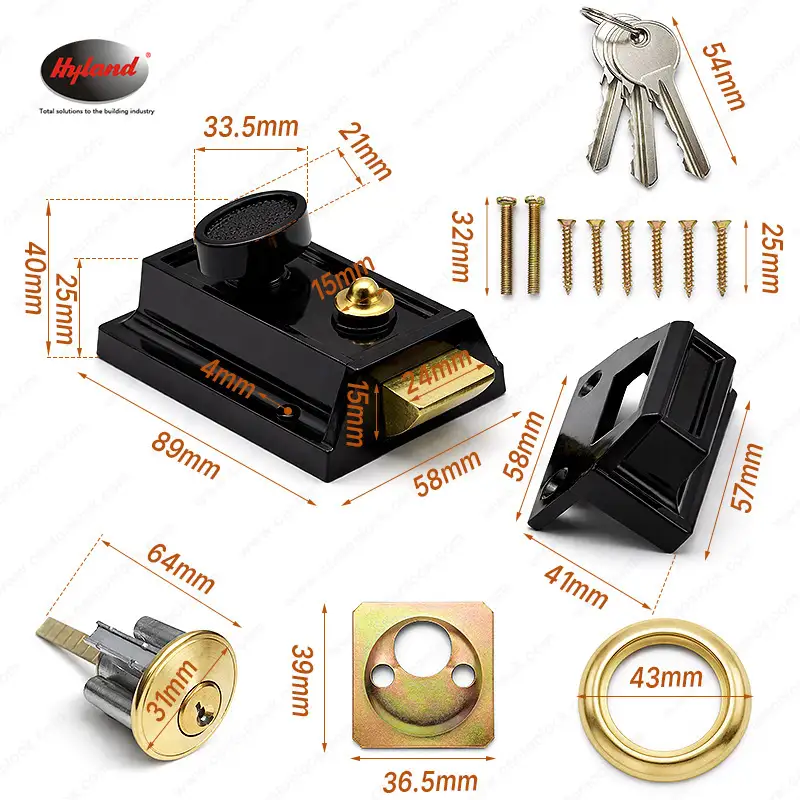

- Supplied as a complete hardware set, the lock includes an iron cylinder decorative ring, iron keys, iron decorative plate, and iron fixing screws, making installation simple and convenient.
- With its classic night latch structure and anti-theft design, this lock is widely used on wooden and metal doors in homes, apartments, and similar environments.
- OEM / ODM customization, surface finishes, and packaging options are available upon request.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Installation
- Surface Mounted
- Application
- Wooden Doors / Metal Doors / Residential Doors
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request (1-3/8" / 2-3/16" / 1-3/16" / 2-3/8")
- Latch extension
- 13mm, with inside deadlocking button (1/2")
- Deadbolt throw
- 25mm on rim deadbolt versions (1")
- Chassis
- Zinc die-cast case, zinc-plated steel internal components
- Strike
- Angle strike standard for inward-opening doors; flat strike available
- Handing
- Fully reversible, left or right hand
- Function
- Single cylinder, double cylinder or self-locking
- Feature
- Anti-picking slide gate on single-cylinder deadlock
- Finish
- Matt black
- Product Type
- Anti-Theft Rim Lock / Night Latch
- Material
- Zinc Alloy
- Latch Bolt Material
- Zinc Alloy
- Thumbturn Button
- Brass
- Lock Cylinder Housing
- Aluminum
- Cylinder Core
- Brass
- Tail Bar
- Iron
- Cylinder Decorative Ring
- Iron
- Key options
- Iron
- Decorative Plate
- Iron
- Screws
- Iron
Common questions
- What type of hardware is the 564 MB?
- The 564 MB is a Anti-Theft Rim Lock / Night Latch.
- What is the 564 MB made from?
- The 564 MB is made from Zinc Alloy.
- Which finishes is the 564 MB available in?
- The 564 MB is available in Matt black.
- What door thickness does the 564 MB suit?
- The 564 MB suits a door thickness of 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the 564 MB provide?
- The 564 MB provides Single cylinder, double cylinder or self-locking.
- Where is the 564 MB used?
- The 564 MB is used on Wooden Doors / Metal Doors / Residential Doors.
