Lock Case
LC8525 Lock Case
Model
LC8525

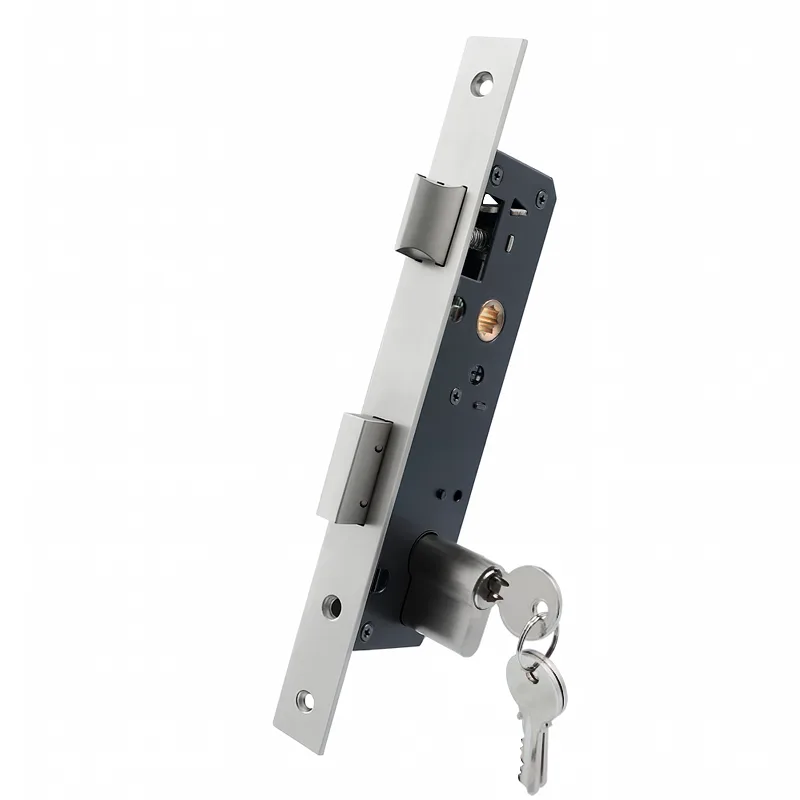

A mortise lock case with 85mm center distance and 25mm backset.
- Functions: Entrance, Anti-Panic, Privacy, Passage, Storeroom, Deadlock, Classroom, Multi-Function

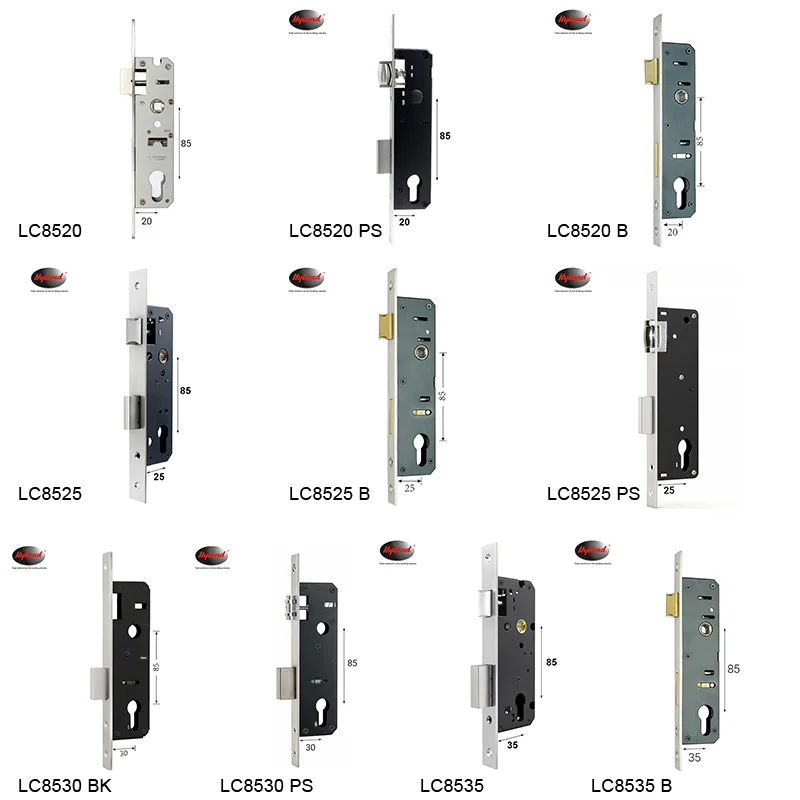

- Options: 85 Series, 72 Series, and small-size lock cases available
- Customization: Irregular sizes and custom dimensions supported for OEM & ODM
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Find LC8525 on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications

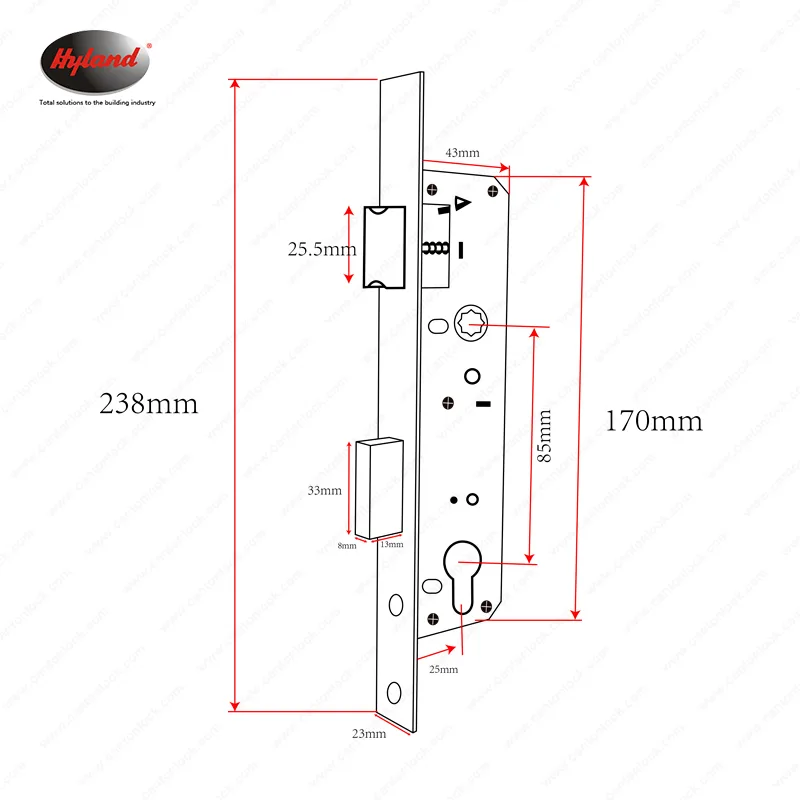

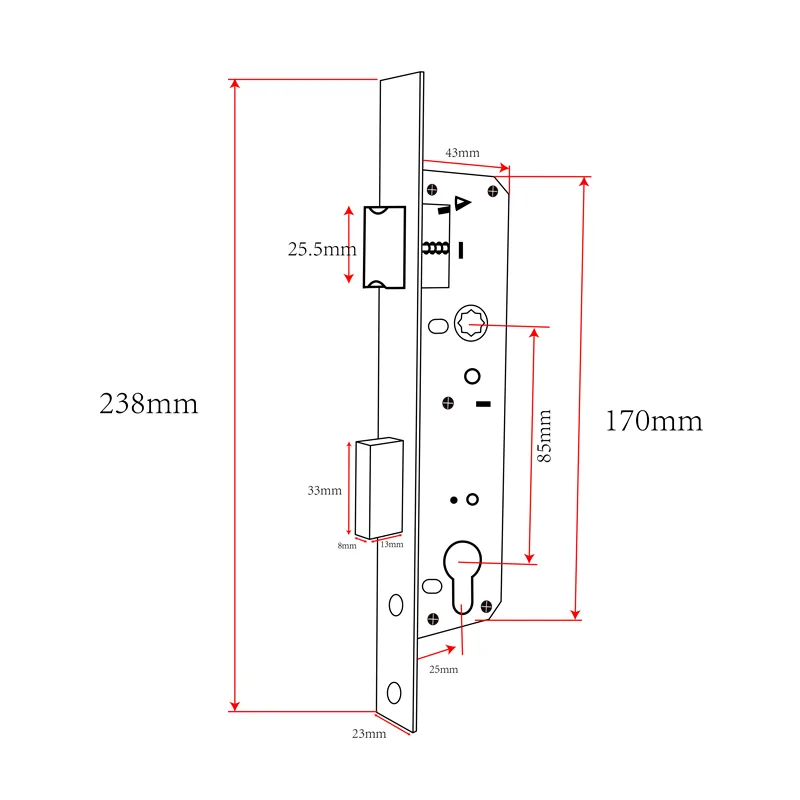

- Center distance
- 85mm (3-3/8")
- Backset
- 25mm (1")
- Material
- Iron
- Latch
- Copper
- Spindle hole construction
- Copper
- Strike Plate Material
- Stainless Steel
- Finish
- Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available
Common questions
- What is the LC8525 made from?
- The LC8525 is made from Iron.
- Which finishes is the LC8525 available in?
- The LC8525 is available in Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available.
- What backset does the LC8525 use?
- The LC8525 has a backset of 25mm.
- What is the center distance on the LC8525?
- The center distance on the LC8525 is 85mm.
