Lock Case · 48 models in this range
LC8535 Lock Case

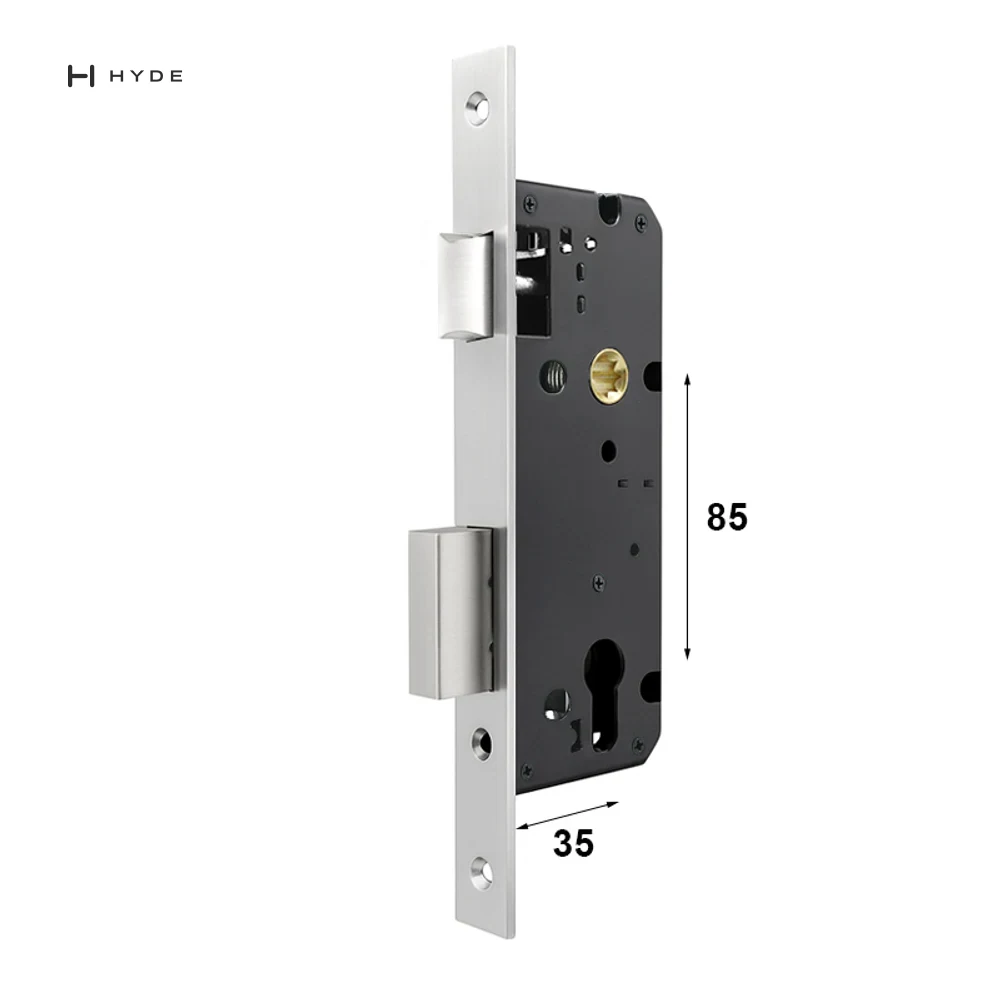

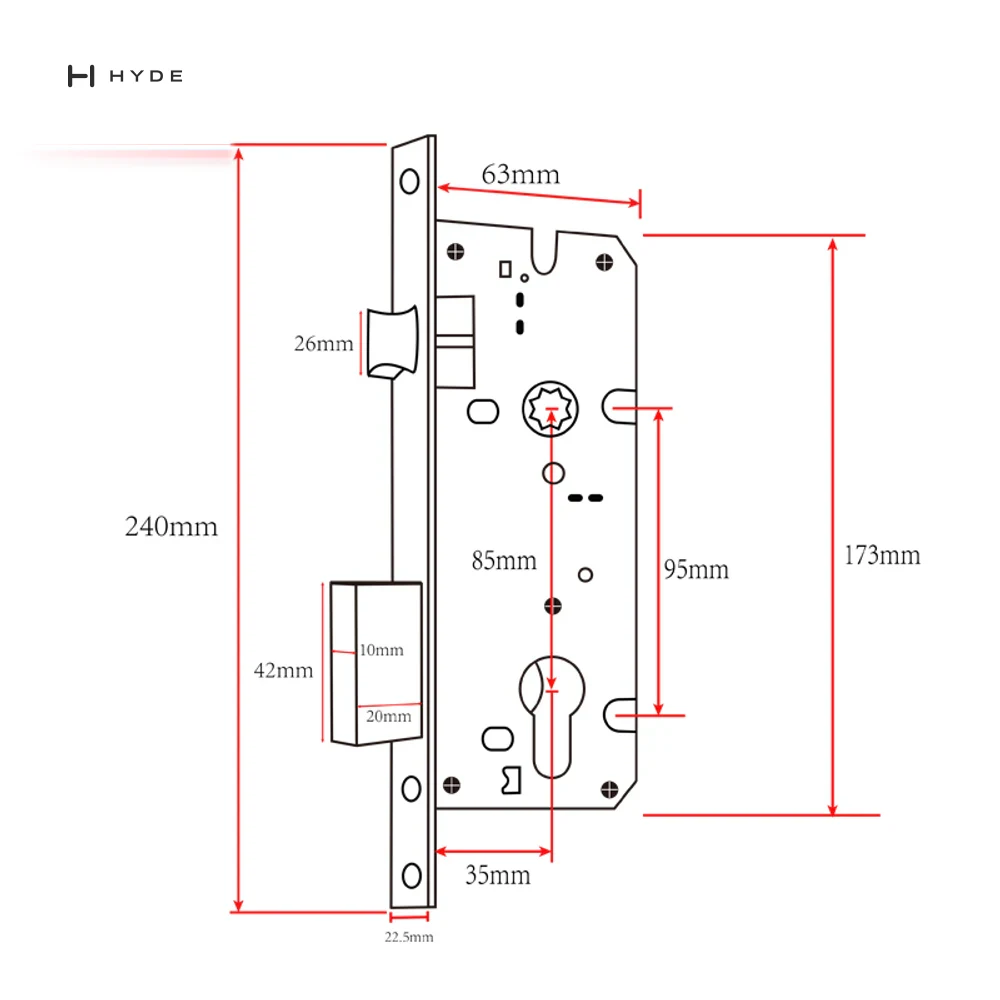

Mortise lock case with an 85mm center distance and 35mm backset; 240mm forend and 173mm case height, for a euro cylinder.
- Center distance
- 85mm (3-3/8")
- Backset
- 35mm (1-3/8")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
LC8535
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.

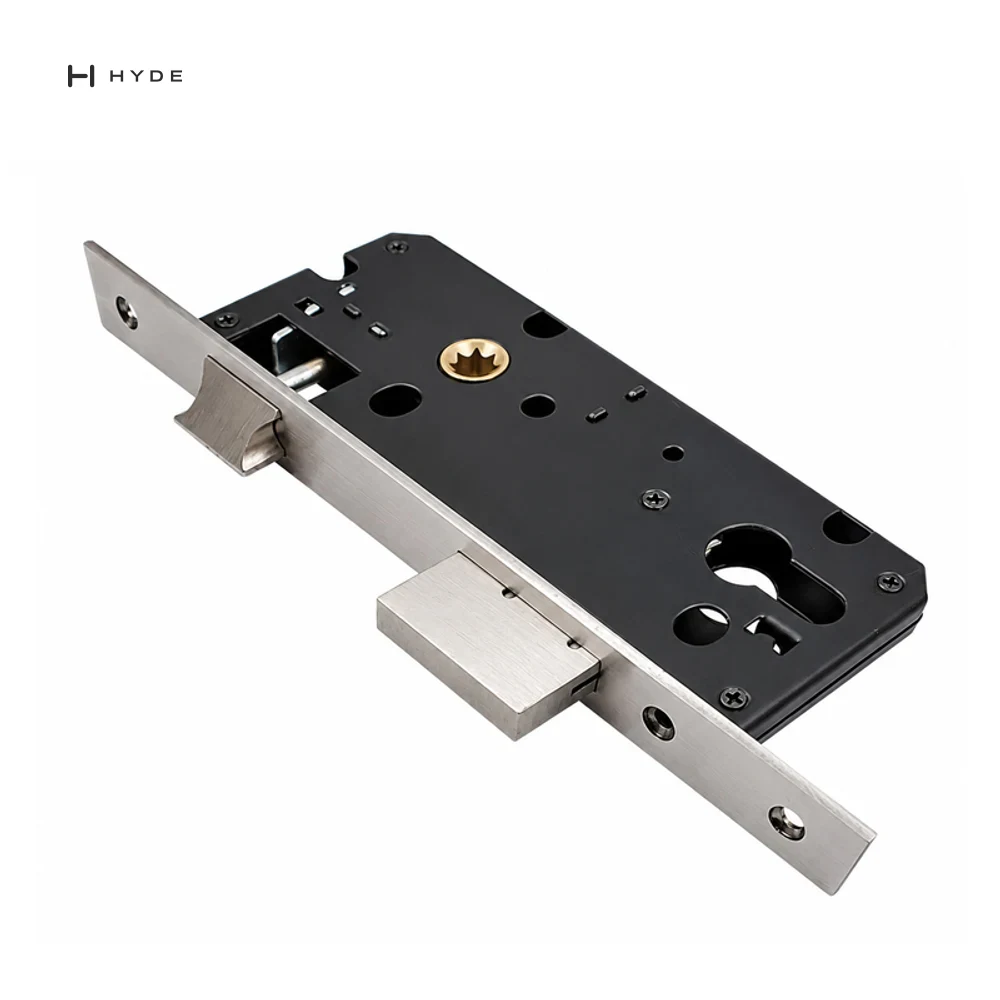

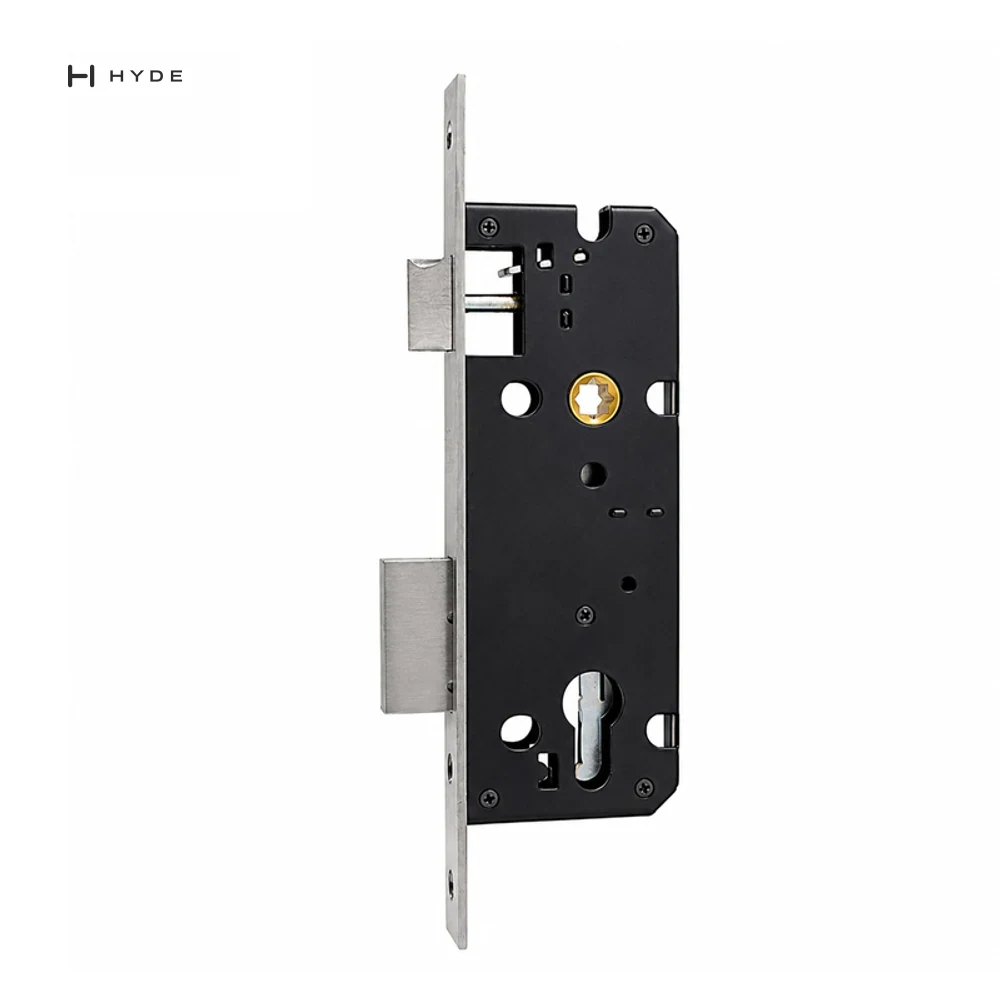

LC8535 is a lock case manufactured by Canton Hyland Hardware & Building Material Co., Ltd. in Guangdong, China. Photographs of the actual product are shown above. Full specifications for this model are being confirmed with the factory, ask our export team and you will get the measured figures rather than an estimate.
- Center distance
- 85mm (3-3/8")
- Backset
- 35mm (1-3/8")
LC8535
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishLC8535, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
LC8535
Next steps
- Compare every model in this range
One table, one row per model, across the specifications that differ between them.
- Ordering, lead times and samples
Minimum order quantity, production lead time, sample policy, payment terms and OEM work — answered in full.
