Lock Case
LC33-5572 Lock Case
Model
LC33-5572
A mortise lock case, euro profile cylinder preparation, panic exit function, for emergency and escape doors.
- Functions: Entrance, Anti-Panic, Privacy, Passage, Storeroom, Deadlock, Classroom, Multi-Function
- Options: 85 Series, 72 Series, and small-size lock cases available
- Customization: Irregular sizes and custom dimensions supported for OEM & ODM
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Find LC33-5572 on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.

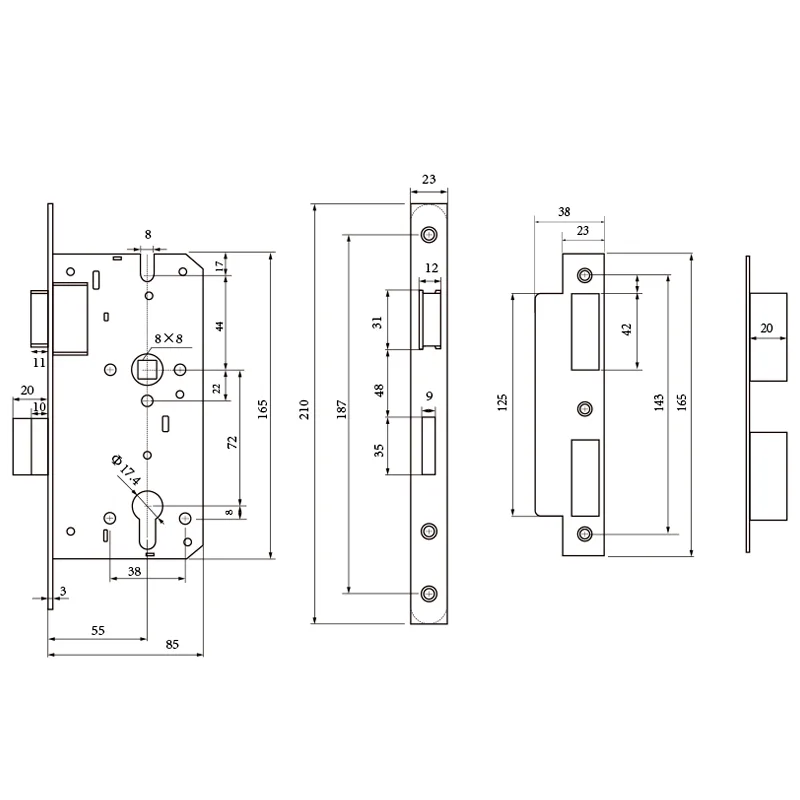

Technical specifications
- Cylinder
- Euro profile
- Function
- Panic exit
- Application
- Emergency and escape doors
- Material
- Iron
- Latch
- Copper
- Spindle hole construction
- Copper
- Strike Plate Material
- Stainless Steel
- Center distance
- 72mm (2-13/16")
- Backset
- 55mm (2-3/16")
- Finish
- Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available
Common questions
- What is the LC33-5572 made from?
- The LC33-5572 is made from Iron.
- Which finishes is the LC33-5572 available in?
- The LC33-5572 is available in Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available.
- What backset does the LC33-5572 use?
- The LC33-5572 has a backset of 55mm.
- What function does the LC33-5572 provide?
- The LC33-5572 provides Panic exit.
- What is the center distance on the LC33-5572?
- The center distance on the LC33-5572 is 72mm.
- Where is the LC33-5572 used?
- The LC33-5572 is used on Emergency and escape doors.
