Lock Case
LC8520PS Lock Case
Model
LC8520PS
A stainless steel mortise lock case with 85mm center distance and 20mm backset, passage function, for interior wooden and metal doors.
- Functions: Entrance, Anti-Panic, Privacy, Passage, Storeroom, Deadlock, Classroom, Multi-Function
- Options: 85 Series, 72 Series, and small-size lock cases available
- Customization: Irregular sizes and custom dimensions supported for OEM & ODM
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.

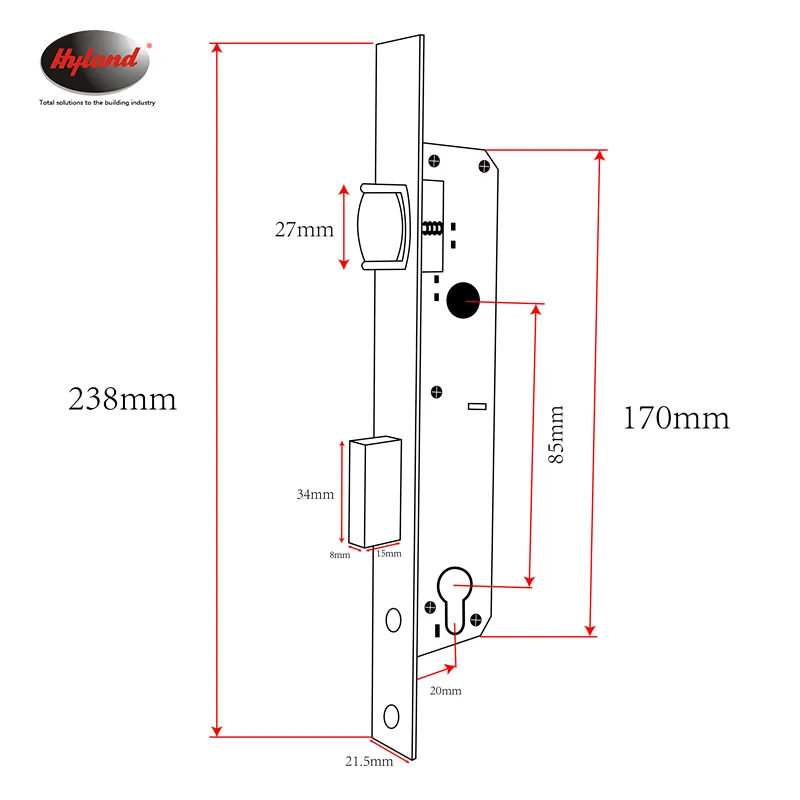

Technical specifications
- Center distance
- 85mm (3-3/8")
- Backset
- 20mm (13/16")
- Material
- Stainless steel
- Function
- Passage
- Application
- Interior wooden and metal doors
- Latch
- Copper
- Spindle hole construction
- Copper
- Strike Plate Material
- Stainless Steel
- Finish
- Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available
Common questions
- What is the LC8520PS made from?
- The LC8520PS is made from Stainless steel.
- Which finishes is the LC8520PS available in?
- The LC8520PS is available in Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Stainless Steel (SS), Satin Nickel (SN), all available.
- What backset does the LC8520PS use?
- The LC8520PS has a backset of 20mm.
- What function does the LC8520PS provide?
- The LC8520PS provides Passage.
- What is the center distance on the LC8520PS?
- The center distance on the LC8520PS is 85mm.
- Where is the LC8520PS used?
- The LC8520PS is used on Interior wooden and metal doors.
Next steps
- Backset and Center Distance: How to Read a Mortise Lock Case Number
Article that cites this model
- Compare every model in this range
One table, one row per model, across the specifications that differ between them.
- Ordering, lead times and samples
Minimum order quantity, production lead time, sample policy, payment terms and OEM work — answered in full.
