7066 Lock Case

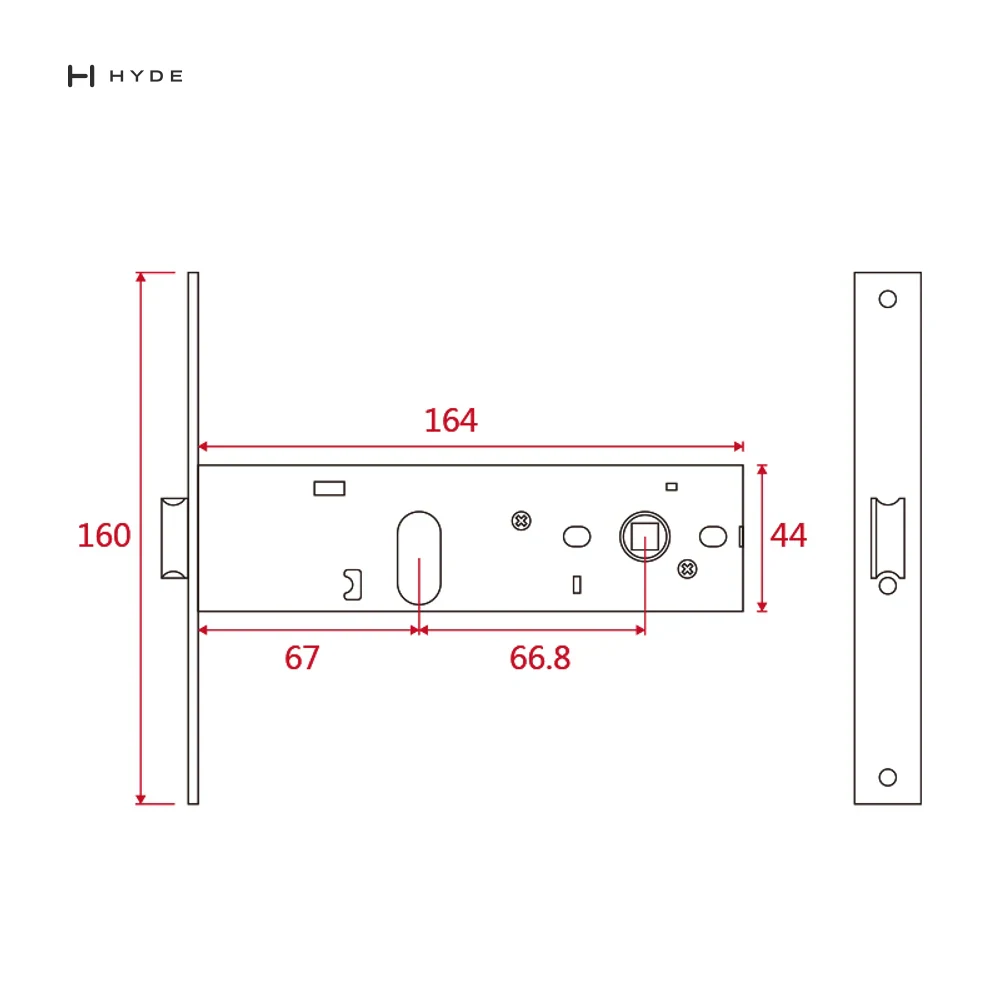

Horizontal lock case, 164 × 44mm with a 160mm forend; oval cylinder hole 67mm from the forend and spindle 66.8mm from the cylinder.
- Case size
- 164 × 44mm (6-7/16" × 1-3/4")
- Faceplate
- 160mm (6-5/16")
- Faceplate to cylinder center
- 67mm (2-5/8")
- Center distance
- 66.8mm (2-5/8")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
7066
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.

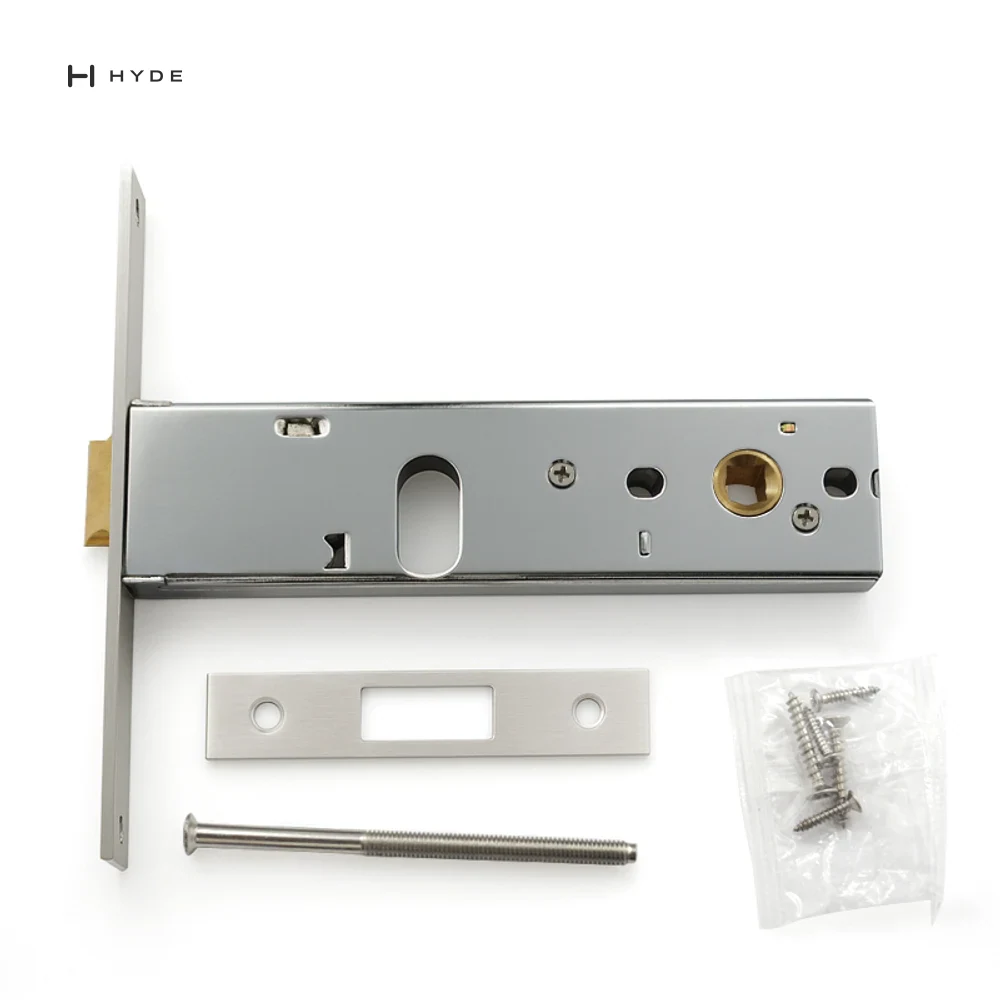

7066 is a lock case manufactured by Canton Hyland Hardware & Building Material Co., Ltd. in Guangdong, China. Photographs of the actual product are shown above. Full specifications for this model are being confirmed with the factory, ask our export team and you will get the measured figures rather than an estimate.
- Case size
- 164 × 44mm (6-7/16" × 1-3/4")
- Faceplate
- 160mm (6-5/16")
- Faceplate to cylinder center
- 67mm (2-5/8")
- Center distance
- 66.8mm (2-5/8")
7066
Drawings
Drawings and files published for this model.
7066
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish7066, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
