HYDE Argentina AR-4
AR4-110 Security Mortise Lock Body
Model
AR4-110

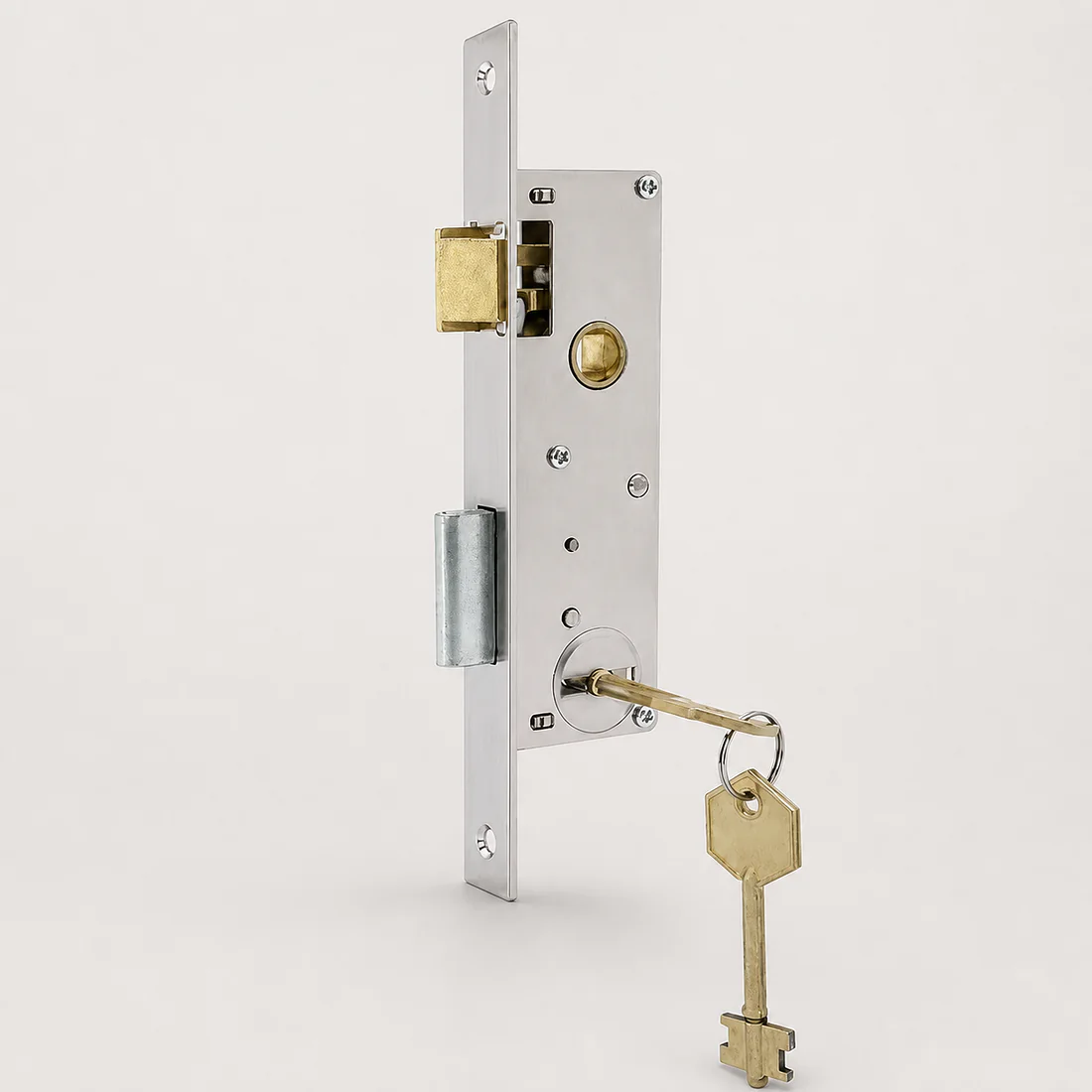

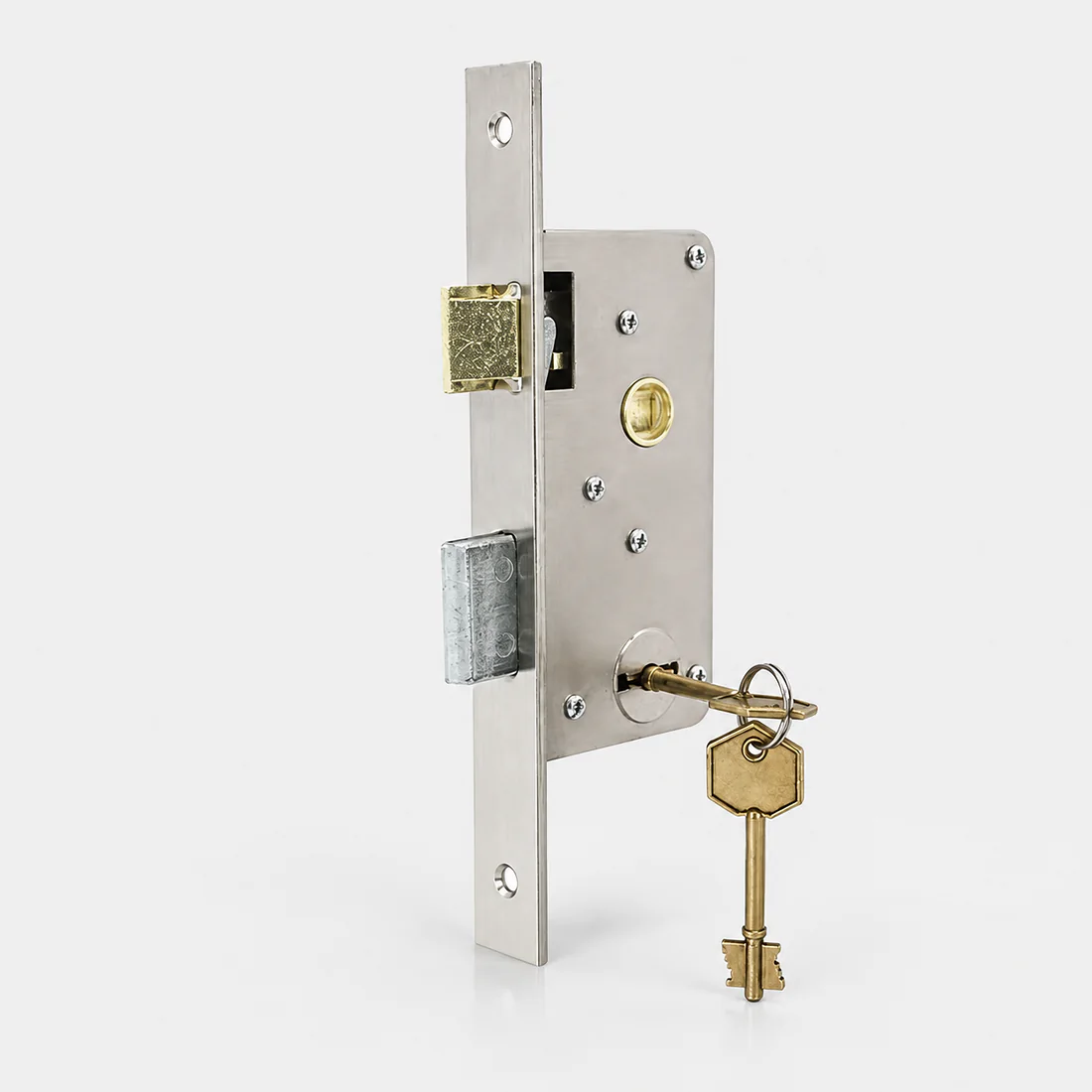

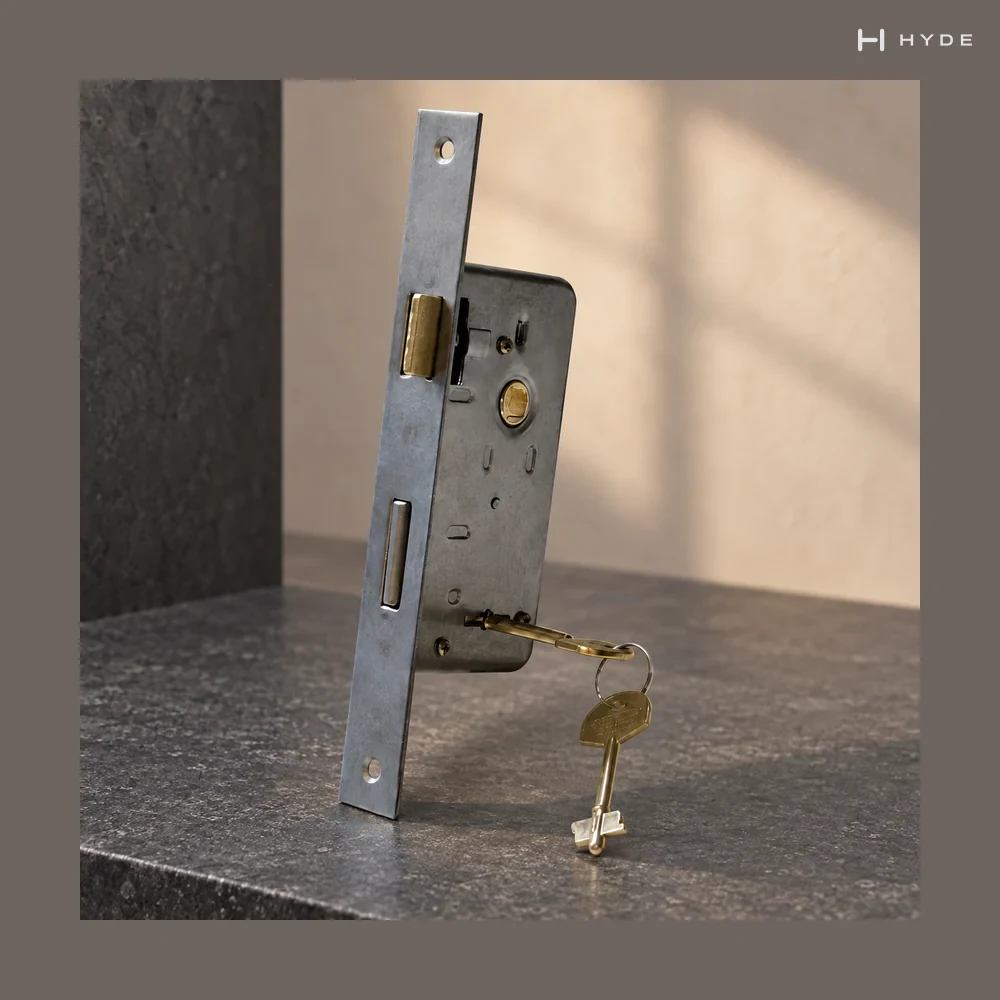

Security mortise lock body: 40mm backset, 68mm center distance and a 212 × 25mm faceplate, supplied with two keys.
Watch it work0:39For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Find AR4-110 on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Factory reference
- 6840
- Center distance
- 68mm (2-11/16")
- Backset
- 40mm (1-9/16")
- Faceplate
- 212 × 25mm (8-3/8" × 1")
- Case size
- 127.3 × 60.8mm (5" × 2-3/8")
- Latch options
- Copper-plated zinc alloy or brass
- Key options
- Zinc alloy or brass; two keys
- Material
- Nickel-plated iron lock case
- Available finishes
- Nickel-plated
