What backset does the LC04 85*60 use?

The LC04 85*60 has a backset of 60mm.

What is the center distance on the LC04 85*60?

The center distance on the LC04 85*60 is 85mm.

The LC04 85*60 is used on Wooden doors.

The LC04 85*60 takes a Euro profile cylinder.

Lock Case

Name: LC04 85*60 Lock Case
Brand: Canton Hyland
SKU: LC04 85*60

Model

LC04 85*60

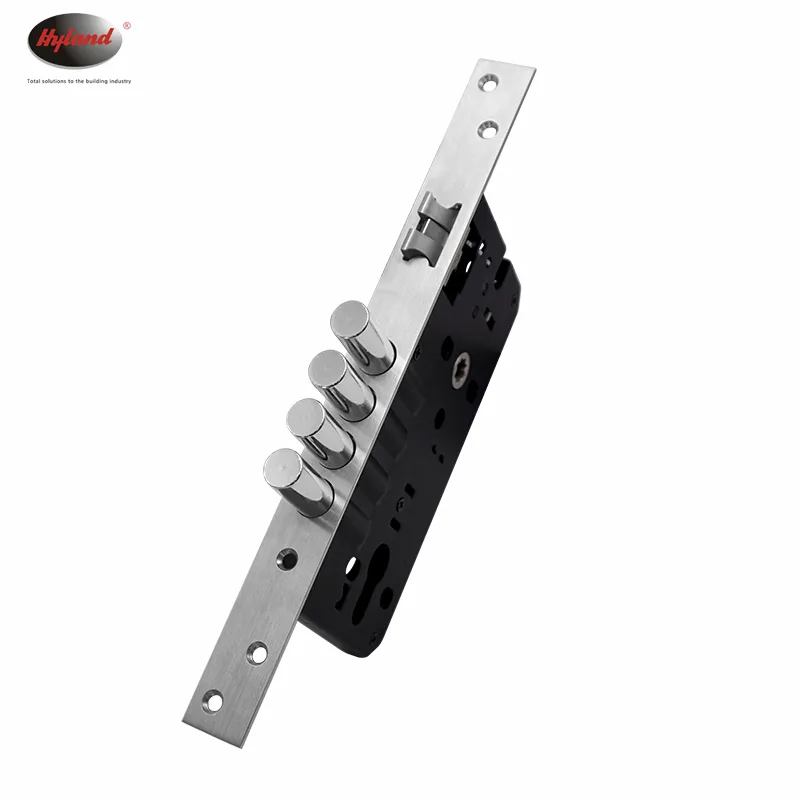

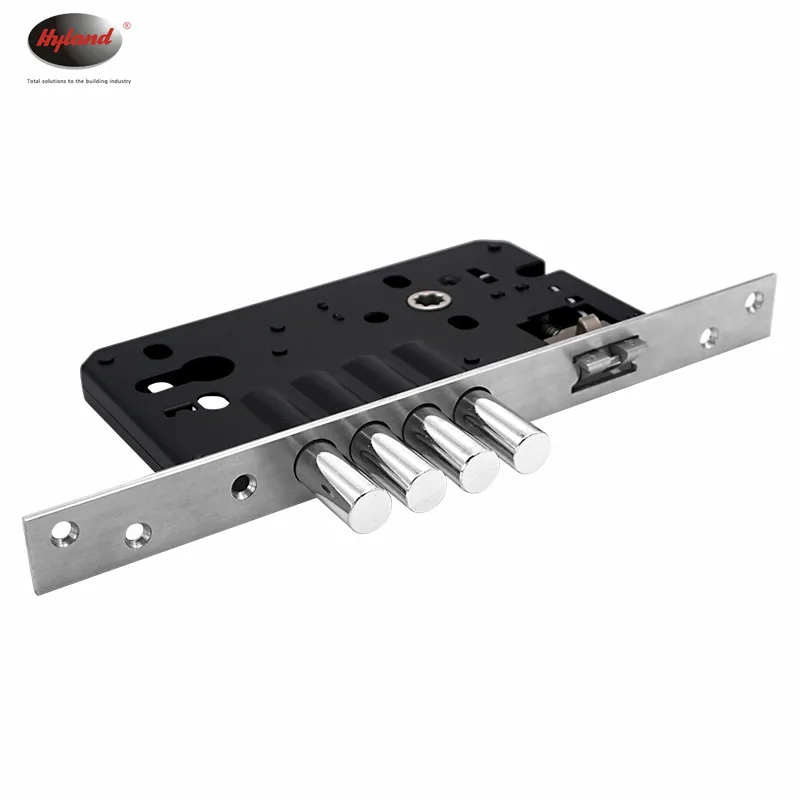

A mortise lock case with 85mm center distance and 60mm backset, euro profile cylinder preparation, four round bolts, for wooden doors.

For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.

Or email us about this model: tec@cantonlock.com

Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.

Partial 3D model

Case envelope: 93 mm depth and 173 mm height. The 15 mm thickness is an assumed closure value, not a published product dimension.

Faceplate, latch, bolts, fixing holes and internal mechanism are not modeled. This does not establish door preparation or installation clearances.

Form reference only. Do not use for machining, door preparation or installation.

What backset does the LC04 85*60 use?: The LC04 85*60 has a backset of 60mm.
What is the center distance on the LC04 85*60?: The center distance on the LC04 85*60 is 85mm.
Where is the LC04 85*60 used?: The LC04 85*60 is used on Wooden doors.
What cylinder does the LC04 85*60 take?: The LC04 85*60 takes a Euro profile cylinder.
