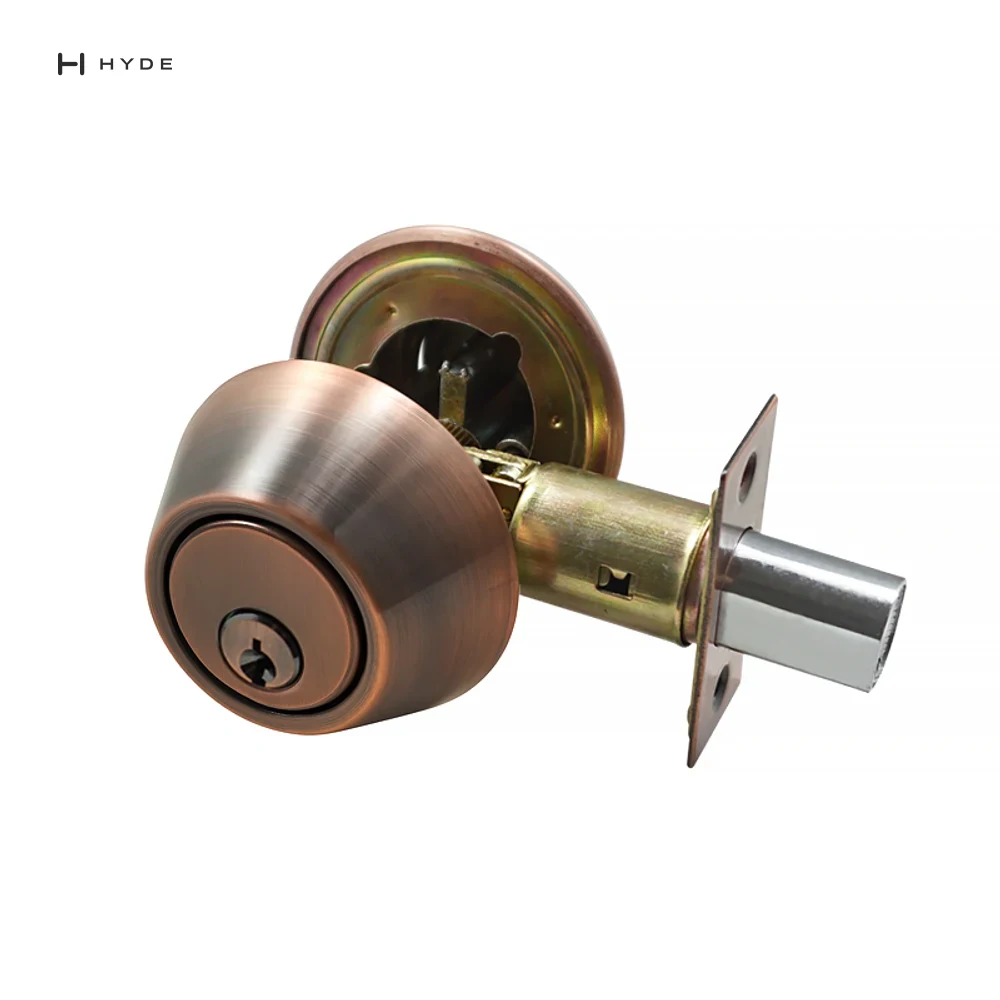

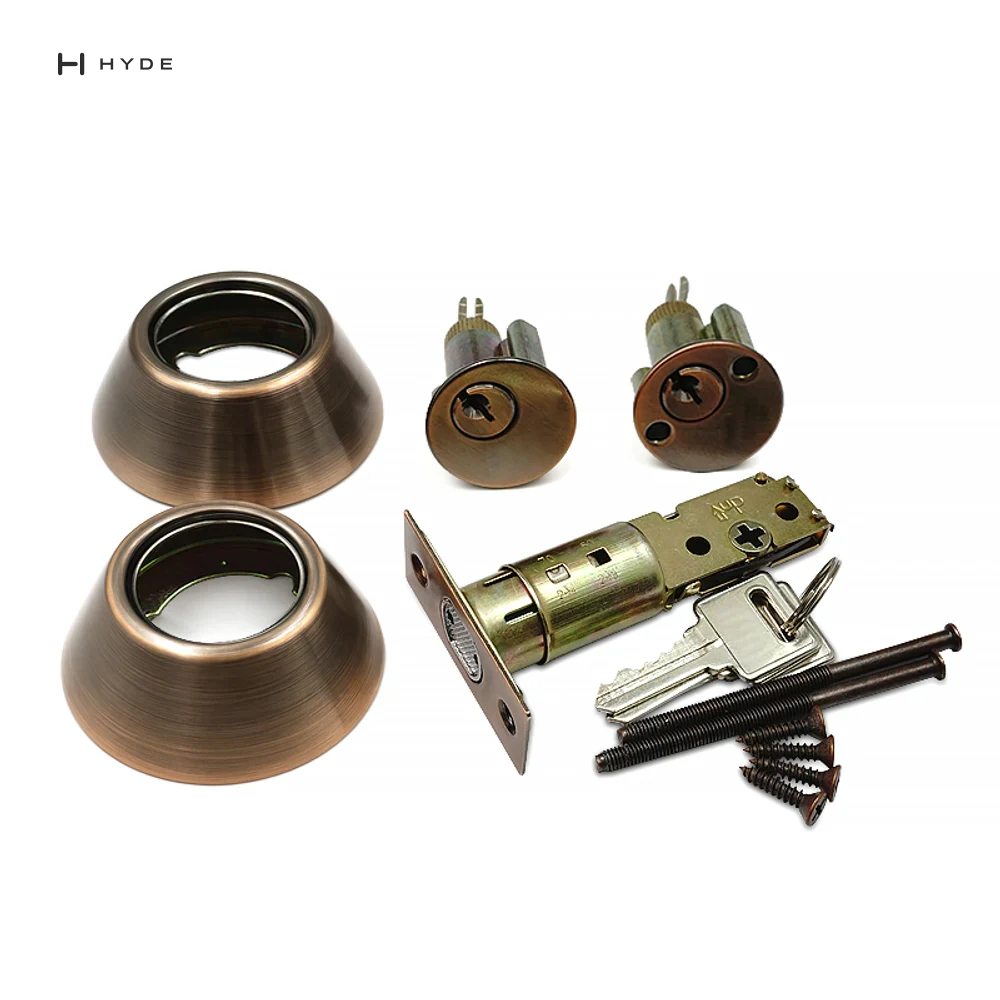

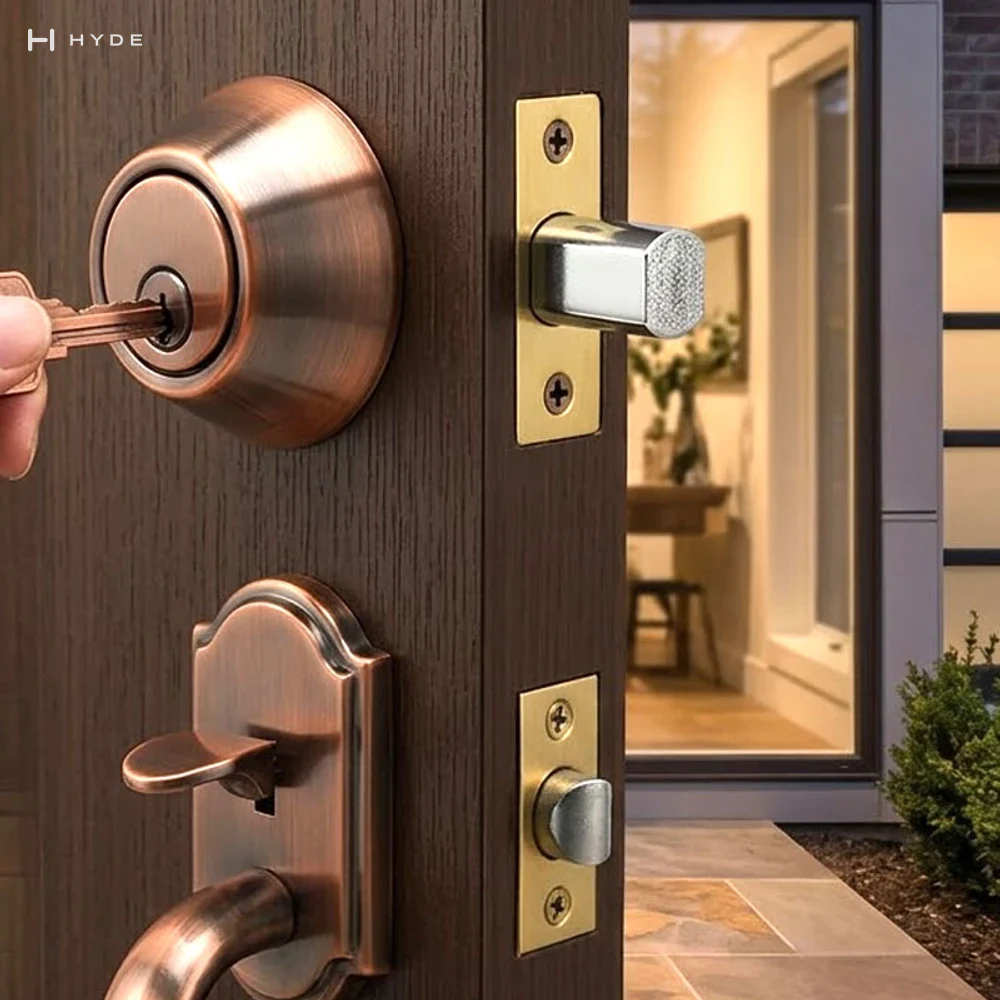

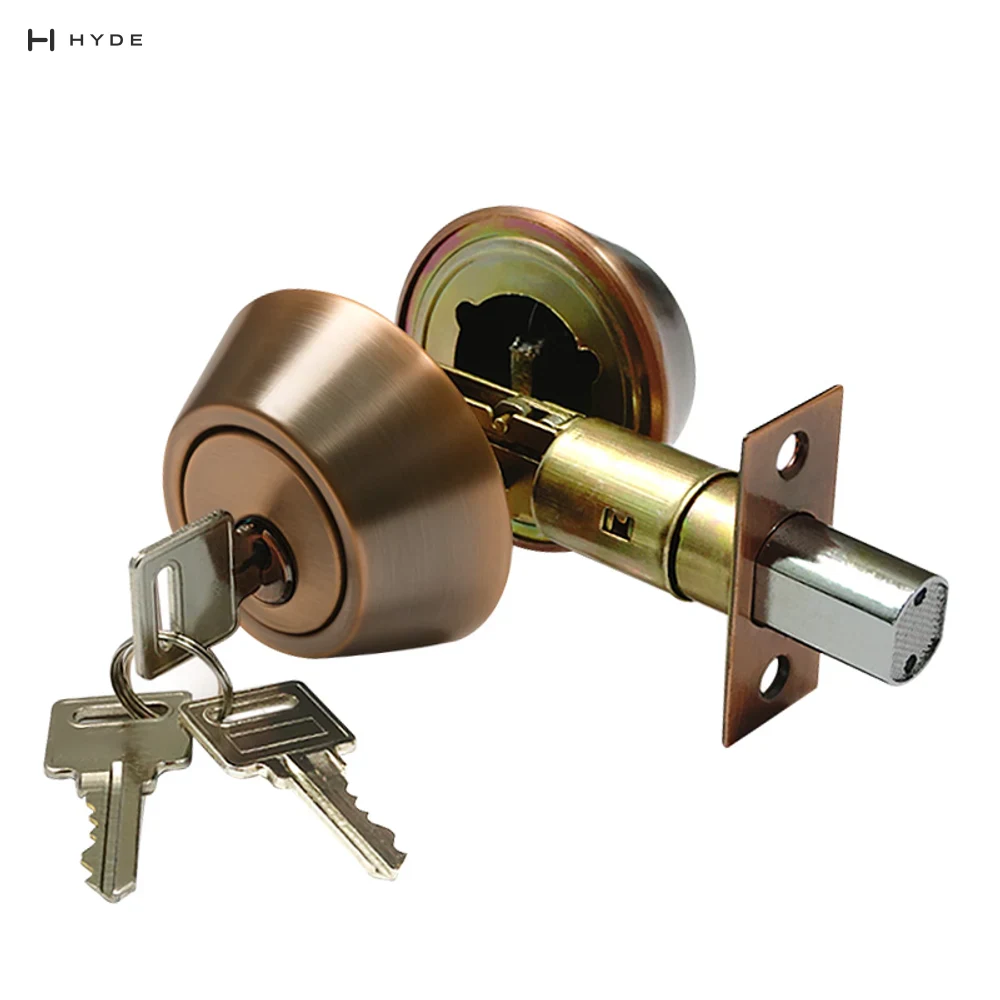

Deadbolts in antique copper (us11).
- Key Features
- Robust Construction
- Interior parts: Zinc-plated steel
- Exterior trim: Available in stainless steel, brass, or steel
- Free-turning cylinder trim resists wrench attacks
- Secure Deadbolt
- 1” (25mm) zinc die-cast bolt
- Hardened steel roller insert enhances resistance to sawing
- Precision Cylinder
- 5-pin tumbler mechanism, easy to rekey
- Solid brass plug
- Includes two nickel-plated brass keys
- Reversible Design
- Fully reversible handing
- Ideal for left or right door installation without extra adjustment
Or email us about this model: tec@cantonlock.com
Find D102 AC on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Cylinder
- Solid Brass Cylinder
- Deadbolt throw
- 25mm, zinc die-cast with hardened steel roller insert
- Chassis
- Zinc plated steel internal components
- Trim
- Stainless steel, brass or steel
- Handing
- Fully reversible, left or right hand
- Feature
- Free-turning cylinder trim prevents wrenching; cylinder removable for rekeying
- Keying
- Can be keyed to pair with an entrance bored lock
- Finish
- Antique copper (US11)
- Trim Material
- Stainless Steel / Brass / Steel
- Key options
- 2 Nickel-Plated Brass Keys
- Door thickness
- 1-3/8” to 1-3/4” (35mm–45mm)
- Backset
- Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm)
Bolt detail
Backset 60mm to the cylinder centre. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- Which finishes is the D102 AC available in?
- The D102 AC is available in Antique copper (US11).
- What backset does the D102 AC use?
- The D102 AC has a backset of Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm).
- What door thickness does the D102 AC suit?
- The D102 AC suits a door thickness of 1-3/8” to 1-3/4” (35mm–45mm).
- Is the D102 AC handed?
- Handing for the D102 AC: Fully reversible, left or right hand.
- What cylinder does the D102 AC take?
- The D102 AC takes a Solid Brass Cylinder cylinder.
