Deadbolts
D101 PB Deadbolts

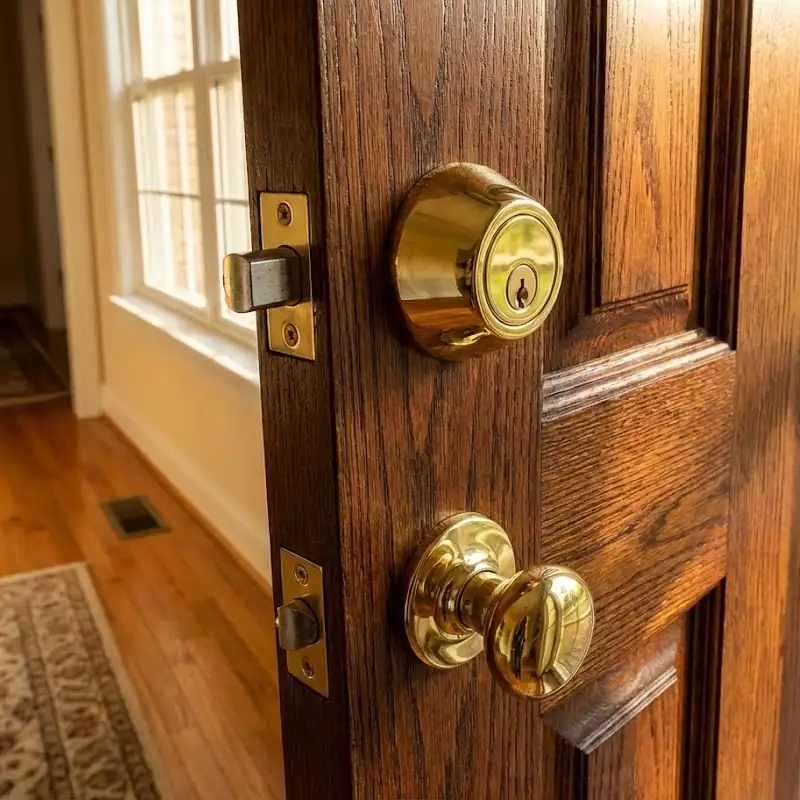

A deadbolt in polished brass (US3), prepared for a solid brass cylinder.
- Deadbolt Series
- A durable and cost-effective auxiliary lock featuring a 25mm (1”) zinc die-cast bolt with a hardened steel roller insert for added resistance against sawing and forced entry.
- Can be keyed alike with standard entrance locks for seamless integration and enhanced exterior door security.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Cylinder
- Solid Brass Cylinder
- Deadbolt throw
- 25mm, zinc die-cast with hardened steel roller insert (1")
- Chassis
- Zinc plated steel internal components
- Trim
- Stainless steel, brass or steel
- Handing
- Fully reversible, left or right hand
- Feature
- Free-turning cylinder trim prevents wrenching; cylinder removable for rekeying
- Keying
- Can be keyed to pair with an entrance bored lock
- Finish
- Polished brass (US3)
- Exposed Trim Material
- Stainless Steel / Brass / Steel
- Key options
- 2 × Nickel-Plated Brass Keys
- Door thickness
- Adjustable 35–45 mm (1-3/8” to 1-3/4”) (1-3/8" to 1-3/4")
- Backset
- Adjustable 60 mm or 70 mm (2-3/8” or 2-3/4”) (2-3/8" / 2-3/4" / 1/8")
Bolt detail
Backset 60mm to the cylinder center. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- Which finishes is the D101 PB available in?
- The D101 PB is available in Polished brass (US3).
- What backset does the D101 PB use?
- The D101 PB has a backset of Adjustable 60 mm or 70 mm (2-3/8” or 2-3/4”).
- What door thickness does the D101 PB suit?
- The D101 PB suits a door thickness of Adjustable 35–45 mm (1-3/8” to 1-3/4”).
- Is the D101 PB handed?
- Handing for the D101 PB: Fully reversible, left or right hand.
- What cylinder does the D101 PB take?
- The D101 PB takes a Solid Brass Cylinder cylinder.
