Deadbolts · 11 models in this range

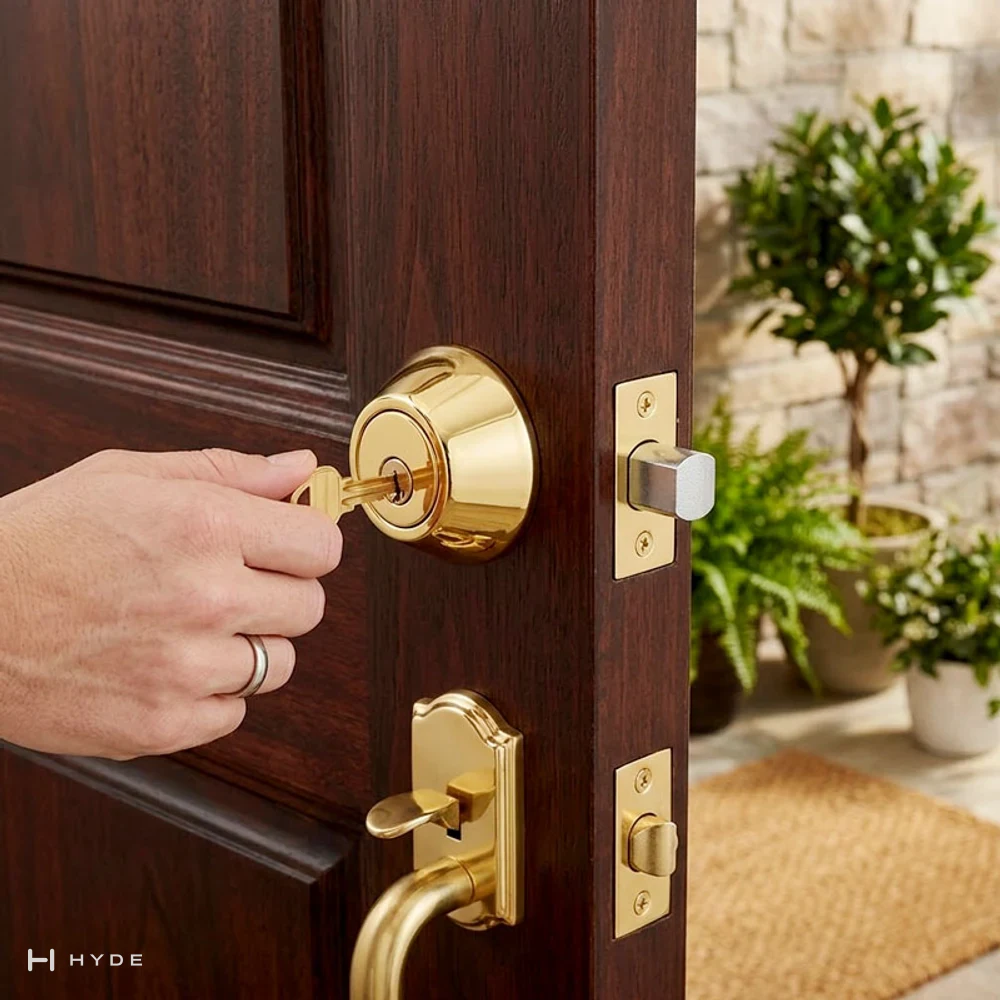

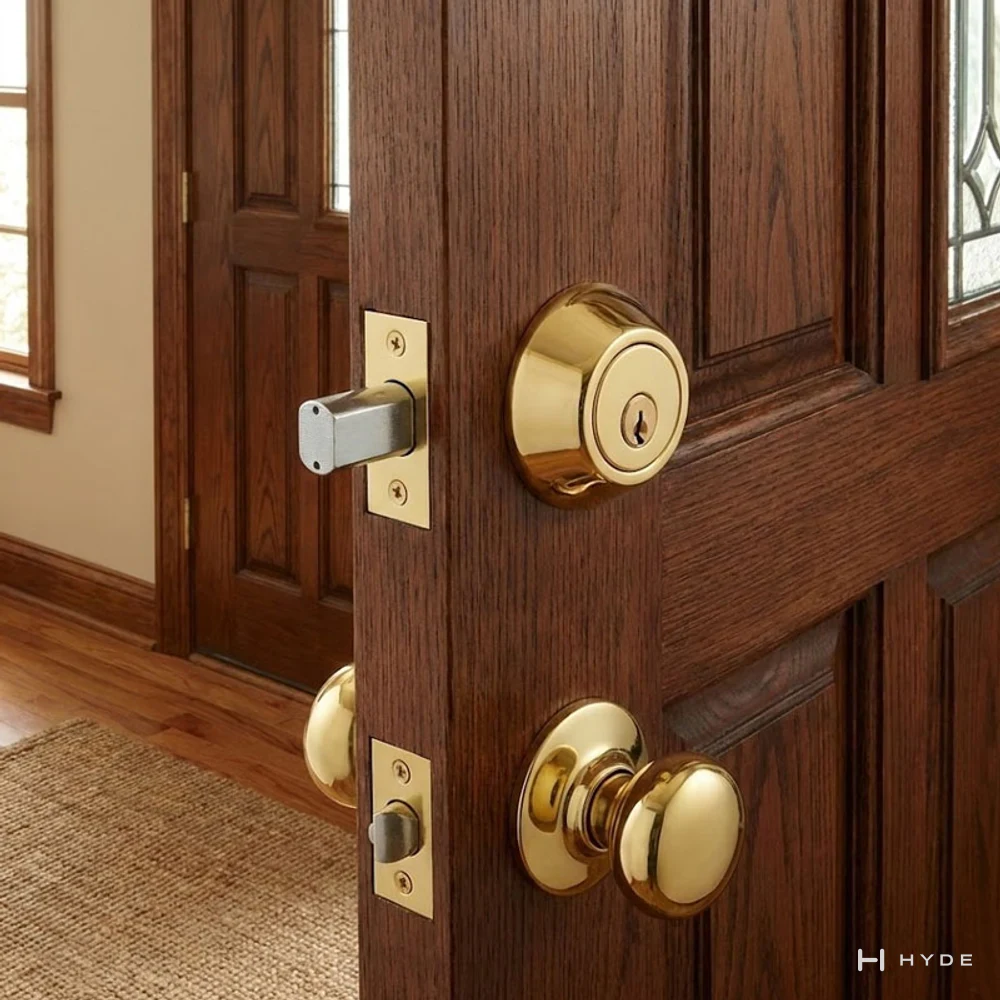

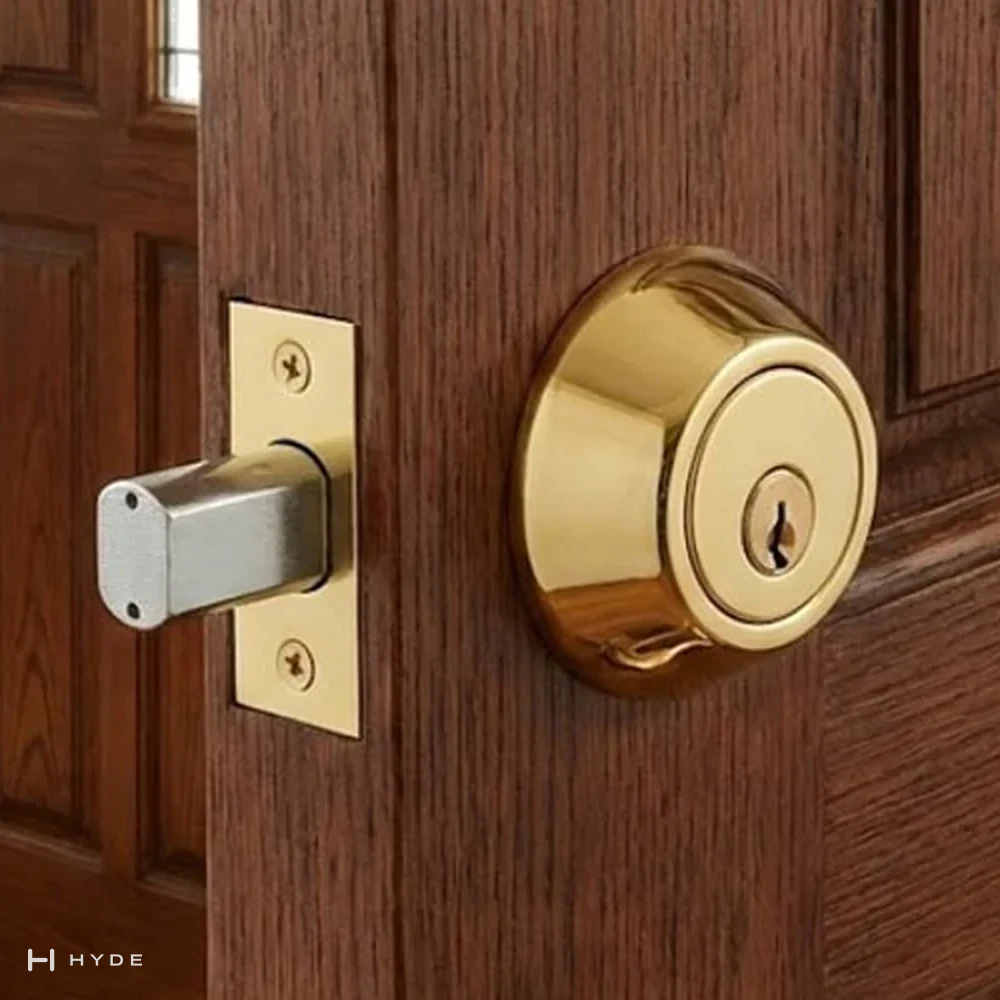

D102 PB Deadbolts
Deadbolts in polished brass (us3).
- Cylinder
- Solid Brass Cylinder
- Deadbolt throw
- 25mm, zinc die-cast with hardened steel roller insert (1")
- Chassis
- Zinc plated steel internal components
- Trim
- Stainless steel, brass or steel
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
D102 PB
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Cylinder
- Solid Brass Cylinder
- Deadbolt throw
- 25mm, zinc die-cast with hardened steel roller insert (1")
- Chassis
- Zinc plated steel internal components
- Trim
- Stainless steel, brass or steel
- Handing
- Fully reversible, left or right hand
- Feature
- Free-turning cylinder trim prevents wrenching; cylinder removable for rekeying
- Keying
- Can be keyed to pair with an entrance bored lock
- Finish
- Polished brass (US3)
- Trim Material
- Stainless Steel / Brass / Steel
- Key options
- 2 Nickel-Plated Brass Keys
- Door thickness
- 1-3/8” to 1-3/4” (35mm–45mm) (1/8" / 1-3/8" / 1-3/4")
- Backset
- Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm) (1/8" / 2-3/8" / 2-3/4")
Features
- Key Features
- Robust Construction
- Interior parts: Zinc-plated steel
- Exterior trim: Available in stainless steel, brass, or steel
- Free-turning cylinder trim resists wrench attacks
- Secure Deadbolt
- 1” (25mm) zinc die-cast bolt
- Hardened steel roller insert enhances resistance to sawing
- Precision Cylinder
- 5-pin tumbler mechanism, easy to rekey
- Solid brass plug
- Includes two nickel-plated brass keys
- Reversible Design
- Fully reversible handing
- Ideal for left or right door installation without extra adjustment
D102 PB
Drawings
Drawings and files published for this model.
Bolt detail
Backset 60mm to the cylinder center. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
D102 PB
Common questions
- Which finishes is the D102 PB available in?
- The D102 PB is available in Polished brass (US3).
- What backset does the D102 PB use?
- The D102 PB has a backset of Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm).
- What door thickness does the D102 PB suit?
- The D102 PB suits a door thickness of 1-3/8” to 1-3/4” (35mm–45mm).
- Is the D102 PB handed?
- Handing for the D102 PB: Fully reversible, left or right hand.
- What cylinder does the D102 PB take?
- The D102 PB takes a Solid Brass Cylinder cylinder.
D102 PB
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishD102 PB, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
D102 PB
Next steps
- Compare every model in this range
One table, one row per model, across the specifications that differ between them.
- Ordering, lead times and samples
Minimum order quantity, production lead time, sample policy, payment terms and OEM work — answered in full.
D102 PB
More in the Deadbolts series
Backset Adjustable to 2-3/8” or 2-3/4” (60mm or 70mm)
Deadbolts
Model D102 SS
Deadbolts
Model D103 AC
Deadbolts

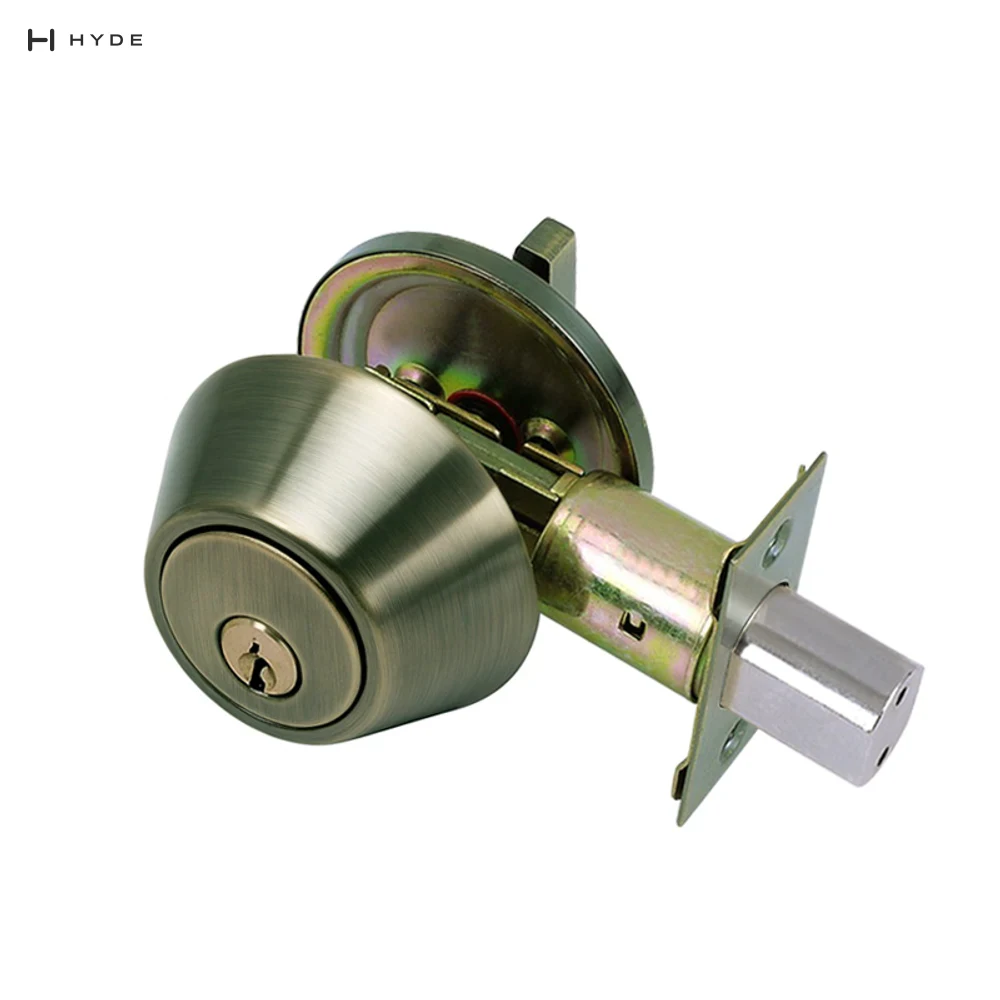

Model D01 AB
