Deadbolts · 11 models in this range

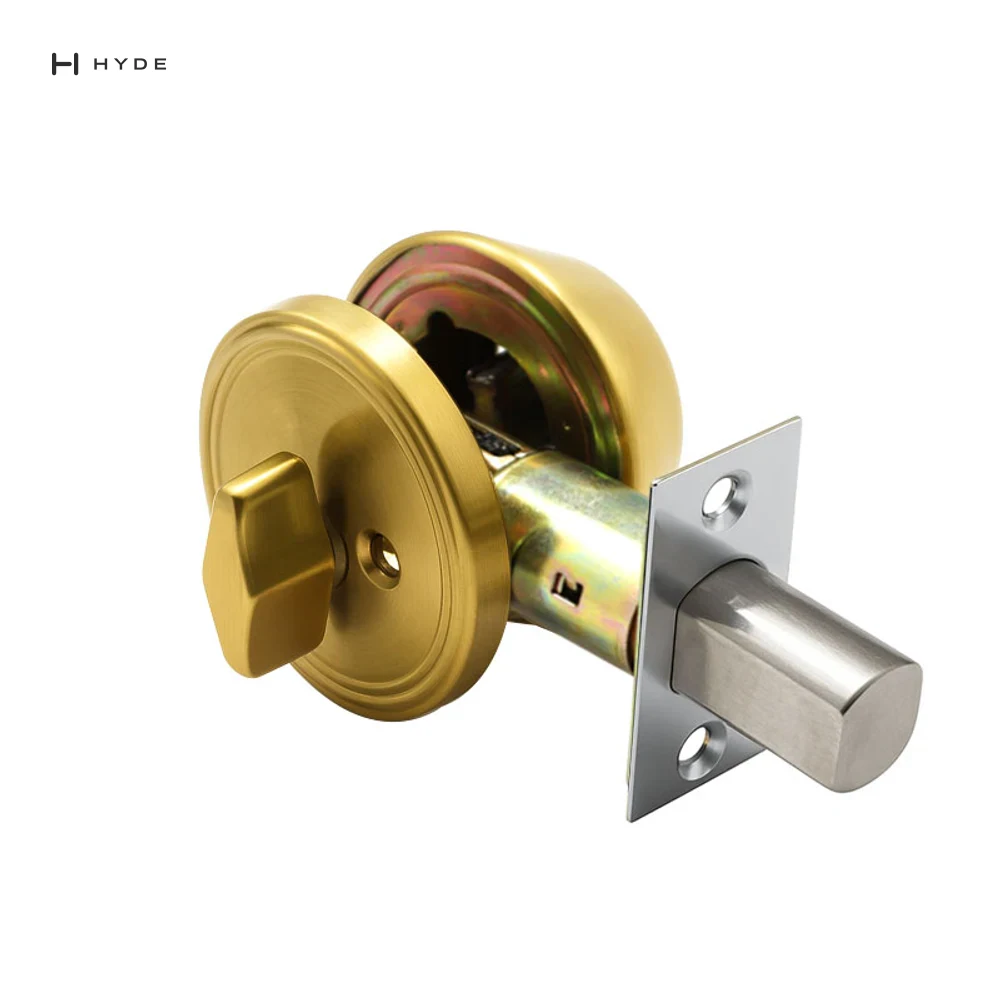

D101 BS Deadbolts
Deadbolts in satin brass.
- Cylinder
- Solid Brass Cylinder
- Deadbolt throw
- 25mm, zinc die-cast with hardened steel roller insert (1")
- Chassis
- Zinc plated steel internal components
- Trim
- Stainless steel, brass or steel
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
D101 BS
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Cylinder
- Solid Brass Cylinder
- Deadbolt throw
- 25mm, zinc die-cast with hardened steel roller insert (1")
- Chassis
- Zinc plated steel internal components
- Trim
- Stainless steel, brass or steel
- Handing
- Fully reversible, left or right hand
- Feature
- Free-turning cylinder trim prevents wrenching; cylinder removable for rekeying
- Keying
- Can be keyed to pair with an entrance bored lock
- Finish
- Satin Brass
- Exposed Trim Material
- Stainless Steel / Brass / Steel
- Key options
- 2 Nickel-Plated Brass Keys
- Door thickness
- Adjustable 1-3/8” to 1-3/4” (35mm–45mm) (1/8" / 1-3/8" / 1-3/4")
- Backset
- Adjustable 2-3/8” or 2-3/4” (60mm or 70mm) (1/8" / 2-3/8" / 2-3/4")
Features
- Key Features
- Construction
- Internal parts made of zinc-plated steel for durability
- Exterior trim available in stainless steel, brass, or steel
- Free-spinning cylinder trim protects against wrench attacks
- Deadbolt Mechanism
- 1-inch (25mm) throw bolt made of zinc alloy
- Hardened steel roller insert improves anti-sawing performance
- Cylinder & Keys
- 5-pin tumbler system, easy to rekey

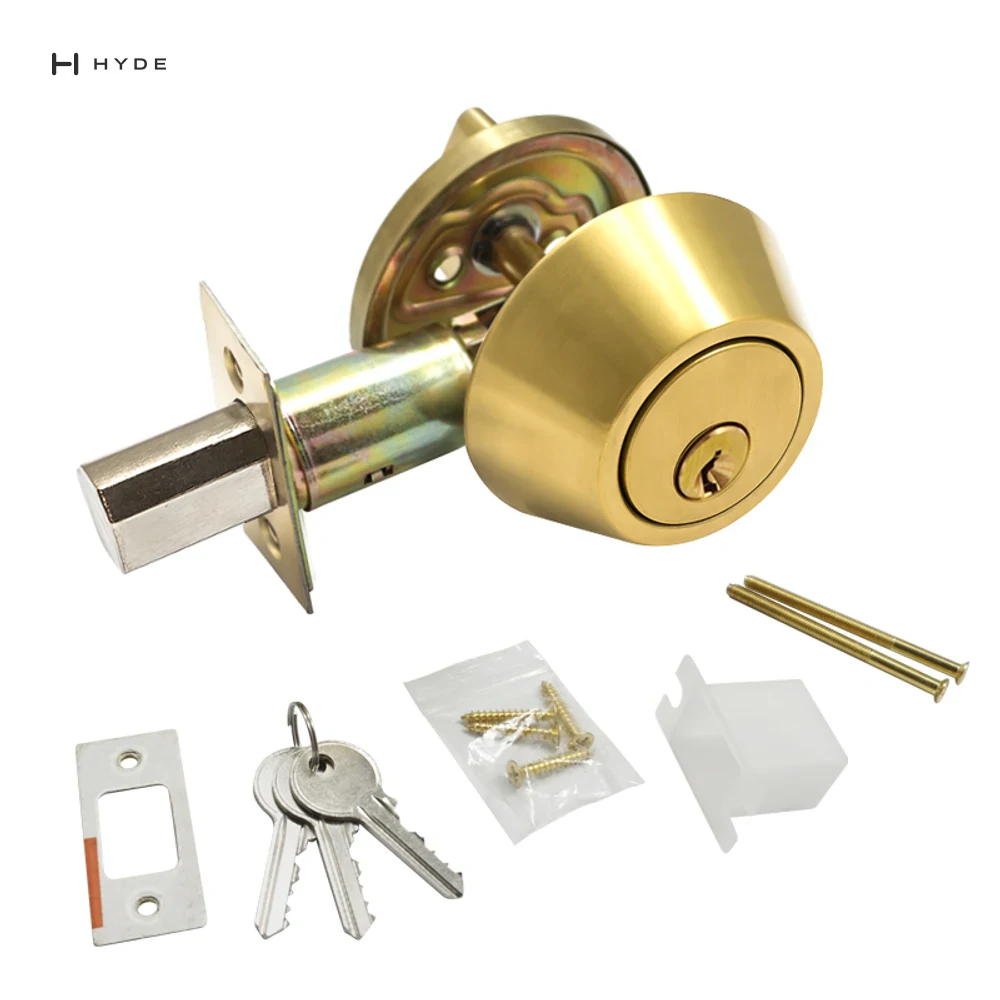

- Solid brass plug with two nickel-plated brass keys included
- Optional configurations: Single or Double Cylinder
- Universal handing, suitable for both left-hand and right-hand doors
- No need to specify when ordering, field-reversible
- Compatible with standard wooden or metal doors
- Adjustable to fit a wide range of door thicknesses and backsets
D101 BS
Drawings
Drawings and files published for this model.
Bolt detail
Backset 60mm to the cylinder center. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
D101 BS
Common questions
- Which finishes is the D101 BS available in?
- The D101 BS is available in Satin Brass.
- What backset does the D101 BS use?
- The D101 BS has a backset of Adjustable 2-3/8” or 2-3/4” (60mm or 70mm).
- What door thickness does the D101 BS suit?
- The D101 BS suits a door thickness of Adjustable 1-3/8” to 1-3/4” (35mm–45mm).
- Is the D101 BS handed?
- Handing for the D101 BS: Fully reversible, left or right hand.
- What cylinder does the D101 BS take?
- The D101 BS takes a Solid Brass Cylinder cylinder.
D101 BS
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishD101 BS, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
