Deadbolts

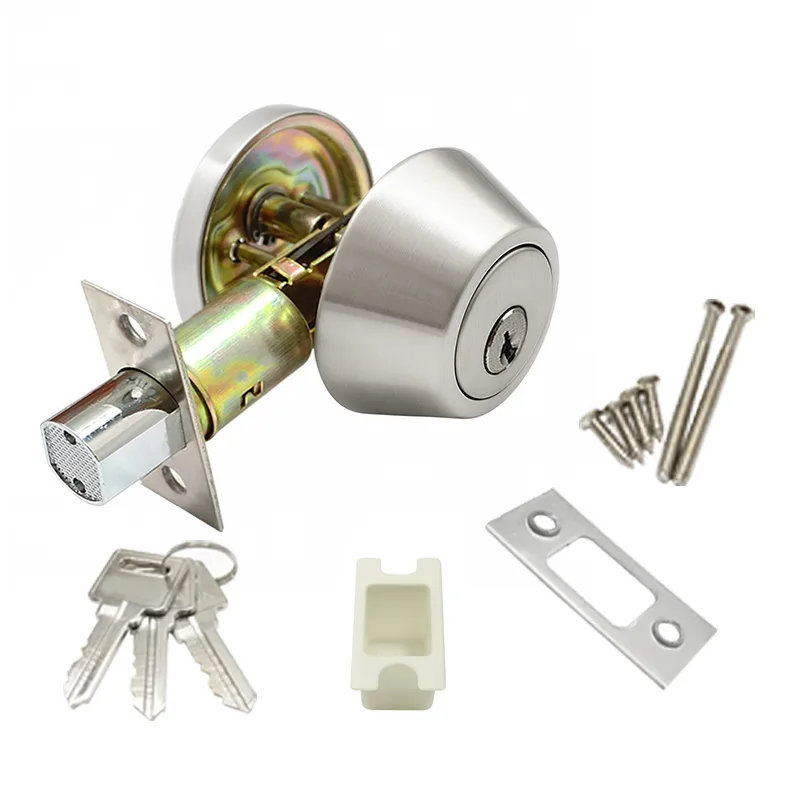

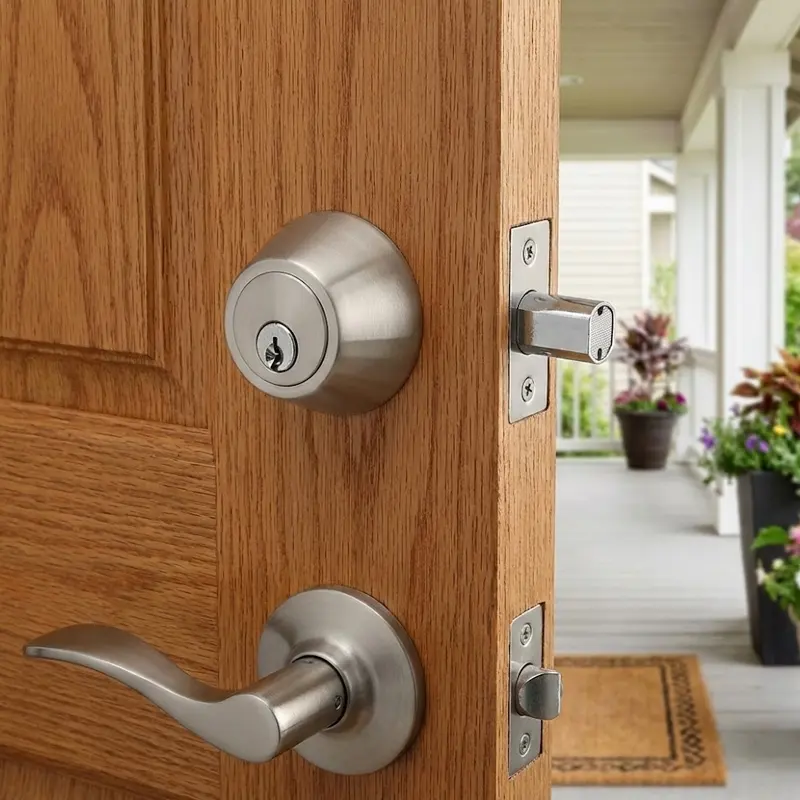

D101 SS Deadbolts
A deadbolt in satin stainless steel (US32D), prepared for a solid brass cylinder.
- Key Features
- •Reinforced Construction
- Internal components are made of zinc-plated steel. External trims are available in stainless steel, brass, or steel options. The free-turning trim design helps resist wrenching and tampering.
- •Heavy-Duty Deadbolt
- Equipped with a full 25mm throw deadbolt and hardened steel roller, engineered to withstand high-impact attacks and sawing.
- •Secure Cylinder & Key System
- Features a 5-pin tumbler mechanism with a solid brass plug, allowing for easy rekeying. Comes with two nickel-plated brass keys.
- •Flexible Installation
- Fully reversible handing supports both left- and right-handed doors. The adjustable backset and door thickness make it suitable for a wide range of residential and commercial applications.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Cylinder
- Solid Brass Cylinder
- Deadbolt throw
- 25mm, zinc die-cast with hardened steel roller insert (1")
- Chassis
- Zinc plated steel internal components
- Trim
- Stainless steel, brass or steel
- Handing
- Fully reversible, left or right hand
- Feature
- Free-turning cylinder trim prevents wrenching; cylinder removable for rekeying
- Keying
- Can be keyed to pair with an entrance bored lock
- Finish
- Satin stainless steel (US32D)
- Trim Material
- Stainless Steel / Brass / Steel
- Key options
- 2 × Nickel-Plated Brass Keys
- Door thickness
- 35–45mm (1-3/8” to 1-3/4”) (1-3/8" to 1-3/4")
- Backset
- 60mm or 70mm (2-3/8” or 2-3/4”) (2-3/8" / 2-3/4" / 1/8")
Bolt detail
Backset 60mm to the cylinder center. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- Which finishes is the D101 SS available in?
- The D101 SS is available in Satin stainless steel (US32D).
- What backset does the D101 SS use?
- The D101 SS has a backset of 60mm or 70mm (2-3/8” or 2-3/4”).
- What door thickness does the D101 SS suit?
- The D101 SS suits a door thickness of 35–45mm (1-3/8” to 1-3/4”).
- Is the D101 SS handed?
- Handing for the D101 SS: Fully reversible, left or right hand.
- What cylinder does the D101 SS take?
- The D101 SS takes a Solid Brass Cylinder cylinder.
