Deadbolts
D101 AC Deadbolts

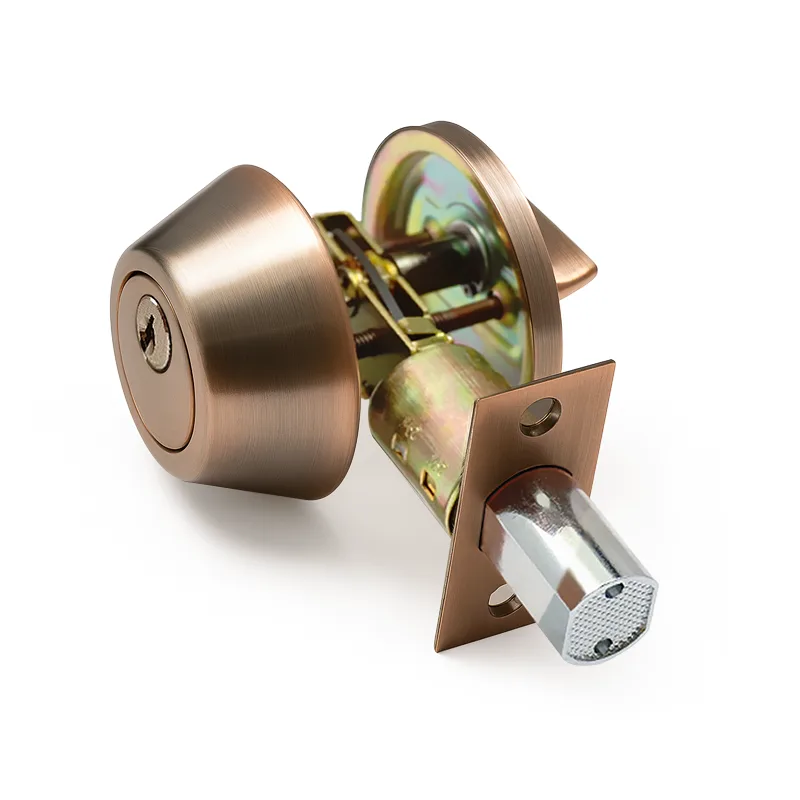

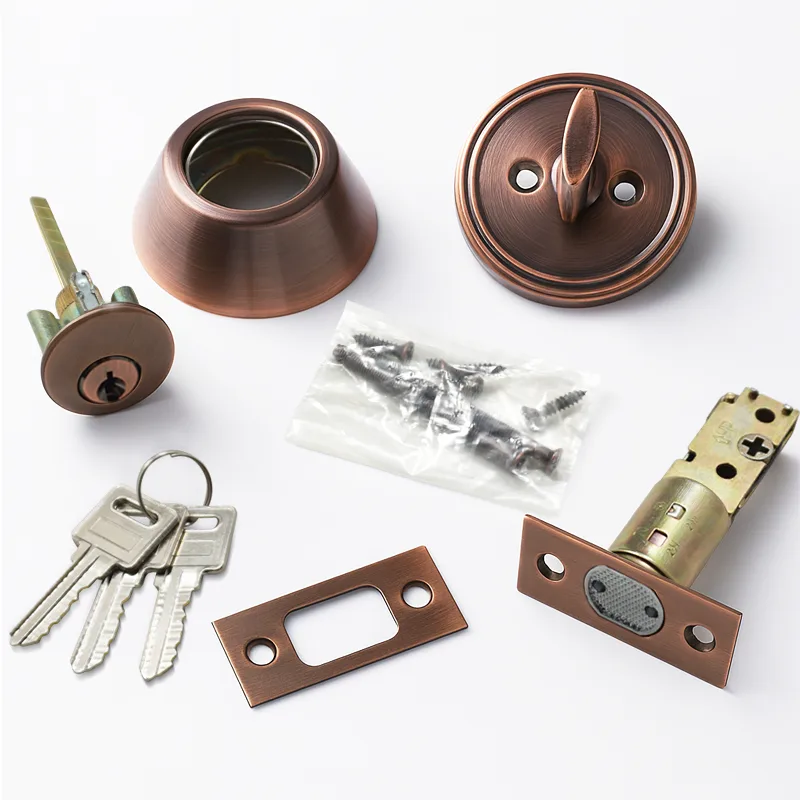

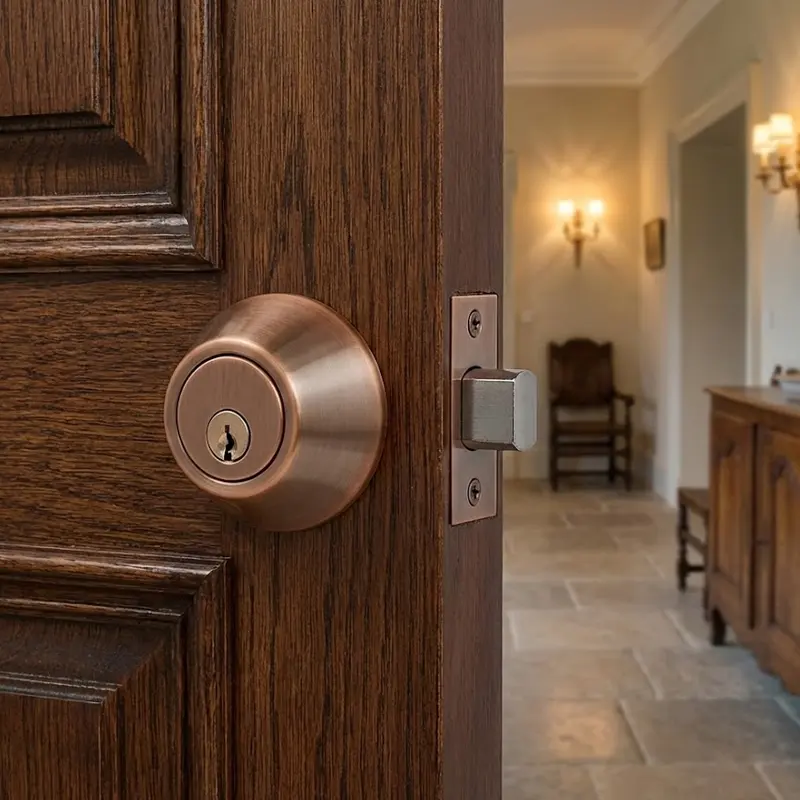

A deadbolt in antique copper (US11), prepared for a solid brass cylinder.
- Economical and durable auxiliary lock
- 25mm (1”) zinc die-cast deadbolt with hardened steel roller insert for anti-saw protection
- Free-turning cylinder trim prevents wrenching
- Compatible with entrance bored locks for enhanced exterior door security
- Easy rekeying with removable brass cylinder plug
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Cylinder
- Solid Brass Cylinder
- Deadbolt throw
- 25mm, zinc die-cast with hardened steel roller insert (1")
- Chassis
- Zinc plated steel internal components
- Trim
- Stainless steel, brass or steel
- Handing
- Fully reversible, left or right hand
- Feature
- Free-turning cylinder trim prevents wrenching; cylinder removable for rekeying
- Keying
- Can be keyed to pair with an entrance bored lock
- Finish
- Antique copper (US11)
- Trim Material
- Stainless steel, brass, or steel
- Key options
- 2 nickel-plated brass keys included
- Door thickness
- Adjustable 35–45mm (1-3/8” to 1-3/4”) (1-3/8" to 1-3/4")
- Backset
- Adjustable 60mm or 70mm (2-3/8” or 2-3/4”) (2-3/8" / 2-3/4" / 1/8")
Bolt detail
Backset 60mm to the cylinder center. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- Which finishes is the D101 AC available in?
- The D101 AC is available in Antique copper (US11).
- What backset does the D101 AC use?
- The D101 AC has a backset of Adjustable 60mm or 70mm (2-3/8” or 2-3/4”).
- What door thickness does the D101 AC suit?
- The D101 AC suits a door thickness of Adjustable 35–45mm (1-3/8” to 1-3/4”).
- Is the D101 AC handed?
- Handing for the D101 AC: Fully reversible, left or right hand.
- What cylinder does the D101 AC take?
- The D101 AC takes a Solid Brass Cylinder cylinder.
