Door Hinge · 21 models in this range
F100 SS Floor Hinge

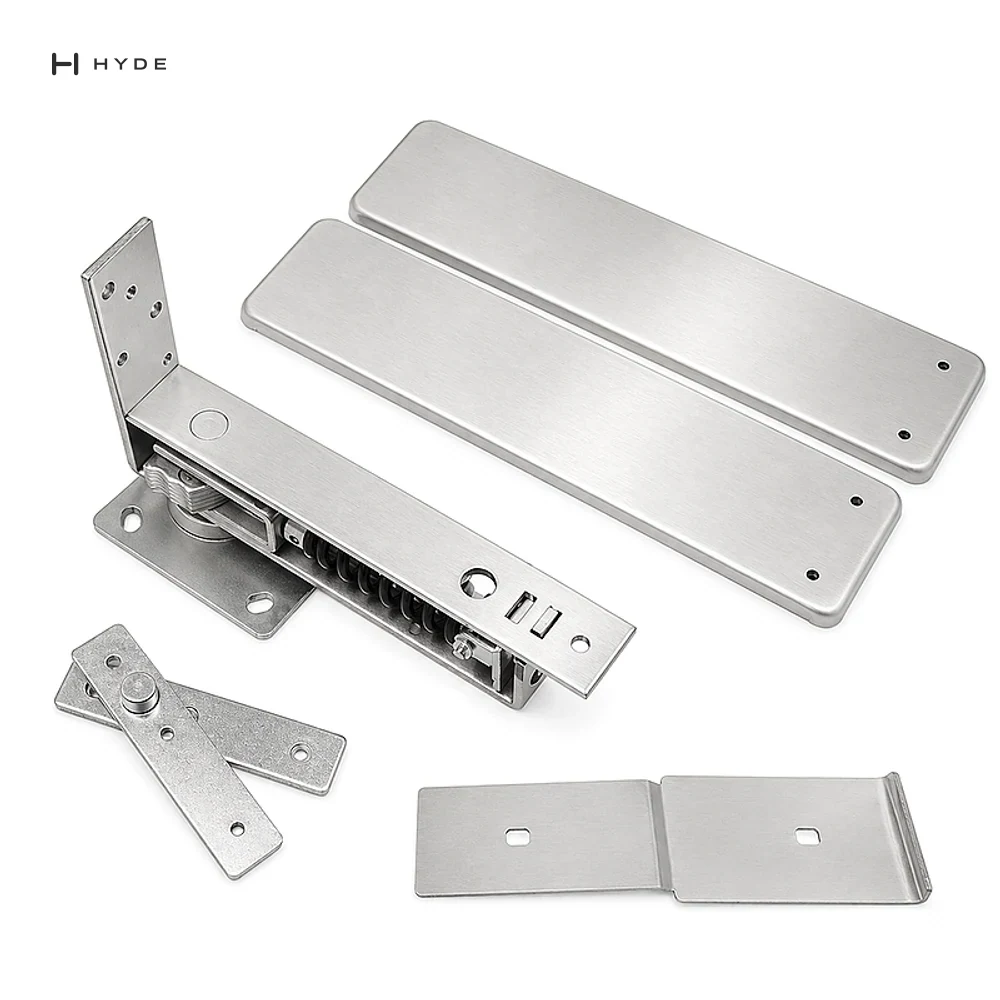

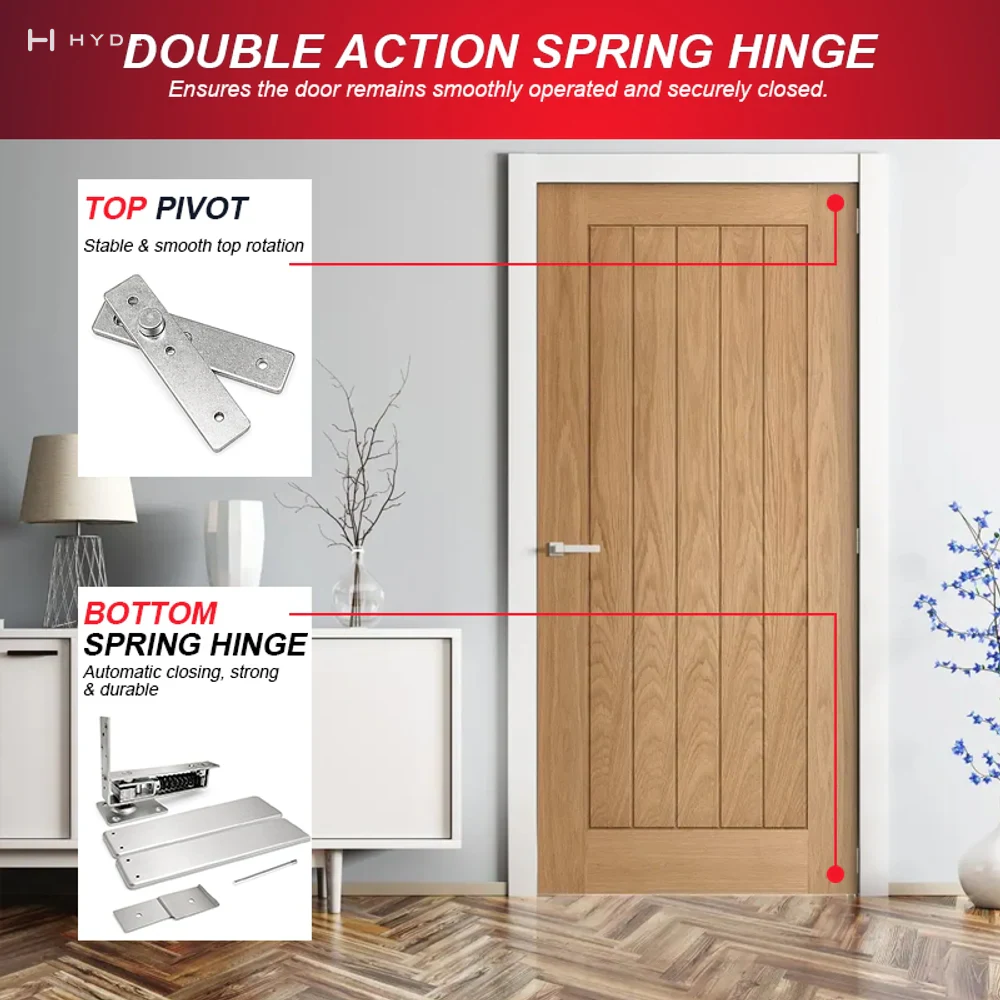

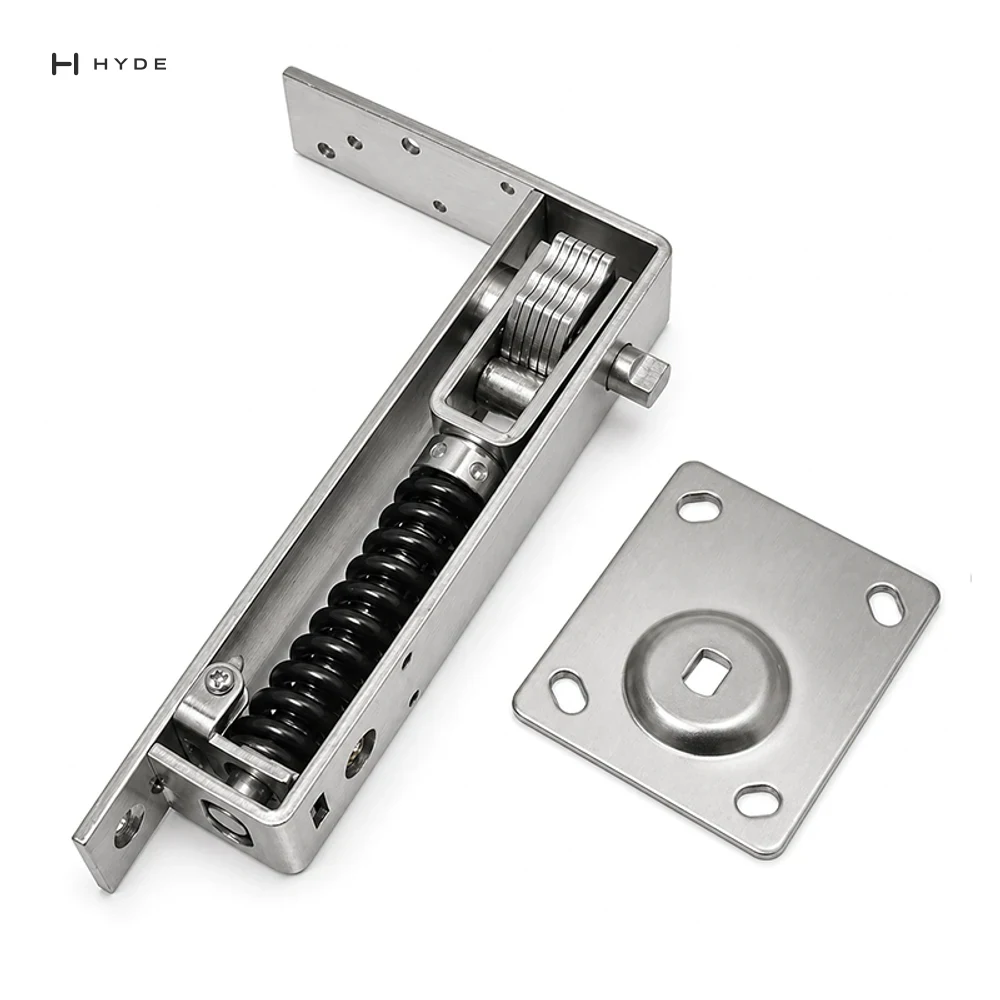

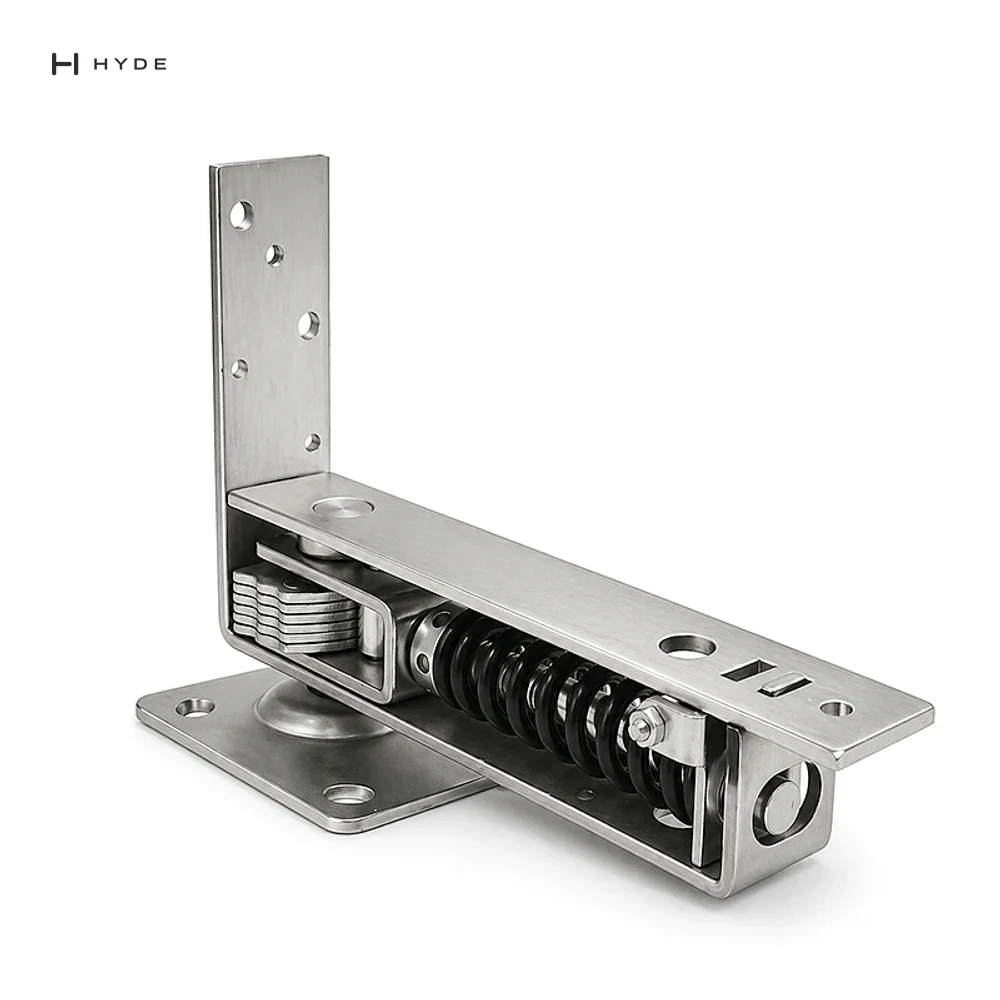

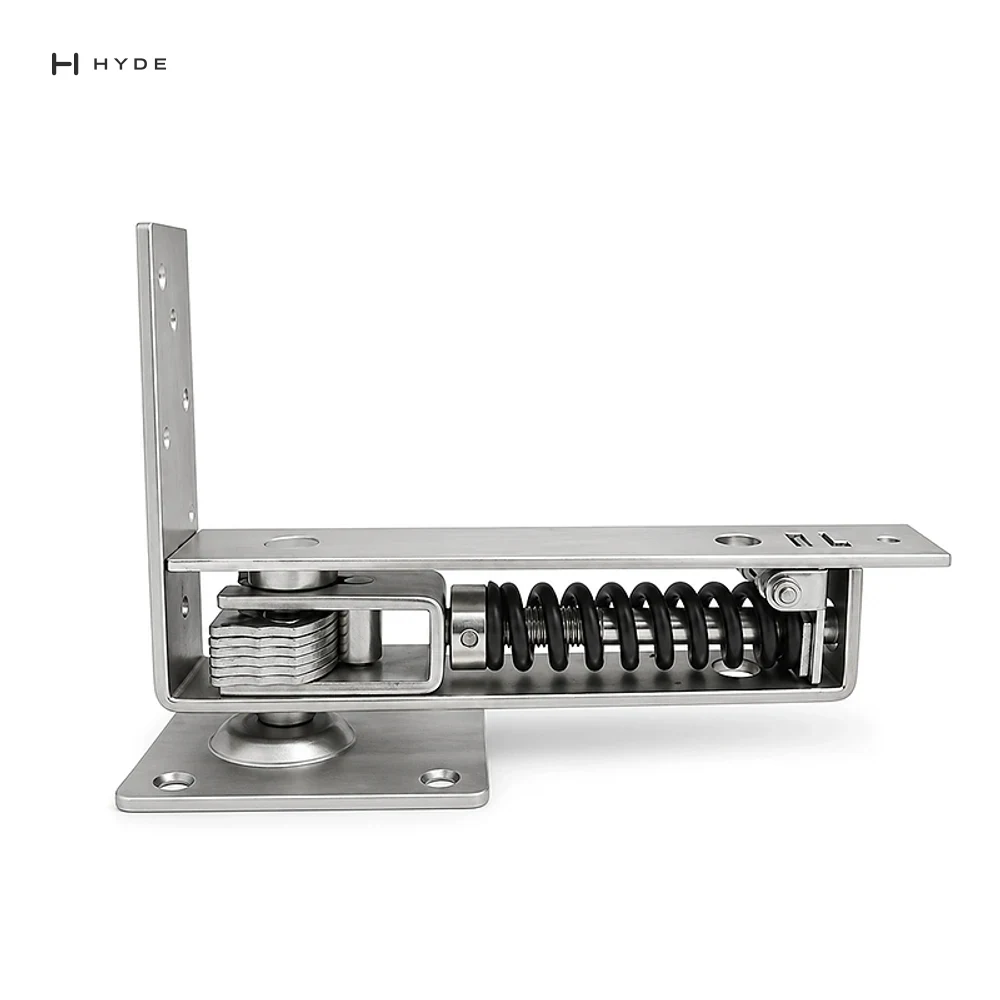

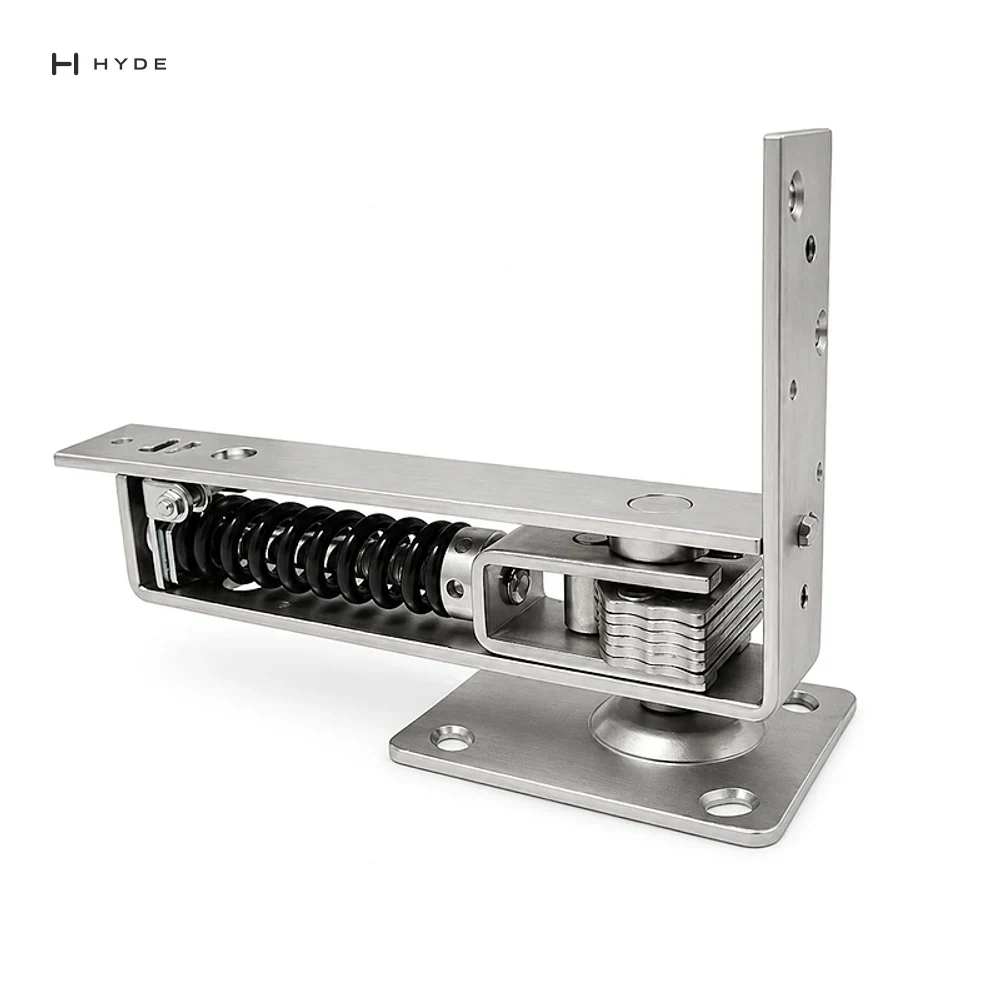

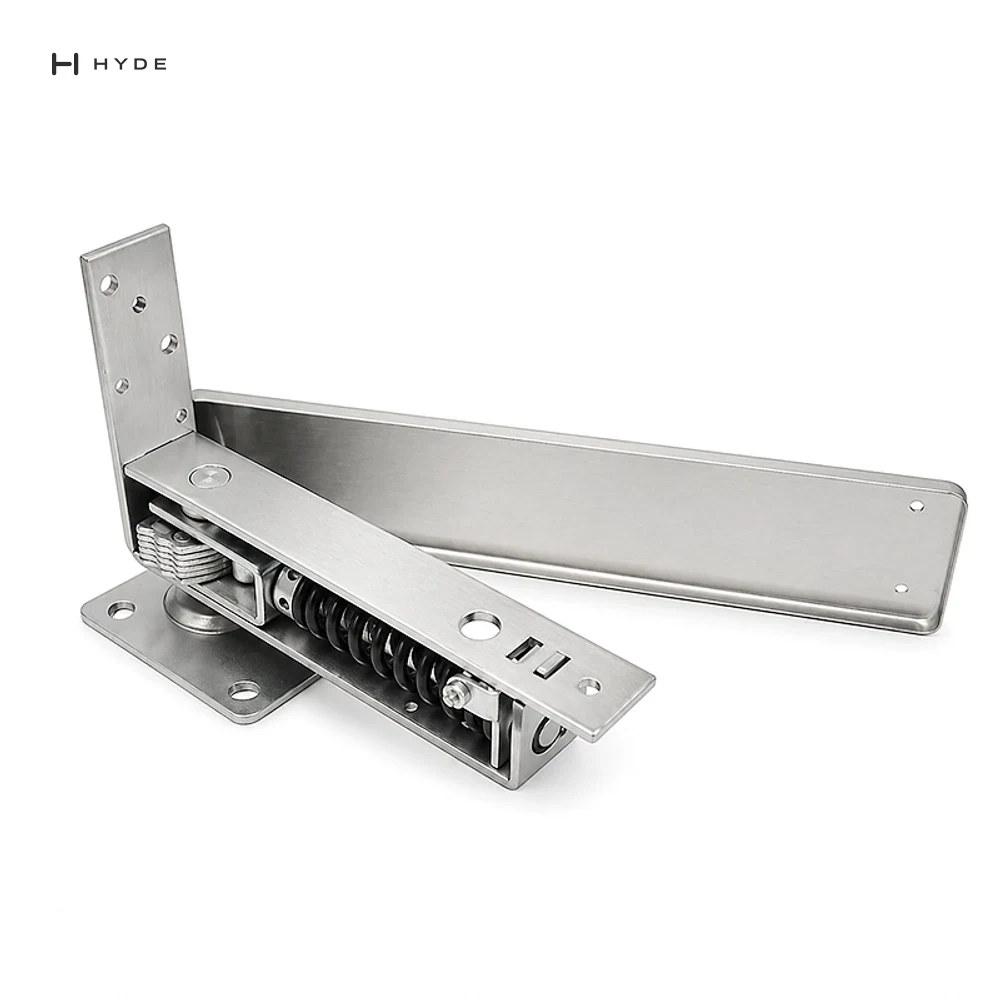

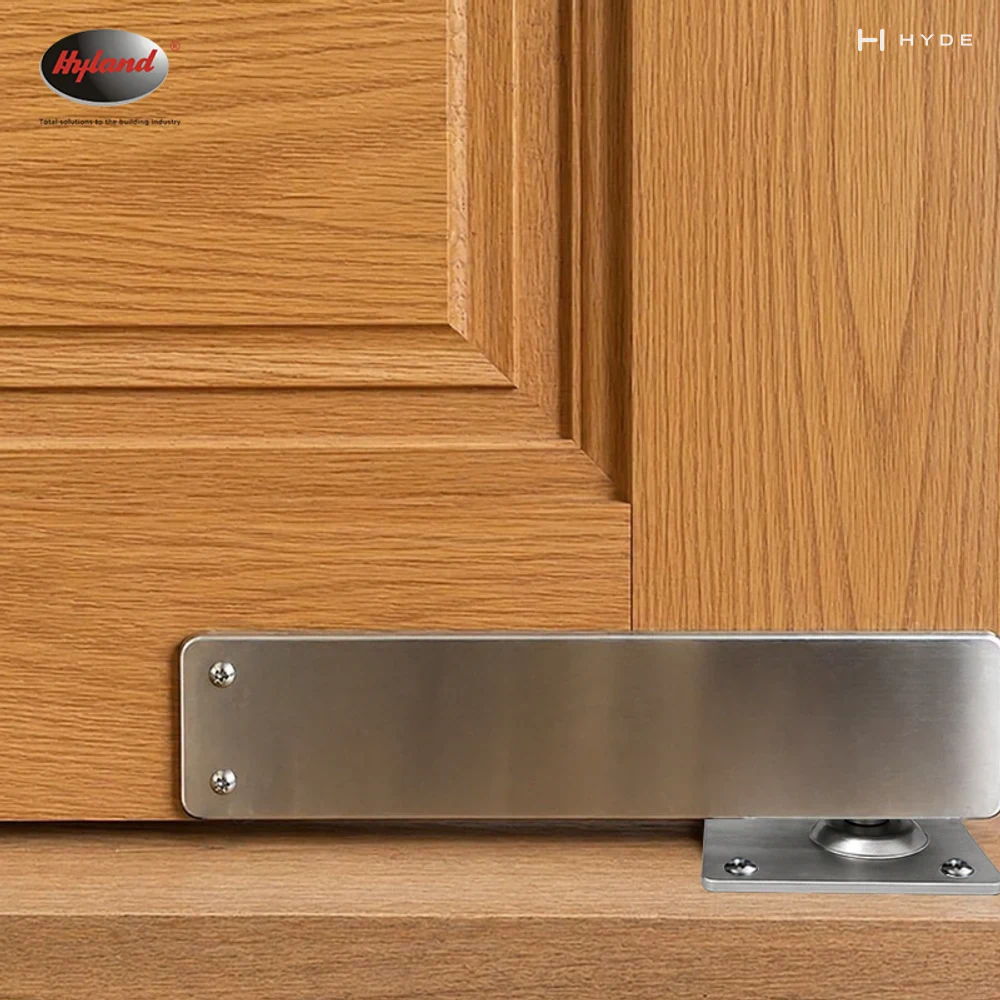

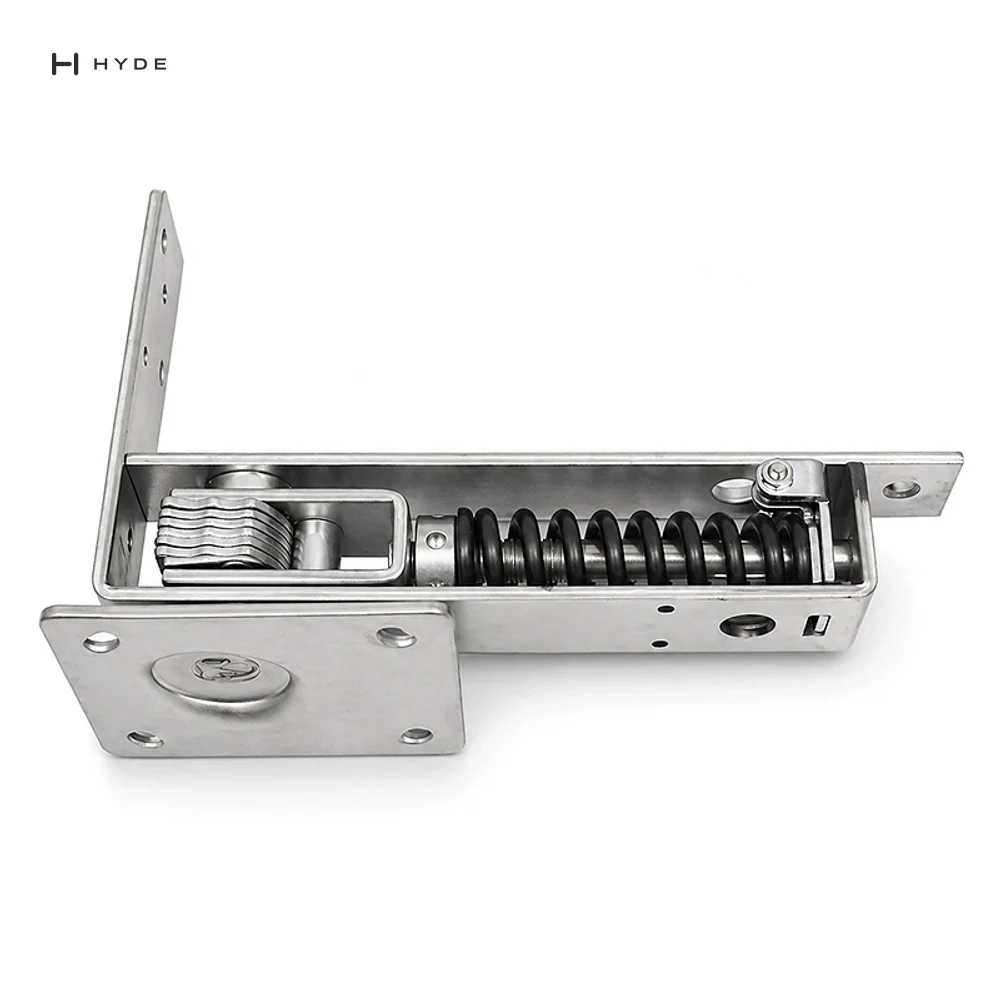

Double-action spring floor hinge for wooden doors up to 80kg: a spring box mortised into the door bottom, with door bracket, floor plate, cover plates and top pivot; adjustable speed and tension, swinging 116° each way with stops at 0°, 88° and 116°.
- Material
- Iron
- Function
- Includes opening and closing speed regulation, spring tension is fully adjustable, door can swing 116 inwards or outwards, with stops at 0, 88 and 116 in both directions.
- Finish
- Satin stainless steel (US32D)

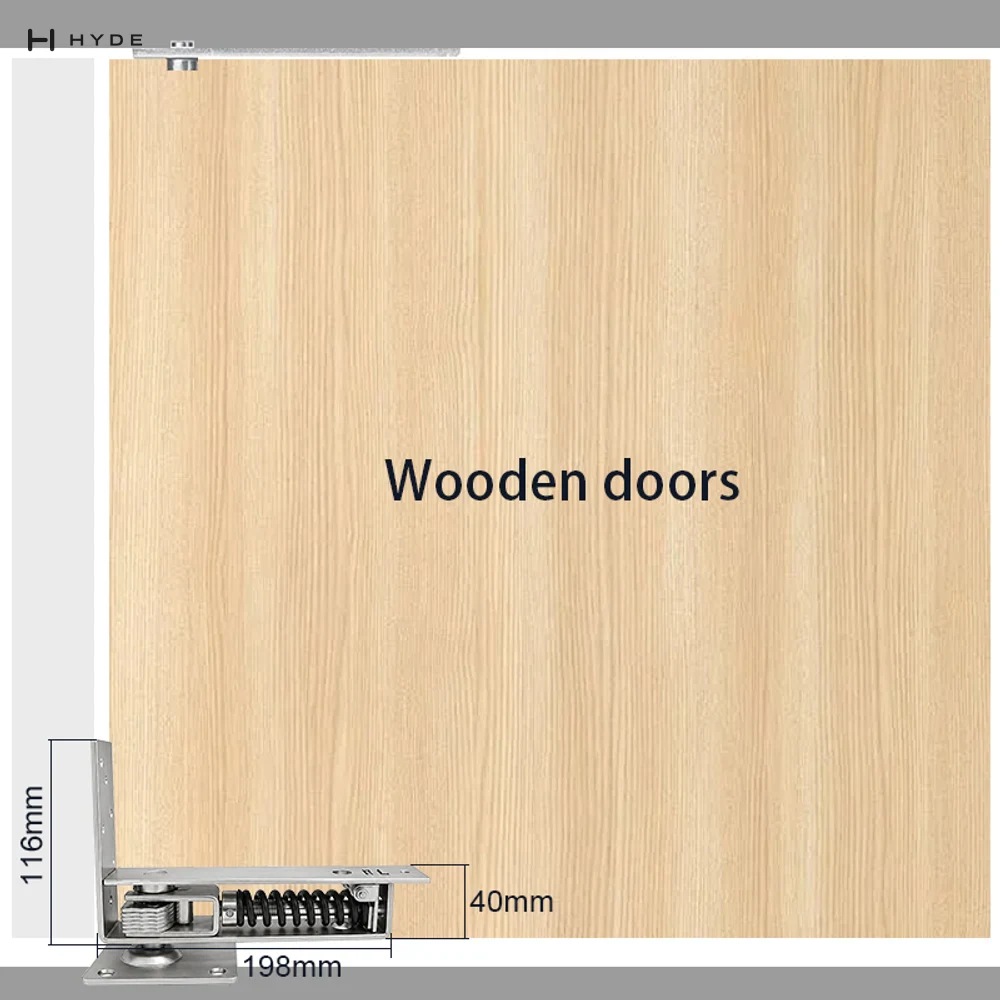

- Application
- Wooden doors
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
F100 SS
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Iron
- Function
- Includes opening and closing speed regulation, spring tension is fully adjustable, door can swing 116 inwards or outwards, with stops at 0, 88 and 116 in both directions.
- Finish
- Satin stainless steel (US32D)
- Application
- Wooden doors
- Pin Material
- Iron
- Max Bearing Capacity
- 80 kg
- Closing Force
- 25 N·m
Features
- Application: Suitable for kitchens, hallways, and residential doors.
- Function: Adjustable opening/closing speed and spring tension. Allows 116° swing in both directions with stop points at 0°, 88°, and 116°.
F100 SS

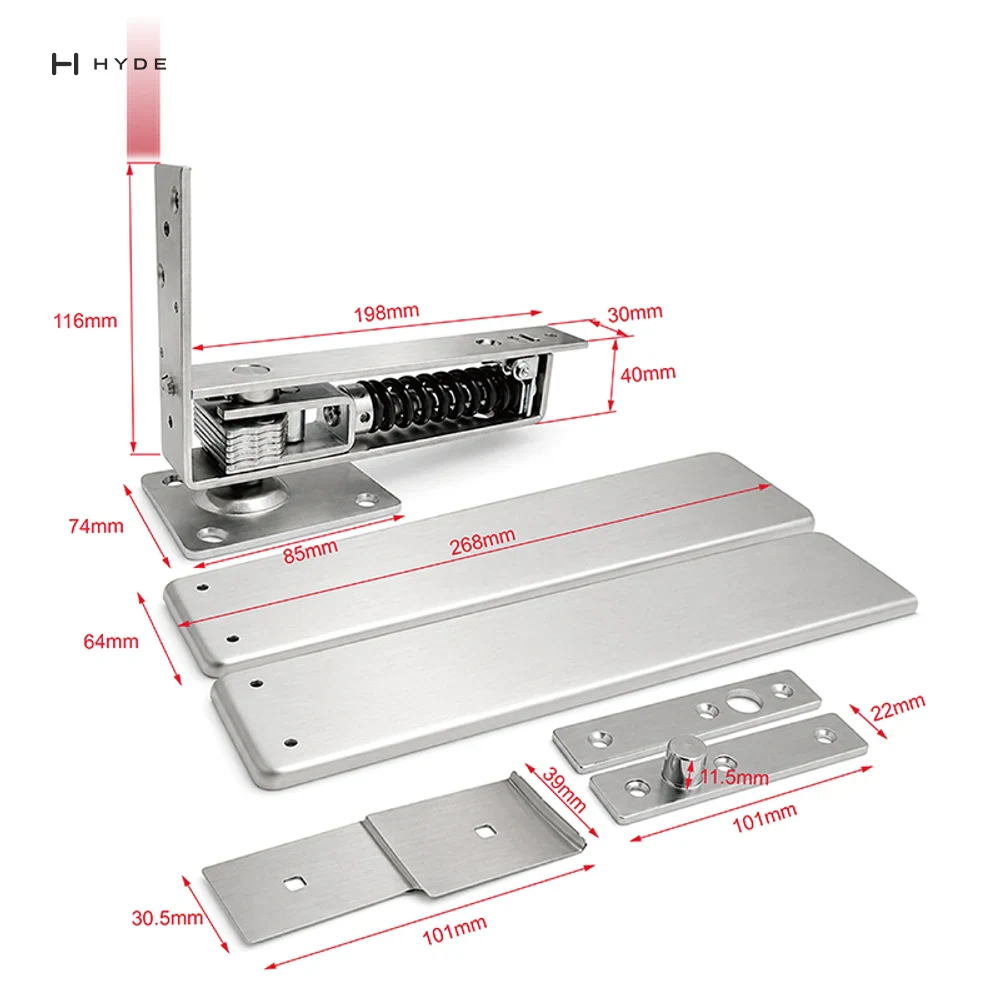

Drawings
Drawings and files published for this model.
F100 SS
Common questions
- What is the F100 SS made from?
- Material of the F100 SS: Iron.
- Which finishes is the F100 SS available in?
- Finishes available for the F100 SS: Satin stainless steel (US32D).
- What function does the F100 SS provide?
- Function of the F100 SS: Includes opening and closing speed regulation, spring tension is fully adjustable, door can swing 116 inwards or outwards, with stops at 0, 88 and 116 in both directions.
- Where is the F100 SS used?
- Where the F100 SS is used: Wooden doors.
F100 SS
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishF100 SS, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
