Hyland 300
305 Fire Door Panic Exit Device
Model
305
A single-point push bar for fire-rated escape doors, with outside lever trim and a cylinder aperture.
- Push Bar Features:
- Turn handle for locking/unlocking
- Adjustable length to fit various door widths
- Available in multiple colors
- Integrated lock and counter lock system
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Length
- 1040mm (40-15/16")
- Material
- Aluminum alloy body, iron bar
- Finish
- Spray painted
- Minimum order
- 200 pieces
- Suitable door types
- Timber Fire Door · Steel Fire Door
Common questions
- What is the 305 made from?
- The 305 is made from Aluminum alloy body, iron bar.
- Which finishes is the 305 available in?
- The 305 is available in Spray painted.
- What size is the 305?
- The 305 measures 1040mm.
- Which standards does the 305 hold?
- The 305 holds ISO 9001 (ISO 9001:2015).
Standards and certifications
ISO 9001
ISO 9001:2015
Certification scope must be checked against the named model before specification.
Next steps
- EN to ANSI/BHMA Cross-Reference 2026: What Maps, What Does Not, and Why
Guide that compares or cites this model
- 650 to 1110mm: Which Push Bar Length Your Door Takes
Article that cites this model
- UL 305 Is a Listing, Not a Grade
Article that cites this model
- Why the Catalog Is This Wide: 28 Years of Cutting Moulds for Other People's Doors
Article that cites this model
- Compare every model in this range
One table, one row per model, across the specifications that differ between them.
- Ordering, lead times and samples
Minimum order quantity, production lead time, sample policy, payment terms and OEM work — answered in full.
Projects + Applications

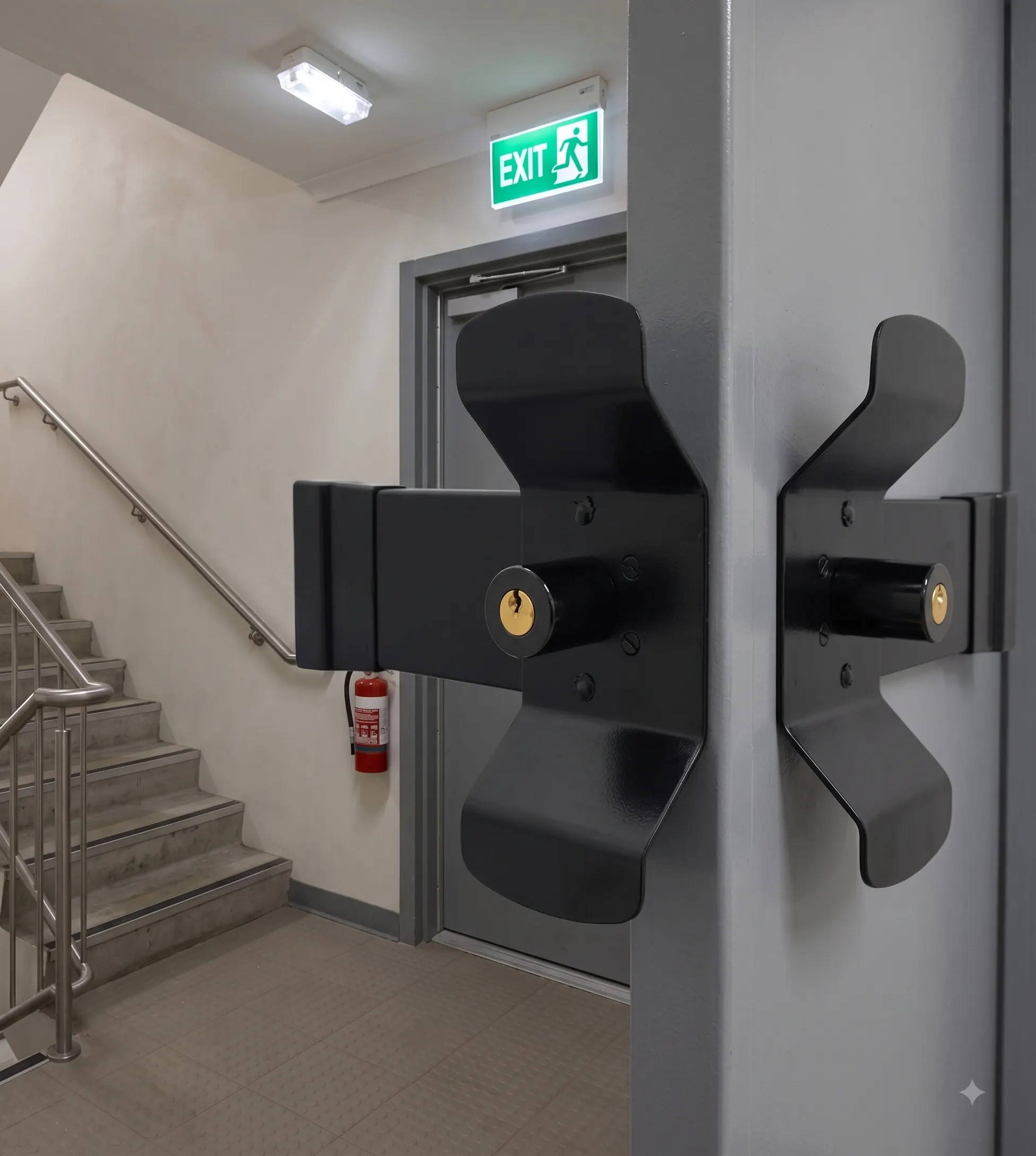

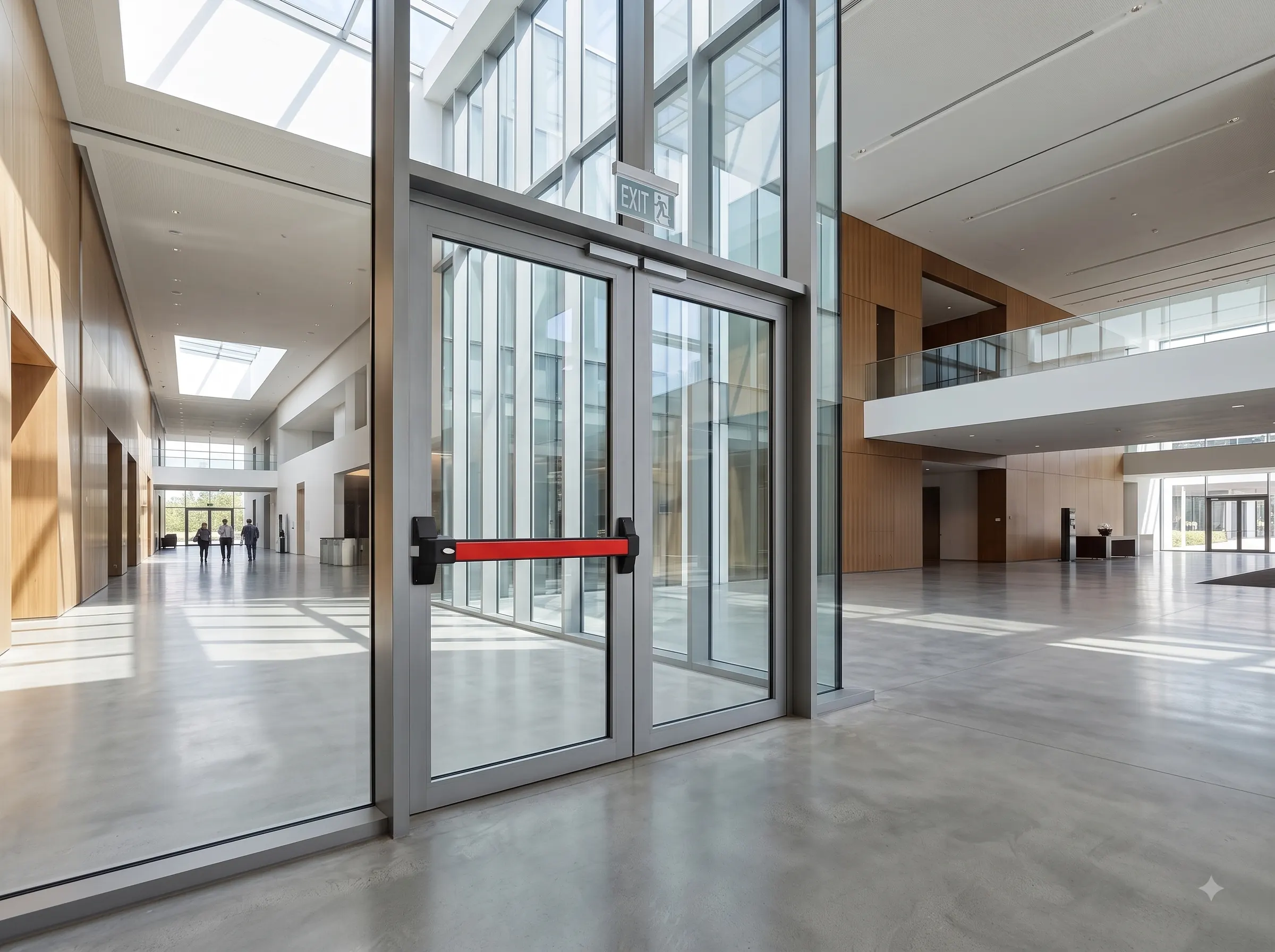

Representative application
A representative schedule combining single-point, double-door and alarmed panic hardware for controlled escape routes.
