592 SSET Tubular Lock
A stainless steel knob lock in satin stainless steel (US32D) with 60mm / 70mm adjustable backset, entrance function, for residential use.
- Introduction:
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Stainless Steel
- Backset
- 60mm / 70mm adjustable (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel chassis and latch case, zinc plated
- Trim
- Wrought stainless steel or brass
- Strike
- 57mm curved lip standard; 70mm available on request (2-1/4" / 2-3/4")
- Handing
- Fully reversible, left or right hand
- Application
- Residential use
- Finish
- Satin stainless steel (US32D)
- Function
- Entrance, keyed outside

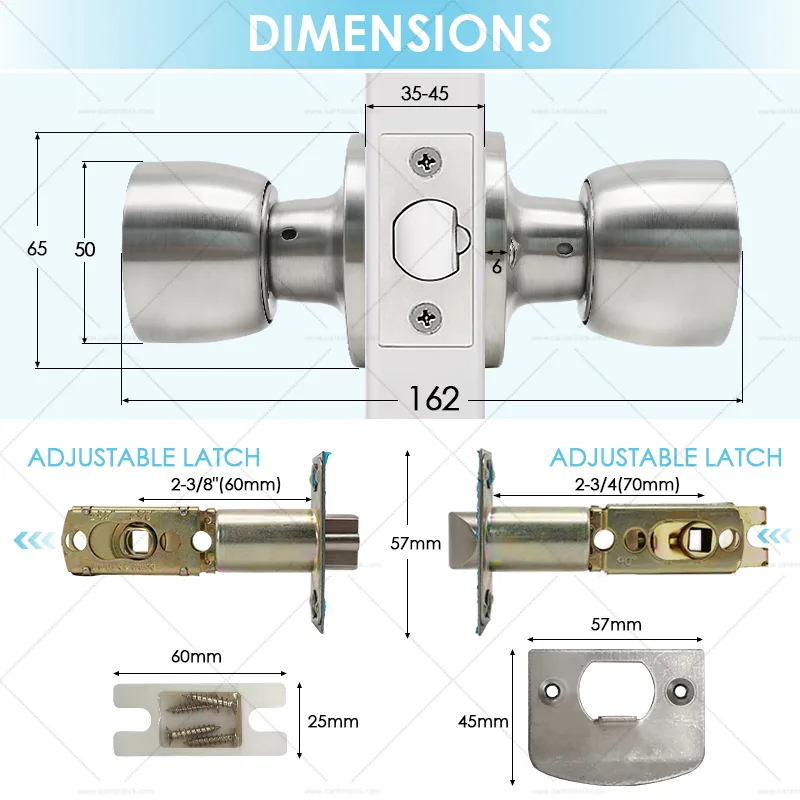

Dimensioned drawing
Door preparation: backset 60mm, door thickness 35mm.
Drawn 1:1 from the published specification
Common questions
- What is the 592 SSET made from?
- The 592 SSET is made from Stainless Steel.
- Which finishes is the 592 SSET available in?
- The 592 SSET is available in Satin stainless steel (US32D).
- What backset does the 592 SSET use?
- The 592 SSET has a backset of 60mm / 70mm adjustable.
- What door thickness does the 592 SSET suit?
- The 592 SSET suits a door thickness of 35mm to 45mm adjustable.
- What function does the 592 SSET provide?
- The 592 SSET provides Entrance, keyed outside.
- How many cycles is the 592 SSET tested to?
- The 592 SSET is tested to 200,000 cycles.
