Tubular Lock

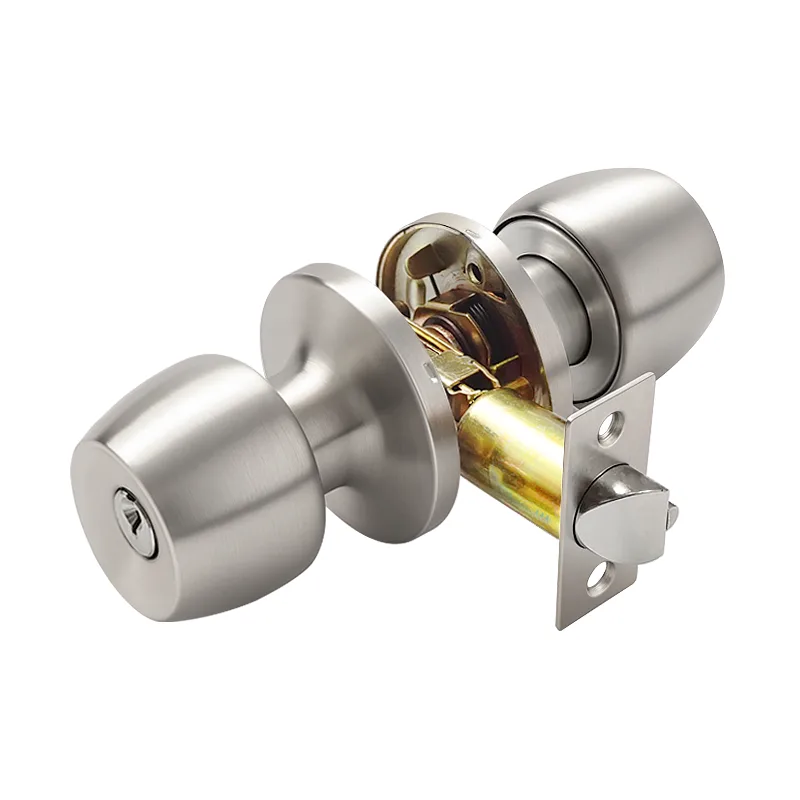

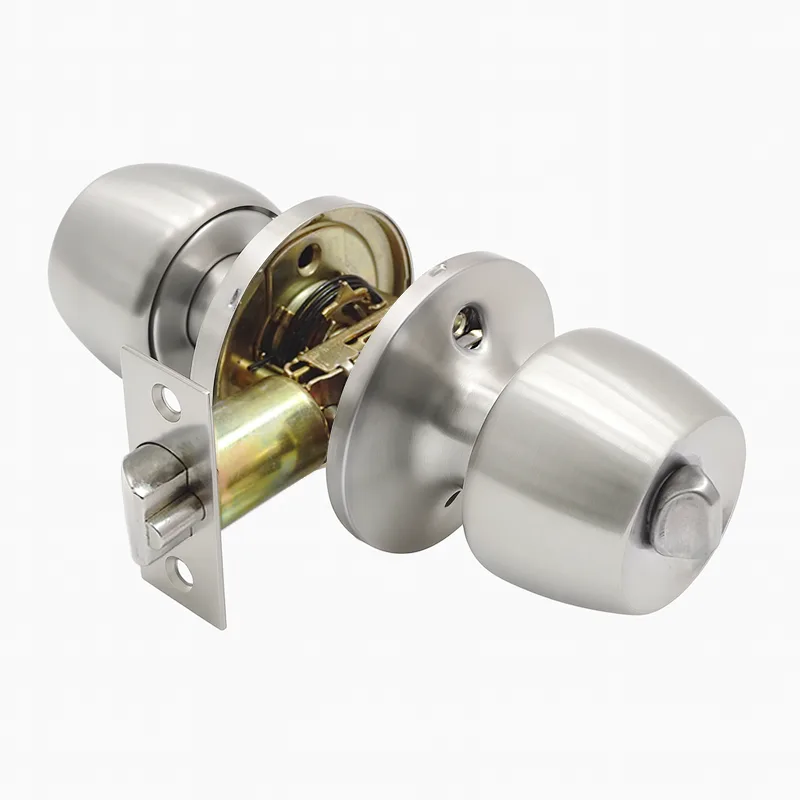

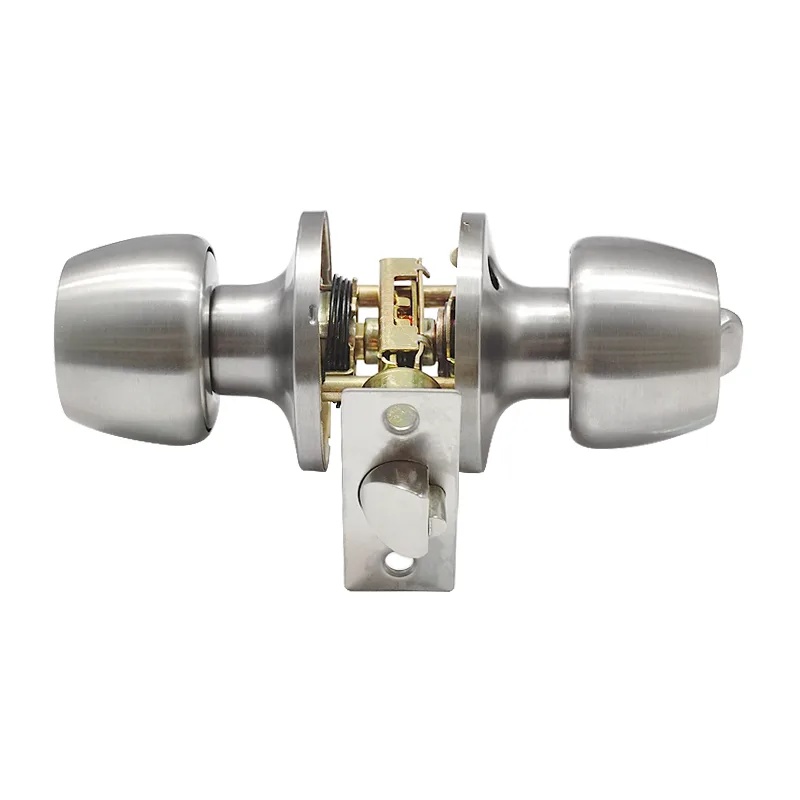

598 Tubular Lock
Model
598
A stainless steel knob lock in AB/AC/PB/SB/SS/SP/SC,other available with 60mm / 70mm adjustable backset, prepared for a brass cylinder, for residential use.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Stainless Steel
- Cylinder
- Brass cylinder
- Finish
- Antique Brass (AB), Antique Copper (AC), Polished Brass (PB), Satin Brass (SB), Stainless Steel (SS), Bright Polished (SP), Satin Chrome (SC), other available
- Backset
- 60mm / 70mm adjustable (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel chassis and latch case, zinc plated
- Trim
- Wrought stainless steel or brass
- Strike
- 57mm curved lip standard; 70mm available on request (2-1/4" / 2-3/4")
- Handing
- Fully reversible, left or right hand
- Application
- Residential use
Dimensioned drawing
Door preparation: backset 60mm, door thickness 35mm.
Drawn 1:1 from the published specification
Common questions
- What is the 598 made from?
- The 598 is made from Stainless Steel.
- Which finishes is the 598 available in?
- The 598 is available in Antique Brass (AB), Antique Copper (AC), Polished Brass (PB), Satin Brass (SB), Stainless Steel (SS), Bright Polished (SP), Satin Chrome (SC), other available.
- What backset does the 598 use?
- The 598 has a backset of 60mm / 70mm adjustable.
- What door thickness does the 598 suit?
- The 598 suits a door thickness of 35mm to 45mm adjustable.
- How many cycles is the 598 tested to?
- The 598 is tested to 200,000 cycles.
- Where is the 598 used?
- The 598 is used on Residential use.
