Glass Door Patch Fittings
GL125 SS Glass Door Patch Fittings
Model
GL125 SS

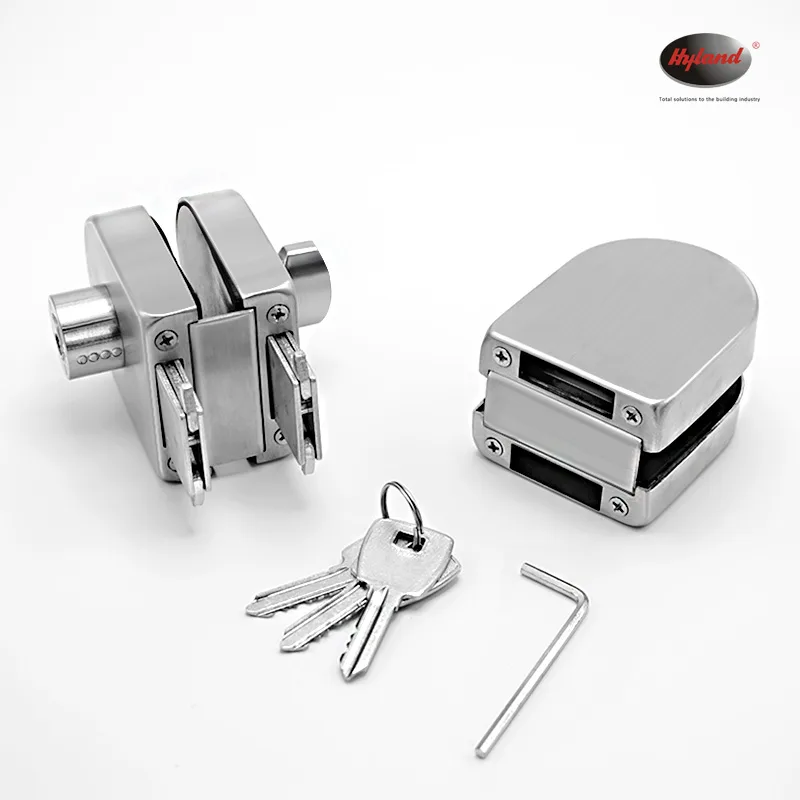

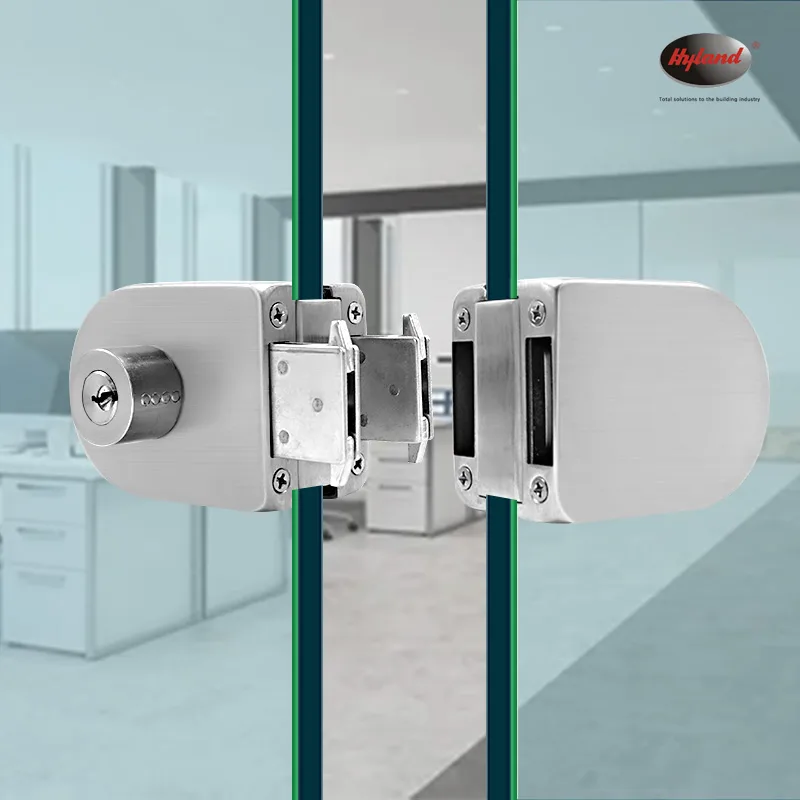

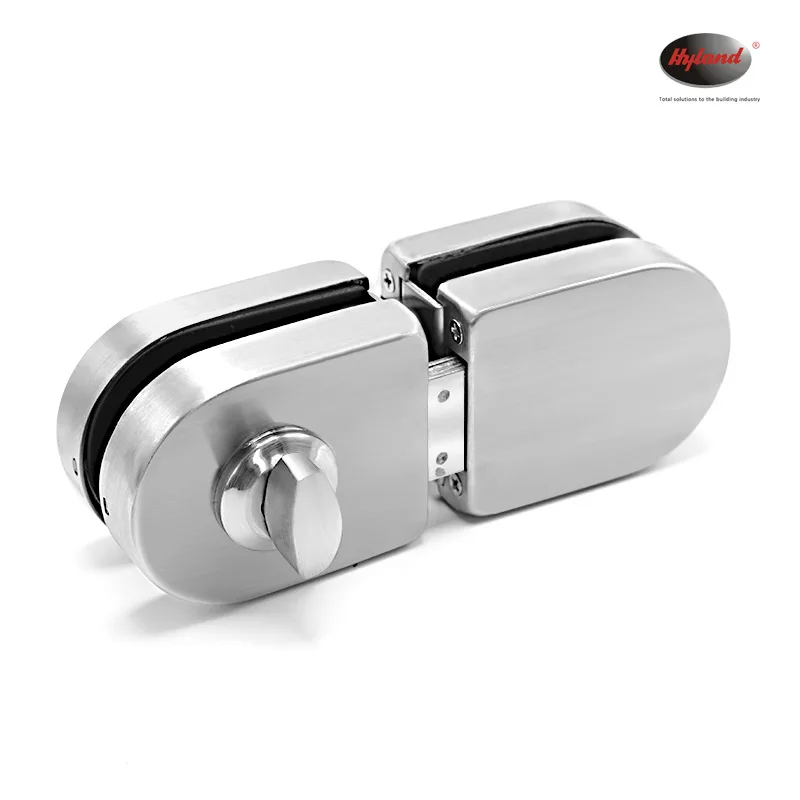

A glass door patch fittings in SS, for suitable for left & right usage.
- Installation Instructions
- Compatible Door Thickness: 8–10 mm glass doors
- No Drilling Required: Installs without cutting or drilling the glass
- Clean Surface: Wipe the installation area on the glass with a damp cloth.
- Position the Lock: Select the correct position and check that the latch operates smoothly.

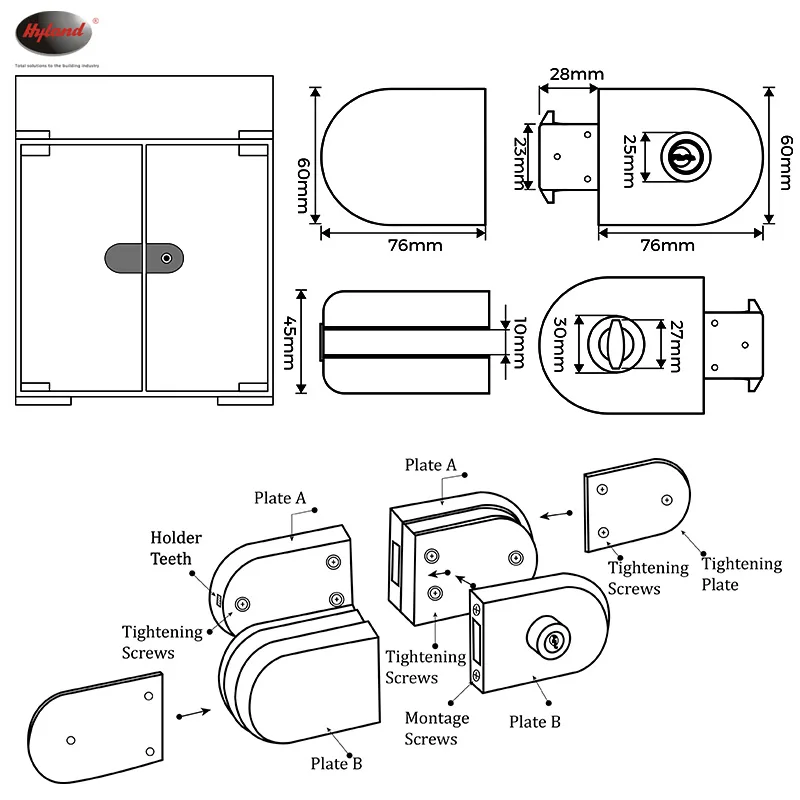

- Attach Plate A:
- Use the clamp plates to secure the lock.
- Adjust or loosen the screws on Plate A as needed to ensure a firm fit on the glass.
- Install Plate B:
- Hook the holding teeth of Plate B onto the back of Plate A.
- Push forward firmly, then secure with two screws.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Find GL125 SS on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Finish
- SS
- Application
- Suitable for left & right usage
- Main body
- Stainless steel 304
- Inner body
- Stainless steel 201
- Deadbolt
- Steel
- Glass door thickness
- 8-10 mm (5/16" to 3/8")
- Cylinder material
- Brass
- Key material
- Nickel plated
- Model
- Double door
