A 304 stainless steel glass door handle in satin.
Or email us about this model: tec@cantonlock.com
Find 100 on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.

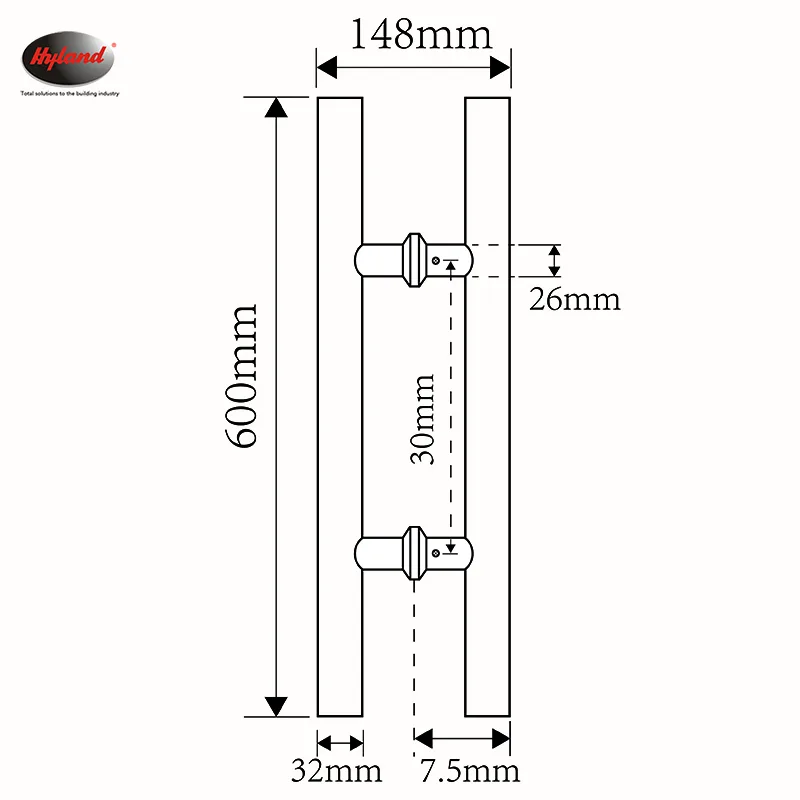

Technical specifications
- Material
- 304 stainless steel
- Finish
- Satin
- Tube Thickness
- 1.0 mm (Optional: 0.8 mm)
- Application
- 10–12 mm glass doors
- Length
- 600mm
- Centre distance
- 148mm
- Tube diameter
- 32mm
- Standoff
- 26mm
- Fixing centre
- 30mm
- Glass gap
- 7.5mm
Common questions
- What is the 100 made from?
- The 100 is made from 304 stainless steel.
- Which finishes is the 100 available in?
- The 100 is available in Satin.
- What is the centre distance on the 100?
- The centre distance on the 100 is 148mm.
- Where is the 100 used?
- The 100 is used on 10–12 mm glass doors.
- What size is the 100?
- The 100 measures 600mm.
