Hyland 300
317 Cold Room Push Bar Exit Device
Model
317
A low-profile push bar and latch assembly designed for insulated cold-room and specialist enclosure doors.

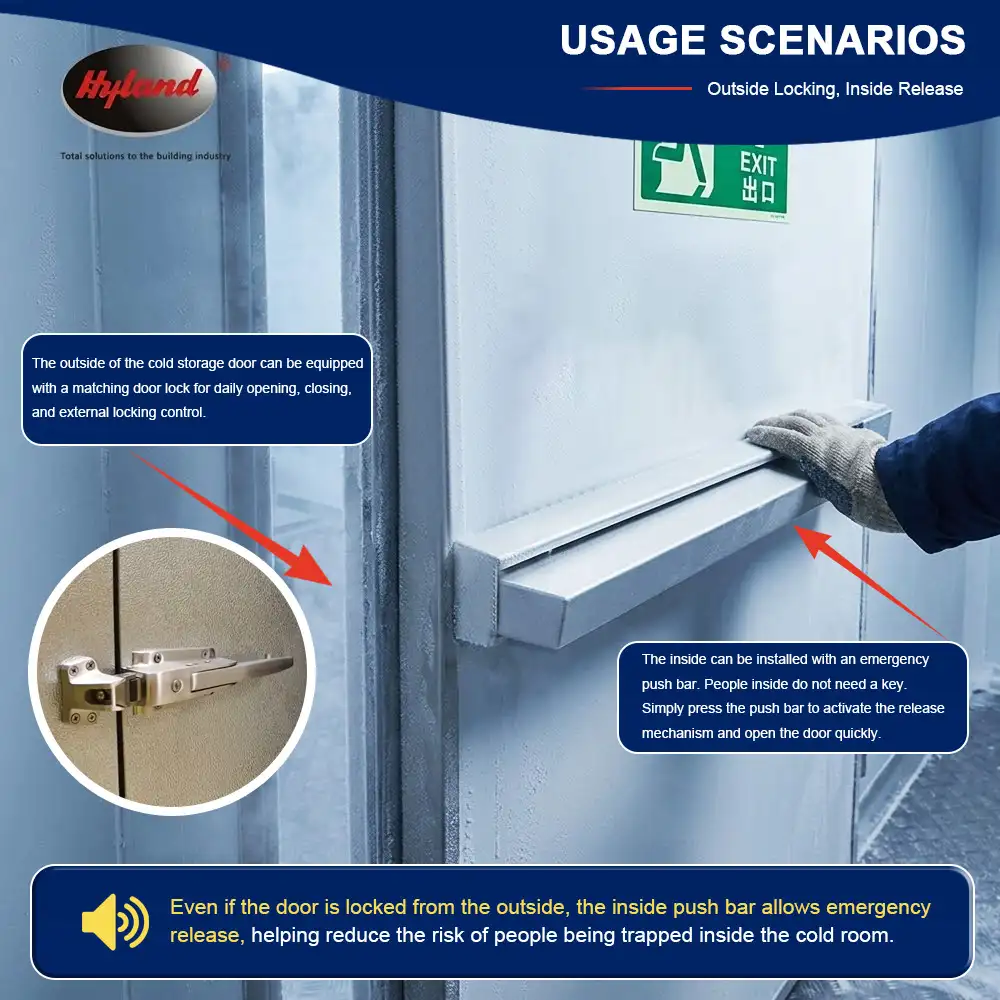

- It helps reduce the risk of people being trapped inside cold rooms. An optional outside handle is available for daily door operation.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Application
- Cold Storage Door, Freezer Door, Cold Chain Warehouse Door
- Installation
- Inside Door Installation
- Opening Method
- Press from Inside
- Key Required
- No Key Required from Inside
- Function
- Emergency Escape, Quick Release
- Outside Handle
- Optional
- Type
- Inside Release Push Bar
- Customization
- Available
- Material
- Aluminum alloy body, iron bar
- Available finishes
- Anodized Silver
Common questions
- What type of hardware is the 317?
- The 317 is a Inside Release Push Bar.
- What is the 317 made from?
- The 317 is made from Aluminum alloy body, iron bar.
- What function does the 317 provide?
- The 317 provides Emergency Escape, Quick Release.
- Where is the 317 used?
- The 317 is used on Cold Storage Door, Freezer Door, Cold Chain Warehouse Door.
- Which standards does the 317 hold?
- The 317 holds ISO 9001 (ISO 9001:2015).
Standards and certifications
ISO 9001
ISO 9001:2015
Certification scope must be checked against the named model before specification.
