Panic Exit Device
313 Panic Exit Device
Model
313

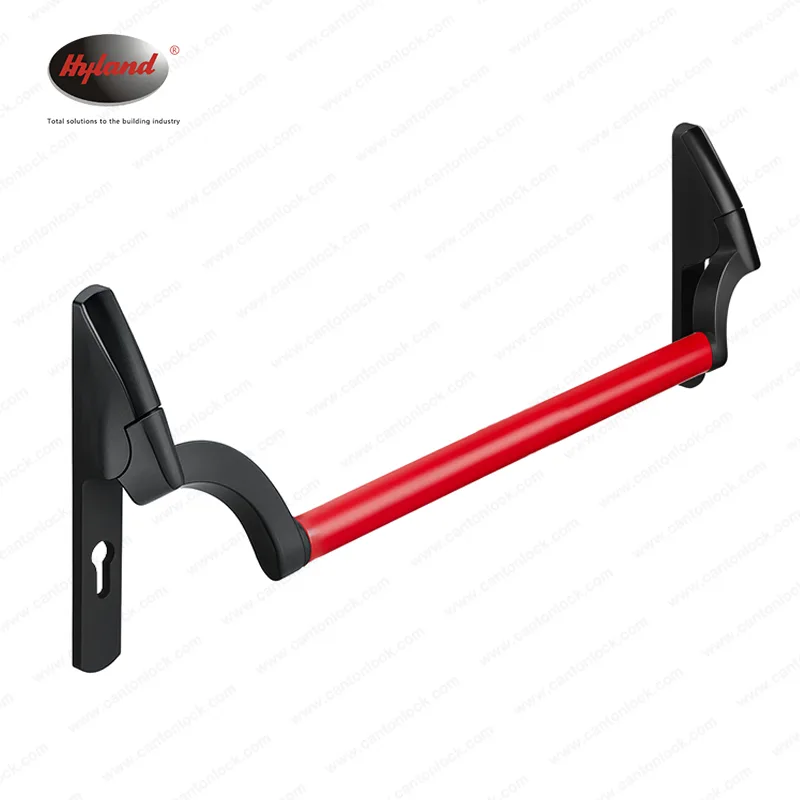

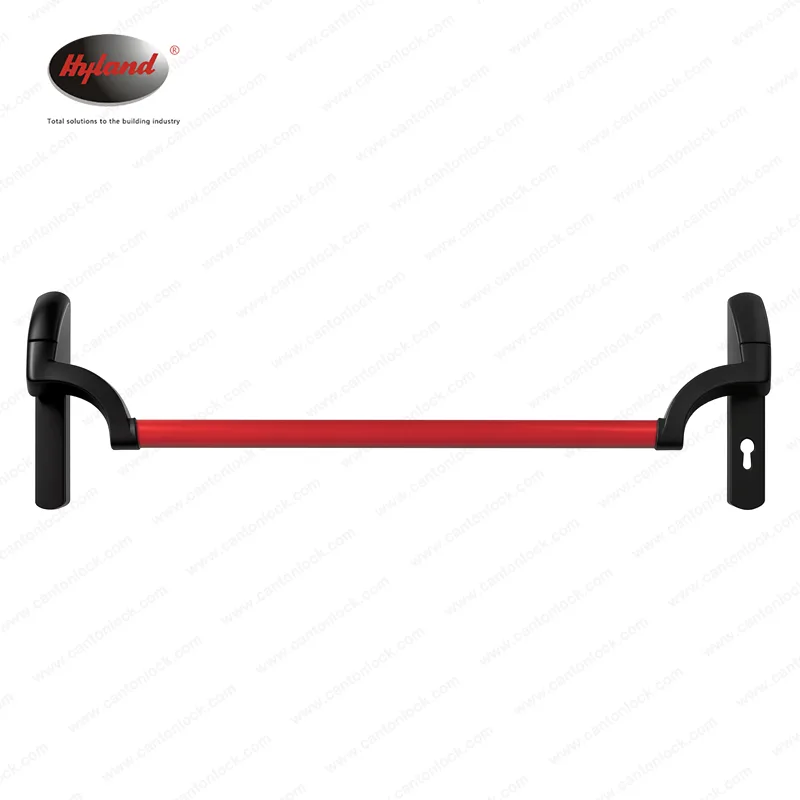

Push bar exit device with an aluminum alloy body and an iron push bar, for single doors and, with top and bottom bolts, double doors.

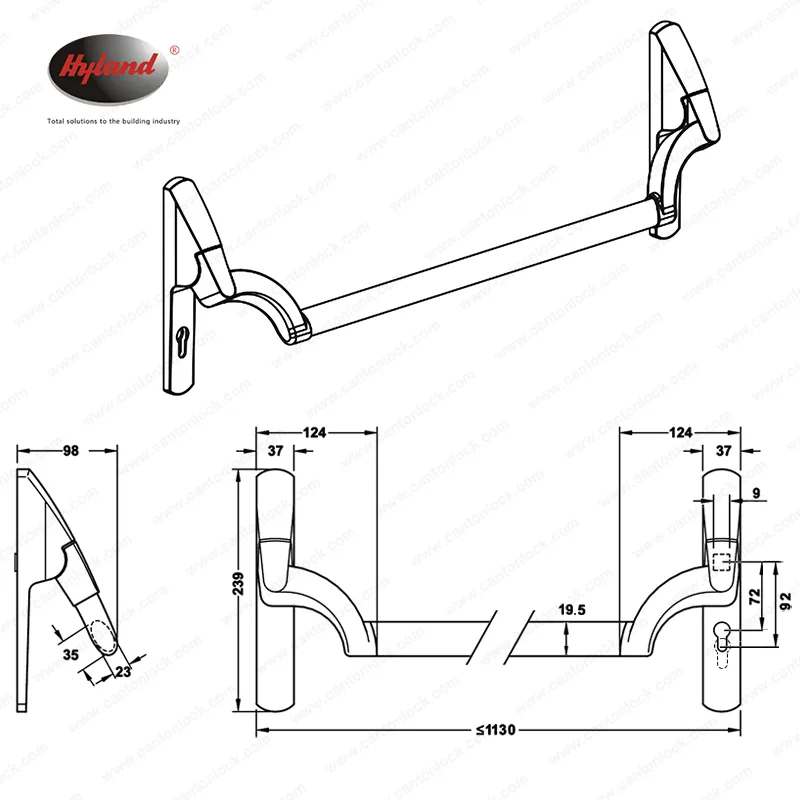

- Center distance optional 72mm / 92mm
- Spindle size 9mm.
- Suitable for single & double doors
- Reversible for left/right handing,no orientation required
- Max door weight: ≥200kg
- Max door height: 2520mm
- Max door width: 1500mm
- Working temperature: -10°C ~ +60°C
- Supports DIN left/right door installation
- One push to open – fast evacuation
- Robust structure with high load resistance for long-term reliability
- Easy installation with wide compatibility
- Supports top & bottom bolt linkage for double door systems

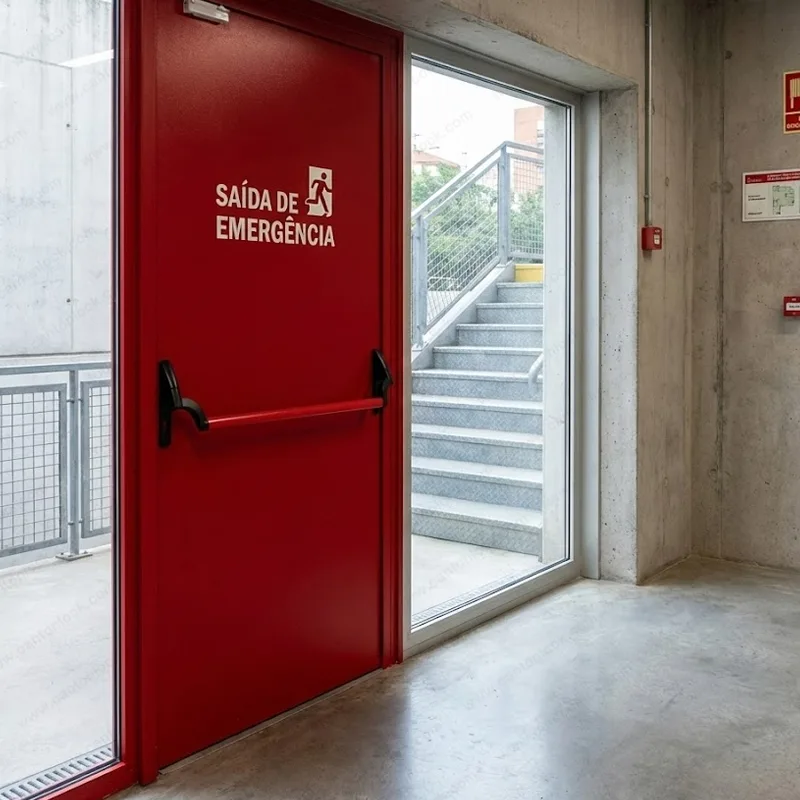

- Suitable for emergency exit doors, fire doors, smoke control doors
- Recommended for high-traffic public areas:
- Shopping malls / Hospitals / Schools / Cinemas / Stadiums / Office buildings / Exhibition centers / Airports / Metro & transport hubs
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Find 313 on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Aluminum alloy body, iron bar
- Application
- Fire door / Emergency exit door / Public building
- Feature
- Quick emergency release, safety push bar design
- Push Bar Material
- Iron
- Color Options
- Different colors available (customizable)
