Hyland 300 · 7 models in this range
306-D Double Door Panic Exit Device
Panic exit device with top and bottom rods for one leaf of a double escape door: 1200mm bar, for doors up to 1300 × 2500mm, 85mm projection.
- Material
- Aluminum alloy body, iron bar
- Door leaves
- Double door
- Bar Length
- 1200mm (47-1/4")
- Size
- For doors up to 1300 × 2500mm (W × H)
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
306-D
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Aluminum alloy body, iron bar
- Door leaves
- Double door
- Bar Length
- 1200mm (47-1/4")
- Size
- For doors up to 1300 × 2500mm (W × H)
- Projection
- 85mm (3-3/8")
306-D

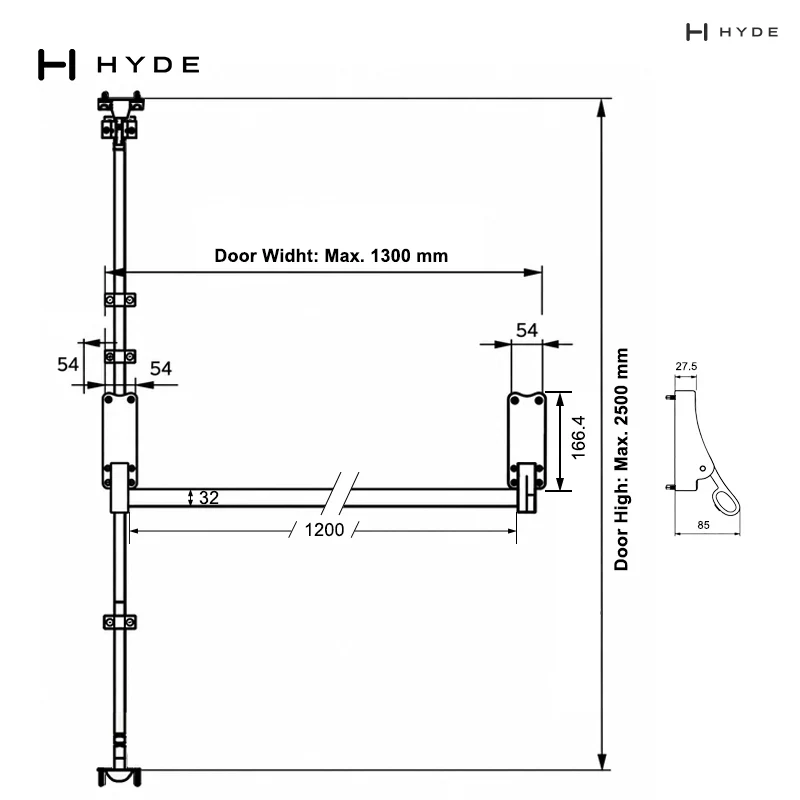

Drawings
Drawings and files published for this model.
306-D
Video
22 seconds of the part working.
306-D
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish306-D, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
306-D
