Lever Handle · 45 models in this range

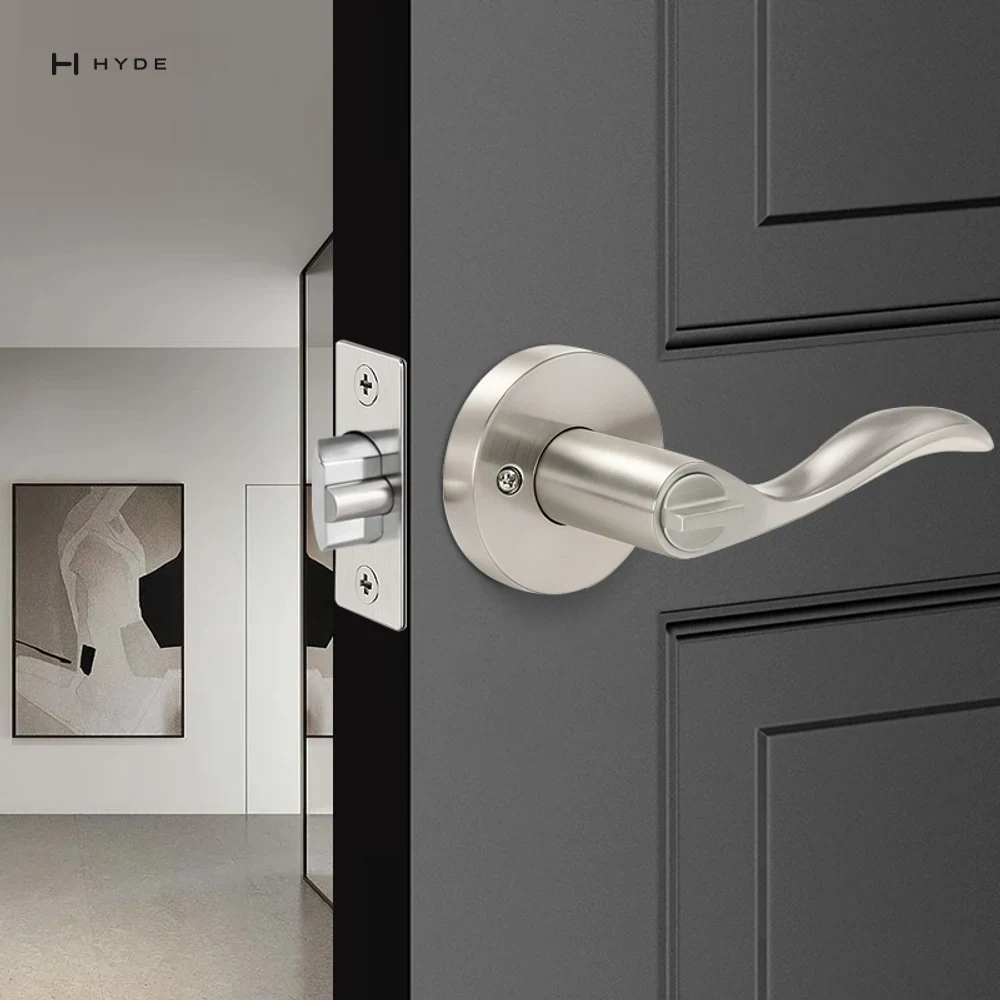

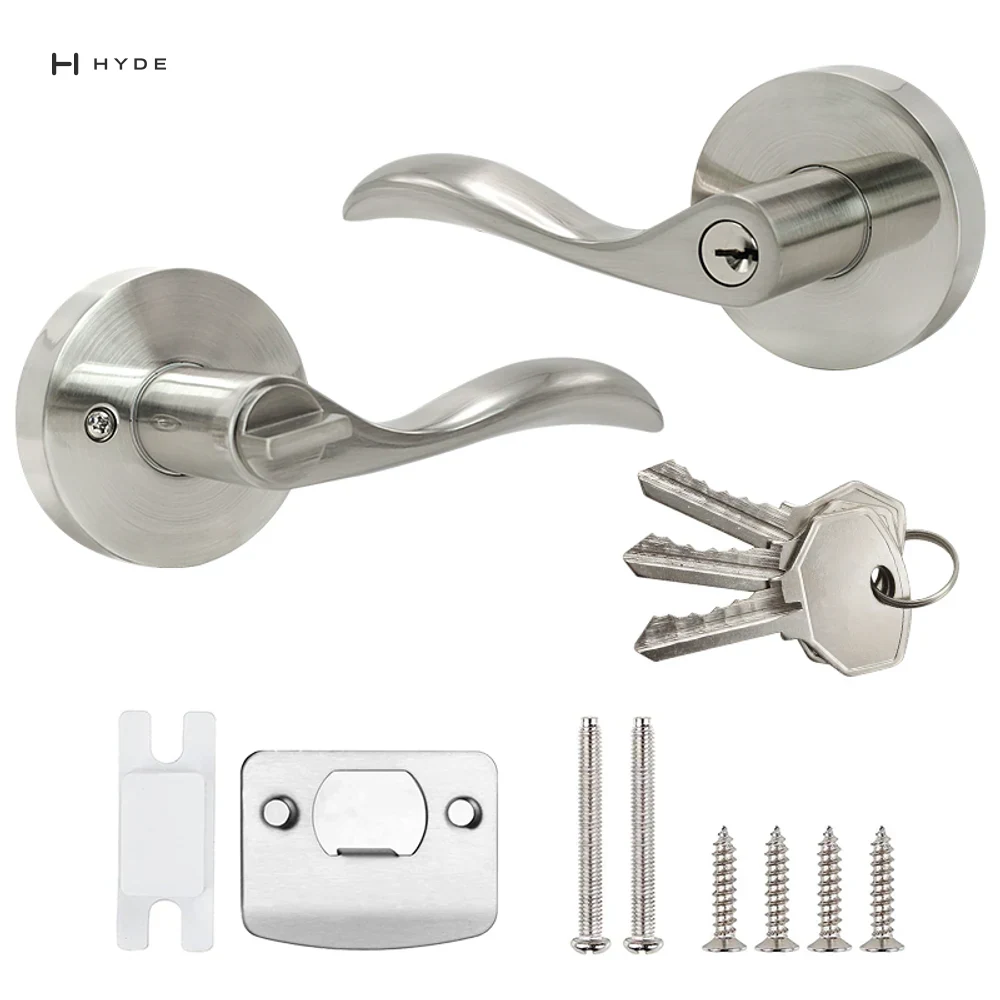

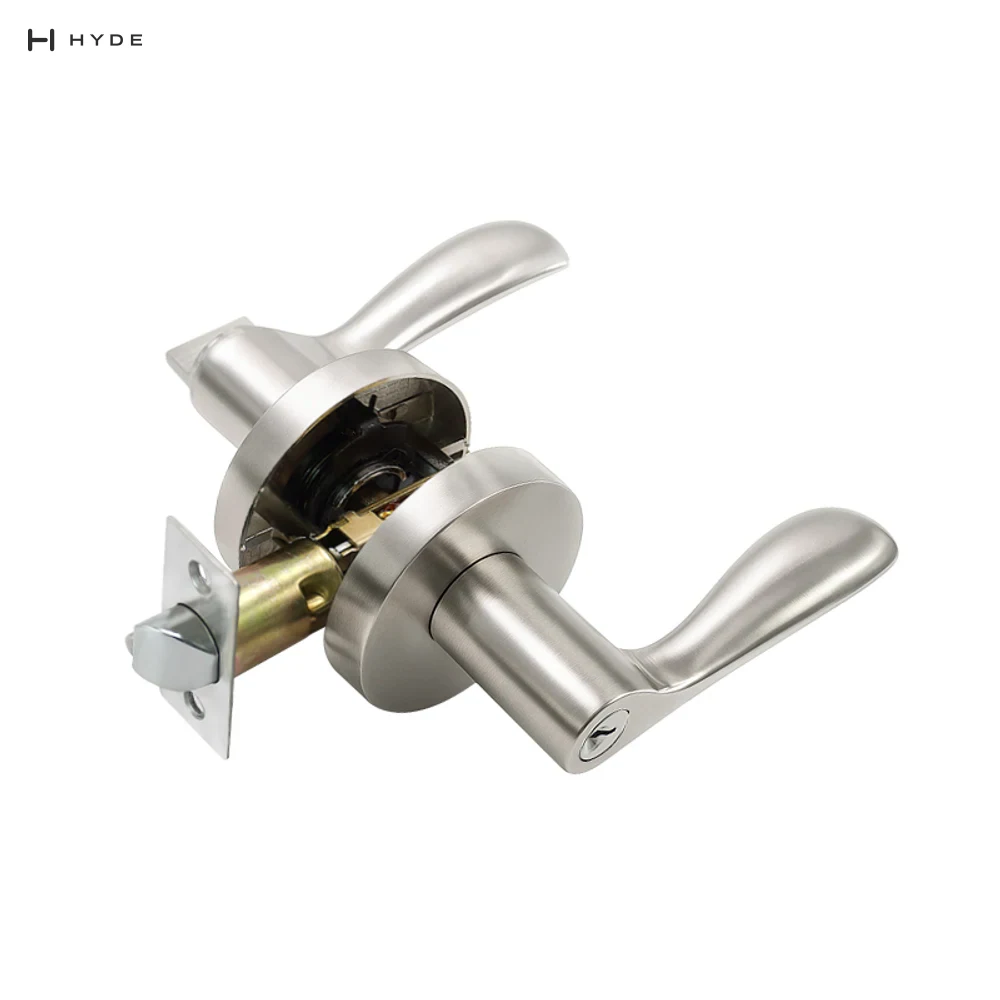

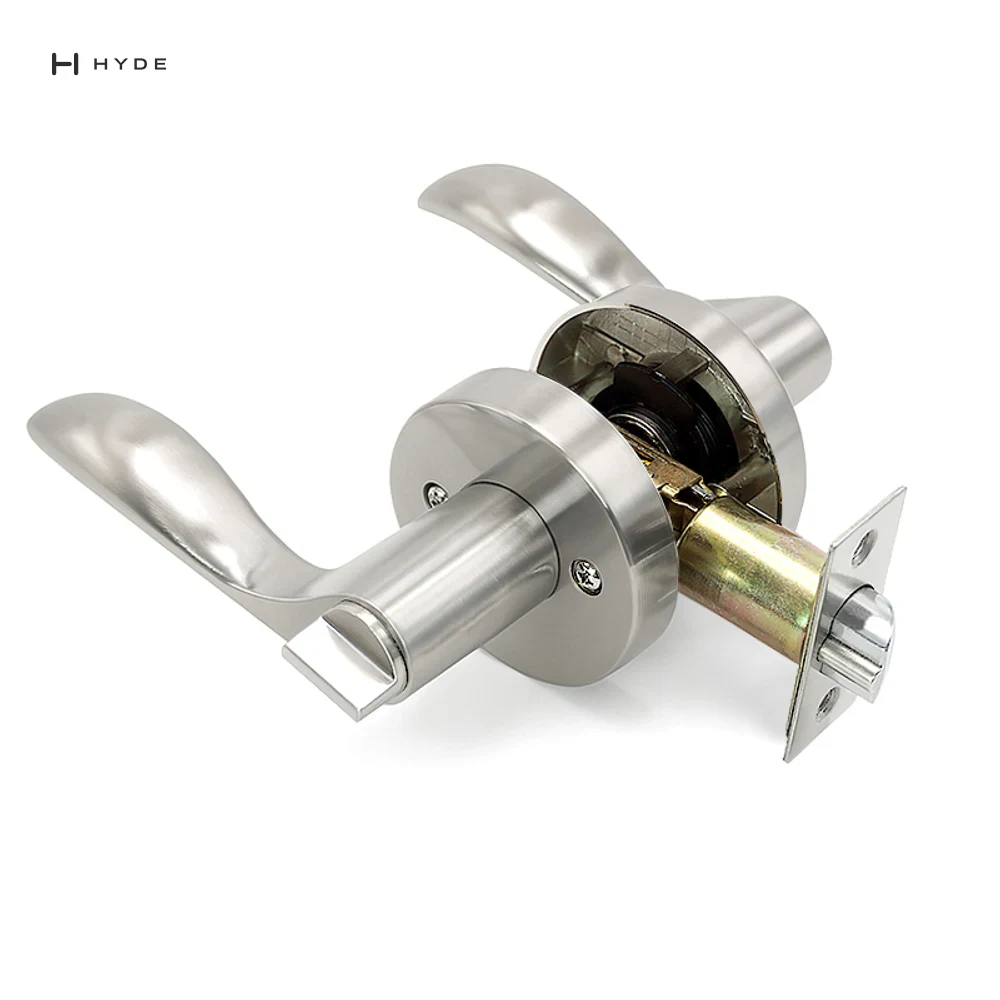

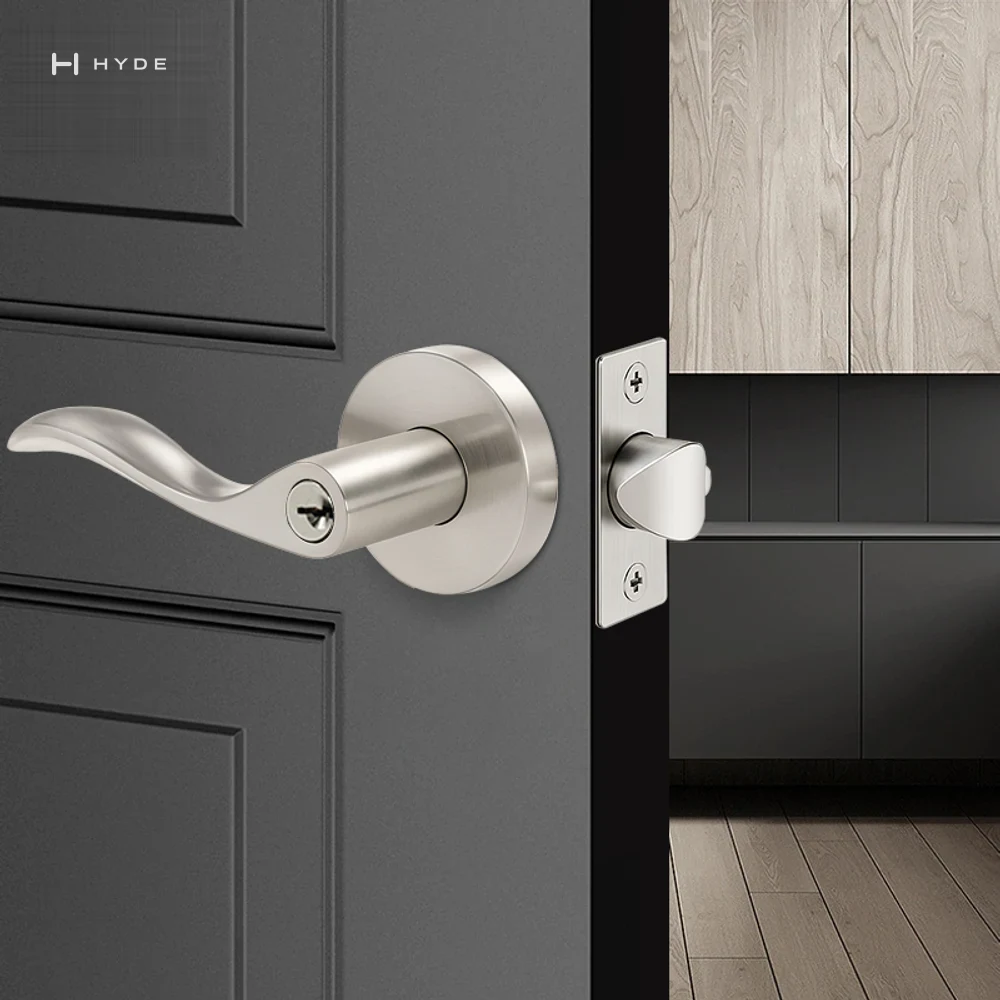

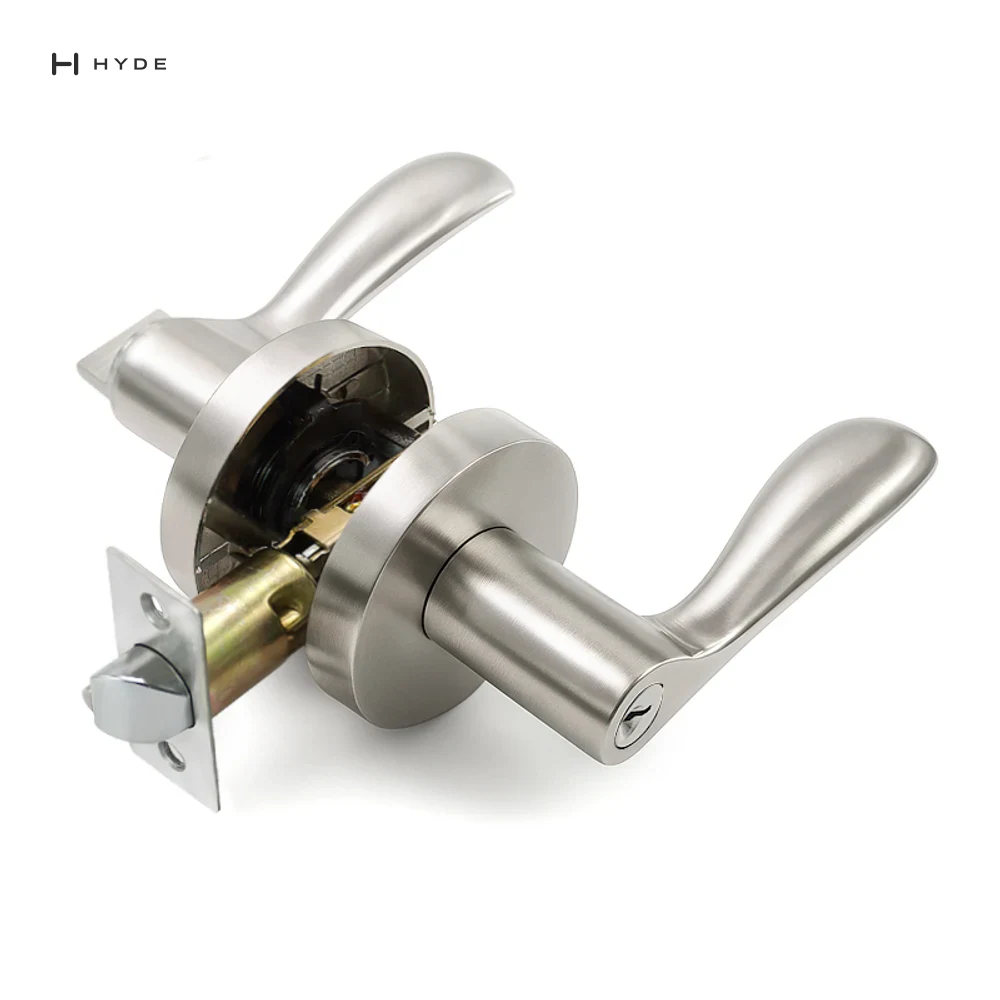

8826 SNET Tubular Lever Lock
A zinc alloy tubular lever lock in satin nickel with 60/70mm backset, entrance function.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
8826 SNET
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel, zinc plated for corrosion resistance
- Trim
- Zinc die-casting electro-plated or solid brass
- Handing
- Fully reversible, left or right hand
- Function
- Entrance, keyed outside
- Keying
- Can be keyed alike with deadbolts, or master keyed
- Finish
- Satin nickel
Features
- Economical and easy-to-install, ideal for residential use
- Key or thumb-turn locks/unlocks both levers
- Locking: turn thumb-turn counter-clockwise or key clockwise; unlock in reverse
- Zinc-plated steel chassis and latch for corrosion resistance
- Exposed trim available in stainless steel or brass
8826 SNET

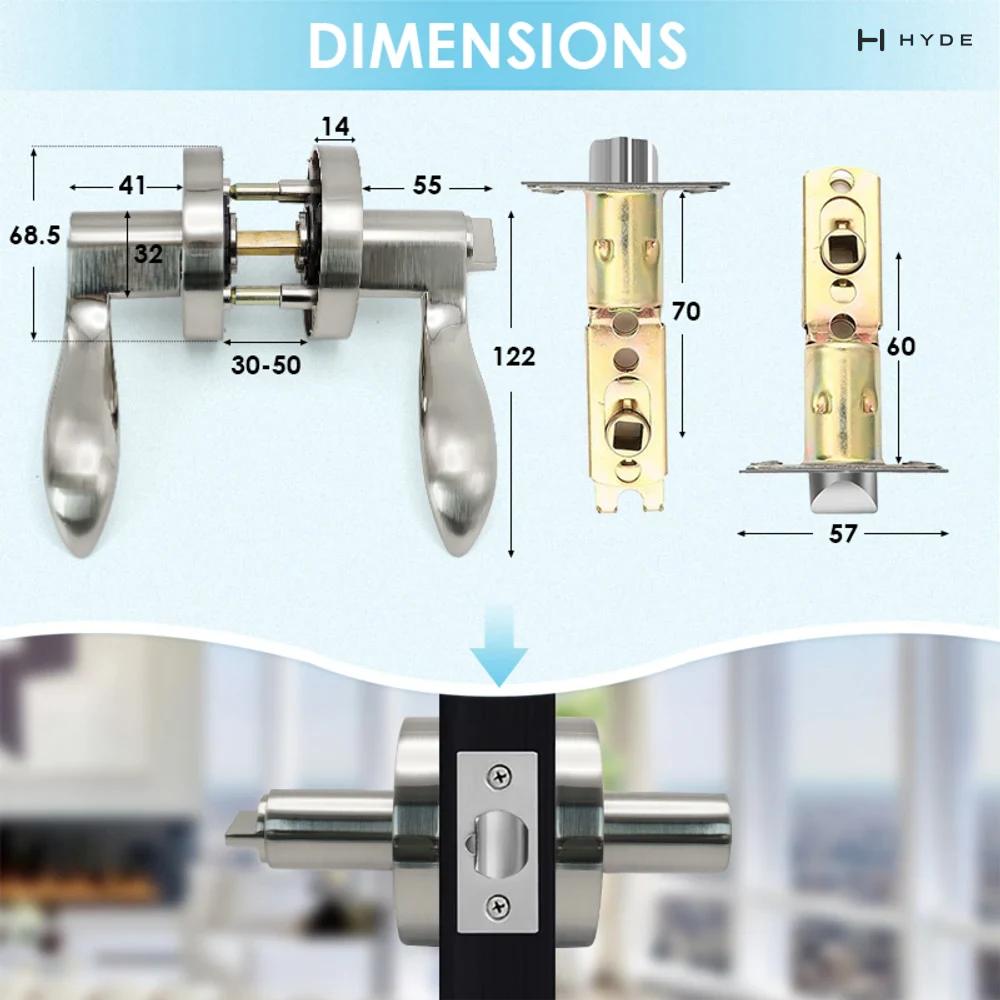

Drawings
Drawings and files published for this model.
8826 SNET
Video
17 seconds of the part working.
8826 SNET
Common questions
- What is the 8826 SNET made from?
- Material of the 8826 SNET: Zinc alloy.
- Which finishes is the 8826 SNET available in?
- Finishes available for the 8826 SNET: Satin nickel.
- What backset does the 8826 SNET use?
- Backset of the 8826 SNET: 60/70mm.
- What door thickness does the 8826 SNET suit?
- Door thickness for the 8826 SNET: 35mm to 45mm adjustable.
- What function does the 8826 SNET provide?
- Function of the 8826 SNET: Entrance, keyed outside.
- How many cycles is the 8826 SNET tested to?
- Cycle rating of the 8826 SNET: 200,000 cycles.
8826 SNET
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish8826 SNET, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
