Lever Handle · 45 models in this range

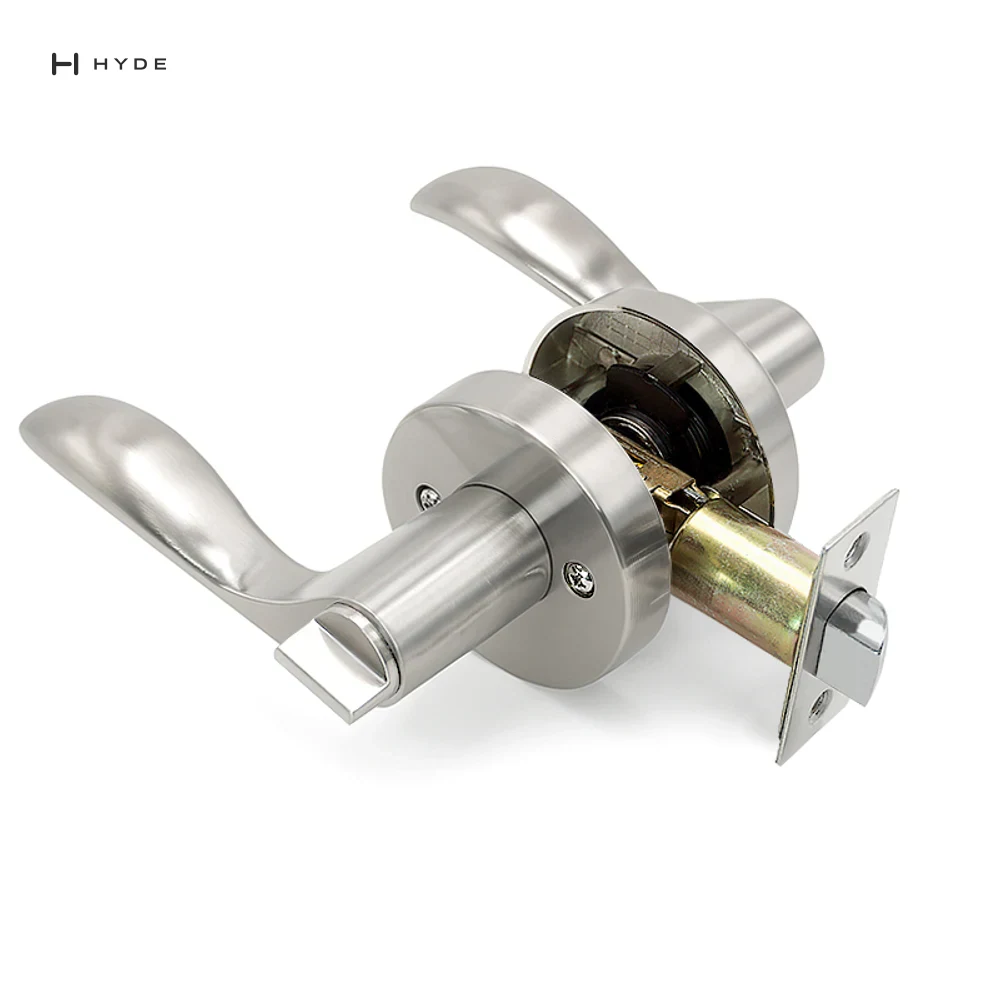

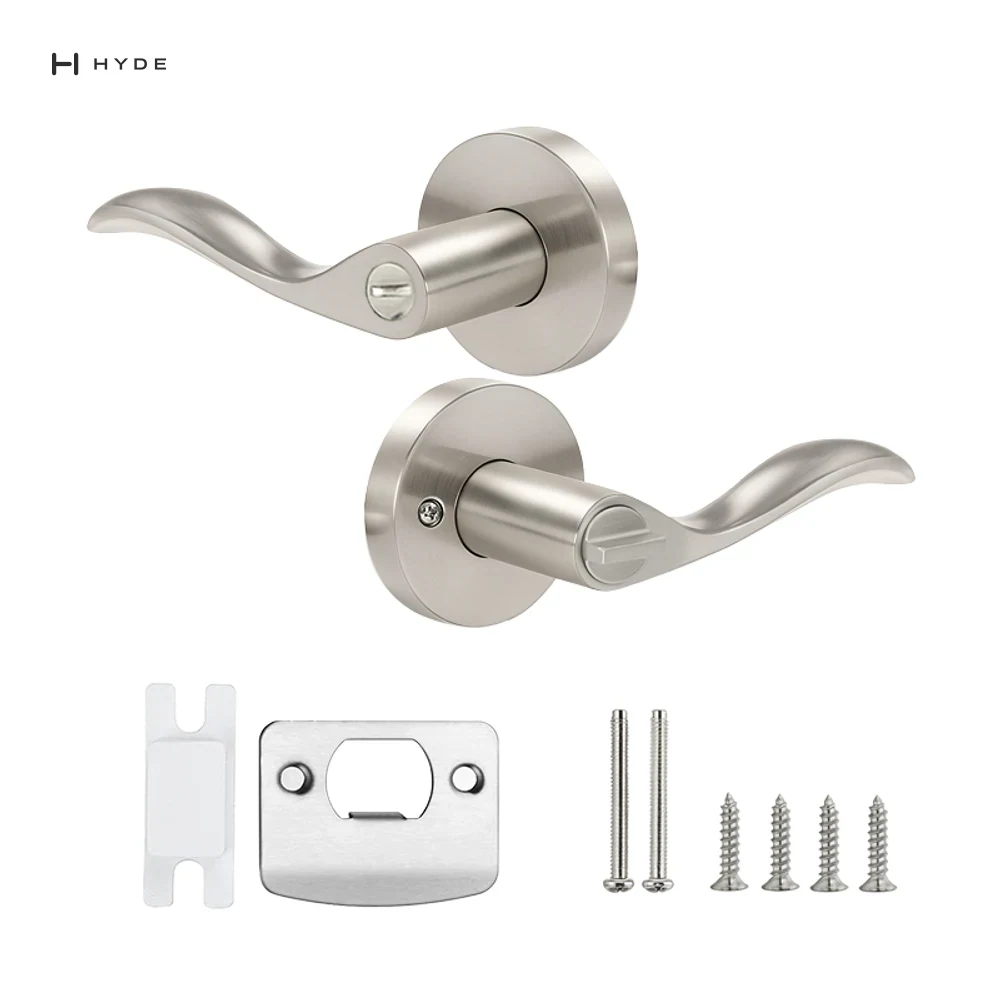

8826 SNBK Tubular Lever Lock
A zinc alloy tubular lever lock in satin nickel with 60/70mm backset, privacy function.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
8826 SNBK
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel, zinc plated for corrosion resistance
- Trim
- Zinc die-casting electro-plated or solid brass
- Handing
- Fully reversible, left or right hand
- Function
- Privacy, bathroom, turn button inside
- Finish
- Satin nickel
Features
- Cost-effective and easy to install, ideal for residential use
- Locks/unlocks both levers via key or thumb-turn
- Turning thumb-turn counter-clockwise or key clockwise locks the levers; reverse to unlock
- Zinc-plated steel chassis and latch for enhanced corrosion resistance
- Exposed trim available in stainless steel or brass
8826 SNBK

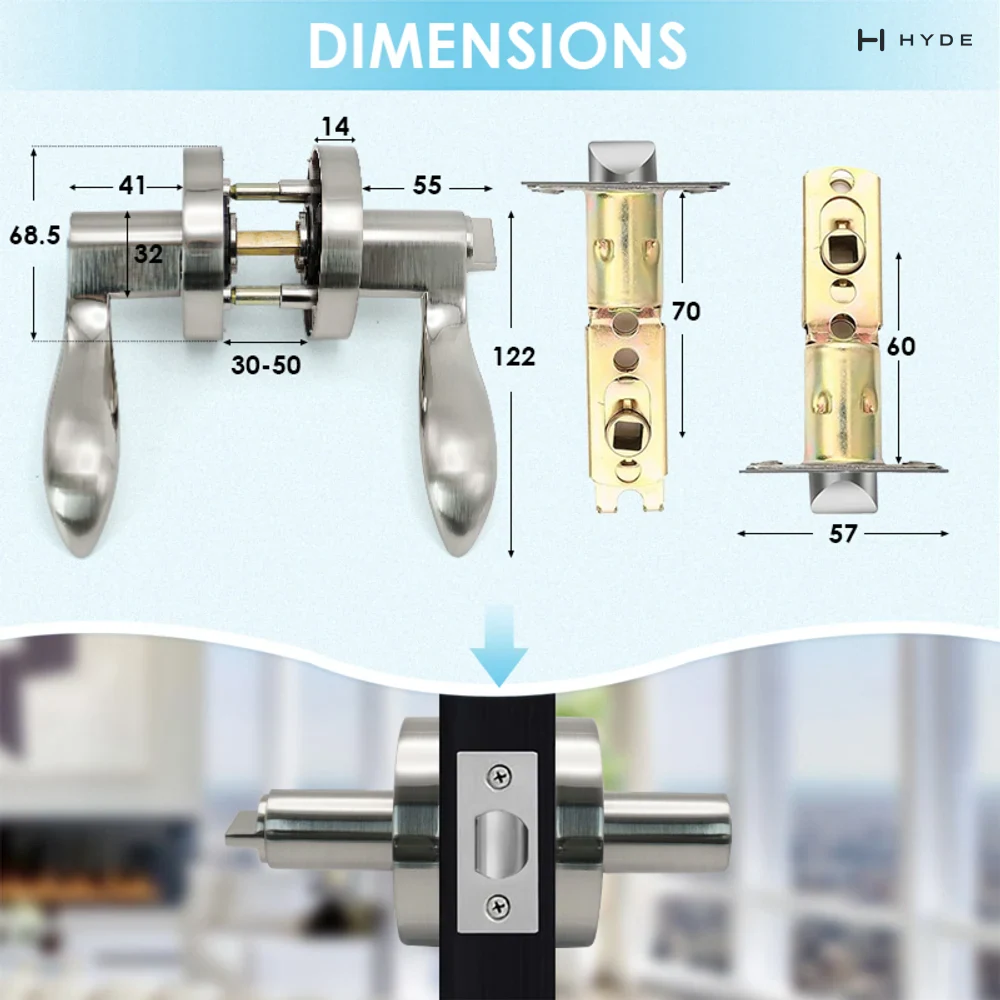

Drawings
Drawings and files published for this model.
8826 SNBK
Video
17 seconds of the part working.
8826 SNBK
Common questions
- What is the 8826 SNBK made from?
- Material of the 8826 SNBK: Zinc alloy.
- Which finishes is the 8826 SNBK available in?
- Finishes available for the 8826 SNBK: Satin nickel.
- What backset does the 8826 SNBK use?
- Backset of the 8826 SNBK: 60/70mm.
- What door thickness does the 8826 SNBK suit?
- Door thickness for the 8826 SNBK: 35mm to 45mm adjustable.
- What function does the 8826 SNBK provide?
- Function of the 8826 SNBK: Privacy, bathroom, turn button inside.
- How many cycles is the 8826 SNBK tested to?
- Cycle rating of the 8826 SNBK: 200,000 cycles.
8826 SNBK
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish8826 SNBK, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
