01 / 04
Lever Handle · 45 models in this range
8828 SSET Tubular Lever Lock
Zinc Alloy tubular lever lock, 60–70mm Adjustable backset.
- Material
- Zinc Alloy
- Finish
- Satin / Chrome / Black / Gold (customizable)
- Backset
- 60–70mm Adjustable (2-3/8" to 2-3/4")
- Installation
- Standard USA mounting size
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
8828 SSET
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Zinc Alloy
- Finish
- Satin / Chrome / Black / Gold (customizable)
- Backset
- 60–70mm Adjustable (2-3/8" to 2-3/4")
- Installation
- Standard USA mounting size
- Application
- Bedroom, apartment, office, hotel, interior doors
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel, zinc plated for corrosion resistance
- Trim
- Zinc die-casting electro-plated or solid brass
- Handing
- Fully reversible, left or right hand
- Function
- Entrance, keyed outside
- Keying
- Can be keyed alike with deadbolts, or master keyed
- Durability
- High usage life
Features
- Key Features
- US type 3-latch construction, long-lasting performance
- Zinc alloy handle & rose, strong and durable
- Corrosion-resistant plated finish
- Smooth turning, comfortable to operate
- Easy installation with universal standard fitting
- Ideal for residential and commercial interior doors
8828 SSET

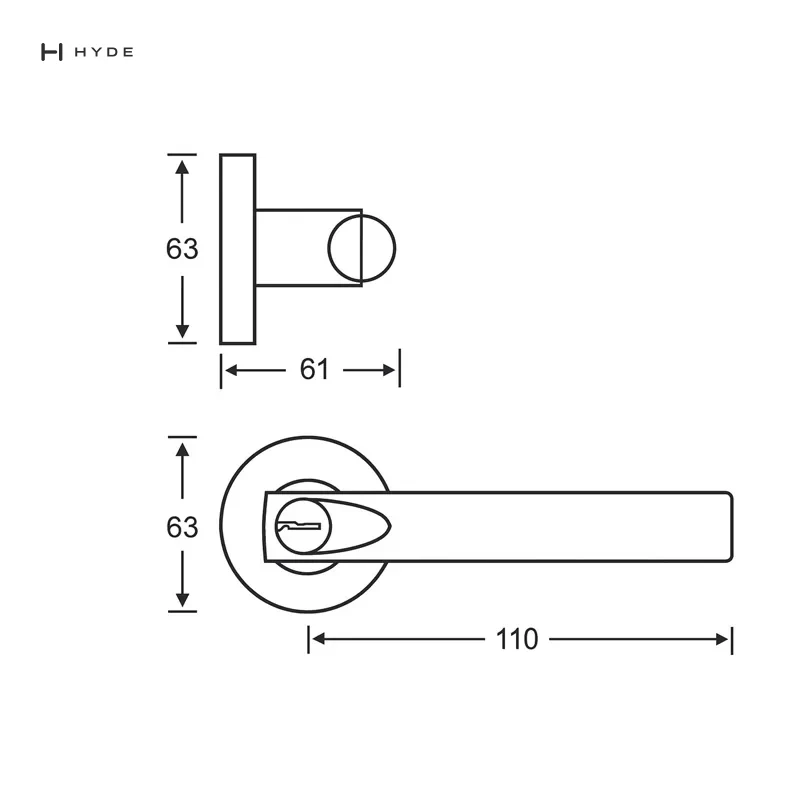

Drawings
Drawings and files published for this model.
8828 SSET
Common questions
- What is the 8828 SSET made from?
- Material of the 8828 SSET: Zinc Alloy.
- Which finishes is the 8828 SSET available in?
- Finishes available for the 8828 SSET: Satin / Chrome / Black / Gold (customizable).
- What backset does the 8828 SSET use?
- Backset of the 8828 SSET: 60–70mm Adjustable.
- What door thickness does the 8828 SSET suit?
- Door thickness for the 8828 SSET: 35mm to 45mm adjustable.
- What function does the 8828 SSET provide?
- Function of the 8828 SSET: Entrance, keyed outside.
- How many cycles is the 8828 SSET tested to?
- Cycle rating of the 8828 SSET: 200,000 cycles.
8828 SSET
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish8828 SSET, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
