Tubular Lock

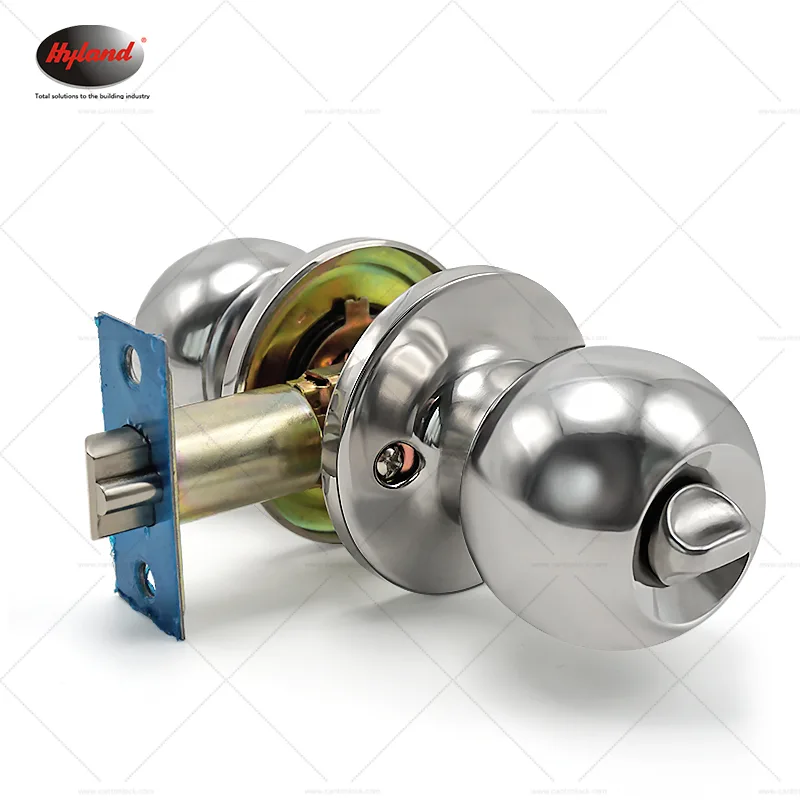

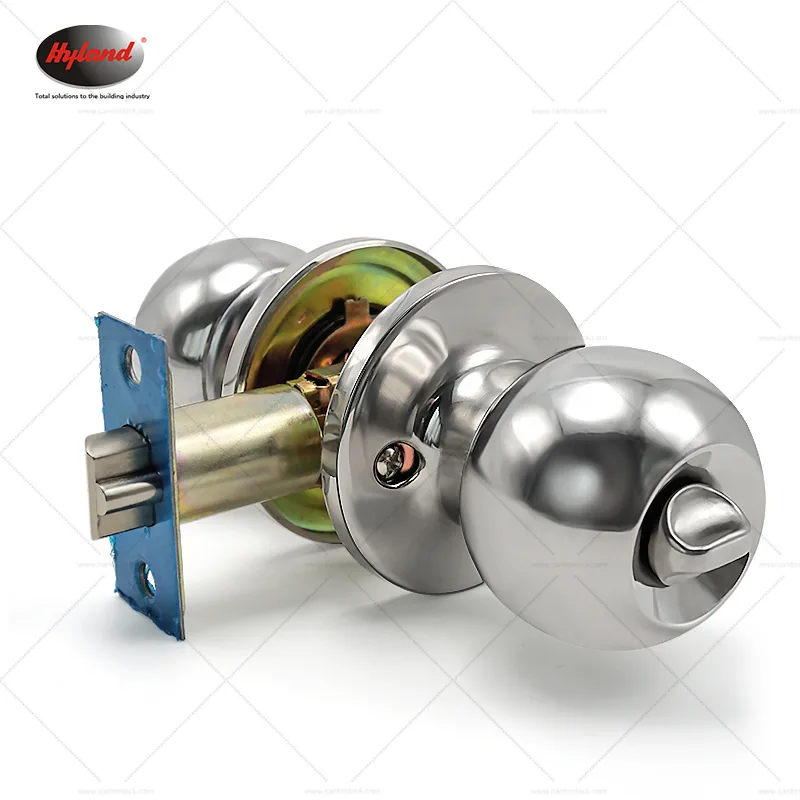

607 SPET Tubular Lock
Stainless steel tubular lock.
- Key Features:
- Door Thickness: 35–45mm (1-3/8” to 1-3/4”)
- Backset: Adjustable 60mm or 70mm (2-3/8” or 2-3/4”); 70mm strike optional
- Handing: Fully reversible for left or right-hand doors
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Stainless steel
- Cylinder
- Brass cylinder
- Backset
- 60mm / 70mm adjustable (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel chassis and latch case, zinc plated
- Trim
- Wrought stainless steel or brass
- Strike
- 57mm curved lip standard; 70mm available on request (2-1/4" / 2-3/4")
- Handing
- Fully reversible, left or right hand
- Application
- Residential use
- Finish
- Polished stainless steel (US32)
- Function
- Entrance, keyed outside
- Latch
- Adjustable 60–70mm (2-3/8" to 2-3/4")

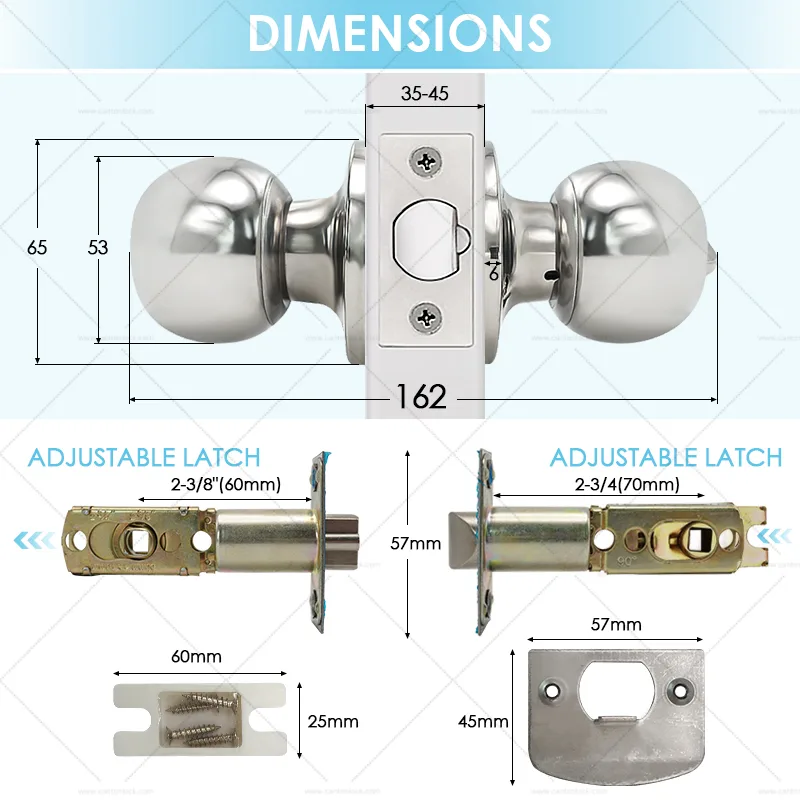

Dimensioned drawing
Door preparation: backset 60mm, door thickness 35mm.
Drawn 1:1 from the published specification
Common questions
- What is the 607 SPET made from?
- The 607 SPET is made from Stainless steel.
- Which finishes is the 607 SPET available in?
- The 607 SPET is available in Polished stainless steel (US32).
- What backset does the 607 SPET use?
- The 607 SPET has a backset of 60mm / 70mm adjustable.
- What door thickness does the 607 SPET suit?
- The 607 SPET suits a door thickness of 35mm to 45mm adjustable.
- What function does the 607 SPET provide?
- The 607 SPET provides Entrance, keyed outside.
- How many cycles is the 607 SPET tested to?
- The 607 SPET is tested to 200,000 cycles.
