Tubular Lock · 26 models in this range

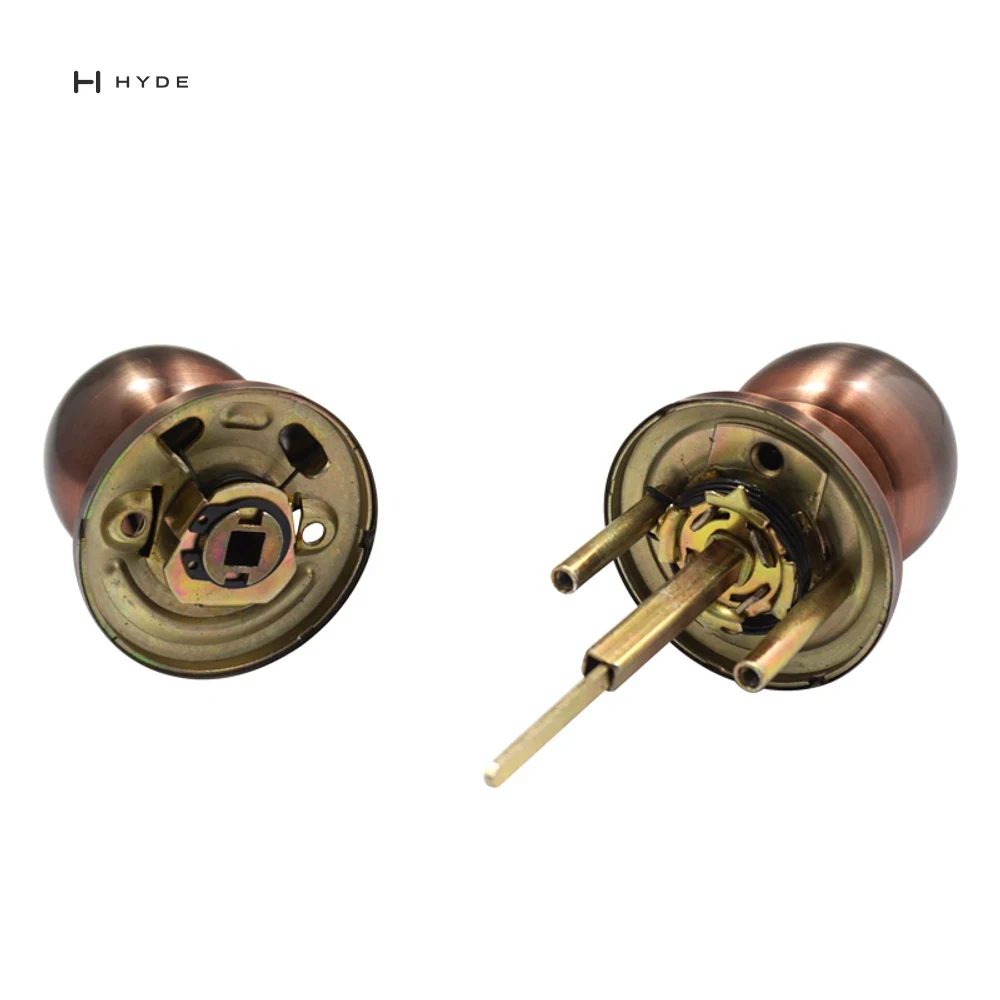

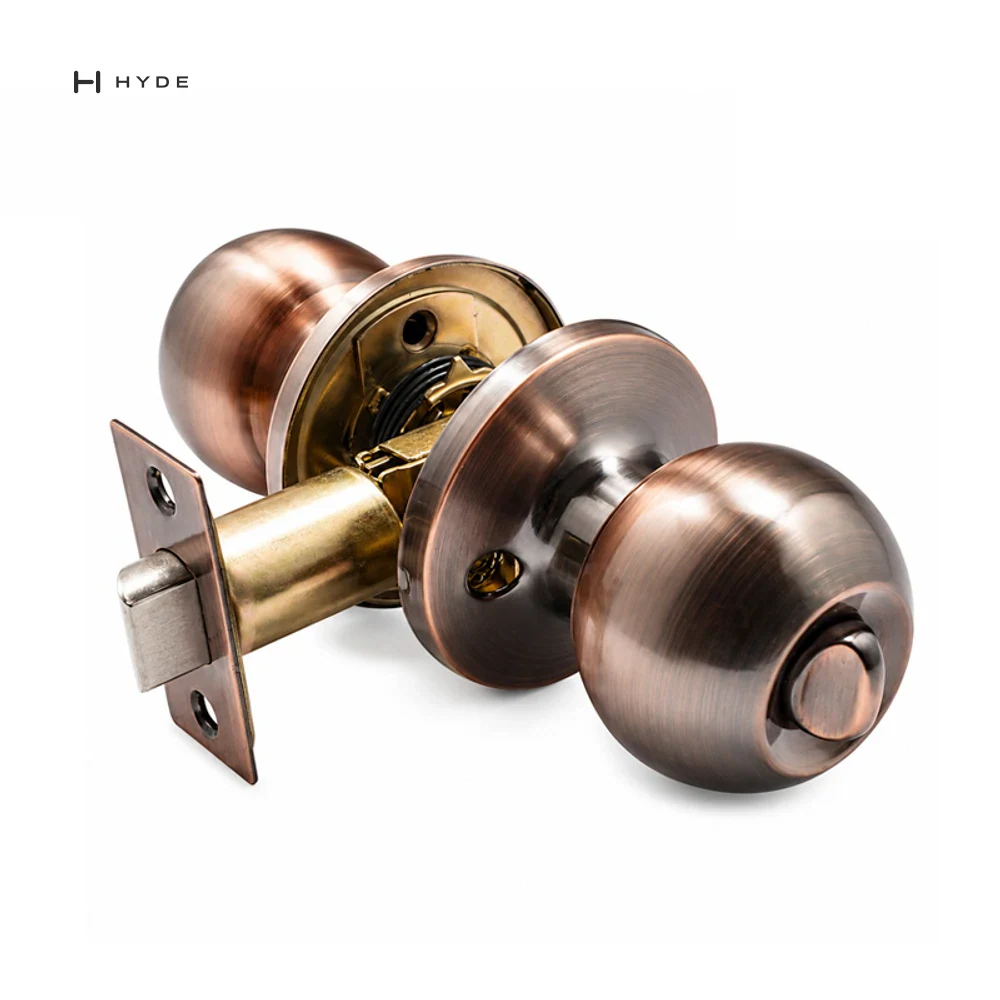

607 ACBK Tubular Lock
Tubular Lock in antique copper (us11), privacy function.
- Material
- Stainless steel/Brass/Solid steel
- Cylinder
- Brass cylinder
- Backset
- 60mm / 70mm adjustable (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
Finish
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
607 ACBK
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Stainless steel/Brass/Solid steel
- Cylinder
- Brass cylinder
- Backset
- 60mm / 70mm adjustable (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel chassis and latch case, zinc plated
- Trim
- Wrought stainless steel or brass

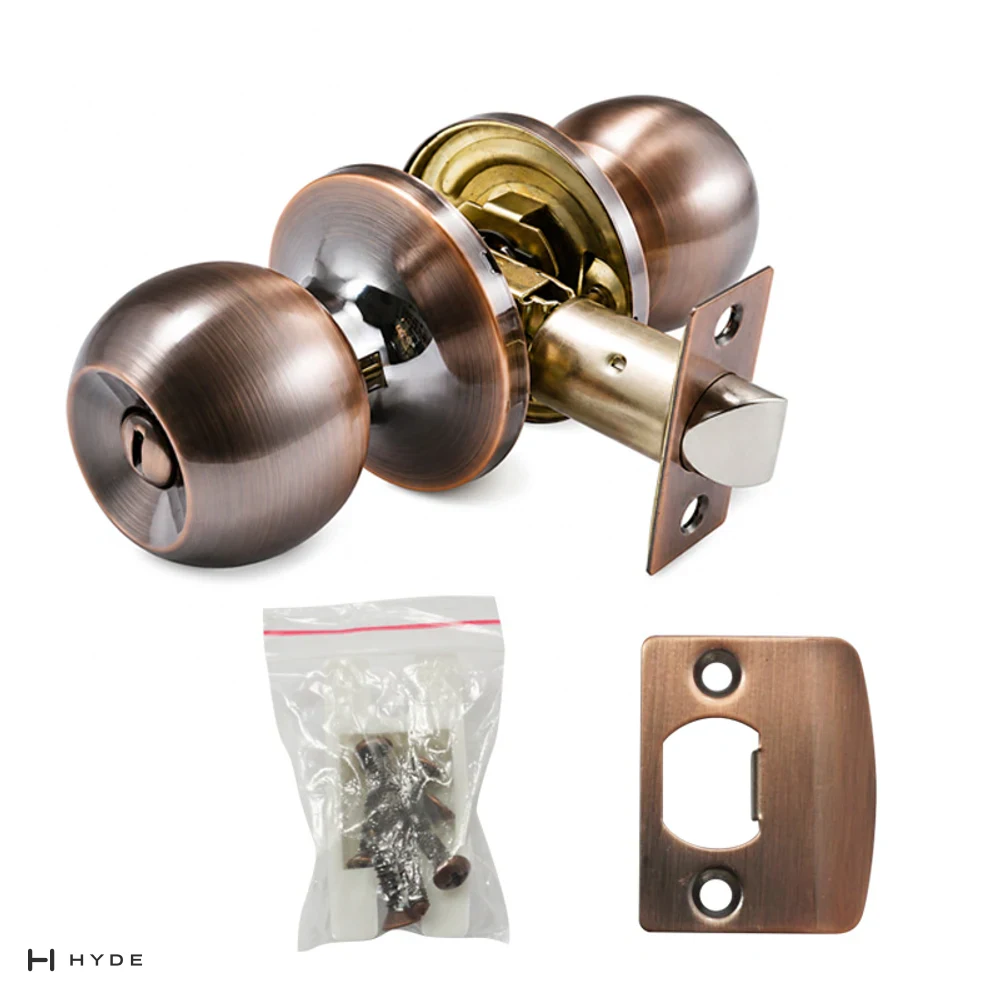

- Strike
- 57mm curved lip standard; 70mm available on request (2-1/4" / 2-3/4")
- Handing
- Fully reversible, left or right hand
- Application
- Residential use
- Finish
- Antique copper (US11)
- Function

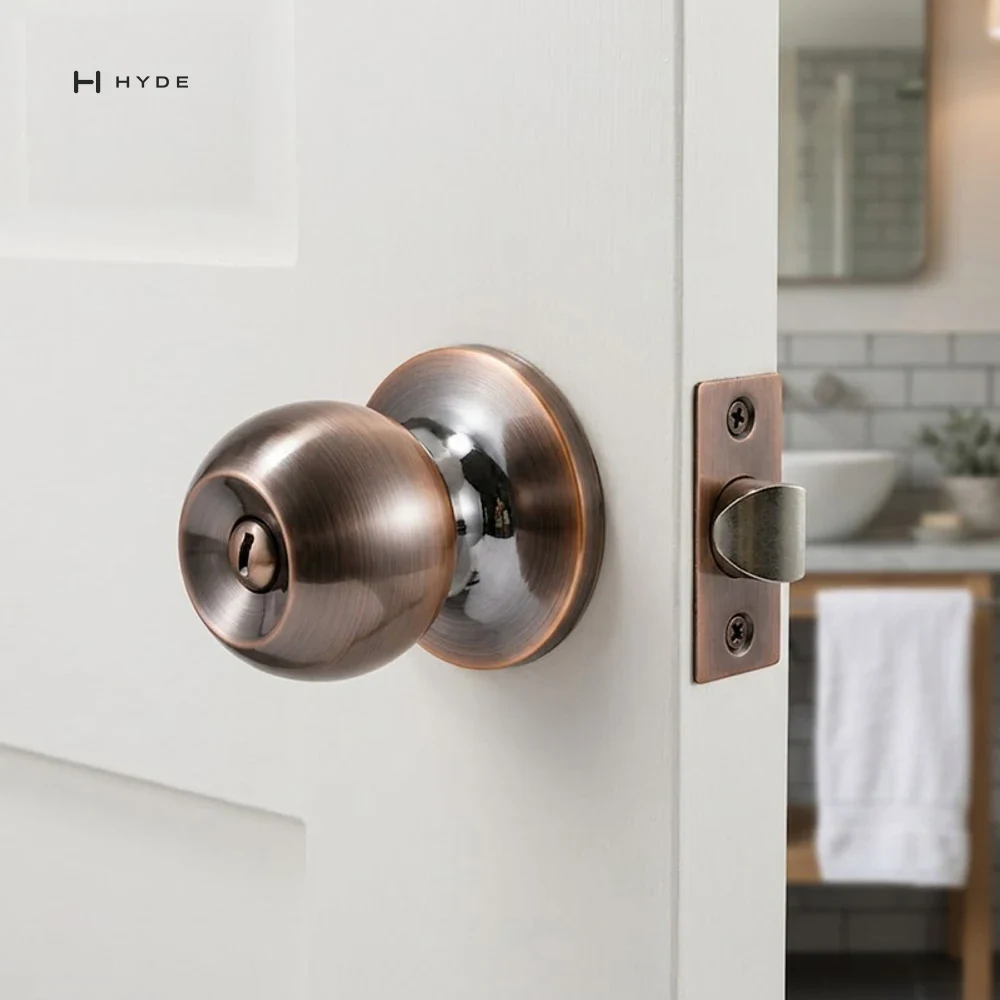

- Privacy, bathroom, turn button inside
- Latch
- Adjustable 60–70mm (2-3/8" to 2-3/4")
Features
- Latch Bolt: 1/2” (12mm) throw with deadlocking for keyed functions
- Door Thickness: Adjustable 35–45mm (1-3/8” to 1-3/4”)
- Backset: 60mm or 70mm (2-3/8” or 2-3/4”) adjustable
- Strike Options: 2-1/4” (57mm) curved lip standard; 2-3/4” (70mm) optional
- Drive-In Latch: Optional 1” round 4-way latch
- Handing: Reversible for left or right hand doors
607 ACBK
Drawings
Drawings and files published for this model.
Dimensioned drawing
Door preparation: backset 60mm, door thickness 35mm.
Drawn 1:1 from the published specification
607 ACBK
Video
23 seconds of the part working.
607 ACBK
Common questions
- What is the 607 ACBK made from?
- The 607 ACBK is made from Stainless steel/Brass/Solid steel.
- Which finishes is the 607 ACBK available in?
- The 607 ACBK is available in Antique copper (US11).
- What backset does the 607 ACBK use?
- The 607 ACBK has a backset of 60mm / 70mm adjustable.
- What door thickness does the 607 ACBK suit?
- The 607 ACBK suits a door thickness of 35mm to 45mm adjustable.
- What function does the 607 ACBK provide?
- The 607 ACBK provides Privacy, bathroom, turn button inside.
- How many cycles is the 607 ACBK tested to?
- The 607 ACBK is tested to 200,000 cycles.
607 ACBK
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish607 ACBK, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
