Tubular Lock · 26 models in this range

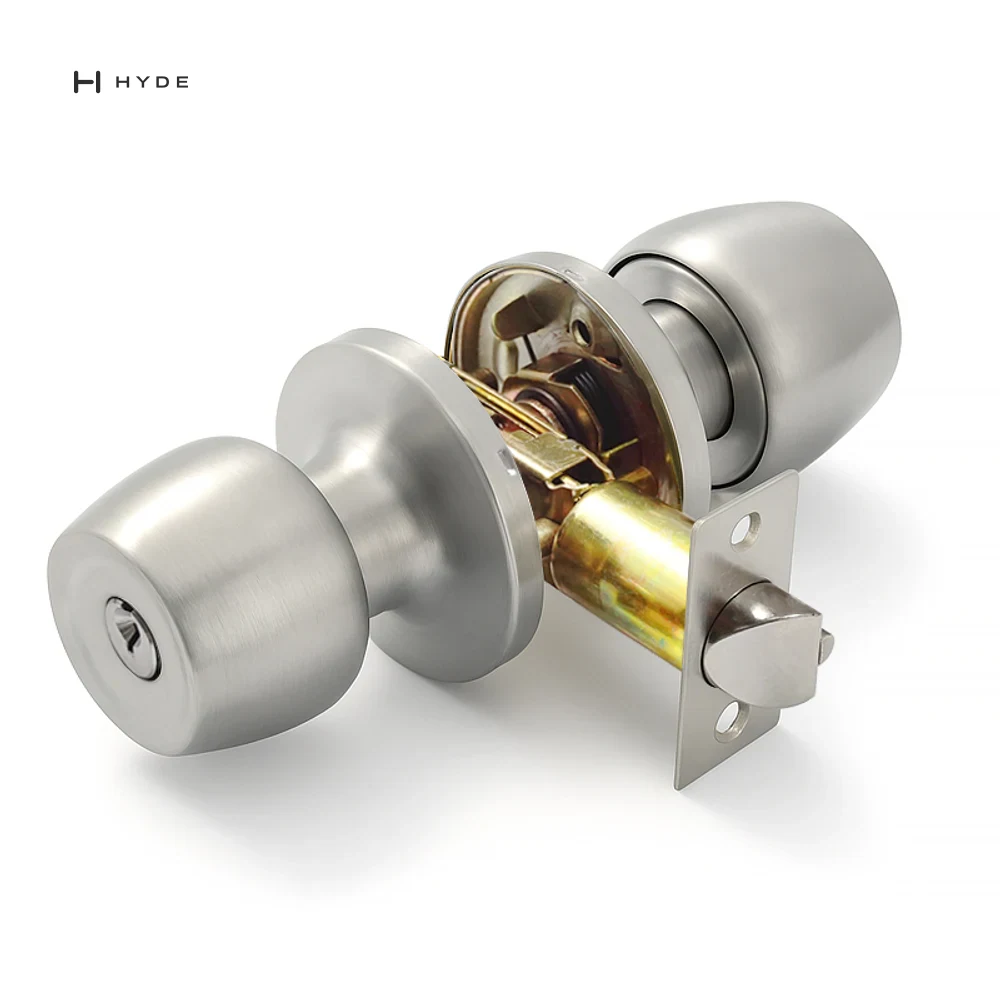

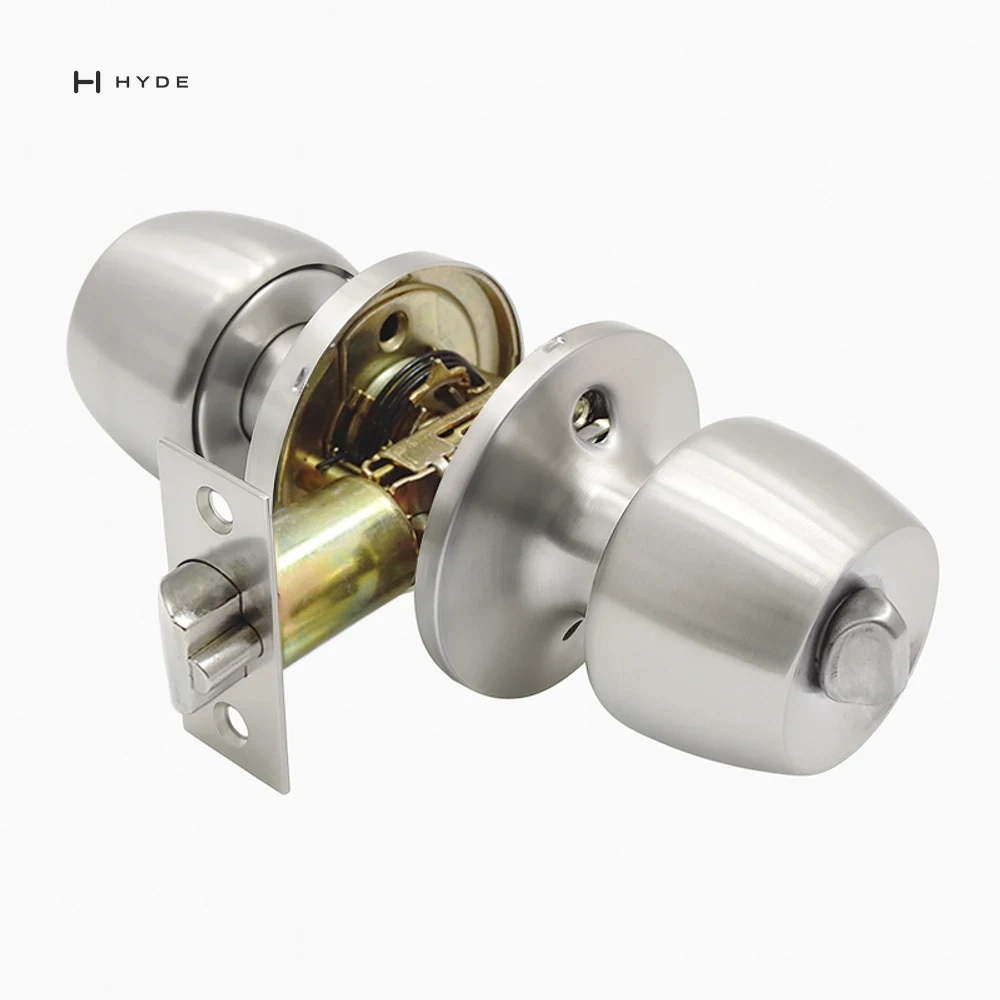

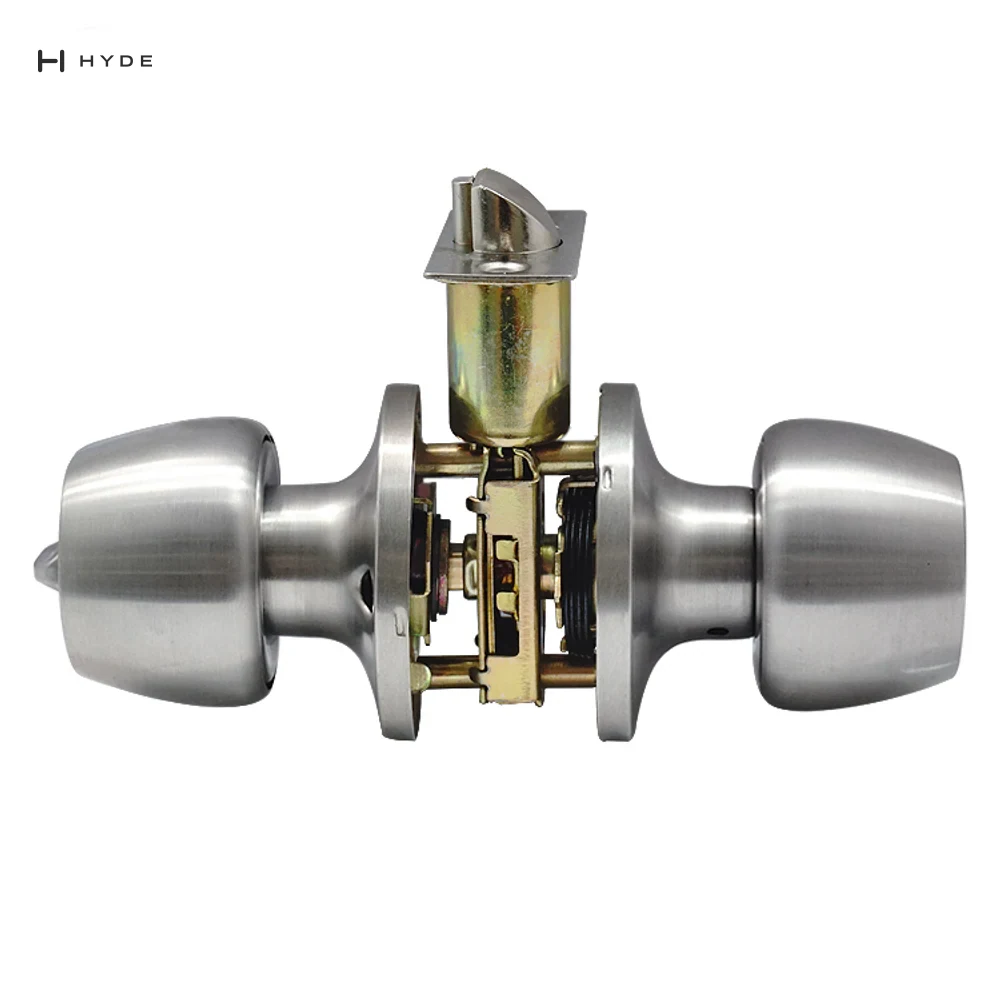

598 SNET Tubular Lock
Tubular Lock in satin nickel, entrance function.
- Material
- Stainless Steel
- Cylinder
- Brass cylinder
- Finish
- Satin nickel
- Backset
- 60mm / 70mm adjustable (2-3/8" / 2-3/4")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
598 SNET
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Stainless Steel
- Cylinder
- Brass cylinder
- Finish
- Satin nickel
- Backset
- 60mm / 70mm adjustable (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel chassis and latch case, zinc plated
- Trim
- Wrought stainless steel or brass
- Strike
- 57mm curved lip standard; 70mm available on request (2-1/4" / 2-3/4")
- Handing
- Fully reversible, left or right hand
- Application
- Residential use
- Function
- Entrance, keyed outside
598 SNET
Drawings
Drawings and files published for this model.

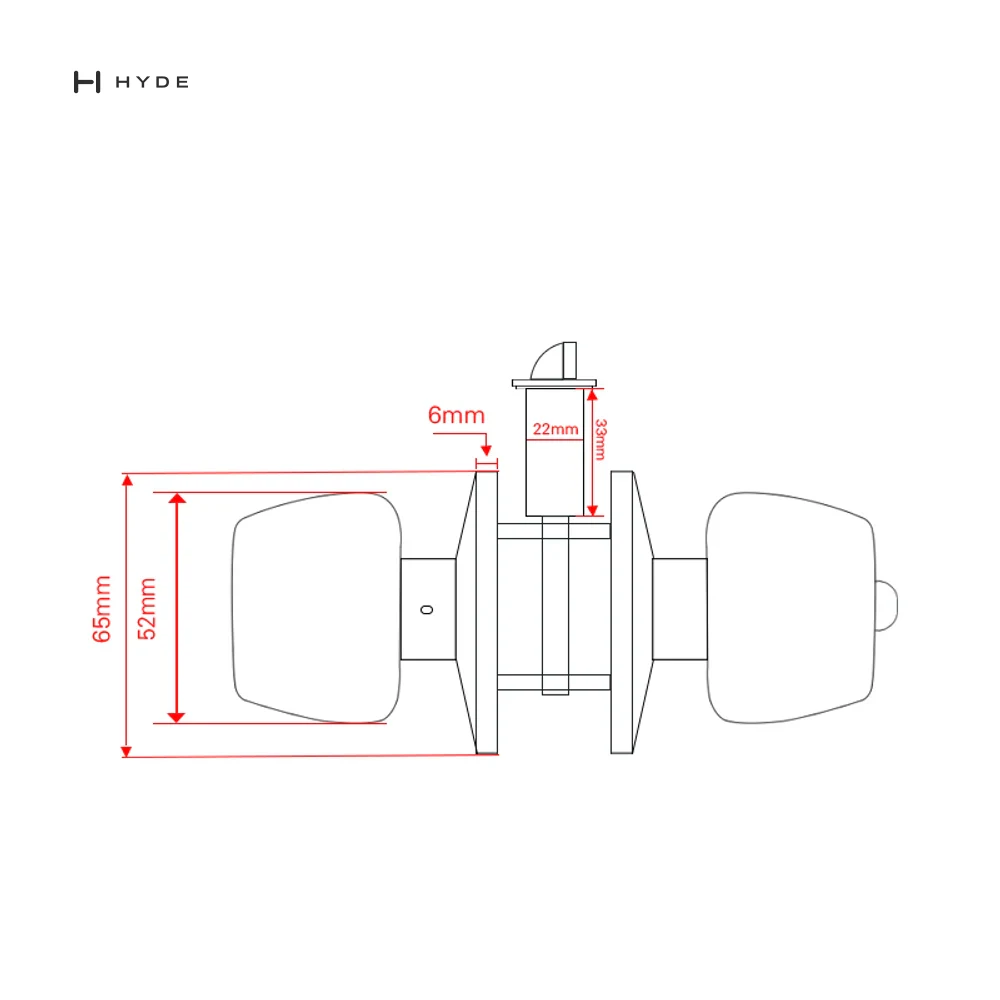

Dimensioned drawing
Door preparation: backset 60mm, door thickness 35mm.
Drawn 1:1 from the published specification
598 SNET
Video
22 seconds of the part working.
598 SNET
Common questions
- What is the 598 SNET made from?
- The 598 SNET is made from Stainless Steel.
- Which finishes is the 598 SNET available in?
- The 598 SNET is available in Satin nickel.
- What backset does the 598 SNET use?
- The 598 SNET has a backset of 60mm / 70mm adjustable.
- What door thickness does the 598 SNET suit?
- The 598 SNET suits a door thickness of 35mm to 45mm adjustable.
- What function does the 598 SNET provide?
- The 598 SNET provides Entrance, keyed outside.
- How many cycles is the 598 SNET tested to?
- The 598 SNET is tested to 200,000 cycles.
598 SNET
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish598 SNET, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
598 SNET
Next steps
- Compare every model in this range
One table, one row per model, across the specifications that differ between them.
- Ordering, lead times and samples
Minimum order quantity, production lead time, sample policy, payment terms and OEM work — answered in full.
598 SNET
More in the Tubular Lock series
Backset 60mm / 70mm adjustable
Tubular Lock

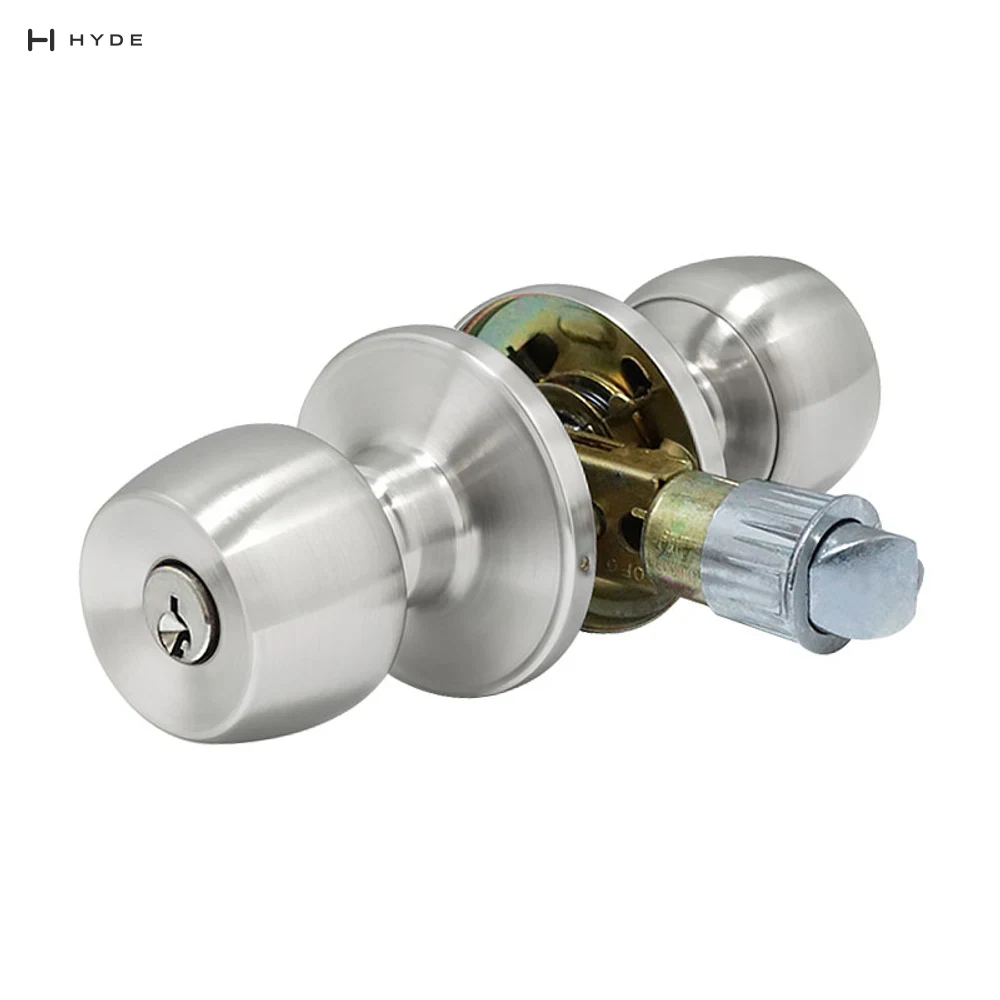

Model 598 SSET
