Tubular Lock · 26 models in this range

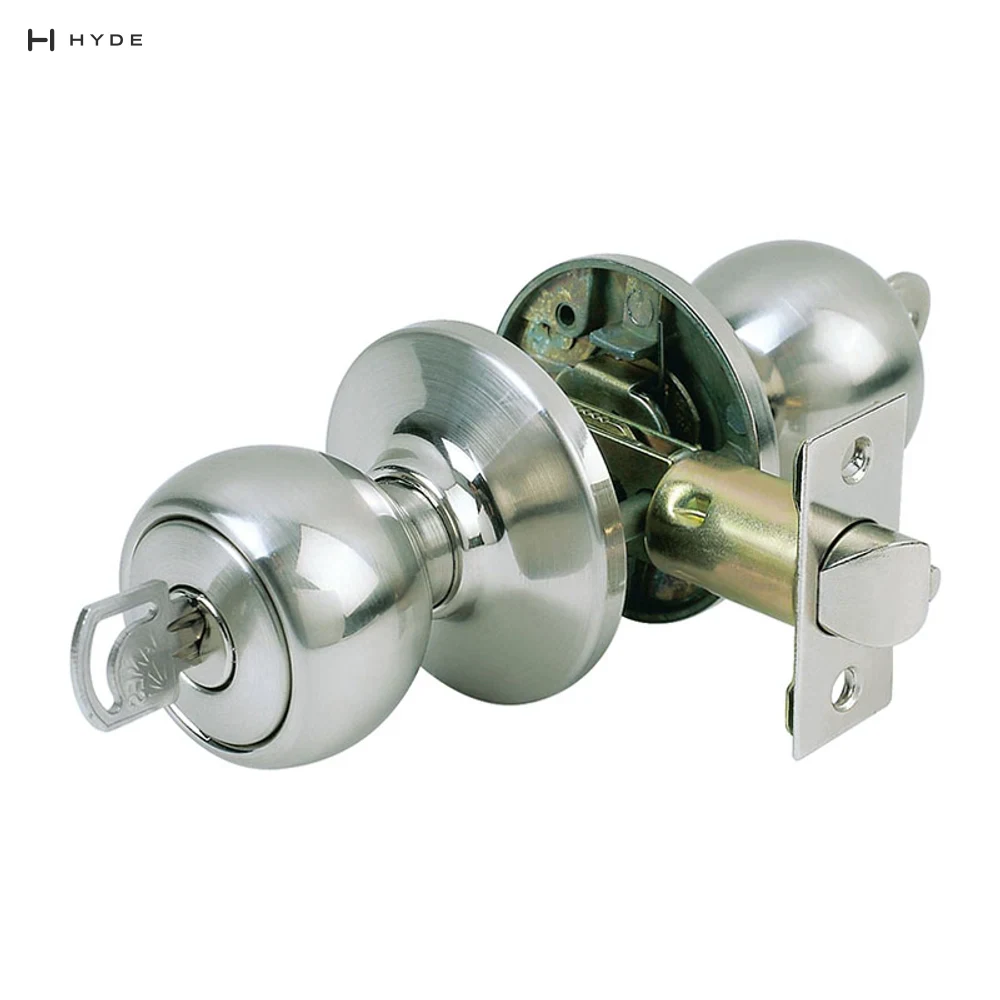

575 SSET Tubular Lock
Tubular Lock in satin stainless steel (us32d), entrance function.
- Material
- Stainless Steel
- Cylinder
- Brass cylinder
- Finish
- Satin stainless steel (US32D)
- Backset
- 60mm / 70mm adjustable (2-3/8" / 2-3/4")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
575 SSET
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Stainless Steel
- Cylinder
- Brass cylinder
- Finish
- Satin stainless steel (US32D)
- Backset
- 60mm / 70mm adjustable (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel chassis and latch case, zinc plated
- Trim
- Wrought stainless steel or brass
- Strike
- 57mm curved lip standard; 70mm available on request (2-1/4" / 2-3/4")
- Handing
- Fully reversible, left or right hand
- Application
- Residential use
- Function
- Entrance, keyed outside
- Latch
- 12mm throw, deadlocking for keyed functions (1/2")
Features
- Economical and easy to install
- 200,000+ cycle durability
- Can be keyed alike or master keyed
- Zinc-plated steel chassis and latch case for corrosion resistance
575 SSET
Drawings
Drawings and files published for this model.
Dimensioned drawing
Door preparation: backset 60mm, door thickness 35mm.
Drawn 1:1 from the published specification
575 SSET
Common questions
- What is the 575 SSET made from?
- The 575 SSET is made from Stainless Steel.
- Which finishes is the 575 SSET available in?
- The 575 SSET is available in Satin stainless steel (US32D).
- What backset does the 575 SSET use?
- The 575 SSET has a backset of 60mm / 70mm adjustable.
- What door thickness does the 575 SSET suit?
- The 575 SSET suits a door thickness of 35mm to 45mm adjustable.
- What function does the 575 SSET provide?
- The 575 SSET provides Entrance, keyed outside.
- How many cycles is the 575 SSET tested to?
- The 575 SSET is tested to 200,000 cycles.
575 SSET
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish575 SSET, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
