Tubular Lock

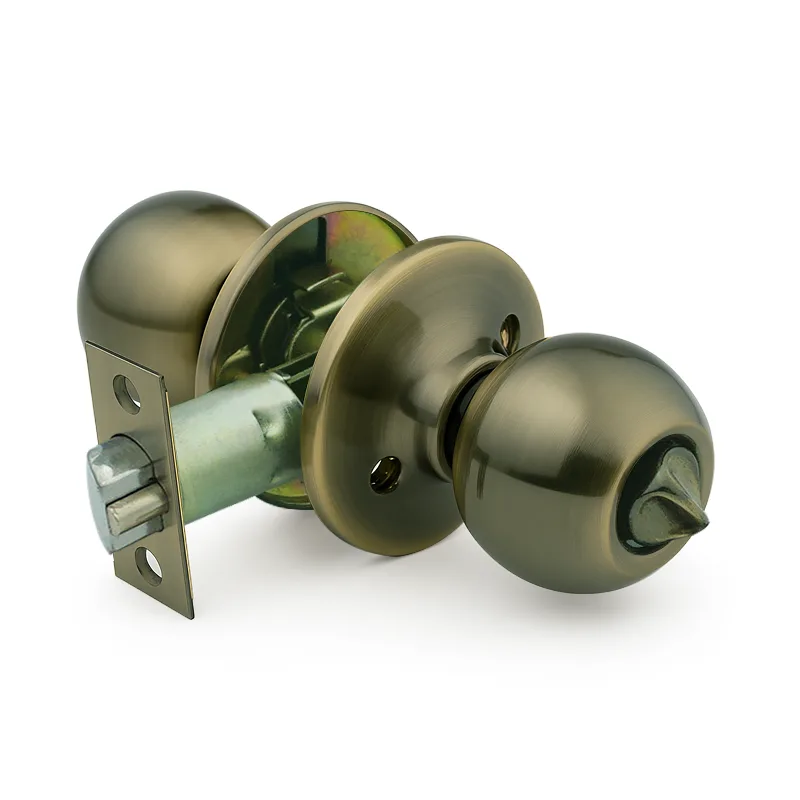

575 ABET Tubular Lock
A stainless steel knob lock in AB/AC/PB/SB/SS/SP/SC,other available with 60mm / 70mm adjustable backset, prepared for a brass cylinder, entrance function, for residential use.
- Economical and easy to install
- 200,000+ cycle durability
- Can be keyed alike or master keyed
- Zinc-plated steel chassis and latch case for corrosion resistance
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Stainless Steel
- Cylinder
- Brass cylinder
- Finish
- Antique Brass (AB), Antique Copper (AC), Polished Brass (PB), Satin Brass (SB), Stainless Steel (SS), Bright Polished (SP), Satin Chrome (SC), other available
- Backset
- 60mm / 70mm adjustable (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel chassis and latch case, zinc plated
- Trim
- Wrought stainless steel or brass
- Strike
- 57mm curved lip standard; 70mm available on request (2-1/4" / 2-3/4")
- Handing
- Fully reversible, left or right hand
- Application
- Residential use
- Function
- Entrance, keyed outside
- Latch
- 12mm throw, deadlocking for keyed functions (1/2")
Dimensioned drawing
Door preparation: backset 60mm, door thickness 35mm.
Drawn 1:1 from the published specification
Common questions
- What is the 575 ABET made from?
- The 575 ABET is made from Stainless Steel.
- Which finishes is the 575 ABET available in?
- The 575 ABET is available in Antique Brass (AB), Antique Copper (AC), Polished Brass (PB), Satin Brass (SB), Stainless Steel (SS), Bright Polished (SP), Satin Chrome (SC), other available.
- What backset does the 575 ABET use?
- The 575 ABET has a backset of 60mm / 70mm adjustable.
- What door thickness does the 575 ABET suit?
- The 575 ABET suits a door thickness of 35mm to 45mm adjustable.
- What function does the 575 ABET provide?
- The 575 ABET provides Entrance, keyed outside.
- How many cycles is the 575 ABET tested to?
- The 575 ABET is tested to 200,000 cycles.
