Door viewer
DV06 Door viewer
Model
DV06
Brass door viewer in chrome, polished brass, satin chrome, satin nickel, antique brass, antique copper or oil-rubbed bronze.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Find DV06 on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Brass
- Finish
- Chrome Plated (CP), Polished Brass (PB), Satin Chrome (SC), Satin Nickel (SN), N, Antique Brass (AB), Antique Copper (AC), Oil Rubbed Bronze (ORB)
- Function
- Monitoring Outdoor
- Lens Cover Material
- Synthetic resin (with optional cover)

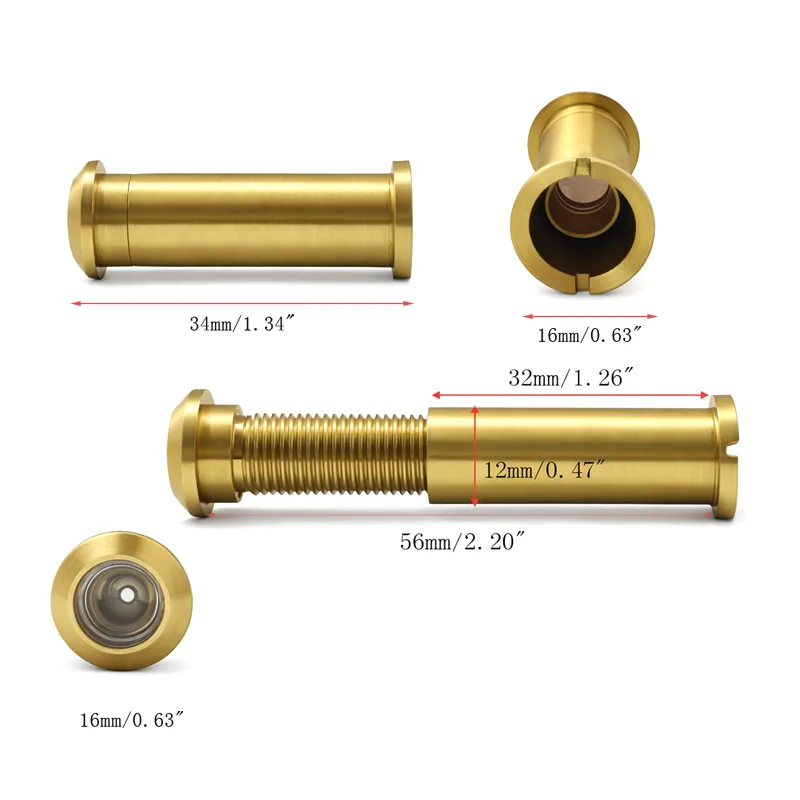

- Available Diameters
- 12mm, 14mm, 16mm (1/2" / 9/16" / 5/8")
- Suitable Door Thickness
- 30–50mm (160°) / 35–55mm / 60–100mm (1-3/16" to 1-15/16")
- Viewing Angle
- 160° / 180° / 200°
Common questions
- What is the DV06 made from?
- The DV06 is made from Brass.
- Which finishes is the DV06 available in?
- The DV06 is available in Chrome Plated (CP), Polished Brass (PB), Satin Chrome (SC), Satin Nickel (SN), N, Antique Brass (AB), Antique Copper (AC), Oil Rubbed Bronze (ORB).
- What door thickness does the DV06 suit?
- The DV06 suits a door thickness of 30–50mm (160°) / 35–55mm / 60–100mm.
- What function does the DV06 provide?
- The DV06 provides Monitoring Outdoor.
- What is the ANSI/BHMA finish code for the DV06?
- Over the Brass base of the DV06, its finishes correspond to 625 (US26, Bright Chromium plated), 605 (US3, Bright Brass, clear coated), 626 (US26D, Satin Chromium plated), 619 (US15, Satin Nickel plated, clear coated), 613 (US10B, Dark Oxidized Satin Bronze, oil rubbed) under ANSI/BHMA A156.18.
