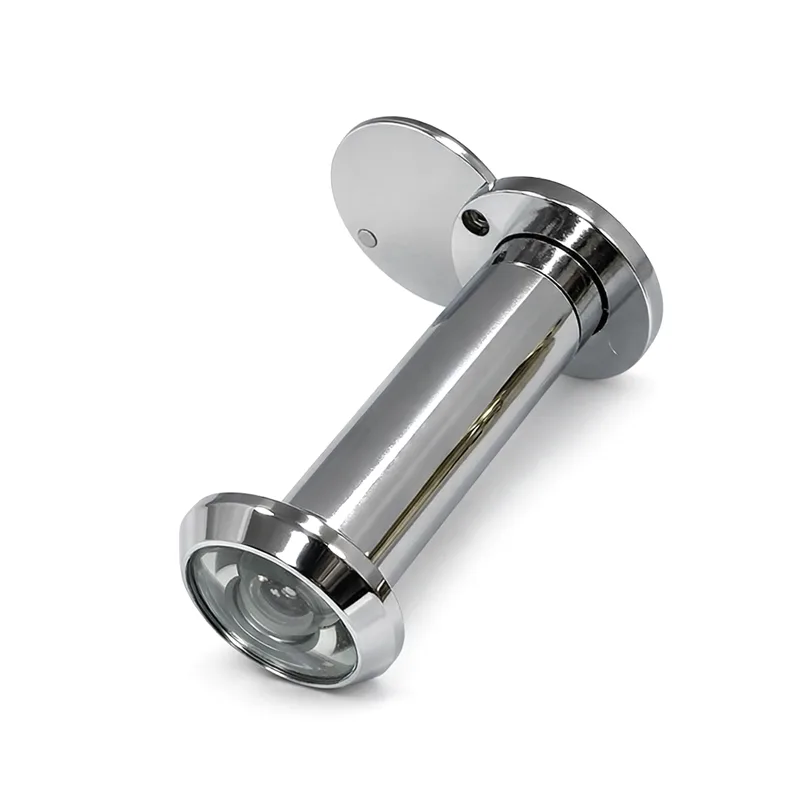

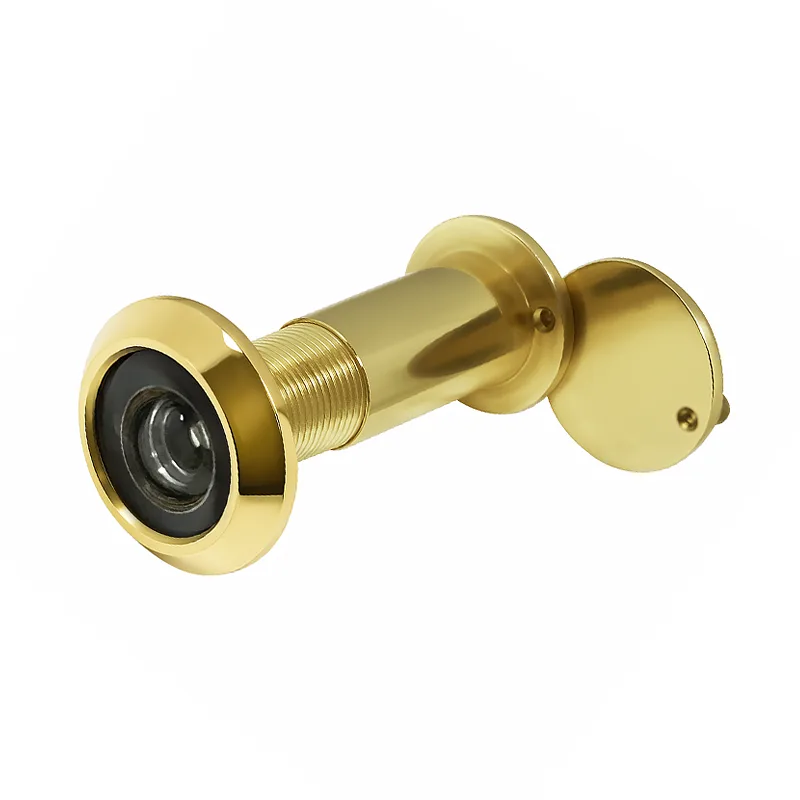

DV05 Door viewer
Model
DV05
Brass door viewer in chrome, polished brass, satin chrome, satin nickel, antique brass, antique copper or oil-rubbed bronze.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Brass
- Finish
- Chrome Plated (CP), Polished Brass (PB), Satin Chrome (SC), Satin Nickel (SN), N, Antique Brass (AB), Antique Copper (AC), Oil Rubbed Bronze (ORB)
- Function
- Monitoring Outdoor
- Lens Cover
- Synthetic resin

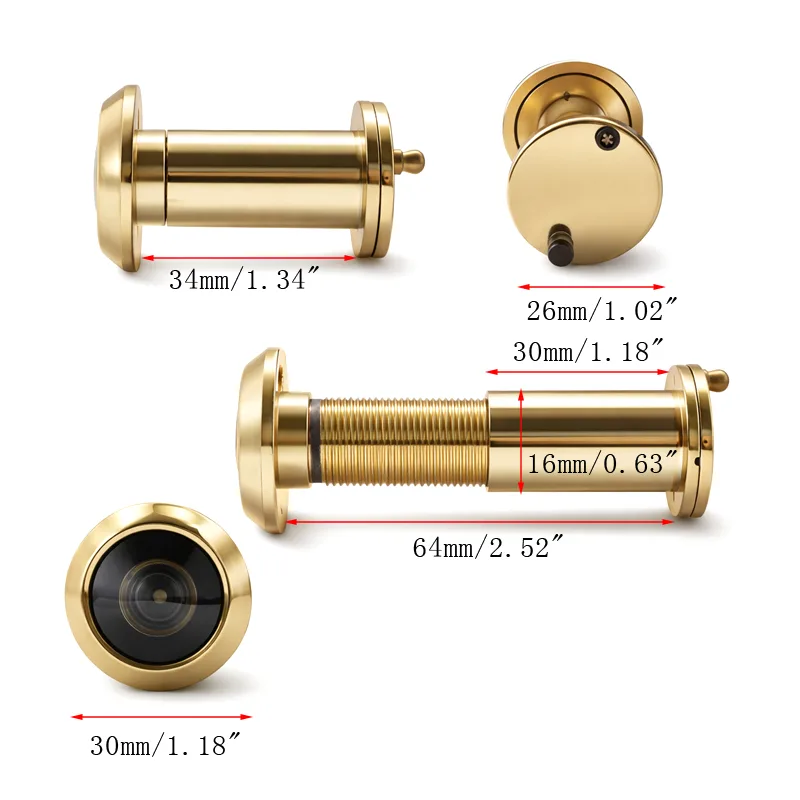

- Diameter
- 12mm / 14mm / 16mm (1/2" / 9/16" / 5/8")
- Door thickness
- 35–55mm / 60–100mm (1-3/8" to 2-3/16")
- Viewing Angle
- 180° / 200°
Common questions
- What is the DV05 made from?
- The DV05 is made from Brass.
- Which finishes is the DV05 available in?
- The DV05 is available in Chrome Plated (CP), Polished Brass (PB), Satin Chrome (SC), Satin Nickel (SN), N, Antique Brass (AB), Antique Copper (AC), Oil Rubbed Bronze (ORB).
- What door thickness does the DV05 suit?
- The DV05 suits a door thickness of 35–55mm / 60–100mm.
- What function does the DV05 provide?
- The DV05 provides Monitoring Outdoor.
- What is the ANSI/BHMA finish code for the DV05?
- Over the Brass base of the DV05, its finishes correspond to 625 (US26, Bright Chromium plated), 605 (US3, Bright Brass, clear coated), 626 (US26D, Satin Chromium plated), 619 (US15, Satin Nickel plated, clear coated), 613 (US10B, Dark Oxidized Satin Bronze, oil rubbed) under ANSI/BHMA A156.18.
Next steps
- Compare every model in this range
One table, one row per model, across the specifications that differ between them.
- Ordering, lead times and samples
Minimum order quantity, production lead time, sample policy, payment terms and OEM work — answered in full.
More in the Door viewer series
Door viewer
Model DV05 BL
Brass
Door viewer

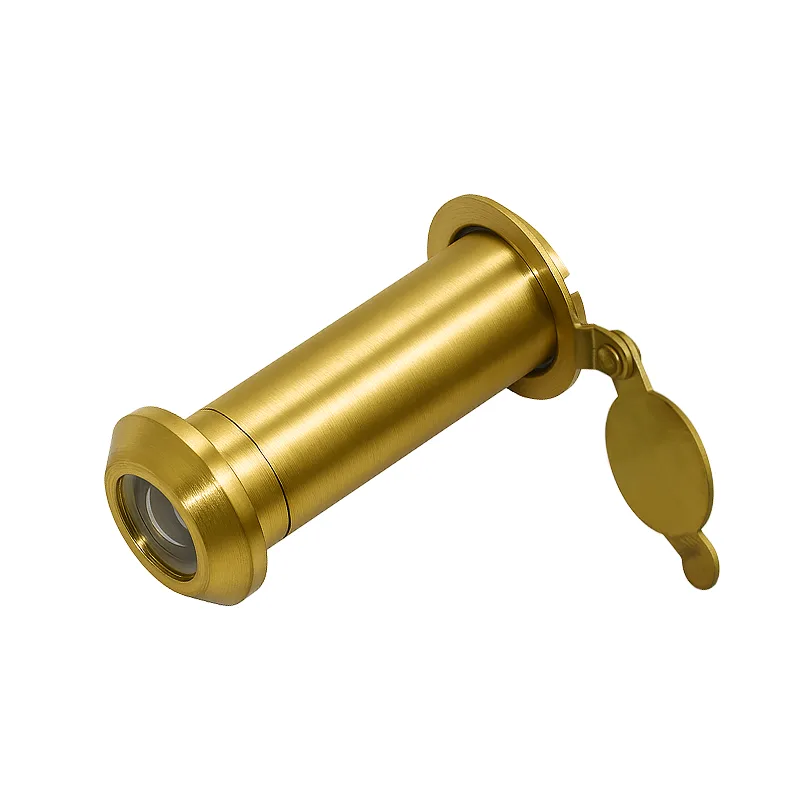

Model DV06
Brass
Door thickness 25-28mm
Door viewer

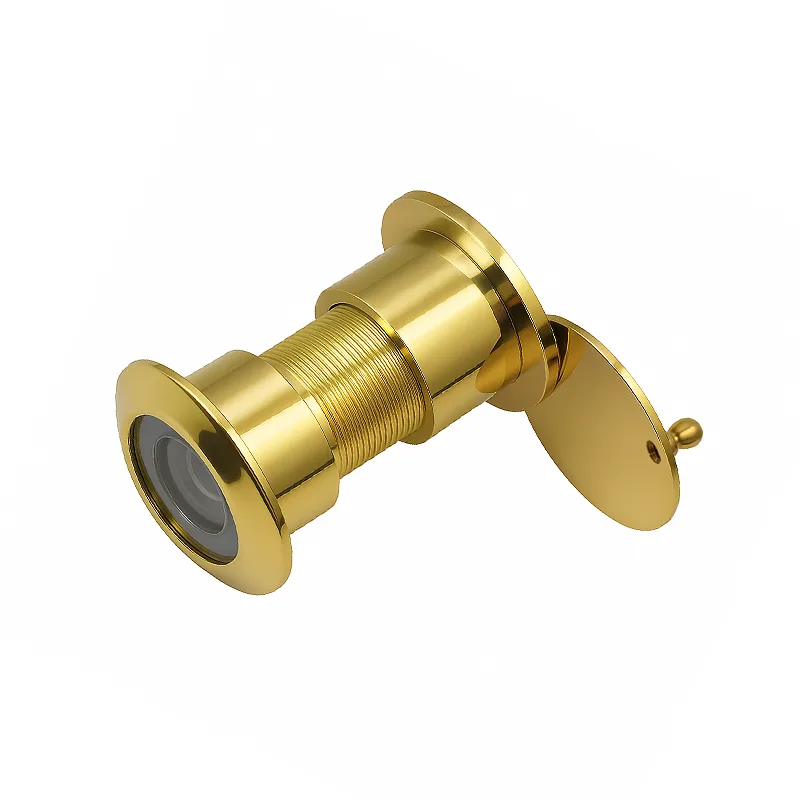

Model DV07
