DC02 Door Coordinator
Model
DC02
Zinc-Plated Steel door coordinator.

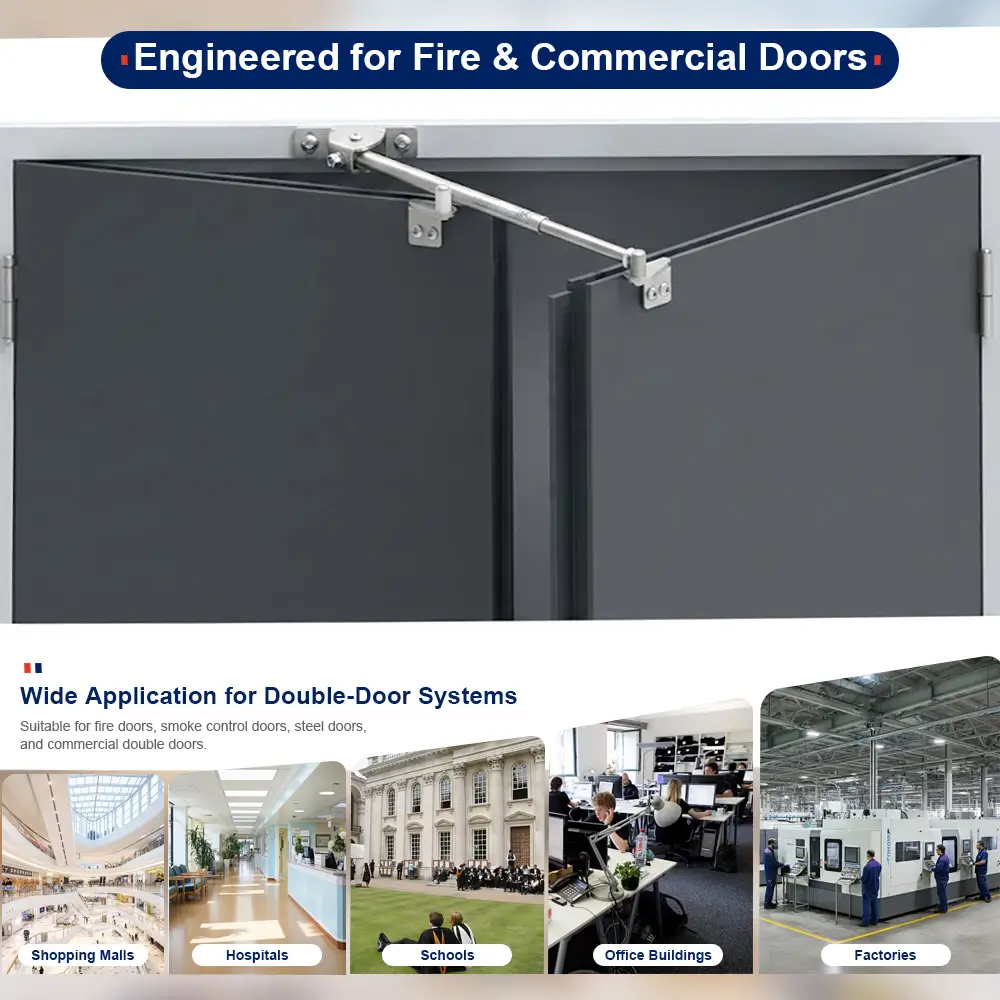

- This mechanical door coordinator is designed for double-leaf door systems. It controls the correct closing sequence, ensuring that the inactive leaf closes first and the active leaf closes afterward.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Application
- Double-Leaf Doors
- Size

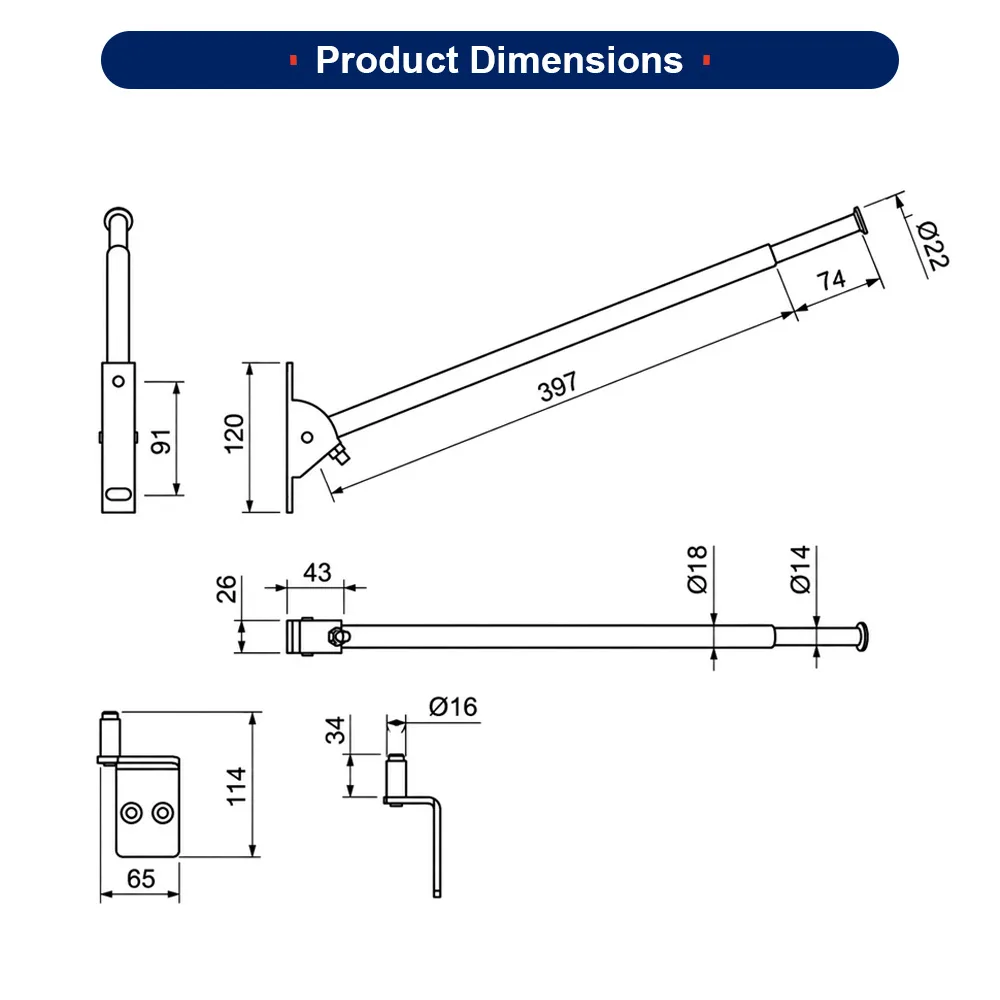

- 397 × 120mm (15-5/8" × 4-3/4")
- Max door weight
- 55–100kg
- Material
- Zinc-Plated Steel
- Color
- Silver
- Finish
- Zinc Plated
- Product Type
- Door Sequence Selector
- Operation
- Mechanical, No Power Required
- Closing Sequence
- Inactive Leaf First, Active Leaf After
- Surface Finish
- Zinc Plated
- Installation Position
- Top of Door Frame
- Included Accessories
- 2 Support Brackets, Screws and Washers
- OEM & ODM
- Available
Common questions
- What type of hardware is the DC02?
- The DC02 is a Door Sequence Selector.
- What is the DC02 made from?
- The DC02 is made from Zinc-Plated Steel.
- Which finishes is the DC02 available in?
- The DC02 is available in Zinc Plated.
- Where is the DC02 used?
- The DC02 is used on Double-Leaf Doors.
- What size is the DC02?
- The DC02 measures 397 × 120mm.
