Glass Door Handle
107 Glass Door Handle
Model
107

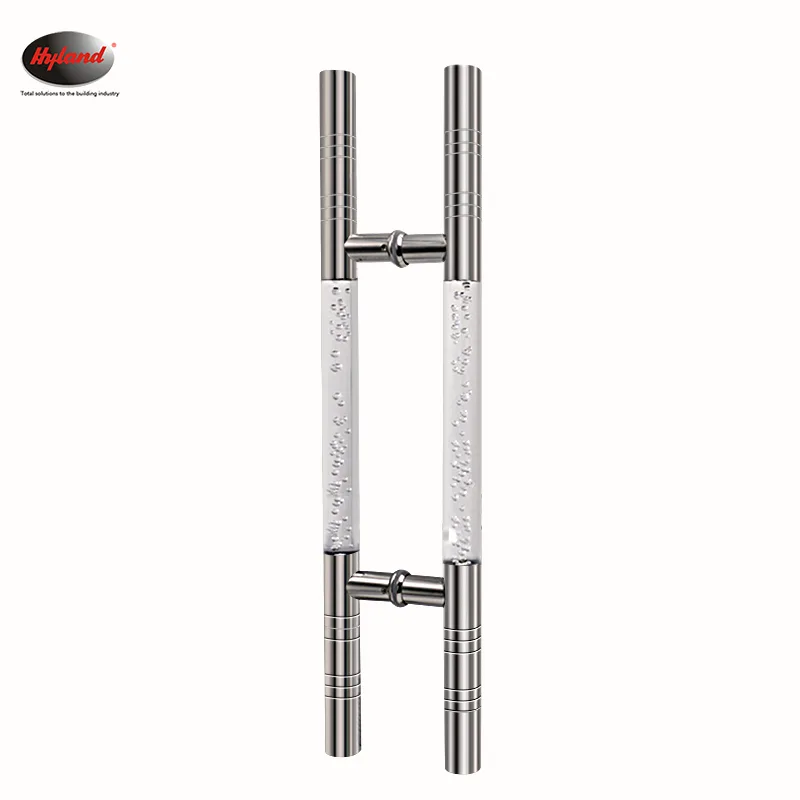

A 304 stainless steel glass door handle in satin ss +middle part acrylic.
- Elegant SUS304 stainless steel handle with an acrylic center for a modern look.
- Durable, safe, and easy to install on glass doors without drilling.
- Compatible with most lock systems for easy replacement and upgrade.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.

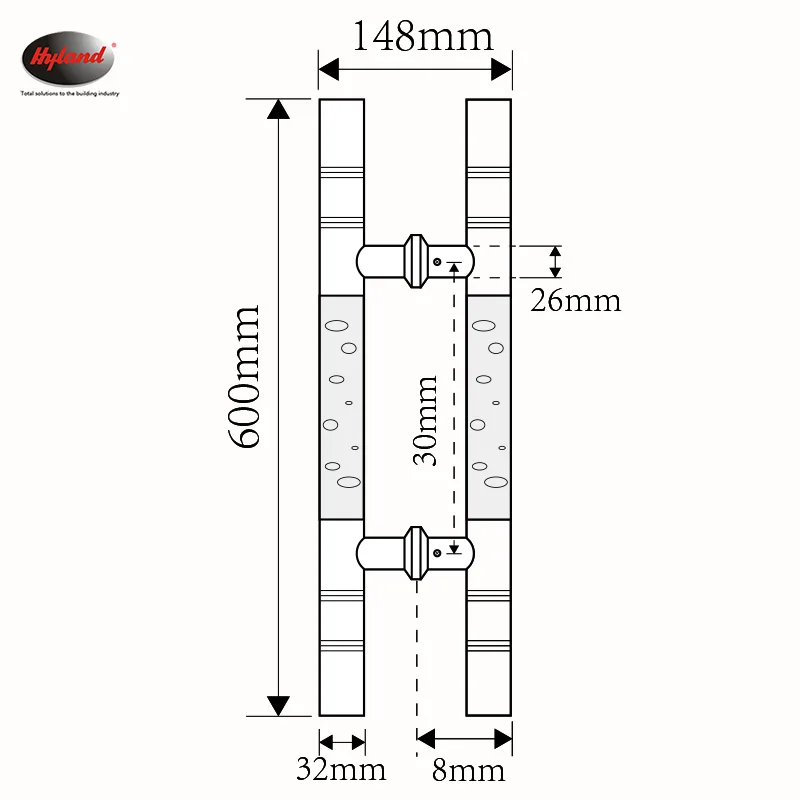

Technical specifications
- Material
- 304 stainless steel
- Finish
- Satin SS +Middle Part Acrylic
- Tube Thickness
- 1.0 mm (optional: 0.8 mm) (1/16" / 1/16")
- Door thickness
- 10–12 mm (3/8" to 1/2")
- Length
- 600mm (23-5/8")
- Center distance
- 148mm (5-13/16")
- Tube diameter
- 32mm (1-1/4")
- Standoff
- 26mm (1")
- Fixing center
- 30mm (1-3/16")
- Glass gap
- 8mm (5/16")
Common questions
- What is the 107 made from?
- The 107 is made from 304 stainless steel.
- Which finishes is the 107 available in?
- The 107 is available in Satin SS +Middle Part Acrylic.
- What door thickness does the 107 suit?
- The 107 suits a door thickness of 10–12 mm.
- What is the center distance on the 107?
- The center distance on the 107 is 148mm.
- What size is the 107?
- The 107 measures 600mm.
